304 Stainless Steel Braided PTFE Hose for High-Pressure Industrial Systems

Introduction

A 304 stainless steel braided PTFE hose is designed for industrial systems that require chemical resistance, pressure performance and reliable operation across a wide temperature range.

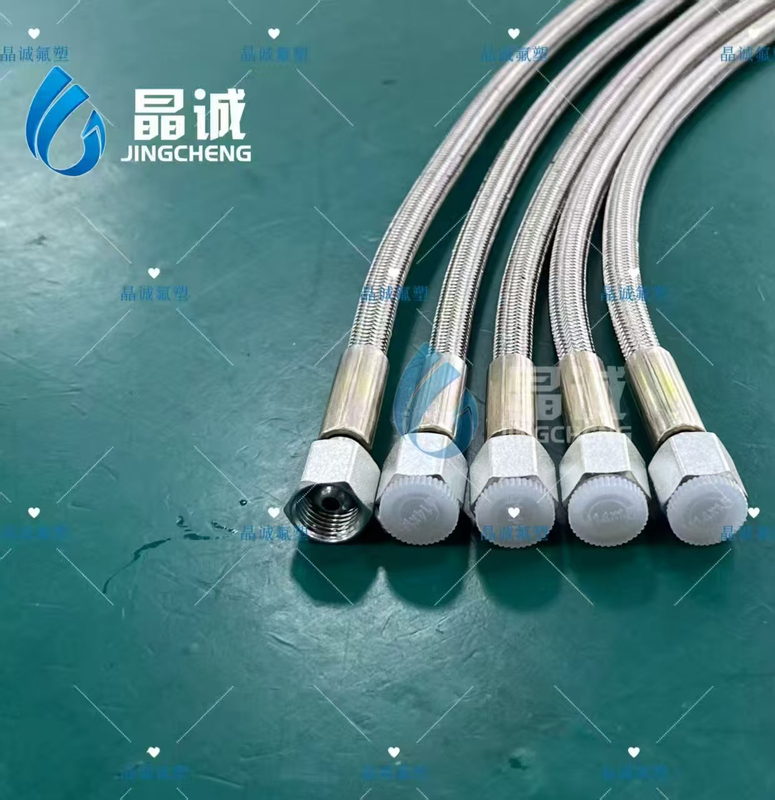

The hose consists of a smooth PTFE inner tube covered by one layer of high-strength 304 stainless steel wire braid. The PTFE inner tube provides resistance to corrosive fluids and temperature changes, while the stainless steel reinforcement improves working pressure, burst strength and mechanical protection.

Shenzhen Jingcheng High-tech manufactures customized single-layer braided PTFE hose assemblies for machinery, automotive production, medical equipment, aerospace systems, chemical processing, energy equipment and other technical industries.

What Is a Single-Layer Braided PTFE Hose?

A single-layer PTFE braided hose combines two primary structures:

• A smooth PTFE material-contact inner tube

• One layer of high-strength 304 stainless steel braid

The smooth PTFE inner surface supports stable fluid flow and helps reduce material retention. The external stainless steel braid limits tube expansion under pressure and protects the PTFE tube against mechanical damage.

This structure offers a practical balance between flexibility, chemical resistance, pressure capability and overall hose weight.

Why Use Stainless Steel Braided PTFE Hose?

Ordinary rubber or plastic hoses may deteriorate when exposed to aggressive chemicals, high temperatures or continuous pressure.

Depending on the medium and working conditions, conventional hoses may experience:

• Swelling

• Cracking

• Chemical degradation

• Permeation

• Pressure expansion

• Premature aging

• Internal contamination

• Reduced service life

A stainless steel braided PTFE hose provides stronger chemical stability and a broader operating temperature range.

Key Features

Smooth PTFE Inner Tube

The smooth inner wall helps reduce friction, pressure loss and material accumulation during fluid transfer.

304 Stainless Steel Reinforcement

The single-layer stainless steel braid improves pressure resistance and provides external mechanical protection.

Wide Temperature Range

The catalog temperature range is from -70°C to +260°C.

Chemical Resistance

PTFE is compatible with many acids, alkalis, solvents, fuels, oils and industrial process fluids.

High-Pressure Capability

Selected sizes have working pressures up to 42 MPa, depending on hose diameter and complete assembly design.

Custom Hose Assemblies

Hose length, fittings, thread standards, protective covers and assembly configurations can be customized.

Typical Applications

• Industrial machinery

• Electronic and electrical equipment

• Automotive fluid systems

• Medical equipment

• Aerospace equipment

• Chemical processing

• Energy systems

• Communication equipment

• Laboratory machinery

• Hydraulic systems

• Pneumatic systems

• High-temperature fluid transfer

Technical Specification

Our Data

The table contains catalog reference values. Final working pressure depends on temperature, fittings, crimping method, hose length and complete assembly design.

Benefits for Equipment Manufacturers

A customized braided PTFE hose can help:

• Improve chemical compatibility

• Increase pressure capability

• Reduce hose expansion

• Improve fluid flow

• Reduce internal residue

• Support high-temperature applications

• Improve equipment connection reliability

• Reduce premature hose failure

• Simplify replacement projects

• Match domestic or imported equipment

How to Select the Correct Hose

Please provide:

• Working medium

• Medium concentration

• Working temperature

• Normal and maximum pressure

• Hose length

• Required inner diameter

• Minimum bending radius

• Machine-side fitting

• Outlet-side fitting

• Thread standard

• Dynamic movement requirements

• Original hose sample or drawing
