Static electricity is easy to ignore because it cannot be seen during normal fluid transfer.
But when low-conductivity liquids, fuels, solvents or other materials move along a hose surface, electrical charge can accumulate.
In the wrong environment, that charge becomes more than a theoretical issue.
It can affect sensitive equipment, generate unwanted discharge or create additional safety concerns around flammable media.

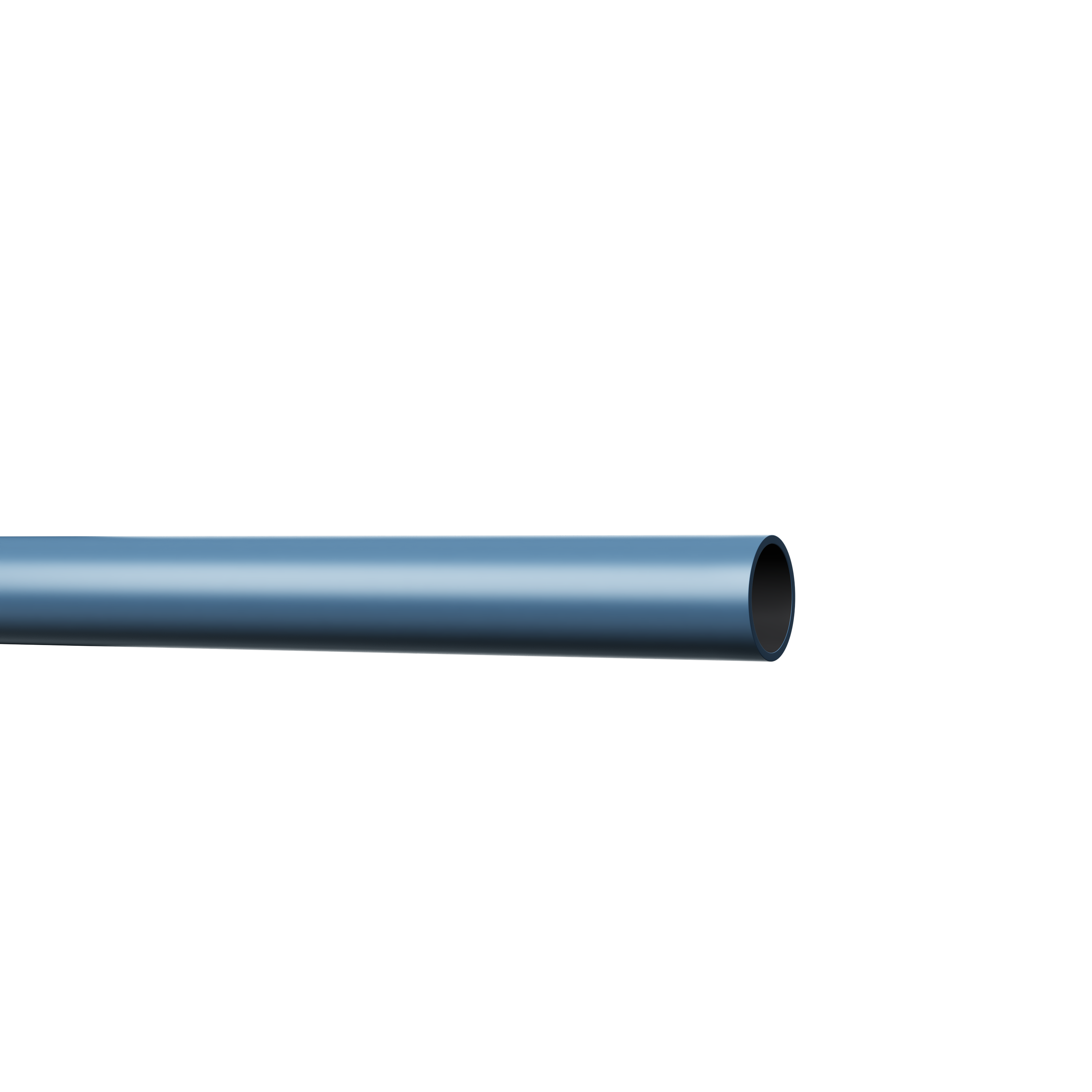

This is why anti-static PTFE hoses are used in systems where ordinary PTFE's electrical characteristics may not be sufficient.
Electrostatic accumulation can be influenced by several conditions:
High fluid velocity
Low-conductivity liquids
Friction between the medium and hose wall
Fuels and organic solvents
Dry operating environments
Particle-containing media
Long transfer distances
The exact risk depends on the material and system design.
For this reason, anti-static performance should be considered together with fittings, grounding and electrical continuity rather than treating the hose as an isolated component.
Jingcheng's anti-static PTFE series includes several different hose geometries.
This structure prioritizes a smooth flow path.
It can be useful when the application requires low material retention, straightforward cleaning and a relatively clean internal surface.
The corrugated structure focuses on flexibility.
It is better suited to compact machines where the hose must bend around multiple components or operate with limited installation space.
This design combines a smooth internal material path with a flexible external geometry.
It is attractive where both clean flow and smaller bending radii are important.
The full-black conductive configuration is intended for applications requiring a stronger static-control design while retaining the flexibility of a corrugated hose.
The required electrical resistance should be confirmed for the specific application before production.
Systems transferring fuels or flammable solvents need careful consideration of electrostatic accumulation.
Potential industries include:
Chemical processing
Fuel handling
Coating systems
Solvent transfer
Industrial fluid treatment
Food processing with suitable media
The complete system should include appropriate conductive pathways and grounding where required.
An anti-static hose alone should not be treated as a substitute for overall system safety design.
Anti-static PTFE is selected not only because of electrical behavior.
The material also retains key PTFE characteristics such as:
Resistance to many chemicals
Low friction
Low adhesion
Broad temperature capability
Lightweight construction
Flexible hose design options
The catalog describes a temperature capability extending approximately from -60°C to +260°C, depending on structure.
Color alone does not define electrical performance.
A correct anti-static hose selection should begin with technical requirements such as:
Fluid type
Fluid electrical conductivity
Flash point
Required hose resistance
Required electrical continuity
Working pressure
Temperature
Flow velocity
Grounding method
Fitting conductivity
This is particularly important when the hose is part of a fuel or solvent handling system.
If the main requirement is clean flow and low residue, a smooth-bore anti-static PTFE hose may be preferred.
If flexibility is more important, a convoluted anti-static hose can provide easier routing.
If both cleanability and flexibility are needed, the inner-smooth outer-corrugated structure provides another option.
The best structure is determined by the equipment rather than by a single general-purpose design.
Static control in fluid-transfer equipment is a system problem, not simply a material label.
The hose structure, conductive formulation, fittings and grounding arrangement must all work together.
Jingcheng's anti-static PTFE series provides different geometries for different equipment requirements, allowing designers to balance static control, flexibility, cleanability and chemical resistance.
For equipment manufacturers handling flammable or static-sensitive media, selecting the right hose structure can reduce risk before the machine even reaches production.
