Convoluted Braided PTFE Hose Designed for Flexible and Dynamic Equipment Connections

Industrial machines are becoming more compact and complex.

Inside modern equipment, hoses often need to pass through limited spaces while handling continuous operation.

A conventional straight hose may struggle with tight routing requirements.

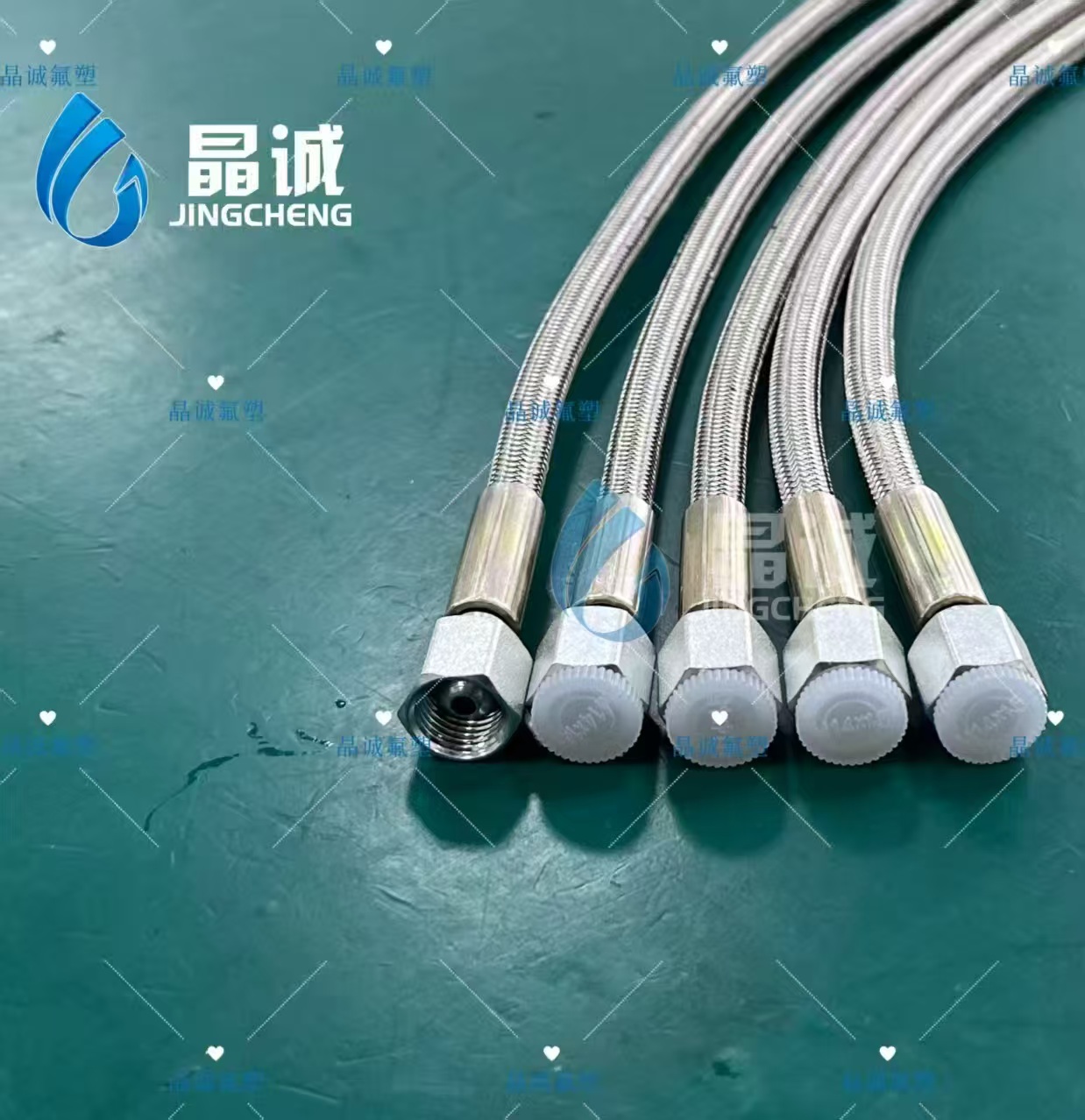

The JCC-11100-PTFE convoluted braided hose uses a corrugated PTFE structure combined with stainless steel braided reinforcement to provide improved flexibility while maintaining reliable performance.

Flexible Structure for Complex Installation

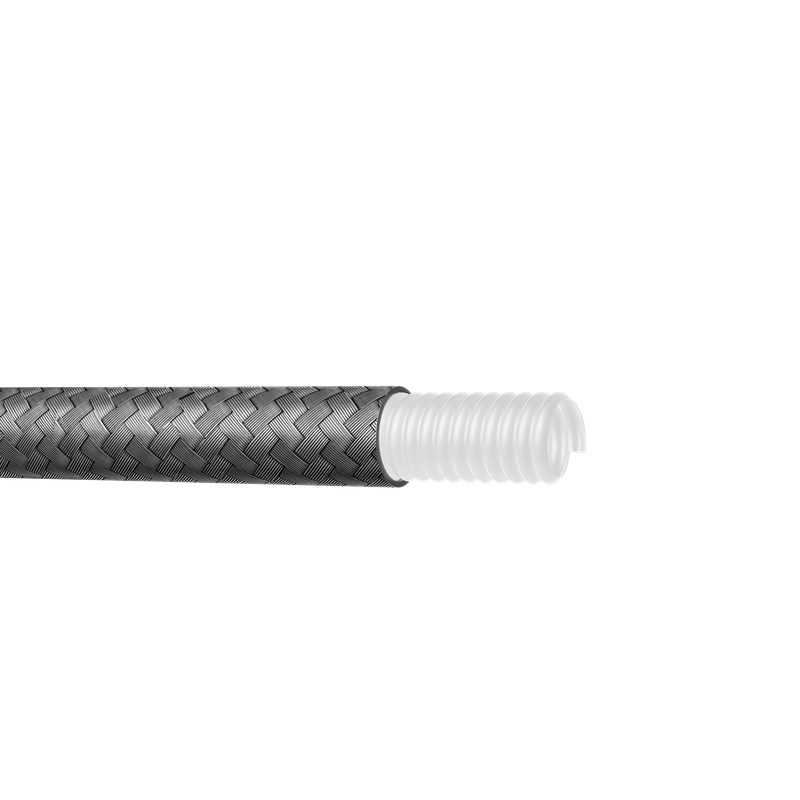

The corrugated PTFE design allows the hose body to bend more easily compared with straight-wall PTFE tubing.

This is useful when installation requires:

• Multiple direction changes

• Compact equipment layouts

• Small installation spaces

• Flexible connection between modules

For machine designers, this can reduce routing limitations during equipment development.

Designed for Moving Equipment Sections

Many industrial systems include components that experience:

• Vibration

• Small movement

• Thermal expansion

• Repeated maintenance operations

A flexible hose connection can help accommodate these changes and reduce stress concentration at fixed connection points.

Stainless Steel Reinforcement for Added Strength

The outer stainless steel braided layer provides mechanical reinforcement.

It helps improve resistance against:

• External pressure

• Mechanical wear

• Operating vibration

• Installation stress

This makes the hose suitable for demanding industrial environments.

Suitable for Clean Process Applications

The hose structure is commonly selected for industries requiring reliable fluid transportation, including:

• Pharmaceutical equipment

• Food processing machinery

• Chemical systems

• Laboratory equipment

The PTFE material provides a clean fluid-contact surface and excellent compatibility characteristics.

Applications

Common uses include:

• Pump connections

• Process equipment

• Filling machinery

• Chemical transfer systems

• Laboratory instruments

• Pharmaceutical production equipment

• Food-processing equipment

OEM Customization Capability

Every machine has different installation requirements.

Available customization options include:

• Hose length

• Connector type

• Inner diameter

• Assembly configuration

• Special end fittings

Jingcheng supports customized PTFE hose solutions according to customer drawings and application requirements.
