Medical and precision equipment often requires a very different hose design from general industrial machinery.
The system may contain limited installation space, specialized fittings, specific material-contact requirements and customized electrical controls.
For these applications, selecting a hose from a standard catalog can be difficult.

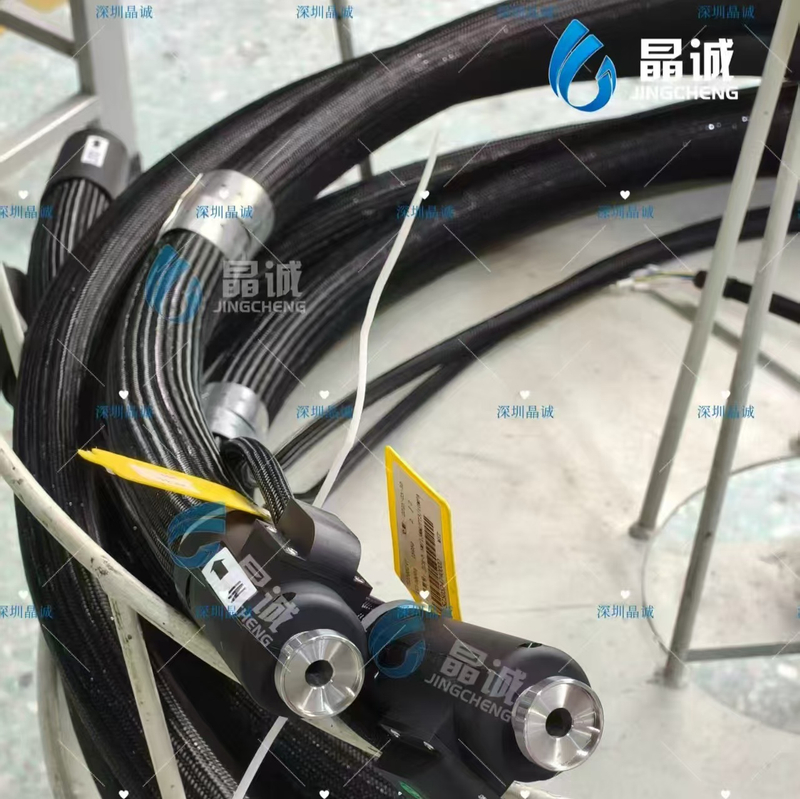

The source product is designed for medical equipment and uses a customized medical-grade material-contact inner tube, with the complete hose assembly produced according to application requirements.
The hose provides a flexible, temperature-controlled material path that can be integrated into compact and specialized equipment.
Two machines may perform similar functions but use completely different hose configurations.
Differences can include:
Inner-tube material
Hose length
Inner diameter
Fitting geometry
Temperature sensor
Heating power
Electrical connector
Installation radius
This makes customization particularly important in precision equipment.
Instead of adapting the machine to a standard hose, the hose can be developed around the machine.
In certain medical or precision-processing systems, the transferred material must remain within a defined temperature range.
The flexible hose between two machine sections can become a thermal weak point because it is exposed to ambient air.
A heated hose provides active thermal support throughout this flexible connection.
This can help maintain:
More stable material condition
Predictable fluid behavior
Reduced temperature loss
Faster equipment stabilization
Consistent transfer between modules
The exact thermal requirement depends on the transferred material and equipment process.
The source product specifically states that a customized medical-grade material-contact inner tube is used.
The final inner-tube selection can be determined according to the customer's technical requirements.
Important factors may include:
Material compatibility
Operating temperature
Pressure
Cleaning method
Flow requirement
Equipment specification
The source does not identify a specific medical regulatory classification for the complete hose assembly, so any required compliance or validation standard should be confirmed separately for the individual project.
Medical and laboratory equipment often contains many components within a relatively small enclosure.
The hose may need to route around:
Pumps
Sensors
Valves
Heating modules
Control electronics
Dosing units
A flexible heated connection allows engineers to create a controlled material path without relying entirely on rigid tubing.
This can improve:
Installation flexibility
Equipment serviceability
Access to internal components
Module replacement
Compact machine design
The hose uses a heating layer with distributed heating elements.
The objective is to reduce temperature differences along the material path.
This may be important in processes where material characteristics change with temperature.
More uniform heating can support:
Stable viscosity
More predictable flow
Reduced local cooling
Faster startup
Better process repeatability
The source product specifies heat resistance up to approximately:
230°C
The actual operating temperature should be based on the requirements of the transferred medium and equipment.
The heating design can be configured according to:
Hose length
Inner diameter
Target temperature
Ambient temperature
Material flow
Equipment control system
Depending on the final confirmed specification, the hose can be developed for:
Medical equipment
Laboratory instruments
Precision fluid-handling systems
Pharmaceutical equipment
Temperature-controlled dosing machinery
Customized analytical equipment
Specialized material-transfer systems
OEM precision machinery
Final suitability should be evaluated according to the actual application.
For a new machine project, the hose can be designed directly from equipment parameters.
For an existing system, customers can provide:
Original hose
Drawing
Photographs
Connector dimensions
Electrical data
Equipment information
This allows a replacement or second-source assembly to be developed around the original configuration.
Available project parameters may include:
Material-contact inner tube
Hose length
Inner diameter
Working temperature
Working pressure
Heating power
Voltage
Temperature sensor
Inlet fitting
Outlet fitting
Electrical plug
Cable length
Outer protection
This provides greater flexibility for specialized OEM equipment design.
For technical evaluation, please provide:
Equipment application
Transferred material
Required inner-tube material
Working temperature
Working pressure
Maximum pressure
Hose length
Inner diameter
Flow requirement
Voltage
Heating power
Sensor type
End fittings
Electrical connector
Cleaning requirements
Equipment model
A medical equipment hose should not be evaluated only as a tube.
It may function simultaneously as:
A material path
A heated component
A flexible connection
A sensor interface
An electrical assembly
The correct design needs to match all of these requirements together.
This is one reason customized hose engineering is valuable for precision equipment manufacturers.
Medical and precision equipment often requires more than a standard flexible hose.
A customized heated hose provides a controlled material-transfer path that can be adapted to the machine's internal layout, thermal requirements, fittings and electrical interface.
By selecting the material-contact inner tube and complete assembly according to the actual equipment, manufacturers can integrate the hose as a functional machine component rather than an aftermarket accessory.
