In hydraulic transmission systems, hose selection directly affects pressure safety, transfer stability, and long-term service life. When the application involves demanding fluid pressure, dynamic operating conditions, or more severe industrial environments, a standard single-braided hose may not provide enough reinforcement.

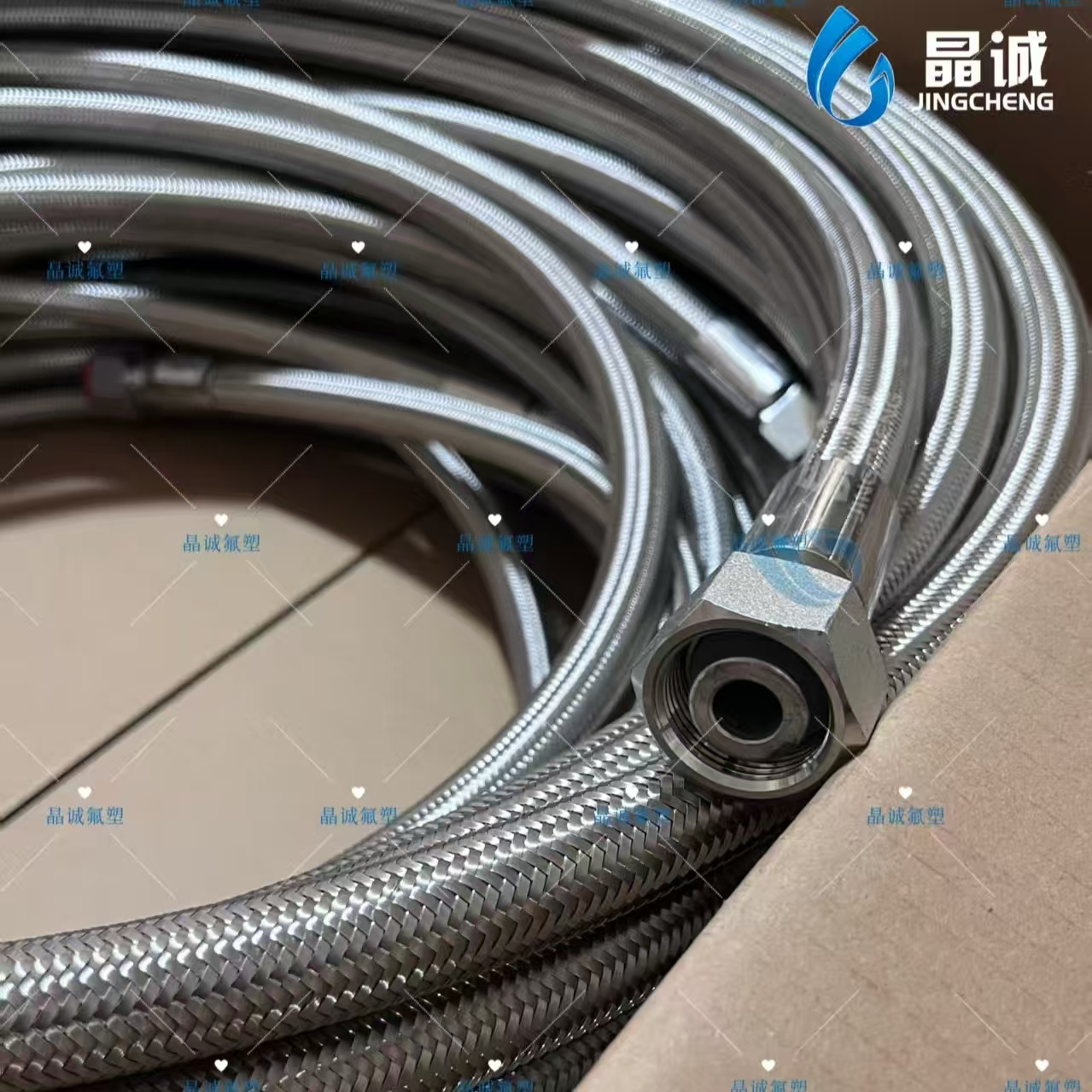

That is where a double braided PTFE hose becomes a much stronger solution. Shenzhen Jingcheng’s Double Braided PTFE Hose is designed for hydraulic transfer applications that require both PTFE media compatibility and stronger structural reinforcement. According to your brochure, this hose uses a smooth PTFE inner tube and is covered with two layers of high-strength 304 stainless steel braided wire reinforcement, giving it a heavier-duty structure for more demanding transfer conditions. The brochure also states a temperature range of -70°C to +260°C and positions the hose for hydraulic transmission of gas-based fluids, oil-based fluids, water-based fluids, and chemical materials.
A standard braided PTFE hose already offers better reinforcement than plain tubing, but in hydraulic systems with higher pressure and more demanding operating conditions, extra reinforcement can make a major difference.
This product goes beyond single-layer braid construction by adding two layers of high-strength 304 stainless steel braid over the PTFE core. That means:
stronger overall hose structure
better suitability for hydraulic transmission
improved pressure-bearing capability
more robust support for demanding industrial use
For buyers who need a reinforced PTFE hose for real hydraulic service, this double-braid structure offers a clear upgrade over simpler hose designs.

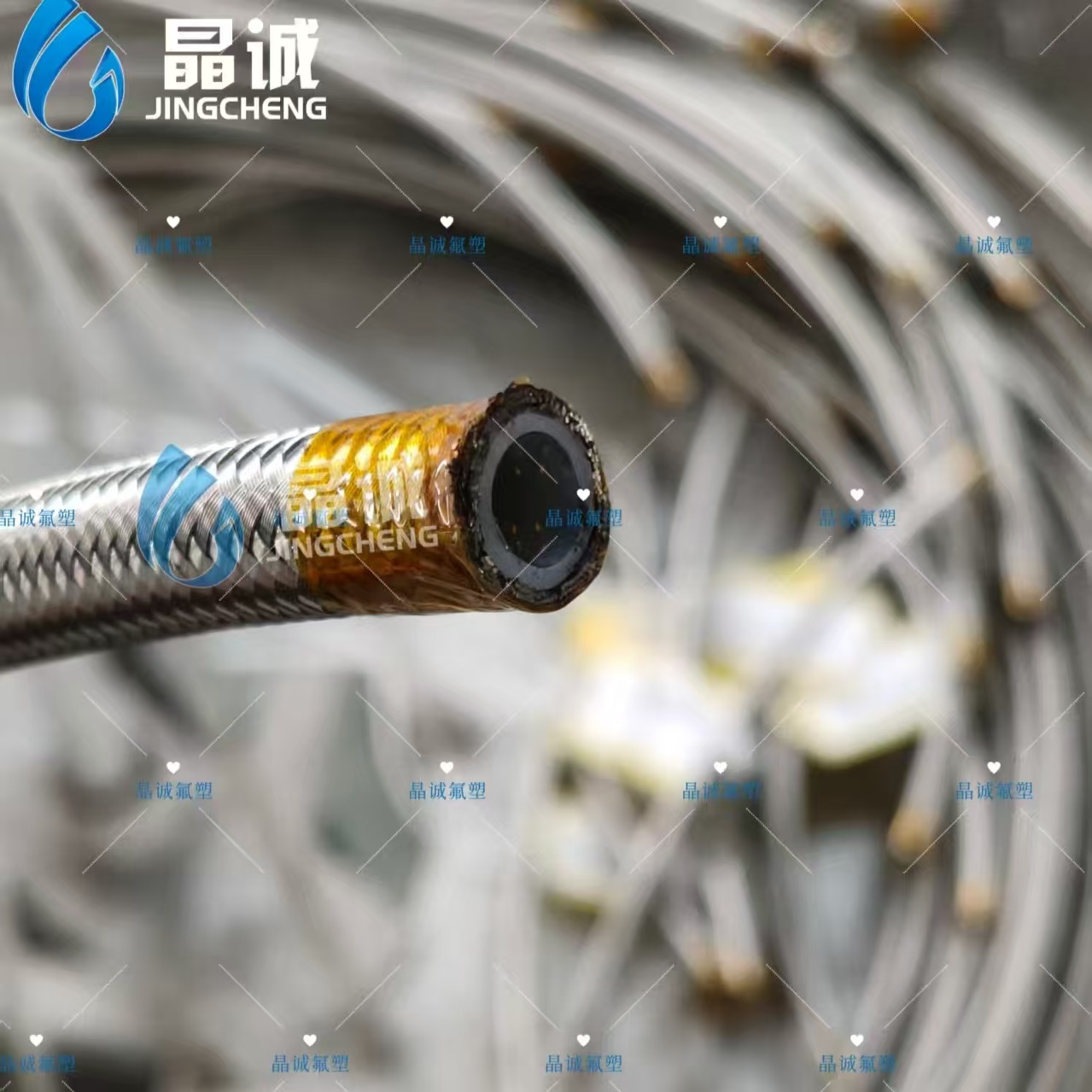

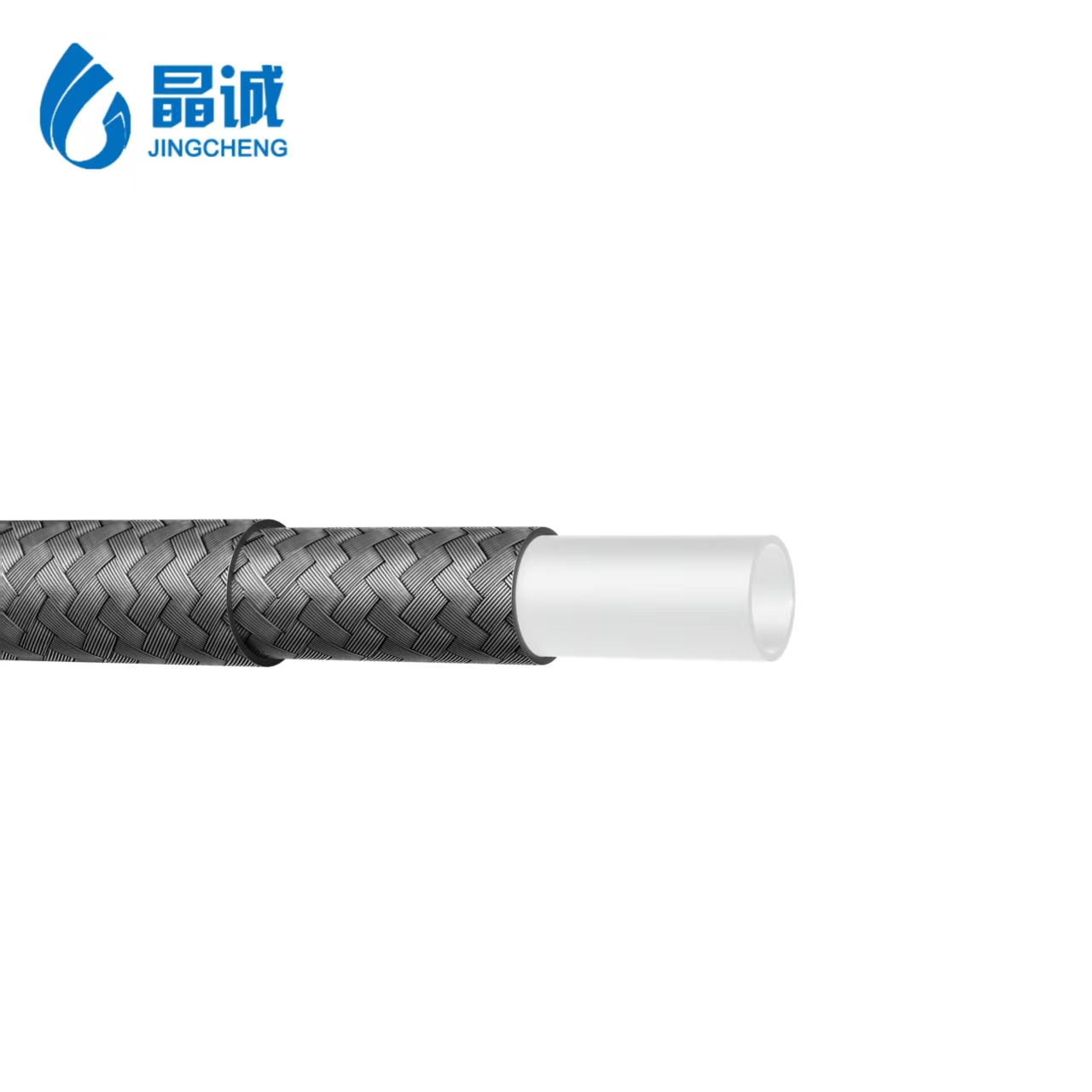

The biggest strength of this product is its two-layer 304 stainless steel braided reinforcement structure. Compared with a single-braided hose, this construction gives the hose greater structural support for higher-demand fluid transfer systems.
The hose inner layer is a smooth PTFE tube, which supports cleaner media transfer, broad chemical compatibility, and the typical anti-corrosion advantages PTFE is known for.
The brochure clearly positions this hose for hydraulic transmission, not just general low-pressure transfer. That makes it much more relevant for customers who need a PTFE hose in pressurized fluid systems.
This hose is described as suitable for gas-based fluids, oil-based fluids, water-based fluids, and chemical materials, making it a versatile option across a wide range of hydraulic and industrial systems.
The hose operates within a temperature range of -70°C to +260°C, giving it strong adaptability across both low-temperature and high-temperature environments.
Item | Our Data |
|---|---|
Product Name | Double Braided PTFE Hose |
Model Series | JCC-01200-PTFE |
Inner Structure | Smooth PTFE inner tube |
Reinforcement | Two layers of high-strength 304 stainless steel braided wire |
Temperature Range | -70°C to +260°C |
Main Media | Gas-based fluids, oil-based fluids, water-based fluids, chemical materials |
Main Application | Hydraulic transmission |
Custom Support | Customizable according to parameter requirements |
These product details are stated on the eighth product page of your PTFE cold hose brochure.
No. | Inner Diameter | Outer Diameter | Outer Diameter of Woven Products | Working Pressure | Burst Pressure | Minimum Bending Radius |
|---|---|---|---|---|---|---|
JCC-01206-PTFE | 1/4" / 6.3 mm | 8.3 mm | 10.6 mm | 40 MPa | 120.9 MPa | 3.27" / 83 mm |
JCC-01208-PTFE | 5/16" / 7.9 mm | 10.3 mm | 12.8 mm | 35 MPa | 105 MPa | 3.27" / 83 mm |
JCC-01210-PTFE | 3/8" / 9.5 mm | 11.9 mm | 15 mm | 32 MPa | 96.9 MPa | 4.13" / 105 mm |
JCC-01213-PTFE | 1/2" / 12.6 mm | 15 mm | 18.3 mm | 27 MPa | 79.8 MPa | 5.51" / 140 mm |
JCC-01216-PTFE | 5/8" / 16.3 mm | 20.3 mm | 22 mm | 21 MPa | 62.7 MPa | 6.93" / 176 mm |
JCC-01219-PTFE | 3/4" / 19.5 mm | 23.5 mm | 26.4 mm | 20 MPa | 58.5 MPa | 8.27" / 210 mm |
JCC-01225-PTFE | 1" / 25 mm | 29 mm | 32.6 mm | 17 MPa | 51.6 MPa | 11.22" / 285 mm |
JCC-01232-PTFE | 1-1/4" / 31.5 mm | 35.5 mm | 39.5 mm | 14 MPa | 42 MPa | 13.39" / 340 mm |
These specifications are shown in the product table for the eighth PTFE hose product in your brochure.
These values clearly show that this is a heavy-duty hydraulic PTFE hose, not a light-duty transfer tube.
For example:
the working pressure values up to 40 MPa indicate strong hydraulic capability
the burst pressure values up to 120.9 MPa show the benefit of the dual-braid reinforcement structure
and the wide size range from 1/4" to 1-1/4" makes the hose suitable for different system sizes and hydraulic layouts
For hydraulic fluid transmission, these numbers matter because they directly influence system safety, hose durability, and long-term stability.
This product is well suited for:
hydraulic transmission of gas-based fluids
hydraulic transmission of oil-based fluids
hydraulic transmission of water-based fluids
chemical material transfer under hydraulic conditions
industrial systems requiring reinforced PTFE hose with stronger pressure performance
These application directions are directly supported by the brochure description.
Your brochure presents Jingcheng as a professional PTFE hose manufacturer focused on PTFE hose production and customized transfer solutions. For a product like this, that matters because high-pressure hydraulic hose performance depends not only on PTFE material, but also on reinforcement consistency, braid quality, dimensional stability, and production control.
For customers, choosing the right supplier means getting more than a hose. It means getting a reinforced hydraulic PTFE transfer solution that can perform reliably in demanding service conditions.
