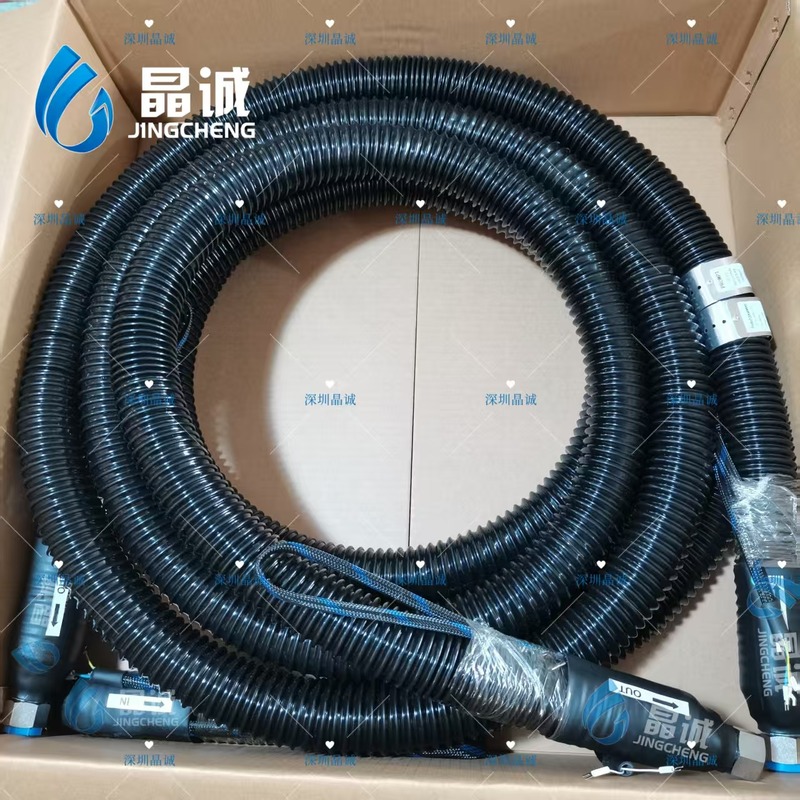

Special equipment often has to move hot, pressurized fluids between a pump, a melter or a reactor and the point of use. If the transfer line cools down, viscous media thicken or solidify, flow becomes unstable and the line can block. If the hose cannot hold pressure at temperature, the whole system is at risk. JINGCHENG's Special Equipment Connection Hose is an electrically heated hose built for exactly this duty: it heats and insulates the fluid along its full length, uses a Daikin PTFE (Teflon) inner tube with 304 stainless steel pressure wire, and is rated for heat resistance up to 230°C, with working pressure up to 40 MPa or higher on custom builds.
Unheated or poorly insulated transfer lines cause recurring problems on high-temperature, high-pressure equipment:
Cold spots: resins, fats, oils and other viscous fluids solidify, freeze or increase in viscosity where the line loses heat
Unstable flow: temperature differences along the hose change viscosity and make dosing or delivery inconsistent
Pressure failure: hoses that are not designed for pressure at high temperature can leak or burst
Safety and surface temperature: a hot line with poor insulation is a burn and energy-loss problem around the machine
An electrically heated connection hose keeps the medium at a constant, controlled temperature from end to end while carrying the system pressure.

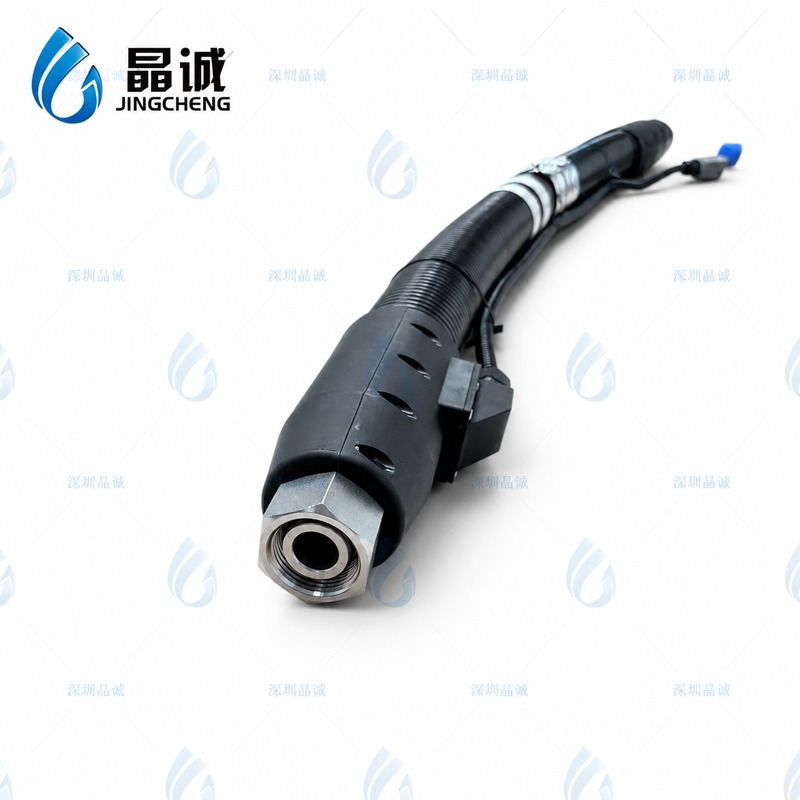

The inner tube is made of Daikin PTFE (Teflon) from Japan, which is chemically inert, non-stick and suitable for high-temperature service. The pressure-bearing layer uses 304 stainless steel pressure wire, which gives the hose its high working and burst pressure.
The heating layer is made of uniformly braided heating elements, which minimizes temperature differences across the inner wall of the hose. Around it, JINGCHENG uses materials with high insulation efficiency, chosen with the outer surface temperature in mind, so that heat stays in the fluid instead of being lost to the surroundings.
A built-in temperature sensor (Type J or Type K thermocouple, Ni120, PT100 or PT1000, as specified) reports the hose temperature to your controller, so the line can be held at its set point. Matching temperature controllers can also be supplied.
Heat resistance up to 230°C (higher temperatures available on request)
Working pressure up to 40 MPa or higher on customized builds
Daikin PTFE inner tube with 304 stainless steel pressure wire
Uniformly braided heating elements for an even inner-wall temperature
High-efficiency insulation designed around the hose surface temperature
Three levels of quality assurance: routine checks by a testing agency, in-house inspection and supplier control, so that every line's temperature and pressure resistance is verified
Built to order: voltage, sensor, length, inner diameter, power and fittings are specified per project
The Special Equipment Connection Hose is designed for domestic and imported special equipment that runs high-temperature, high-pressure pipelines. Typical uses include:
Hot fluid transfer on special machinery: connecting pumps, melters, tanks and dispensing heads
Viscous media lines: keeping resins, fats, oils and other viscous fluids from solidifying or thickening
Insulated hot-fluid conveying systems: heated and insulated connections between process equipment
Retrofit and replacement lines: custom connection hoses for imported equipment, built to the original parameters
ID (inch) | OD (mm ±0.2) | Working Pressure (bar) | Working Pressure (psi) | Burst Pressure (bar) | Burst Pressure (psi) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|
5/16" | 13.3 | 113 | 1631 | 450 | 6525 | 15 |
3/8" | 15.5 | 110 | 1595 | 440 | 6380 | 20 |
1/2" | 19 | 88 | 1269 | 350 | 5075 | 25 |
5/8" | 22.7 | 70 | 1015 | 280 | 4060 | 30 |
3/4" | 27 | 65 | 943 | 260 | 3770 | 60 |
1" | 34 | 57.5 | 834 | 230 | 3335 | 85 |
1-1/4" | 43 | 52.5 | 761 | 210 | 3045 | 155 |
1-1/2" | 49.5 | 50 | 725 | 200 | 2900 | 200 |
Heat resistance up to 230°C; higher temperature and pressure on request. Please confirm the rating at your operating temperature with our engineers when you order.
Every JINGCHENG electrically heated hose is built to order. The catalog order form lets you specify each of the following:
Item | Catalog options |
|---|---|
Rated voltage | 380 Vac, 220 Vac, 110 Vac, 12 Vdc, or other |
Temperature sensor | Type J thermocouple, Type K thermocouple, Ni120, PT100, PT1000, or other |
Hose length | 3 m, 4.5 m, 5 m, 6 m, 10 m, or other |
Inner diameter | Φ8, Φ12, Φ16, Φ19, Φ25 mm, or other |
Hose working pressure | 4 MPa, 10 MPa, 20 MPa, 35 MPa, or other |
Rated power | 110 W/m, 150 W/m, 170 W/m, 200 W/m, or other |
End fittings (each end) | US, British or metric thread, or other |
Wiring | Pin number, wire color and function defined for the controller end and the gun/tool end |
JINGCHENG heated hoses are identified by a model code such as JCH-200-16-B-3X220-P2-8:
200: working temperature in °C (200 = 200°C)
16: hose inner diameter in mm (16 = Φ16)
B: inner tube material (B = stainless steel corrugated tube; TB = PTFE hose with stainless steel braid; T = PTFE hose; X = special material)
3X220: working voltage (220 = 220 V; 3X220 = three-phase four-wire 220 V)
P2: temperature sensor (P2 = PT100 two-wire; P3 = PT100 three-wire; K = Type K thermocouple; J = Type J thermocouple; W = no sensor; T = special sensor)
8: working pressure in MPa (8 = 8 MPa)
Ambient temperature: -40°C to +55°C
Relative humidity: not more than 85%
Atmospheric pressure: 86 kPa to 106 kPa
Voltage range: 12 Vac to 380 Vac
The surrounding medium should not contain gases that corrode metal or damage insulation, or conductive media, and severe mold must not be present. For special environments, contact us for a customized hose.
Wire the hose according to its technical parameters and the pin table supplied with it.
Do not twist the hose sideways during or after installation; lateral twisting can cause leakage, flow loss, hose damage or fire.
Avoid sharp bends; bending the hose too tightly can damage it and cause short circuit, leakage or fire.
The hose should be operated only by authorized and trained personnel, ideally the same dedicated operators.
Unauthorized modification or adjustment of the hose voids the warranty.
If you meet a problem not covered by the instructions, contact us so that our engineers can guide the installation.
Inquiry: send us your requirements by phone, fax or the inquiry form.
Specification confirmation: our engineers propose the most suitable specification as a quotation reference.
Quotation: we issue a quotation; you confirm with a purchase order.
Production: the hose is built in our factory to the confirmed specification.
Inspection and packing: every hose is checked for defects and packed.
Shipment: the hose is shipped to your designated address.
Temperature: state the fluid set point and the maximum temperature the hose must reach (standard up to 230°C).
Pressure: keep the system pressure, including surges, within the working pressure of the selected size; for pressure above the table values, ask for a custom build.
Size: choose the inner diameter for your flow rate, from 5/16" to 1-1/2" in the catalog table.
Electrical: tell us the supply voltage (380 Vac, 220 Vac, 110 Vac or 12 Vdc), the power per meter and the sensor type your controller accepts.
Fittings and wiring: specify the thread standard at each end and the connector pin layout so the hose plugs straight into your equipment.
Shenzhen Jingcheng High-Tech Co., Ltd. has been developing and manufacturing PTFE hoses, PTFE high-pressure hoses and PTFE electrically heated hoses since 2005, and provides complete insulated hot-fluid conveying solutions. Each special equipment connection hose is built to the customer's parameters and checked for temperature and pressure resistance before shipment.
When special equipment needs a hot, pressurized fluid line that stays at temperature from end to end, the JINGCHENG Special Equipment Connection Hose is a dependable choice: a Daikin PTFE inner tube, 304 stainless steel pressure wire, uniformly braided heating elements, heat resistance up to 230°C and working pressure up to 40 MPa or higher on custom builds. Send us your equipment parameters for a tailored quotation.
