Engineered High-Temperature High-Pressure Hose for Demanding Special-Industry Equipment

High temperature alone is not difficult.

High pressure alone is not unusual.

The real engineering challenge appears when a hose must manage:

high temperature + high pressure + flexible installation + special fittings + electrical heating

at the same time.

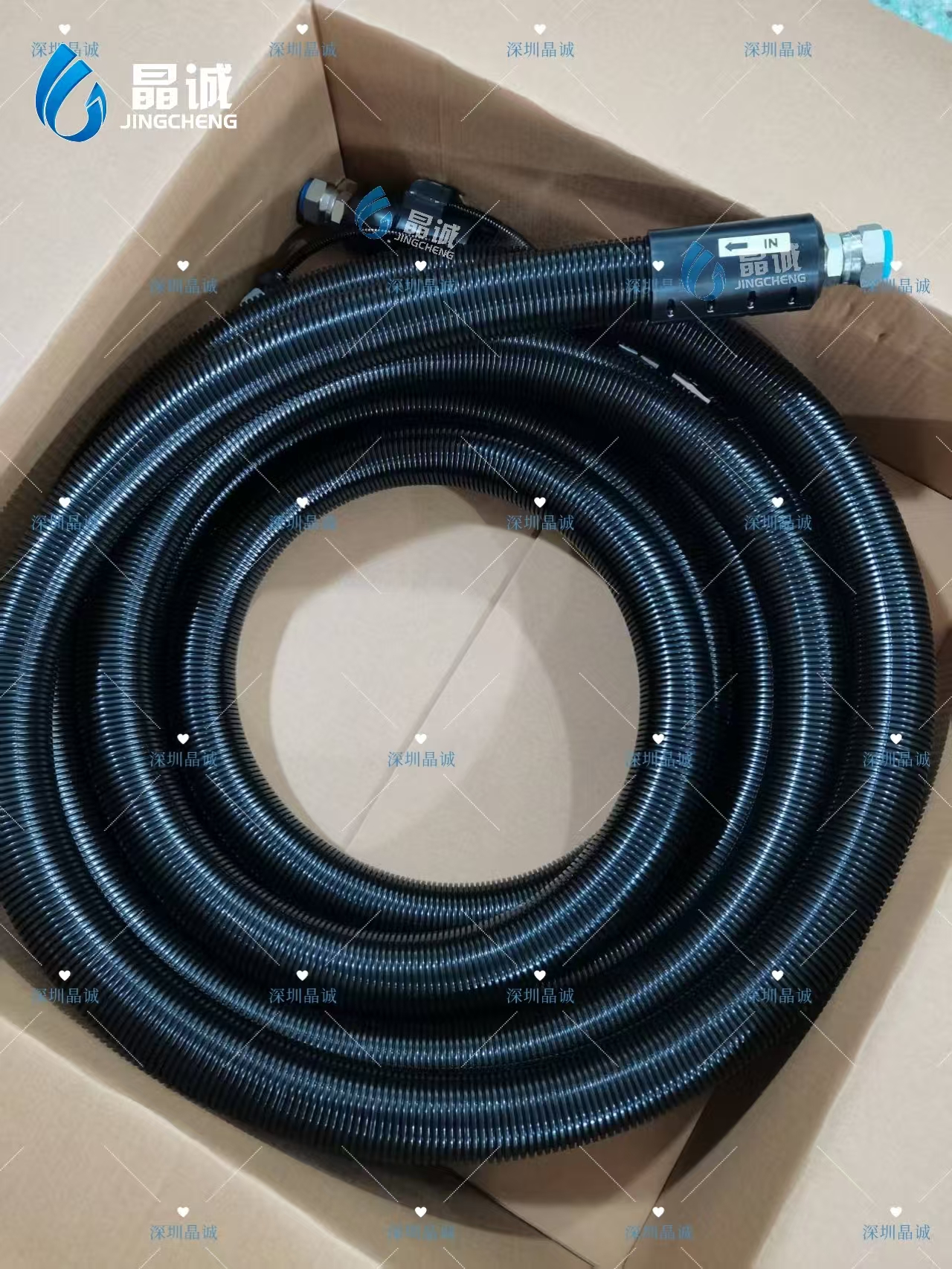

This is the type of application addressed by Jingcheng's special-industry high-temperature high-pressure heated hose.

The source product is designed for specialized domestic and imported equipment and uses a high-temperature inner material combined with pressure-resistant 304 stainless steel reinforcement.

The standard catalog version is specified for temperatures up to approximately:

230°C

while higher pressure or special configurations can be evaluated according to the project.

Temperature and Pressure Cannot Be Evaluated Separately

One of the most important principles in hose engineering is that pressure rating is not independent of temperature.

A hose that performs well at room temperature may have different allowable pressure at elevated temperature.

This means a project cannot be evaluated only by asking:

“What is the maximum pressure?”

The correct question is:

“What pressure must the hose maintain at the actual working temperature?”

This changes the entire design process.

Why Thermal Conditions Affect Hose Design

Higher temperature can influence:

• Inner tube mechanical properties

• Fitting seals

• Reinforcement behavior

• Crimping performance

• Material expansion

For this reason, a high-temperature high-pressure hose should be engineered as a complete assembly rather than selected from a pressure table alone.

Reinforcement Structure Is Critical

The source product uses pressure-resistant stainless steel wire reinforcement.

Its purpose is to mechanically support the internal material tube and limit excessive expansion under pressure.

The reinforcement must be matched to:

• Hose diameter

• Working pressure

• Maximum pressure

• Temperature

• Bending requirement

Adding more reinforcement is not always automatically better because it can also increase:

• Weight

• Outer diameter

• Stiffness

• Minimum bending radius

The best structure is the one matched to the application.

Fittings Are Part of the Pressure System

Many hose failures occur not in the middle of the hose but near the connection.

The hose assembly includes:

Inner Tube + Reinforcement + Fitting + Crimp + Seal + Connection

All of these must work together.

A high-pressure hose body combined with an unsuitable fitting does not create a reliable high-pressure assembly.

This is why fitting selection should consider:

• Thread standard

• Fitting material

• Crimp dimensions

• End orientation

• Pressure rating

• Operating temperature

Heating Must Be Uniform, Not Simply Powerful

Because this is a heated hose, the electrical heating system adds another engineering layer.

The purpose of heating is not to create the highest possible temperature.

It is to keep the material inside the hose within the required process window.

Uneven heating may produce:

• Local cold sections

• Viscosity differences

• Pressure fluctuation

• Material buildup

The heating structure should therefore provide relatively uniform thermal distribution along the hose.

Insulation Reduces Unnecessary Thermal Loss

The source product uses thermal insulation around the heating structure.

This helps:

• Reduce heat loss

• Stabilize internal temperature

• Reduce heating demand

• Improve temperature uniformity

This becomes especially important for long hose assemblies.

Special Equipment Often Uses Non-Standard Interfaces

Special-purpose machinery may use:

• Metric fittings

• BSP threads

• NPT threads

• Flanges

• Proprietary connectors

• Different fittings on each end

Electrical interfaces can also vary.

A customized heated hose may need to match:

• Voltage

• Heating power

• Sensor

• Connector

• Pin arrangement

• Cable length

This is why specialized hoses often require engineering rather than simple catalog selection.

Quality Verification Matters in High-Risk Applications

The source product description emphasizes several layers of quality assurance, including:

• Material/supplier control

• Internal inspection

• External or third-party testing where required

For demanding hose assemblies, verification can include checking:

• Dimensions

• Fittings

• Heating performance

• Electrical continuity

• Pressure performance

• Leak tightness

The exact test plan should be agreed according to the project.

Why Pressure Testing Is Important

A completed hose assembly contains multiple interfaces.

Pressure testing helps verify the integrity of the final assembled system rather than assuming that individual components will perform correctly after assembly.

This is especially important for:

• High-pressure equipment

• Heated fluid transfer

• Customized fittings

• Imported machine replacements

• Critical process systems

Typical Applications

Potential applications include:

• Special-purpose industrial machinery

• High-temperature fluid transfer

• Resin systems

• Adhesive equipment

• Chemical processing

• Heated coating machines

• Imported equipment

• Pilot production systems

• Customized R&D machinery

• High-pressure process equipment

Up to Approximately 230°C Standard Temperature Capability

The source product lists standard heat resistance up to approximately:

230°C

Custom higher-temperature requirements should be evaluated separately.

Actual operating temperature should be determined by the process material rather than simply using the hose's maximum rating.

Pressure Selection Should Be Based on Real Machine Data

For technical evaluation, customers should provide:

• Normal pressure

• Maximum pressure

• Pressure peaks

• Temperature

• Hose diameter

• Hose length

• Material viscosity

• Flow rate

This allows the hose structure to be selected based on the real machine rather than on an approximate catalog value.

Why Safety Margin Matters

Industrial hose selection should normally consider a difference between:

• Normal working pressure

• Maximum operating pressure

• Burst pressure

The required safety factor depends on the application and relevant engineering standards.

A system operating continuously near burst pressure would not represent appropriate hose selection.

Custom Engineering Parameters

Jingcheng can configure the hose according to:

• Inner tube material

• Hose length

• Inner diameter

• Reinforcement

• Working pressure

• Temperature

• Heating power

• Voltage

• Sensor

• End fittings

• Electrical plug

• Cable configuration

What Information Is Needed?

Please provide:

• Transferred medium

• Working temperature

• Normal pressure

• Maximum pressure

• Required hose length

• Inner diameter

• Material viscosity

• Flow rate

• Voltage

• Heating power

• Temperature sensor

• Inlet fitting

• Outlet fitting

• Electrical connector

• Equipment model

Conclusion

Special-industry high-temperature high-pressure heated hoses should not be treated as ordinary replacement parts.

Their performance depends on the interaction between:

material compatibility + temperature + pressure + reinforcement + fittings + heating + testing

A successful hose design must consider these factors as one complete system.

For specialized machinery where operating conditions exceed conventional hose requirements, engineering validation and complete assembly verification are more important than simply selecting the hose with the highest catalog rating.
