In extrusion equipment, hose length is not only a mechanical design parameter.
It is also a process parameter.
Every flexible connection between the:
extruder → melt pump → die
contains a certain amount of polymer.
The longer and larger the hose, the more material remains inside the connection.
This internal volume influences:
polymer residence time,
startup material consumption,
color change,
resin change,
cleaning,
production scrap.
For this reason, a flexible extruder hose should not simply be made as long as possible for installation convenience.
The better approach is to use enough hose to provide the required flexibility while minimizing unnecessary internal volume.

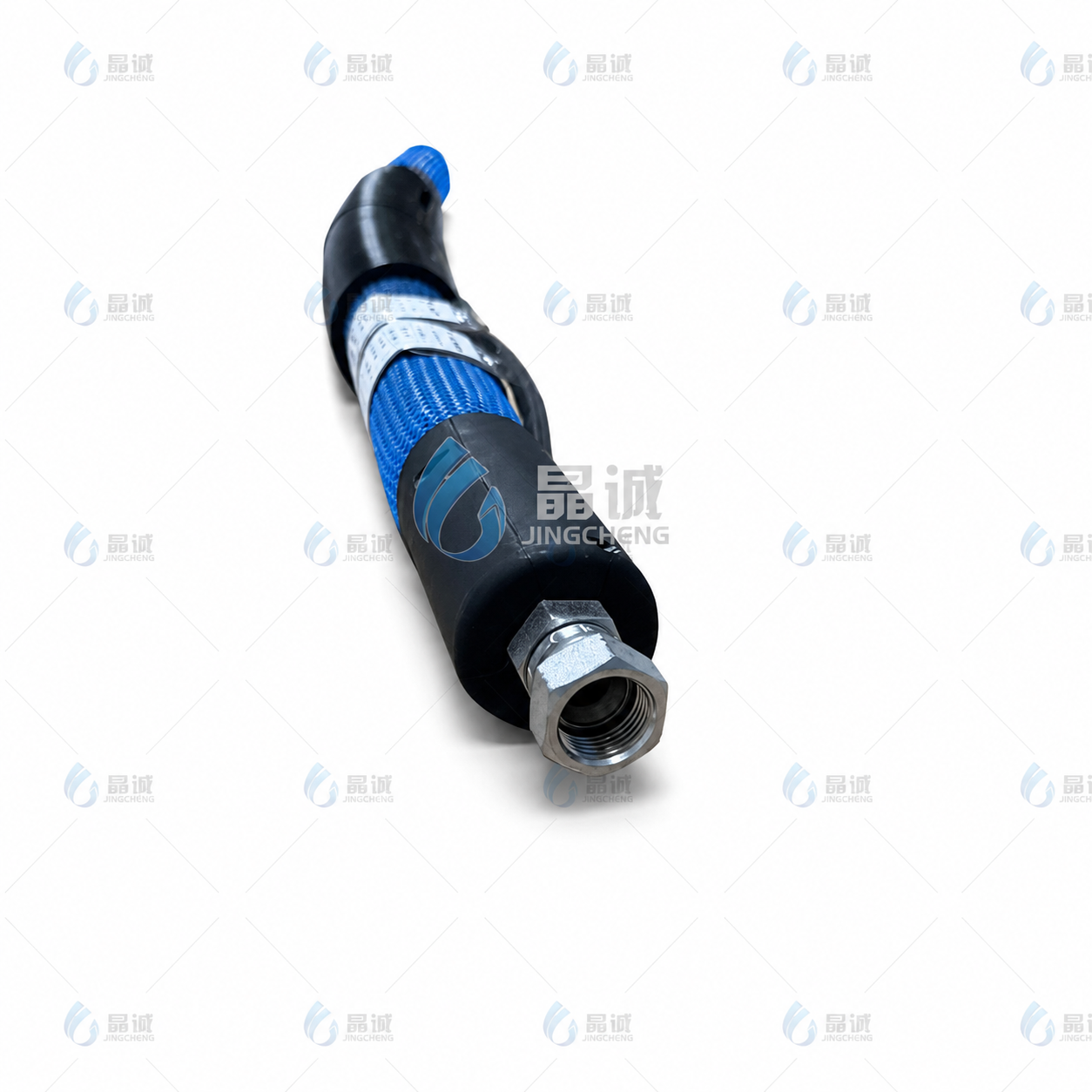

Jingcheng’s extruder connection hose is designed for high-temperature polymer-processing equipment and can be customized according to machine size, pressure, temperature and connection requirements.
The product information indicates configurations suitable for temperatures up to approximately 250°C, with demanding pressure capability depending on the customized design.
Residence time is the period during which polymer remains inside the processing system.
Material can remain inside:
extruder barrel,
melt pump,
adapter,
hose,
die.
Longer residence time is not automatically a problem.
However, unnecessary internal volume can make production transitions slower.
If the machine changes from one material or color to another, old polymer remains inside the hose until it is displaced by the new material.
This creates additional transition material.
Consider two hose designs with the same length but different internal diameters.
The larger hose contains significantly more polymer.
During a material or color change, this volume must be displaced before the new material reaches the die.
This can increase:
purge material,
startup scrap,
transition time.
Therefore, hose diameter should be based on the required melt flow rather than simply selecting an oversized line.
The same principle applies to length.
A longer hose contains more polymer and provides more surface area for heat transfer.
For extrusion equipment, a hose should ideally be:
long enough for safe routing and equipment movement, but no longer than necessary.
This reduces unnecessary melt inventory between the extruder and downstream equipment.
Color change is a common challenge in polymer processing.
When changing from one color to another, residual material inside the fluid path can mix with the new polymer.
The result may be transition material that cannot be used as final product.
A shorter, correctly sized flexible connection can help reduce the volume that must be purged.
The hose is only one part of the total melt path, but it should not add unnecessary residence volume.
The same issue appears when changing between polymer grades.
Different materials may have different:
melting behavior,
viscosity,
processing temperature.
Residual material inside the hose can influence the early stage of the new production run.
This makes internal volume an important consideration for equipment that changes materials frequently.
At startup, material must fill the complete melt path before stable extrusion begins.
A larger downstream volume can increase the quantity of polymer required before the process reaches steady conditions.
This is particularly relevant for:
pilot extrusion systems,
small production runs,
expensive engineering polymers,
frequent startup/shutdown operations.
Optimizing the flexible connection can therefore help reduce unnecessary material inventory.
The product information identifies high-temperature service as a core requirement.
Selected designs can operate at temperatures up to approximately:
250°C
depending on the customized hose configuration.
Polymer-processing temperatures vary significantly by material, so the final hose must be matched to the actual resin.
Polymer melt can generate substantial pressure.
The source product describes configurations capable of approximately 35 MPa under demanding elevated-temperature conditions, depending on design.
This makes pressure selection critical.
The hose must be evaluated according to:
polymer viscosity,
flow rate,
temperature,
hose diameter,
length,
downstream restriction.
Reducing diameter decreases internal volume, but it also increases flow resistance.
If the diameter becomes too small, pressure loss can rise sharply.
Therefore, extrusion hose design requires a balance between:
low internal volume and acceptable pressure drop.
The correct hose diameter should support the required polymer throughput without creating unnecessary pressure demand.
Although this article focuses on residence time, thermal performance remains essential.
The polymer inside the hose must remain within the required processing window.

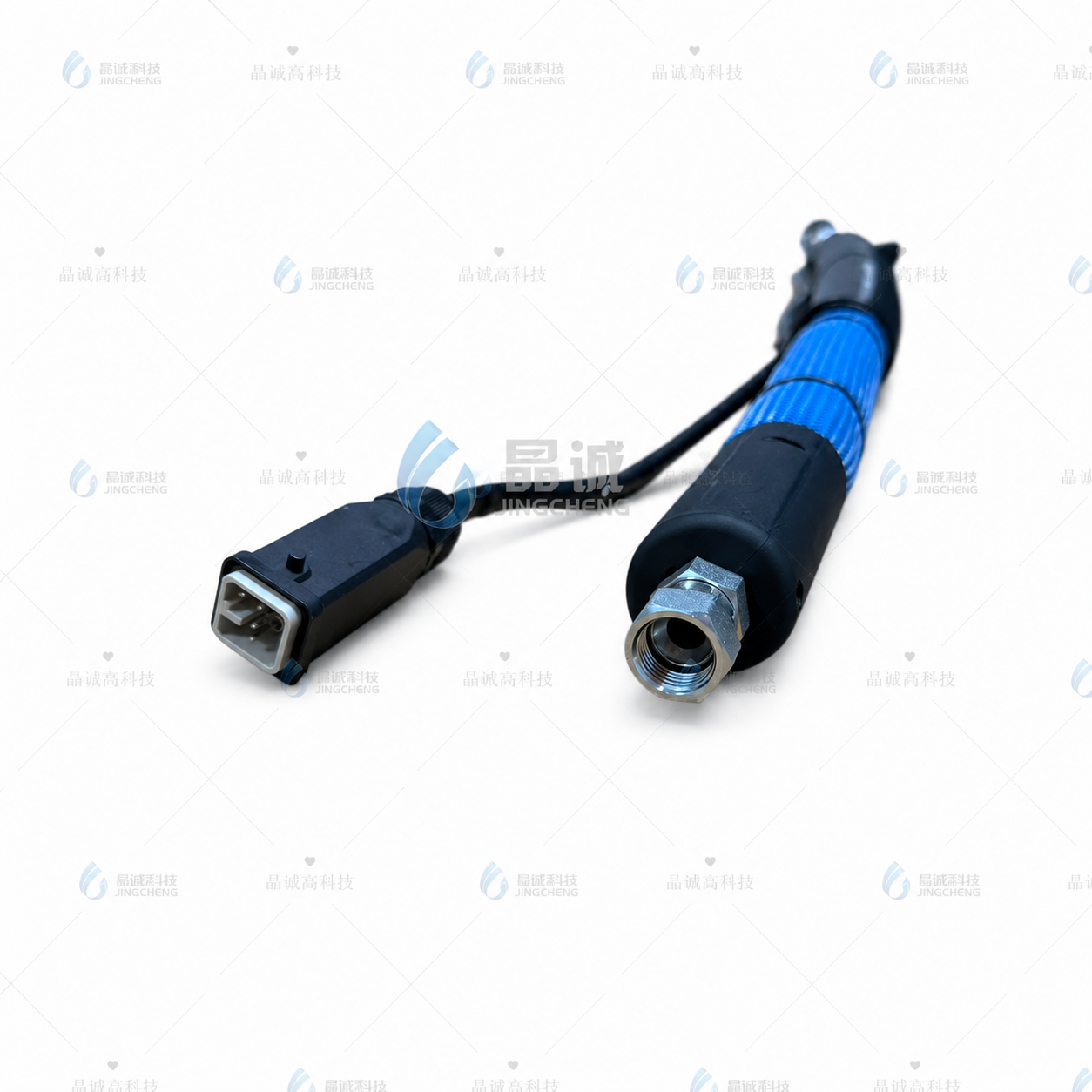

A properly designed heated connection helps reduce uncontrolled cooling between machine components.
This is particularly important for materials whose viscosity changes significantly with temperature.
One effective arrangement is to use the hose as a relatively short flexible bridge.
For example:
Extruder → Short Heated Flexible Hose → Melt Pump
This provides installation flexibility while limiting the amount of extra polymer volume.
A similar approach can be used between:
Melt Pump → Heated Hose → Die
depending on machine design.
Residence volume becomes especially important in small-batch processing.
If the entire production run is limited, even a few kilograms of transition material can represent a significant percentage of the batch.
This makes optimized hose sizing valuable for:
laboratory extruders,
pilot lines,
R&D polymer equipment,
specialty compound production.
Equipment manufacturers serving flexible production environments can consider hose volume during system design.
Applications may include:
masterbatch,
specialty compounds,
experimental polymers,
small-batch extrusion,
frequent color changes.
The goal is to reduce unnecessary material retention while preserving required flexibility.
Extruder systems can use different connection standards.
Jingcheng can customize:
extruder-side fitting,
melt-pump connection,
die-side connection,
hose length,
internal diameter,
fitting orientation.
This allows the flexible section to match the actual machine.
Customers should provide:
polymer type,
melt temperature,
working pressure,
maximum pressure,
melt flow requirement,
hose length,
inner diameter,
extruder connection,
melt pump or die connection,
available installation space.
For frequently changing materials, information about production cycle and changeover requirements is also useful.

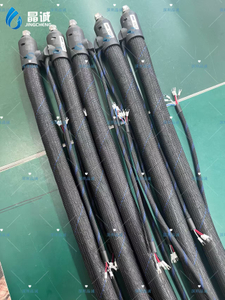

Jingcheng manufactures customized PTFE and heated hose assemblies for industrial equipment manufacturers.
Support includes:
custom dimensions,
custom fittings,
high-temperature configurations,
high-pressure configurations,
sample development,
OEM supply,
replacement matching,
factory-direct production.
An extruder connection hose should not be evaluated only as a flexible pipe between two pieces of equipment.
Its internal diameter and length affect the amount of polymer stored inside the melt path.
For extrusion systems with frequent startup, material change or color change, unnecessary hose volume can increase:
residence time + purge volume + transition scrap.
The best extruder hose therefore balances:
required flow + pressure drop + temperature + flexibility + minimum practical internal volume.
