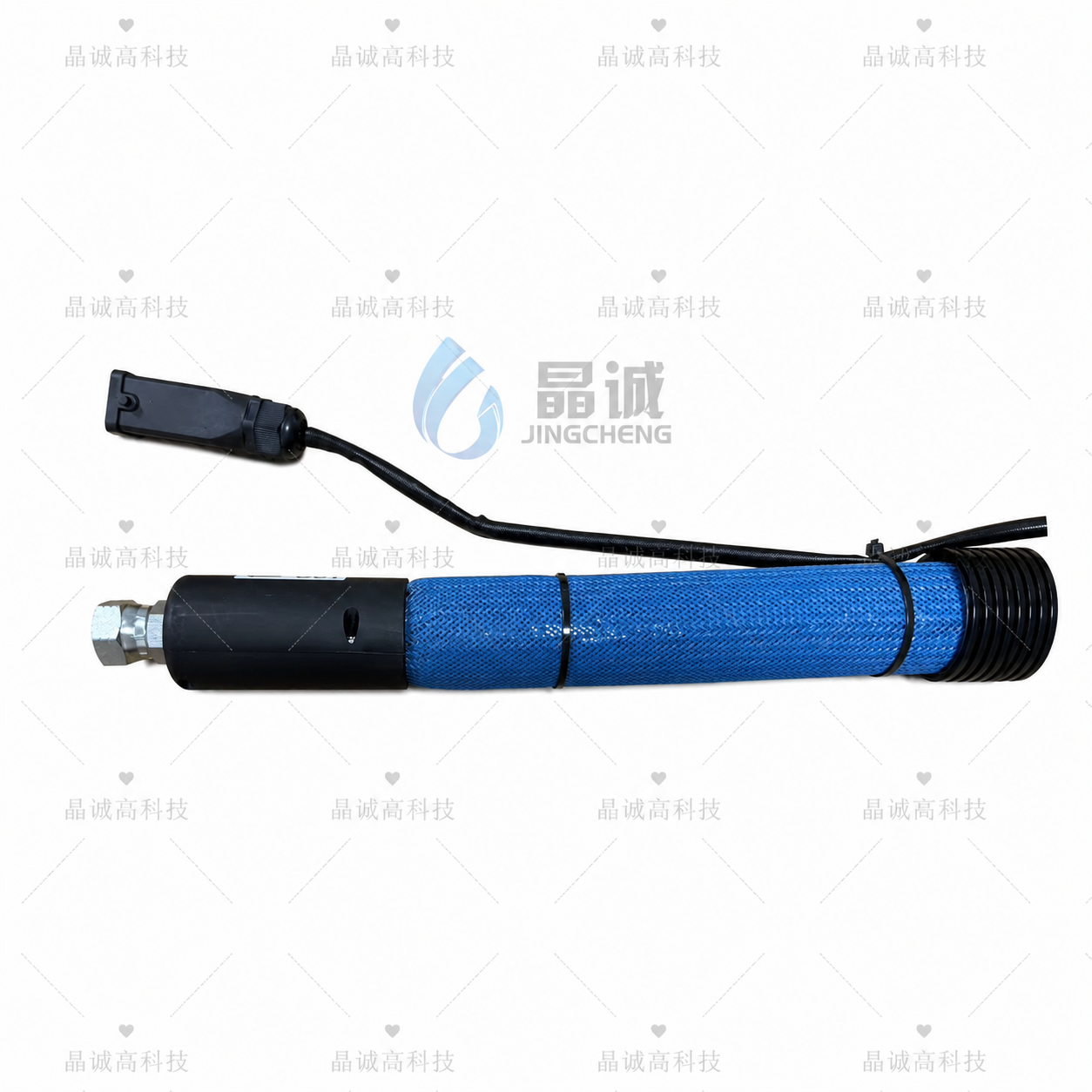

Flexible Heated Extruder Hose for Modular Polymer Processing Equipment

Modern extrusion lines are rarely completely fixed systems.

Production plants frequently replace dies, modify downstream equipment, upgrade pumps or add new process modules to existing extrusion machines.

These changes create one practical problem:

the heated material path still has to connect correctly after the equipment layout changes.

Rigid high-temperature piping can make modification difficult because every connection must remain precisely aligned.

A flexible heated extruder connection hose provides another solution by combining controlled heating with a flexible high-temperature material path.

It can be used between extrusion machine sections where thermal stability, pressure capability and installation flexibility are required simultaneously.

Extrusion Lines Are Becoming More Modular

Manufacturers increasingly need equipment that can adapt to different products.

One extrusion machine may use several:

• Dies

• Coating heads

• Metering units

• Downstream modules

• Polymer formulations

Changing these components can alter connection positions and installation distances.

A flexible hose can make this transition easier because it can accommodate limited alignment changes without redesigning the complete rigid piping system.

Flexible Connections Simplify Die and Head Replacement

Die changes are common in many extrusion processes.

If the material connection is rigid, changing the die may require:

• Removing additional piping

• Re-aligning connections

• Replacing pipe sections

• Adjusting machine position

A flexible heated connection can simplify this process.

It allows the material path to accommodate small differences in:

• Position

• Height

• Connection angle

• Installation distance

This can make maintenance and process changeovers more efficient.

Thermal Expansion Is Another Important Factor

High-temperature machines do not remain dimensionally identical between cold startup and full operating temperature.

Metal structures expand as they heat.

This can create small alignment changes between:

• Extruder

• Pump

• Die

• Distribution head

• Downstream equipment

A flexible hose can absorb limited thermal movement while maintaining the heated transfer path.

This is one reason flexible high-temperature connections are useful in polymer processing systems.

Maintaining Melt Temperature Between Machine Sections

Polymer melt viscosity is highly temperature-dependent.

If the material loses heat inside the flexible connection, flow resistance can increase.

Possible effects include:

• Higher pressure

• Reduced flow

• Unstable material delivery

• Longer startup

• Uneven downstream processing

The hose heating layer helps maintain temperature continuity between heated machine sections.

The standard catalog configuration supports temperatures up to approximately 230°C, while specialized extruder applications may be engineered for higher temperatures according to project requirements.

High-Pressure Requirements Need Engineering Evaluation

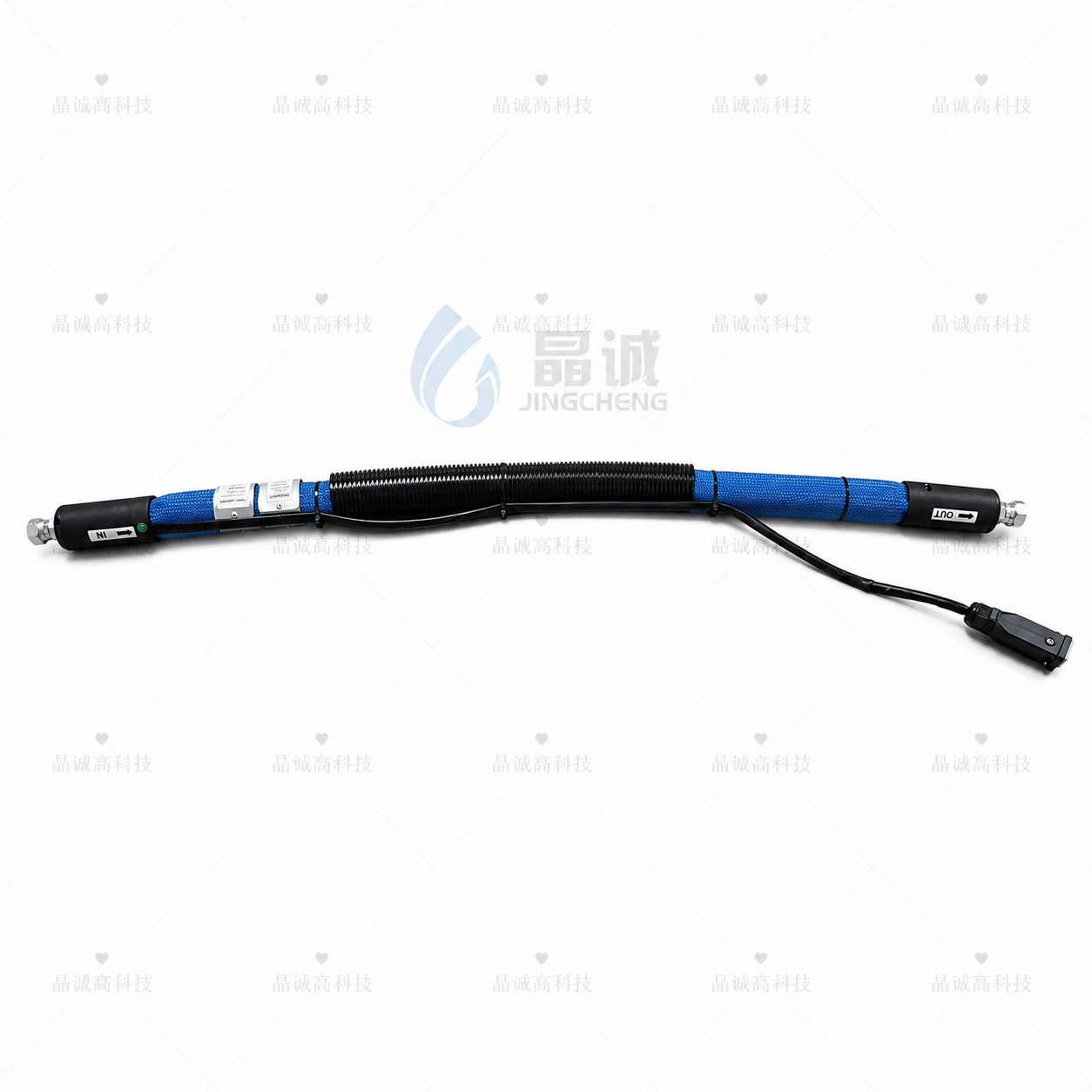

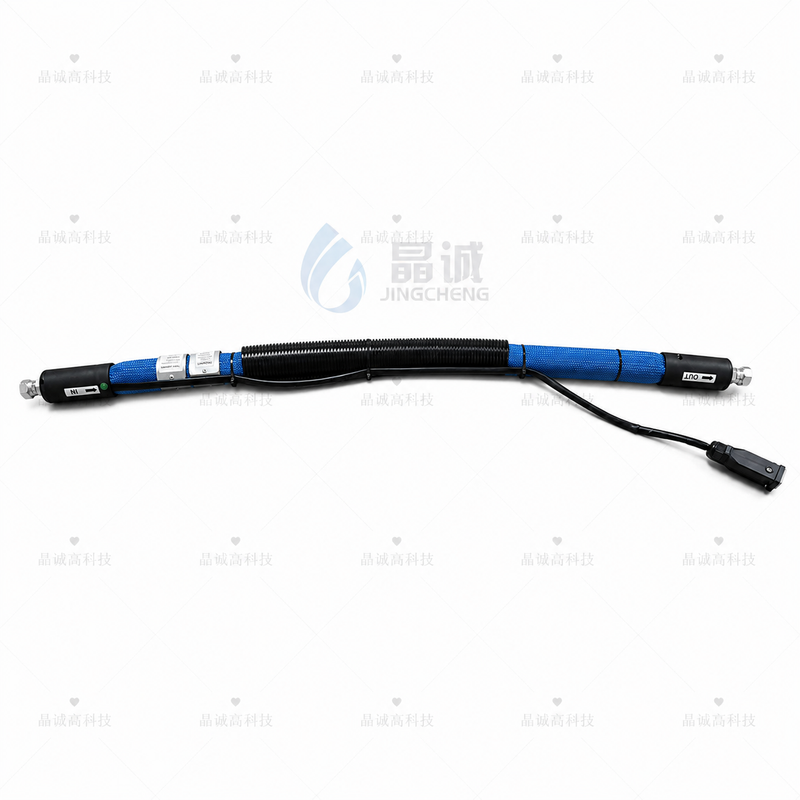

The extruder connection shown is intended for demanding temperature and pressure conditions.

Customized designs may be engineered for substantially higher pressure than ordinary heated hoses.

However, final allowable pressure depends on:

• Inner diameter

• Hose construction

• Reinforcement

• Temperature

• End fittings

• Crimping method

• Pressure cycling

For this reason, the correct hose should be designed from actual machine operating data.

Ideal for Retrofit Projects

Older extrusion lines often remain mechanically useful even after the original hose or connection component becomes difficult to source.

A custom heated hose can provide a practical solution for:

• Imported extruder replacement

• Discontinued original parts

• Modified machine layouts

• Retrofitted process heads

• Upgraded temperature control systems

Customers can provide an existing sample or drawing for matching.

Typical Applications

• Plastic extrusion equipment

• Polymer melt transfer

• Extrusion coating machines

• Hot resin transfer

• Extrusion dies

• Melt pumps

• High-temperature dispensing

• Polymer processing skids

• Retrofit extrusion lines

• Customized extrusion machinery

Custom Engineering Options

The hose can be configured according to:

• Processing material

• Hose length

• Inner diameter

• Working temperature

• Pressure

• Heating power

• Voltage

• Temperature sensor

• End fittings

• Electrical connector

• Installation geometry

This allows the hose to become part of the machine design rather than a generic spare component.

What Information Should Be Provided?

For accurate selection, provide:

• Polymer or resin type

• Processing temperature

• Normal pressure

• Maximum pressure

• Required flow rate

• Hose length

• Inner diameter

• Minimum bending radius

• Voltage

• Heating power

• Sensor type

• Inlet fitting

• Outlet fitting

• Equipment brand and model

Conclusion

As extrusion equipment becomes more modular and production requirements change more frequently, flexible high-temperature connections become increasingly valuable.

A heated extruder hose can simplify die changes, retrofit projects and equipment alignment while helping maintain a stable melt temperature between machine sections.

For OEM equipment builders and maintenance teams, the correct solution should be engineered according to the complete combination of temperature, pressure, material and machine geometry.
