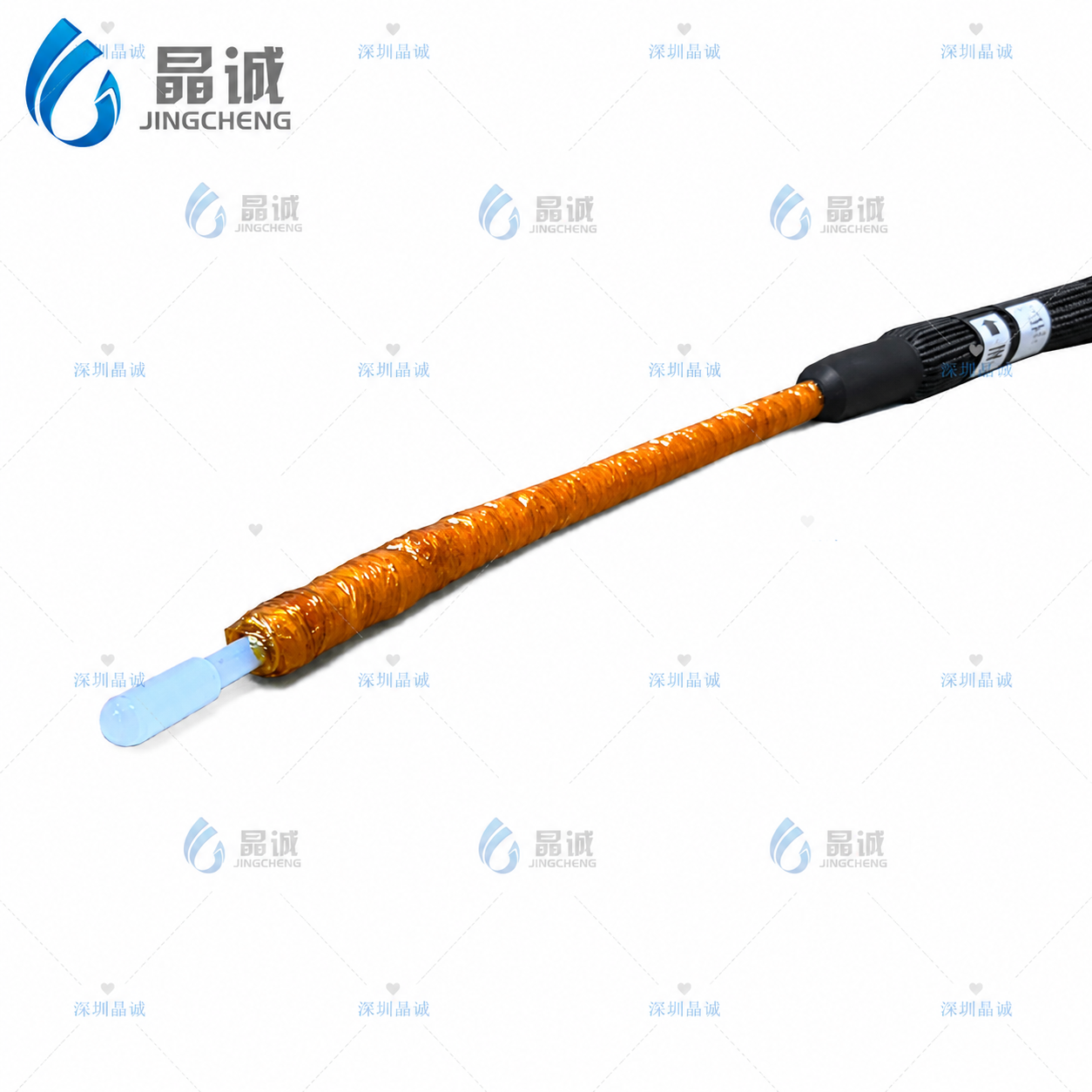

Glass manufacturing equipment often combines extremely hot process zones with complex mechanical layouts.
Furnaces, forming sections, treatment modules, gas manifolds and control equipment may all be installed close together, but the connection between them still needs to remain accessible for maintenance and adjustment.
This is where a flexible heated gas hose becomes valuable.
Instead of relying entirely on rigid piping, a heated flexible connection can provide controlled gas transfer while accommodating installation tolerances, equipment servicing and small changes in machine position.
For glass production lines using nitrogen or other compatible process gases, the hose becomes part of the connection between the gas-control system and the heated process zone.
A glass production line is rarely a simple straight machine.
Around the furnace or treatment section, engineers may need to route gas lines around:
Structural frames
Heating modules
Valves
Control devices
Gas manifolds
Access doors
Process heads
Rigid tubing can work well in fixed installations, but it may complicate maintenance when components need to be removed or repositioned.
A flexible heated hose can provide additional installation freedom without requiring the complete piping system to be rebuilt every time the machine layout changes.
Maintenance accessibility is often overlooked during initial equipment design.
A rigid connection may need to be completely dismantled before a valve, gas module or processing component can be serviced.
A flexible connection can provide more tolerance during:
Furnace maintenance
Gas manifold servicing
Valve replacement
Process-head adjustment
Production-line upgrades
Equipment inspection
This can simplify routine maintenance and reduce unnecessary modification of surrounding pipework.
Gas may leave a controlled supply system and then travel through a cooler environment before entering a high-temperature process.
If the process requires the gas line to remain thermally controlled, an unheated flexible section can become a temperature break between two machine zones.
The heated hose provides active temperature support through that flexible connection.
The objective is not simply to reach the highest possible hose temperature.
It is to create a more consistent thermal path between the gas source and the point of use.
The hose uses uniformly arranged heating elements designed to reduce temperature differences along the hose body.
This can help provide:
More stable gas-delivery conditions
Reduced localized cold sections
Better temperature continuity
More predictable process behavior
Faster stabilization after machine startup
The insulation structure also helps reduce unnecessary heat loss to the surrounding environment.
High-temperature machinery changes dimension slightly as it heats and cools.
Metal structures, process modules and mounting points can shift due to thermal expansion.
Even small positional changes can create additional stress in rigid connections.
A flexible heated hose can accommodate limited alignment variation between equipment sections.
This makes it particularly useful around:
Glass furnaces
Thermal treatment equipment
Heated process modules
Gas-distribution systems
The hose must still be installed according to the required bending radius and should not be used as an unrestricted expansion joint.
The product is mainly intended for glass production lines requiring heated flexible gas transfer.
Typical media may include:
Nitrogen
Argon
Other compatible inert gases
The exact inner-tube material and fitting configuration should be confirmed according to the required gas purity, temperature, pressure and process conditions.
The product information lists heat resistance up to approximately:
230°C
Higher or special temperature requirements can be evaluated according to the complete hose structure.
The final design should consider:
Gas type
Gas flow
Required outlet condition
Hose length
Ambient temperature
Working pressure
Equipment installation
This type of hose can be used for:
Glass furnace gas connections
Glass forming equipment
Nitrogen supply systems
Glass coating lines
Thermal treatment machinery
High-temperature process equipment
Laboratory glass-processing systems
Customized glass manufacturing machines
Furnace-side gas manifolds
Flexible gas connections between machine modules
Jingcheng can configure heated gas hoses according to actual machine requirements.
Customization may include:
Hose length
Inner diameter
Inner-tube material
Heating power
Voltage
Temperature sensor
Gas fittings
Electrical connector
Cable length
Insulation structure
For replacement applications, customers can provide an original hose, technical drawing or clear photographs.
Please provide:
Gas type
Required gas purity
Working temperature
Working pressure
Gas flow
Hose length
Inner diameter
Voltage
Heating power
Sensor type
Inlet fitting
Outlet fitting
Equipment model
Installation drawing if available
In glass production equipment, the value of the hose comes from combining several functions:
gas transfer + thermal control + installation flexibility + maintenance accessibility
A well-designed flexible heated connection can simplify the machine layout while supporting the temperature requirements of the process.
Glass manufacturing equipment places unique demands on gas connections.
The line must operate around high-temperature machinery while remaining accessible for maintenance, adjustment and future equipment modification.
A customized heated gas hose provides a practical connection between gas-control equipment and furnace-side process zones, offering both flexible installation and controlled thermal performance.
