Not every temperature-controlled process needs extreme heat.
In many food production lines, the real challenge is much simpler:
keep the product warm enough to flow consistently without overheating it.
Syrups, sauces, chocolate-related materials, edible oils, creams and other temperature-sensitive food products can behave very differently when their temperature changes only slightly.
A material may flow normally inside a heated storage tank but gradually become more viscous as it passes through a cooler flexible connection.
That change can influence pumps, filling heads and downstream processing equipment.

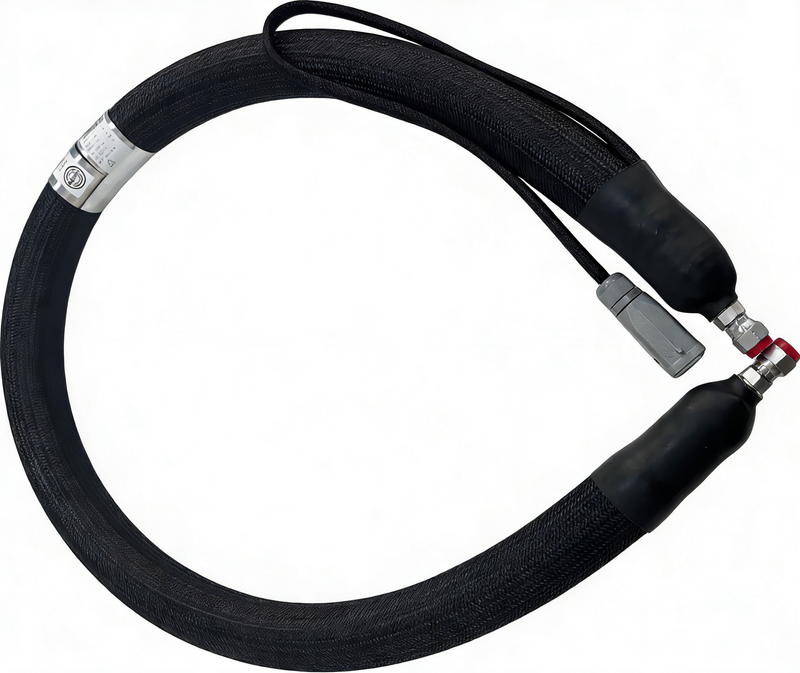

The food heated hose shown is designed for food conveying equipment requiring a controlled material path with a customized food-grade inner tube and a standard temperature capability of up to approximately 100°C.
Its purpose is not maximum heat.
Its purpose is temperature stability during transfer.
Many industrial heated hoses are marketed according to their maximum temperature rating.
For food processing, however, the highest temperature is often not the most important specification.
The product may only require moderate warming to maintain the correct:
Viscosity
Flow behavior
Filling response
Pump performance
Processing consistency
If the temperature drops below the intended process range, the material may become thicker.
If the temperature is unnecessarily high, the process may no longer match the food manufacturer's intended operating conditions.
A low-temperature heated hose is therefore designed around controlled maintenance rather than aggressive heating.
A typical food production system may include:
Storage Tank → Pump → Flexible Hose → Filling or Processing Equipment
The tank may already be temperature controlled.
The pump may also be located inside a warm production environment.
But the flexible hose has a relatively large surface area exposed to ambient air.
This means heat can escape more quickly from the hose than from a large insulated tank.
Long hose runs make this effect even more noticeable.
A temperature-maintained hose helps reduce the difference between the material leaving the tank and the material arriving at the next machine.
Filling equipment relies on repeatable material behavior.
If product viscosity changes as the material passes through the line, operators may notice differences in:
Filling speed
Pump load
Valve response
Dispensing consistency
Startup behavior
A heated food hose helps maintain more predictable material conditions before the product reaches the filling head.
This is particularly useful for materials that become noticeably thicker as they cool.
The catalog states that this product uses a customized food-grade material-contact inner tube.
The final inner-tube selection should be determined according to the actual transferred product and customer requirements.
Important factors may include:
Food composition
Operating temperature
Pressure
Viscosity
Cleaning method
Equipment specification
Connection requirements
Because different food products behave differently, a hose that works well for one material may require a different configuration for another.
Average hose temperature is not the only thing that matters.
A hose can reach the correct temperature near the sensor while still having a colder section near:
End fittings
Connection points
Areas exposed to airflow
Long unsupported sections
If the transferred product is highly temperature-sensitive, one cold area may be enough to affect flow.
A distributed heating structure helps reduce these local temperature differences and maintain a more continuous thermal path.
Potential equipment applications include:
Liquid food filling machines
Syrup transfer systems
Sauce filling lines
Chocolate-processing equipment
Edible-oil equipment
Confectionery machinery
Cream and paste transfer systems
Food dosing equipment
Automated conveying systems
Customized OEM food-processing machinery
The final suitability depends on the actual product and complete hose configuration.
The catalog lists a maximum temperature capability of approximately:
100°C
This makes the product especially suitable for food processes where moderate heat is required rather than extremely high temperatures.
The correct setpoint should be determined according to:
Product formulation
Recommended process temperature
Hose length
Ambient environment
Flow rate
Viscosity
The objective should always be to maintain the material within the correct production window.
Food equipment manufacturers often need more than a standard hose.
The complete assembly may require customized:
Length
Inner diameter
Heating power
Voltage
Temperature sensor
End fittings
Electrical connector
Cable length
Protective structure
This allows the hose to fit directly into the machine design.
For replacement applications, the original hose, photographs or drawings can also be used as references.
Longer food-transfer lines experience greater heat loss.
Increasing hose length may affect:
Required heating power
Temperature recovery time
Pressure drop
Material flow
Insulation requirements
For this reason, hose length should be considered together with material viscosity and target temperature rather than as a separate dimension.
For technical evaluation, please provide:
Food material
Required temperature
Working pressure
Maximum pressure
Material viscosity if available
Required flow rate
Hose length
Inner diameter
Cleaning requirement
Voltage
Heating power
Sensor type
Fittings
Equipment model
A food heated hose should not simply make the product hotter.
Its real purpose is to maintain a predictable material condition while the product moves between different pieces of equipment.
For filling, conveying and processing systems operating below approximately 100°C, a customized heated hose can help reduce temperature-related viscosity changes and support more stable production.
For food equipment manufacturers, the correct solution should combine the appropriate material-contact tube, heating design, dimensions and machine-specific connections.
