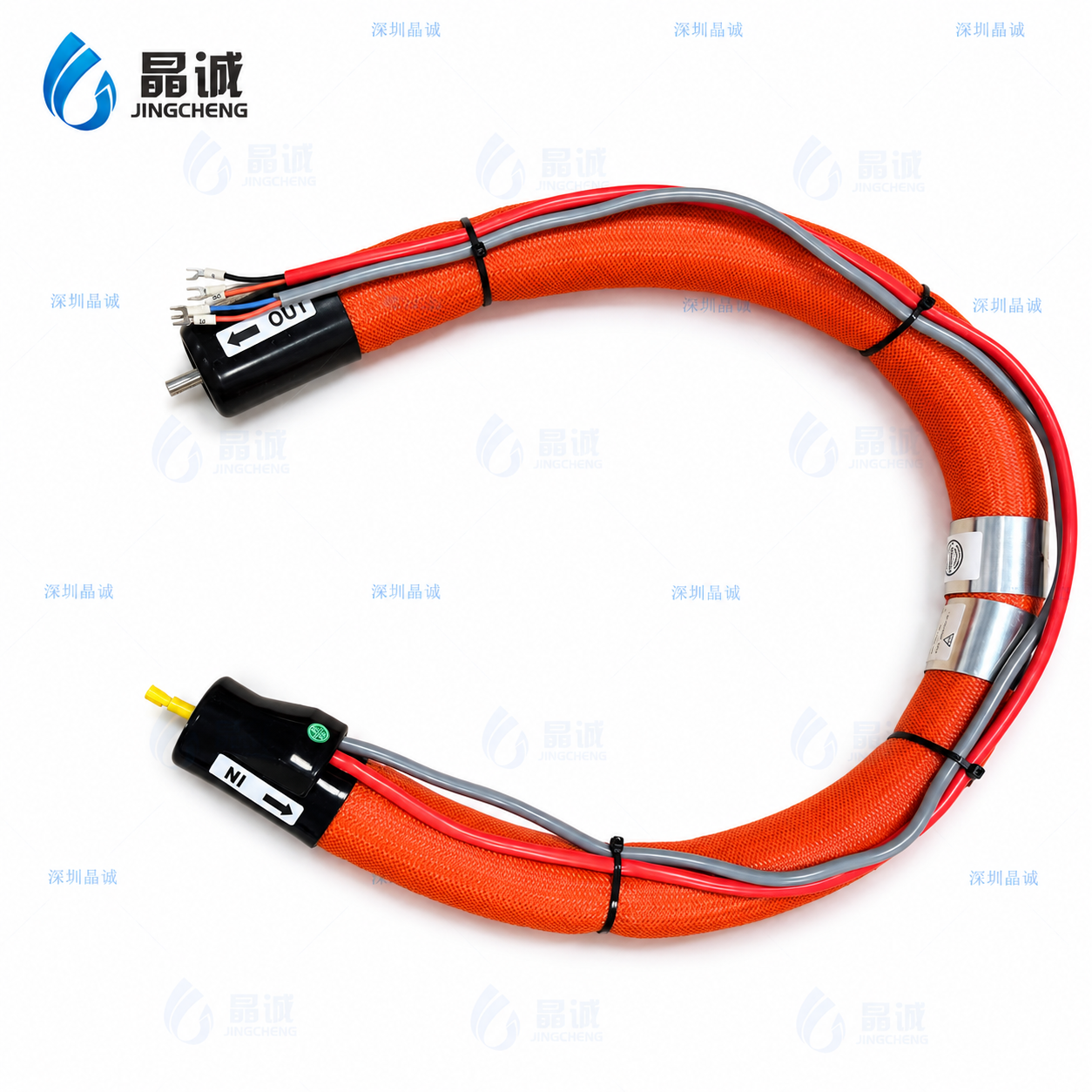

Heated Gas Sampling Hose for Protecting Sample Integrity Before Analysis

In a gas monitoring system, the analyzer receives most of the attention.

However, before a gas sample reaches an infrared analyzer, UV analyzer, laboratory detector or online monitoring instrument, it may travel through several meters of tubing.

During this journey, the sample can experience a completely different environment from the original process.

Temperature may drop.

Moisture may appear.

Certain components may condense or adsorb onto the internal surface.

As a result, the gas arriving at the analyzer may no longer perfectly represent the gas collected at the sampling point.

This is why the heated gas sampling hose should be considered part of the measurement system rather than a simple connection tube.

Jingcheng gas sampling hoses are designed for flue gas pretreatment, online monitoring, infrared analysis, ultraviolet analysis and laboratory gas detection equipment where stable thermal conditions during sample transport are important.

The Analyzer Can Only Measure the Sample It Receives

Even a highly accurate analyzer cannot correct a sample that has already changed before reaching the instrument.

A typical monitoring chain may include:

Sampling Probe → Heated Sampling Hose → Gas Pretreatment Unit → Analyzer

If the hose becomes a cold section in this chain, the physical condition of the sample may change.

This is particularly important for industrial exhaust and process gases collected at elevated temperatures.

Maintaining temperature during transportation helps preserve a more stable sample condition between the extraction point and analytical equipment.

Why Temperature Loss Can Affect Gas Sampling

Industrial gas samples can contain:

• Water vapor

• Acidic components

• Organic compounds

• Dust or particulate matter

• Other process-dependent gases

When temperature falls during transportation, certain components may behave differently.

Potential problems can include:

• Condensation

• Sample composition changes

• Moisture accumulation

• Slower analyzer response

• Unstable measurement

• Increased sampling-line maintenance

A heated sampling hose helps reduce excessive cooling along the transfer path.

The objective is not simply to make the hose hot.

The objective is to maintain the required sampling temperature from the process to the pretreatment or analysis system.

Uniform Heating Along the Sampling Line

The product uses heating elements arranged along the hose to reduce large temperature differences from one section to another.

This is important because a sampling hose may be several meters long.

If only one location reaches the target temperature while another section remains significantly cooler, the system may still contain a thermal weak point.

More uniform heating can help provide:

• More stable sample transport

• Reduced cold spots

• Better temperature continuity

• More consistent gas delivery

• Improved monitoring reliability

The insulation structure also helps reduce heat loss to the surrounding environment.

Designed for Online Monitoring Systems

The hose is suitable for gas sampling applications such as:

• Continuous emission monitoring systems

• Flue gas pretreatment equipment

• Industrial exhaust monitoring

• Online environmental monitoring

• Process gas analysis

• Infrared analyzers

• UV gas analyzers

• Laboratory testing instruments

Different analyzer systems may require different hose lengths, internal tube materials and connection configurations.

For this reason, the complete hose should be matched to the monitoring equipment rather than selected only by diameter.

Flexibility Matters During Installation and Maintenance

Gas analyzers and pretreatment cabinets are often installed separately from the sampling probe.

The hose may need to pass around:

• Structural frames

• Cabinets

• Filters

• Pumps

• Process equipment

• Cable trays

The source product is designed to tolerate bending while maintaining stable insulation performance.

This is useful during:

• Initial installation

• Probe replacement

• Analyzer maintenance

• Cabinet servicing

• Equipment relocation

A flexible heated line can simplify routing compared with rigid heated piping.

Up to 230°C Temperature Capability

The standard product is designed for heat-resistant applications up to approximately:

230°C

The actual operating temperature should be selected according to the sampling process.

Important factors include:

• Sample gas composition

• Process temperature

• Dew point

• Hose length

• Ambient conditions

• Pretreatment-system requirements

• Analyzer requirements

A higher setpoint is not automatically better.

The hose should maintain the temperature required to preserve the sample condition.

Customization for Different Analyzer Platforms

Gas analysis systems rarely use identical connections.

A customized heated sampling hose can include:

• Custom hose length

• Different internal diameters

• Application-specific inner tube

• Voltage selection

• Heating power

• Temperature sensor

• Probe-side fitting

• Analyzer-side fitting

• Electrical connector

• Cable length

• Insulation configuration

This is particularly useful for replacement projects involving imported analyzers or customized CEMS installations.

Typical Industries

Heated sampling hoses can be used in:

• Power plants

• Cement production

• Steel production

• Waste incineration

• Chemical processing

• Petrochemical systems

• Boiler monitoring

• Environmental testing

• Industrial laboratories

• Process control systems

Final configuration should always be determined according to the specific gas and monitoring system.

Why the Sampling Hose Should Be Selected Early

In many projects, the sampling hose is selected after the analyzer and pretreatment equipment have already been specified.

However, the hose influences:

• Sampling distance

• Installation route

• Temperature control

• Connector selection

• Maintenance access

• System response

Including the heated sampling line earlier in the design stage can make the entire monitoring system easier to integrate.

Conclusion

Reliable gas measurement starts before the sample reaches the analyzer.

A properly designed heated gas sampling hose helps maintain stable sample conditions throughout the transport path, reducing the risk that temperature loss becomes a hidden source of measurement instability.

For flue gas pretreatment, online monitoring, infrared analysis, UV analysis and laboratory detection systems, the hose should therefore be treated as a functional part of the analytical chain.
