Heated Gas Sampling Hose for Stable Long-Distance Sample Transport

In gas analysis, the distance between the sampling point and analyzer is often unavoidable.

The probe may be installed on:

• A chimney

• A process duct

• A boiler

• A furnace

• A production line

while the analyzer is located several meters away inside a cabinet or control room.

This distance creates one of the biggest practical challenges in industrial gas monitoring:

how to transport the sample without allowing the sample line itself to influence the measurement process.

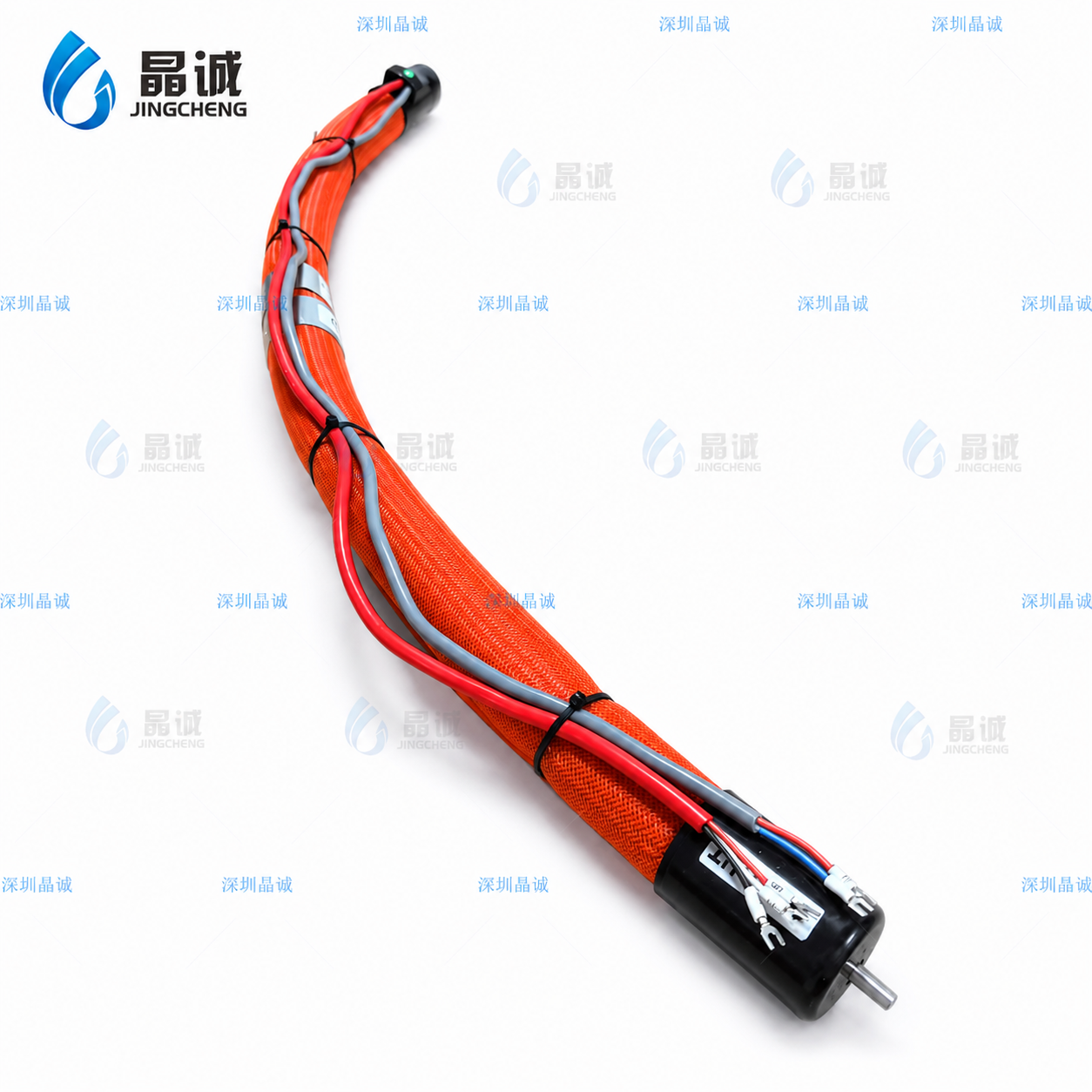

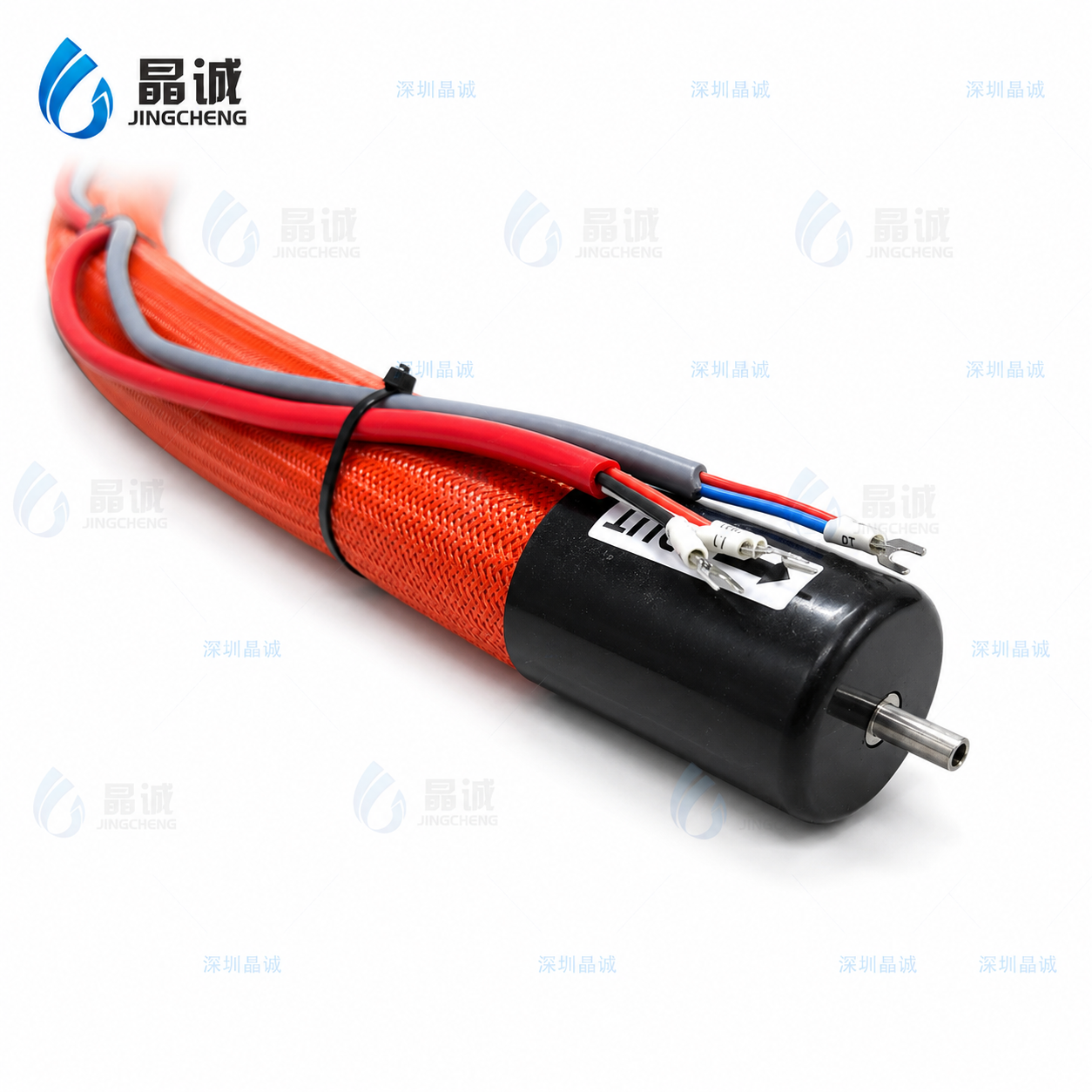

The heated gas sampling hose is designed to provide a temperature-controlled flexible path between the sampling probe and downstream analysis equipment.

It can be used in:

• Flue gas pretreatment

• Online monitoring

• Infrared analysis

• UV analysis

• Laboratory gas detection

Longer Sampling Lines Lose More Heat

A short tube between a probe and analyzer may experience relatively limited heat loss.

A long sampling line has:

• More external surface area

• More contact with ambient air

• More opportunities for local cold sections

This makes temperature control increasingly important as hose length increases.

A heated hose compensates for this thermal loss and helps maintain a more stable sample condition over the complete transfer distance.

Analyzer Location Is Often Determined by Practical Site Conditions

Gas analyzers are not always installed close to the process.

They may need to be placed away from:

• Excessive heat

• Dust

• Vibration

• Weather exposure

• Restricted access areas

This protects the analyzer, but it increases the required sampling distance.

A heated sampling hose allows the analyzer to remain in a more suitable location while maintaining controlled sample transport from the probe.

Long Sampling Lines Can Affect Response Time

When the distance between the sampling point and analyzer increases, the total internal volume of the sampling path also increases.

This can influence how quickly a new gas condition reaches the analyzer.

Response time depends on factors such as:

• Hose length

• Inner diameter

• Sample flow rate

• Pretreatment system

• Pump performance

For this reason, hose dimensions should be selected together with the analyzer system rather than independently.

Diameter Must Balance Flow and Internal Volume

A larger internal diameter can reduce flow resistance, but it also increases internal volume.

A smaller diameter reduces volume but may increase pressure loss.

The correct design requires a balance between:

• Sampling flow

• Pressure loss

• Response time

• Hose length

• Analyzer requirements

This is particularly important for long-distance monitoring systems.

Uniform Heating Helps Reduce Local Cold Sections

The product uses distributed heating elements along the hose.

This helps reduce temperature variation between different parts of the sampling line.

A single cold area may create more problems than a small average temperature deviation.

Critical areas may include:

• Probe-side fittings

• Hose bends

• External sections

• Analyzer-side connections

Good heating distribution and insulation help create a more continuous thermal path.

Up to Approximately 230°C

The source product lists heat-resistant capability up to approximately:

230°C

The actual operating setpoint should be selected according to:

• Gas composition

• Sampling temperature

• Dew point

• Hose length

• Ambient conditions

• Pretreatment requirements

Using the highest possible temperature is not the goal.

The objective is to preserve suitable sample conditions during transfer.

Commissioning a Sampling Hose Correctly

When a new monitoring system is installed, the sampling hose should be evaluated during commissioning.

Important checks may include:

• Heating continuity

• Sensor response

• Temperature stability

• Connector integrity

• Hose routing

• Insulation condition

This helps identify installation problems before the analyzer enters long-term service.

Replacement Hose Compatibility

Gas monitoring systems from different manufacturers may use different:

• Inner tube materials

• Hose diameters

• Fittings

• Voltage

• Temperature sensors

• Electrical connectors

A replacement hose should therefore be matched to the existing system.

Providing the original hose or detailed photographs can significantly improve replacement accuracy.

Typical Applications

Potential applications include:

• CEMS systems

• Flue gas monitoring

• Boiler emission monitoring

• Industrial furnace analysis

• Waste incineration

• Cement plants

• Steel production

• Chemical process monitoring

• Laboratory gas analysis

• Environmental monitoring

Customization Options

Jingcheng can customize:

• Hose length

• Inner diameter

• Inner tube material

• Heating power

• Voltage

• Temperature sensor

• Probe-side fitting

• Analyzer-side fitting

• Electrical connector

• Cable length

• Insulation structure

Why Hose Routing Matters

A sampling hose should avoid unnecessary:

• Sharp bends

• Low points

• Compression

• Mechanical damage

• Unsupported weight

Poor routing can affect both sample transport and long-term hose reliability.

Correct installation is therefore part of the measurement system.

What Information Should Be Provided?

Please provide:

• Gas type

• Sampling temperature

• Working pressure

• Required flow rate

• Hose length

• Inner diameter

• Voltage

• Heating power

• Sensor type

• Probe fitting

• Analyzer fitting

• Electrical connector

• Analyzer brand and model

• Installation environment

Conclusion

As the distance between the sampling point and analyzer increases, the hose becomes more important to overall system performance.

A heated gas sampling hose helps reduce heat loss, maintain more stable sample conditions and provide a reliable flexible connection between the process and analytical equipment.

For long-distance gas monitoring, correct hose selection should consider temperature, length, diameter, flow, heating and analyzer compatibility together.
