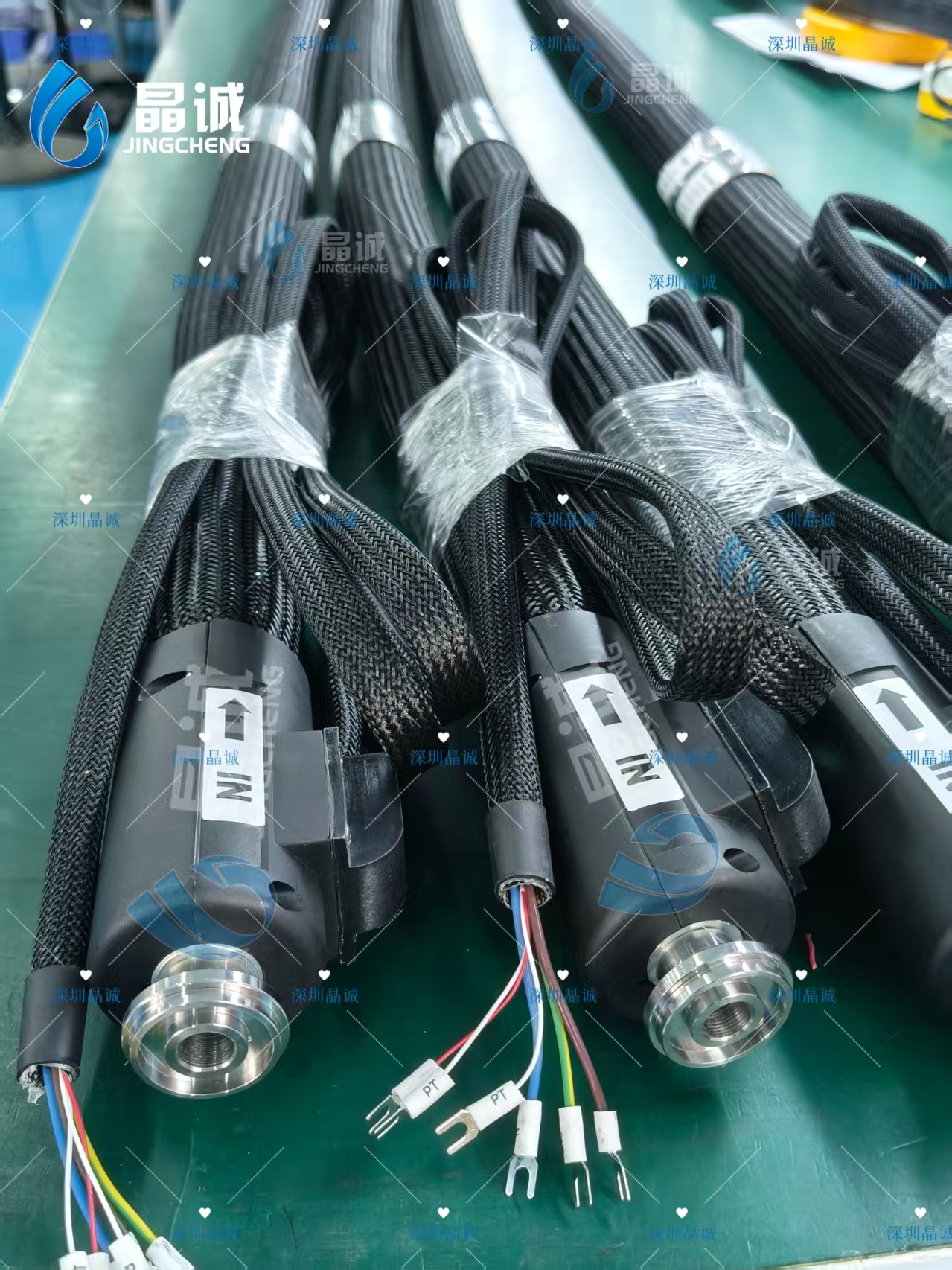

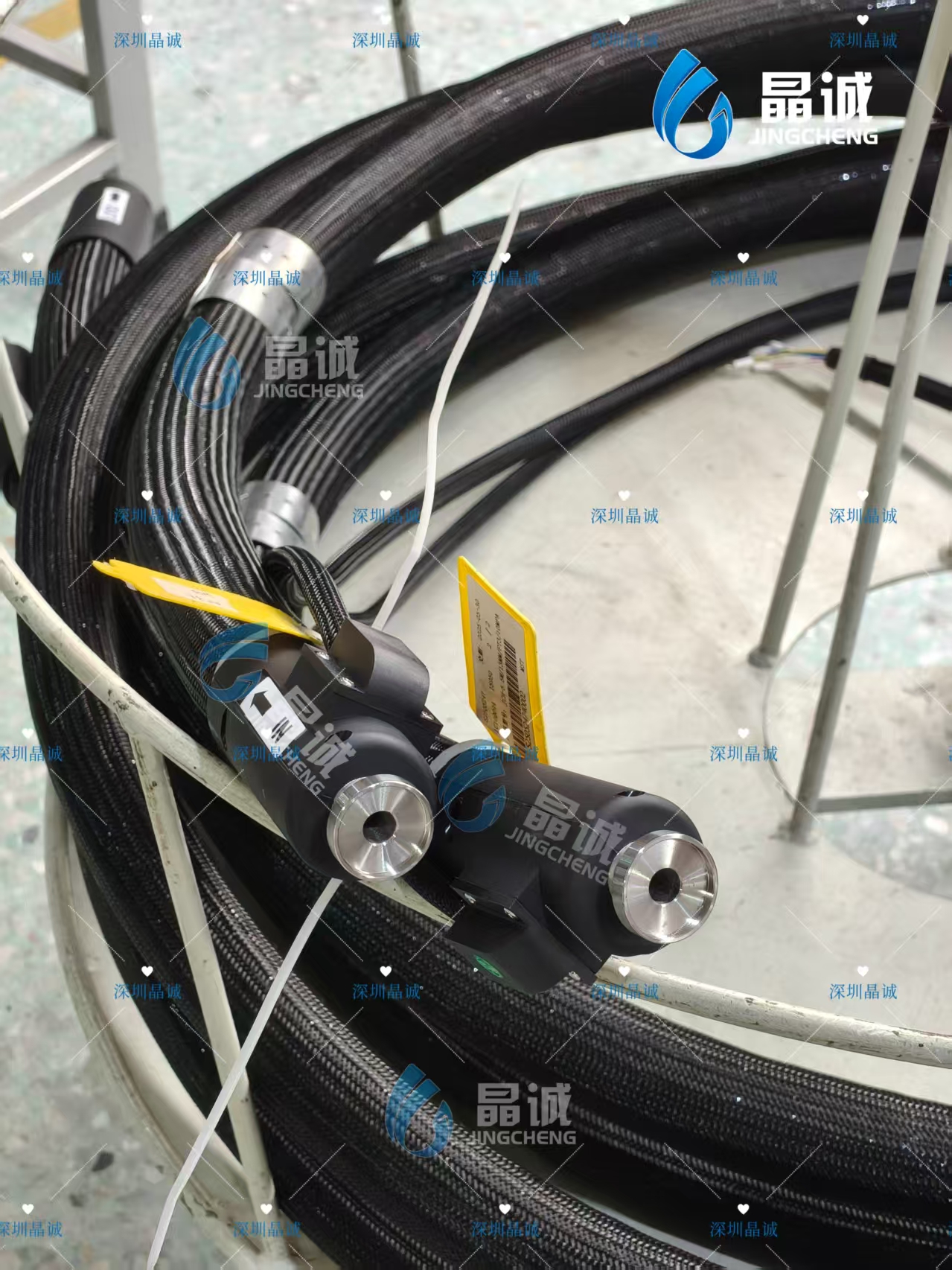

Our heated hose for medical equipment is designed for stable, controlled transfer of temperature-sensitive materials in medical and pharmaceutical-related systems. Built with a custom medical-grade inner tube, uniform heating structure and high-efficiency insulation, this hose helps maintain consistent material flow while reducing the risk of cooling, solidification or unstable viscosity during transfer.
As a China source manufacturer with in-house production capability, Shenzhen Jingcheng High-tech provides highly customized heated hose solutions for medical devices, pharmaceutical equipment, laboratory systems and precision fluid transfer applications.
In medical and pharmaceutical equipment, many fluids, semi-fluids or process materials require a stable transfer temperature. If the temperature drops during operation, the material may become thicker, flow more slowly, or affect the stability of the whole system.
A properly designed medical heated hose helps solve these problems by maintaining consistent heat along the hose body. It is especially useful when the equipment requires reliable flow, precise temperature control and customized connection with the machine.
The hose uses a customized medical-grade material-contact inner tube. This makes it suitable for medical equipment and pharmaceutical-related transfer systems where the inner tube material must match the working medium and equipment requirements.
The hose can support working temperatures up to 230°C, depending on the application and final design. Higher temperature requirements can also be discussed for customized projects.
The heating layer is made with uniformly braided heating elements. This structure helps reduce temperature differences along the inner wall and improves the stability of heated transfer.
The hose is manufactured with high-insulation materials to help reduce heat loss, protect temperature stability and improve overall working efficiency.
We can customize hose length, inner diameter, voltage, power, sensor type, connector standard, working pressure and bending requirements according to your equipment.
Our heated hose for medical equipment can be used in:
Medical equipment material transfer
Pharmaceutical equipment heated transfer
Laboratory testing equipment
Precision fluid transfer systems
Temperature-sensitive liquid or semi-liquid transfer
Customized medical device connection systems
Item | Typical Options |
|---|---|
Product Type | Heated hose for medical equipment |
Inner Tube | Custom medical-grade inner tube |
Temperature | Up to 230°C |
Inner Diameter | 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4”, 1” |
Working Pressure | Design-dependent |
Voltage | 220V / 110V / 380V / 12V DC / Custom |
Sensor | J type, K type, PT100, PT1000, NI120 or custom |
Hose Length | 0.1m, 3m, 4.5m, 5m, 6m, 10m or custom |
Connector | Metric, British, American or custom |
Customization | Available |
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Min. Bending Radius |
|---|---|---|---|---|
1/4” | 9 mm | 173 bar / 2501 psi | 690 bar / 10005 psi | 30 mm |
5/16” | 11 mm | 158 bar / 2284 psi | 630 bar / 3915 psi | 40 mm |
3/8” | 12.4 mm | 135 bar / 1958 psi | 540 bar / 7830 psi | 60 mm |
1/2” | 15.9 mm | 118 bar / 1704 psi | 470 bar / 6815 psi | 150 mm |
5/8” | 19 mm | 88 bar / 1269 psi | 350 bar / 5075 psi | 180 mm |
3/4” | 22.6 mm | 85 bar / 1234 psi | 340 bar / 4930 psi | 260 mm |
1” | 29.5 mm | 75 bar / 1088 psi | 300 bar / 4350 psi | 300 mm |
Shenzhen Jingcheng High-tech Co., Ltd. was established in 2005. We focus on the R&D and production of PTFE hoses, PA hoses, PTFE high-pressure hoses and PTFE electric heated hoses. Our products are used in pharmaceutical transfer, automotive production, flue gas sampling, hot melt adhesive systems, laboratory equipment and other industrial applications.
For medical equipment manufacturers, we provide factory-direct heated hose solutions with:
Short lead time
Good service and fast response
Highly customized design
Sample support
Cost-effective China manufacturing
Complete production and assembly capability
To recommend the correct hose, please provide:
Working medium
Required temperature
Working pressure
Hose length
Inner diameter
Voltage and power
Sensor type
Connector thread or drawing
Minimum bending radius
Equipment model or application photo
With these details, our engineering team can provide a suitable specification quickly.
