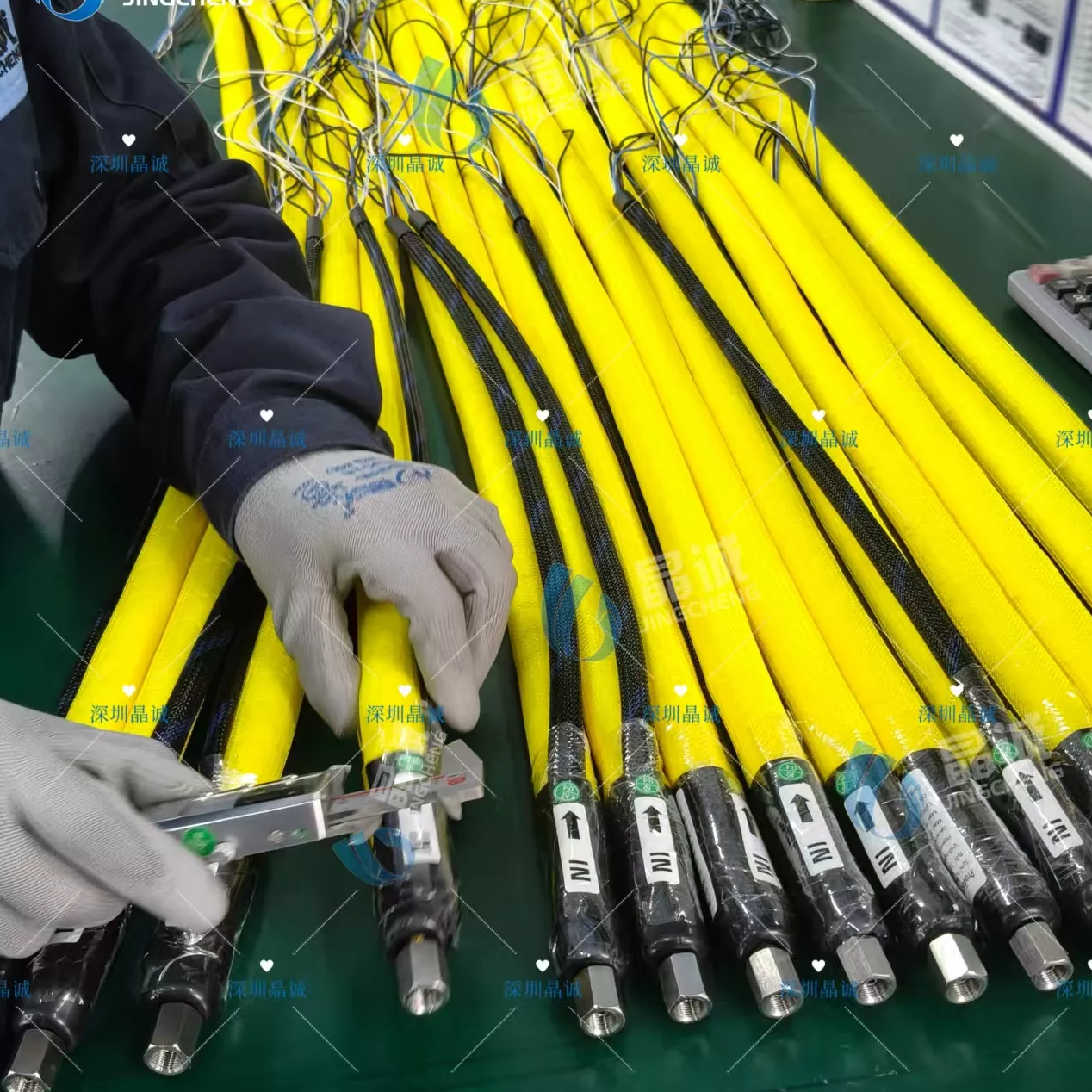

Heated Paraffin Hose for Better Startup and Shutdown Control in Wax 3D Printing

Wax-based 3D printing creates a unique material-handling problem.

During printing, paraffin or wax must remain fluid enough to move predictably through the material-delivery system.

But production does not run continuously forever.

Machines stop.

Operators change materials.

Maintenance is performed.

Production may shut down overnight.

When wax remains inside an ordinary unheated hose, it can cool and eventually solidify.

The next startup may then require significant reheating before the material path becomes usable again.

A heated paraffin hose helps control this transition between production, standby and restart.

Instead of focusing only on temperature during printing, the hose becomes part of the complete thermal-management strategy for the wax system.

Shutdown Is Often More Difficult Than Continuous Operation

During normal printing, fresh heated material continues to move through the hose.

The more challenging condition may occur after the machine stops.

When wax remains stationary:

• Heat is no longer carried by continuous material flow

• The hose loses energy to the surrounding air

• Wax viscosity increases

• Solidification may begin

If the material becomes completely solid, the next startup may require a long heating period.

A heated hose can help keep the wax closer to its usable condition during controlled standby periods.

Faster Startup Can Reduce Material Waste

A cold wax-transfer line can create several startup problems.

Operators may need to:

• Wait for the hose to heat

• Purge partially melted material

• Remove inconsistent wax

• Recheck printer feed conditions

This can waste:

• Material

• Operator time

• Production capacity

Maintaining controlled heat through the hose can help shorten the transition from machine startup to stable production.

Thermal Zoning Can Improve Material Management

A wax-delivery system may contain several temperature-controlled areas:

• Wax tank

• Pump

• Hose

• Print head

Each area has a different thermal mass.

The tank may remain hot for a long time.

The hose, because it has a relatively large surface area compared with its volume, can cool much faster.

For this reason, the hose should be treated as its own thermal zone rather than assuming that the heat from the tank will maintain the entire system.

The Goal Is Controlled Wax Condition

The catalog product can withstand temperatures up to approximately 230°C.

However, wax materials normally require a process-specific operating temperature far below the maximum hose capability.

The correct target depends on:

• Paraffin formulation

• Melting point

• Required viscosity

• Flow rate

• Printer technology

The hose should be controlled at the temperature needed by the material.

Maximum heat is not the objective.

Stable Material Condition Helps Protect Feed Components

When wax becomes too viscous, it can increase resistance in the material-delivery system.

This may create additional load on:

• Pumps

• Valves

• Metering components

• Print heads

Maintaining the hose at a suitable temperature helps reduce unnecessary resistance between the supply tank and printing mechanism.

Useful for Machines with Intermittent Production

Some 3D printing systems operate continuously.

Others produce:

• Small batches

• Customized parts

• Prototype components

• Investment-casting patterns

These machines may start and stop more frequently.

A temperature-controlled wax line is especially useful in intermittent production because it helps reduce repeated cold-start problems.

Wax Residue Should Be Considered During Machine Design

Every hose contains internal volume.

After production stops, some material normally remains inside.

The amount depends on:

• Inner diameter

• Hose length

A hose that is unnecessarily large or long holds more residual wax.

For equipment designers, optimizing hose dimensions can help reduce:

• Residual material

• Warm-up volume

• Purging requirements

• Material waste

This is why hose sizing should be based on actual required flow.

Applications Beyond Standard 3D Printing

Heated paraffin hoses can be considered for:

• Wax 3D printers

• Investment casting pattern equipment

• Jewelry pattern printing

• Prototype wax systems

• Precision wax dispensing

• Additive manufacturing research

• Customized wax-deposition machinery

Replacement Hoses for Existing Printers

As 3D printing equipment evolves, original hose designs may change.

Customers may need replacements because of:

• Hose aging

• Machine upgrades

• New print-head configuration

• Longer material path

• Connector changes

Jingcheng can match the hose according to the original assembly or new machine design.

Customization Options

Available parameters include:

• Hose length

• Inner diameter

• Heating power

• Voltage

• Temperature sensor

• Material fittings

• Electrical connector

• Cable length

• Outer protection

• Installation geometry

What Information Should Be Provided?

Please provide:

• Wax or paraffin type

• Melting temperature

• Recommended operating temperature

• Material viscosity if available

• Working pressure

• Hose length

• Inner diameter

• Required flow

• Voltage

• Heating power

• Temperature sensor

• End fittings

• Electrical connector

• Printer brand and model

Conclusion

In wax-based additive manufacturing, the hose becomes particularly important when the printer stops.

A heated paraffin hose can help manage the transition between:

Printing → Standby → Shutdown → Restart

By reducing excessive cooling and solidification inside the flexible material path, the hose can support faster startup, lower material waste and more predictable wax delivery.

For 3D printer manufacturers, thermal management of the hose should therefore be considered from the beginning of the machine design.
