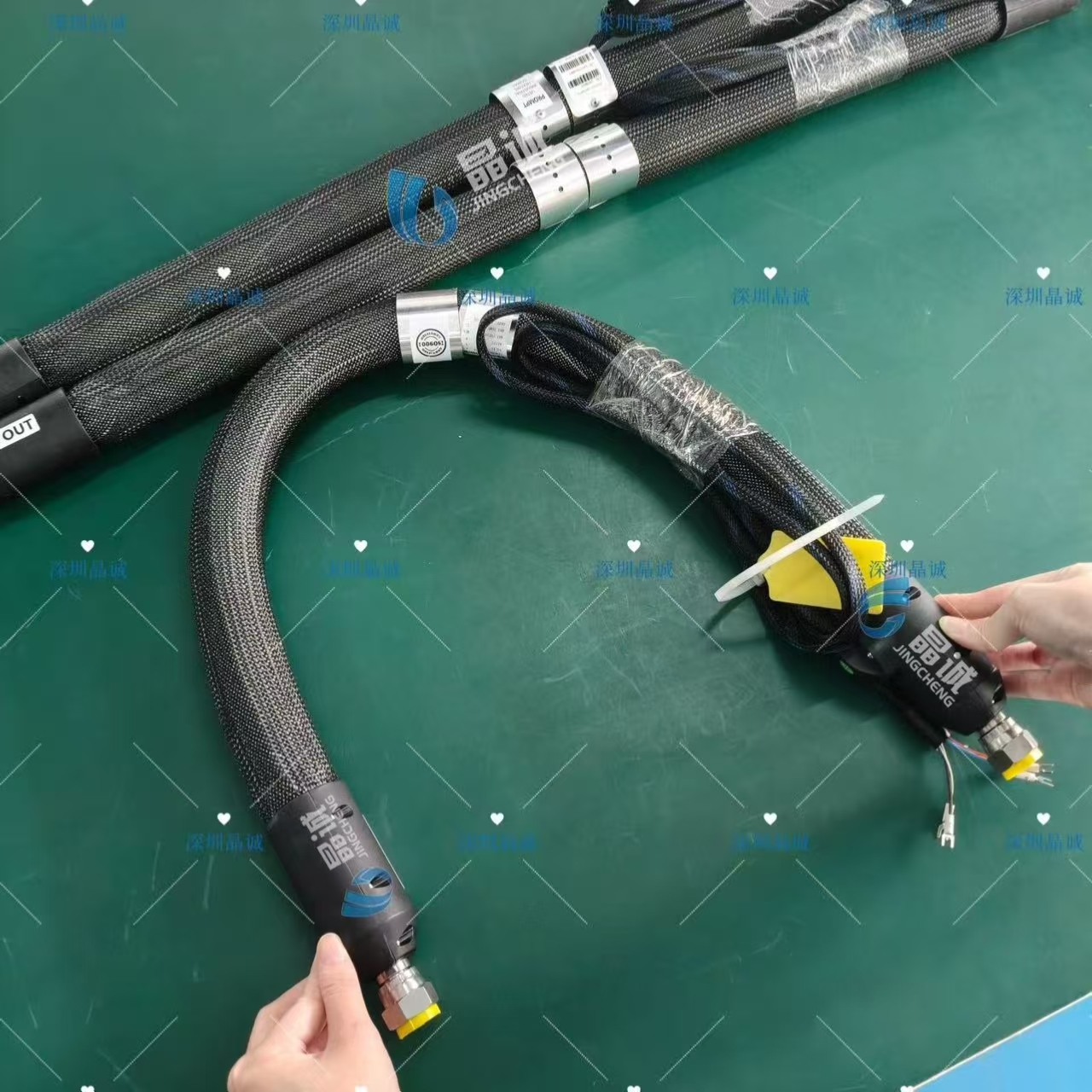

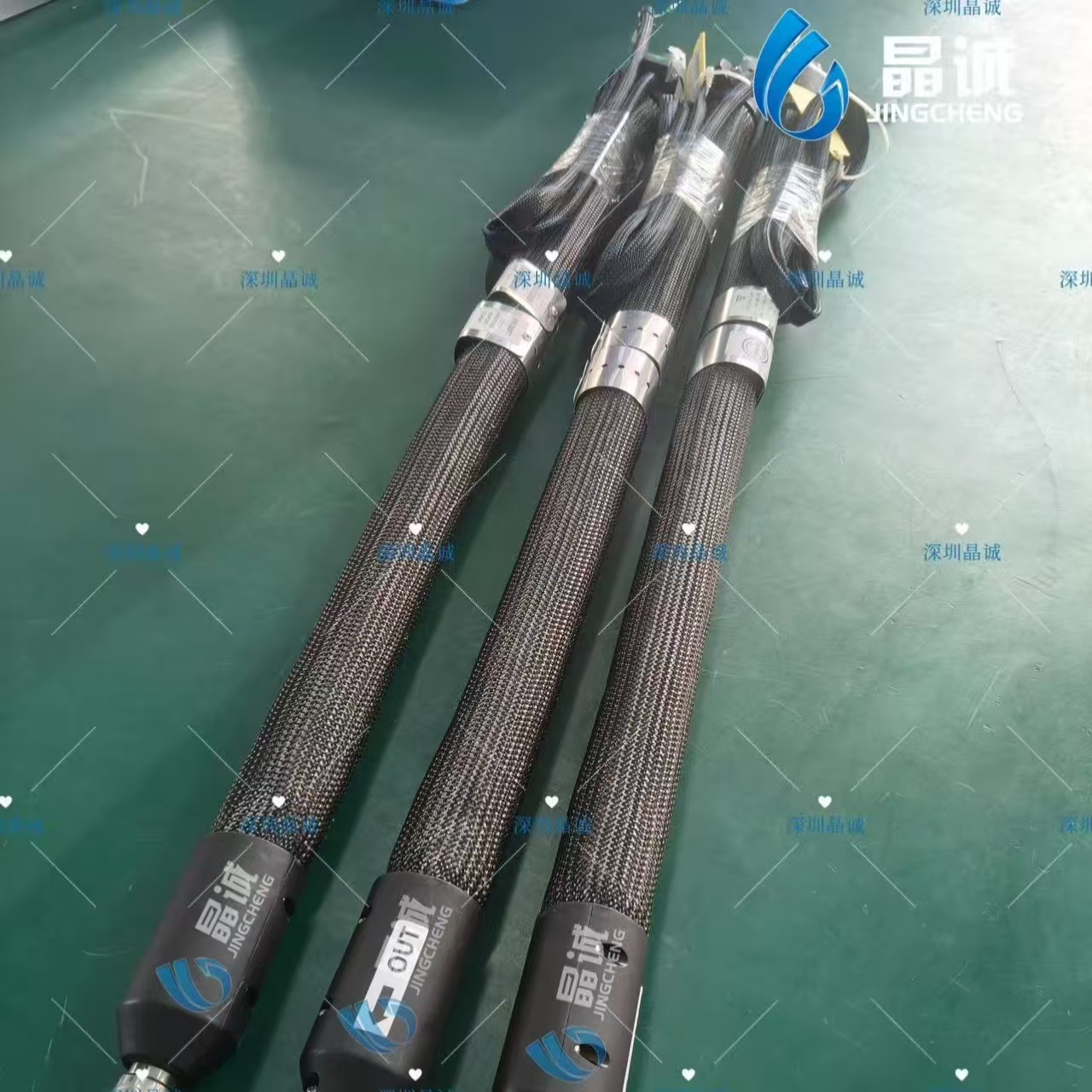

Designed for material flexible connections on various extrusion equipment, extruder machines, and related line machines, this extruder heated hose helps keep your process stable by maintaining transfer temperature during production.
Maximum operating temperature: up to 250°C
Pressure capability: up to 35 MPa at 250°C (design-dependent)
Proven adoption: long-term cooperation with well-known domestic extruder manufacturers
Heated hoses are used for transferring water, oil, air, and solutions at controlled temperature, primarily for insulation + heat tracing. They help prevent viscous media (such as resins, fats, oils) from solidifying, freezing, or increasing in viscosity, which can reduce instability and unplanned downtime during extrusion transfer.
The heating layer uses evenly woven heating elements to minimize temperature variation along the inner wall.
High-insulation-efficiency materials are used to support stable temperature maintenance.
Suitable for various extrusion machines and material flexible connections, including extruder machines and related line equipment.
Final ratings depend on your exact configuration. For fast selection, share your temperature/pressure/media and fitting requirements.
| ID (inch) | OD (mm) | Working Pressure (bar) | Working Pressure (psi) | Burst Pressure (bar) | Burst Pressure (psi) |
|---|---|---|---|---|---|
| 5/16” | 13.3 | 113 | 1631 | 450 | 6525 |
| 3/8” | 15.5 | 110 | 1595 | 440 | 6380 |
| 1/2” | 19 | 88 | 1269 | 350 | 5075 |
| 5/8” | 22.7 | 70 | 1015 | 280 | 4060 |
| 3/4” | 27 | 65 | 943 | 260 | 3770 |
| 1” | 34 | 57.5 | 834 | 230 | 3335 |
| 1-1/4” | 43 | 52.5 | 761 | 210 | 3045 |
| 1-1/2” | 49.5 | 50 | 725 | 200 | 2900 |
One of the key advantages of our electrically heated hoses is customization based on the temperature, viscosity, and flow behavior of the internal medium.
Common build-to-order parameters:
Hose ID/OD, length, construction
Working temperature and target setpoint
Working/peak pressure requirements
Power configuration, control approach (PID options available)
Voltage & wiring format (example shown: 220V / three-phase four-wire 220V)
Sensor options: PT100 (2-wire/3-wire), K-type, J-type, or no sensor
Liner material options (e.g., stainless corrugated, PTFE hose, PTFE + SS braid, special material)
The catalog provides a coding logic that includes temperature, ID, liner type, voltage, sensor type, and pressure code—useful for efficient specification confirmation.
To recommend the best configuration quickly, please provide:
Media/material and whether it thickens when cooling
Operating temperature (normal / max)
Operating pressure (normal / peak)
Hose ID, length, installation constraints & required bend radius (use the table as a reference)
Fitting type/standard and connection layout
Power supply (voltage) and whether you need a sensor/closed-loop control
We follow a clear delivery workflow: inquiry → spec confirmation → quotation → production → inspection & packing → shipment to your designated address.
CTA: Send your specs and get a recommended configuration + quote
.
