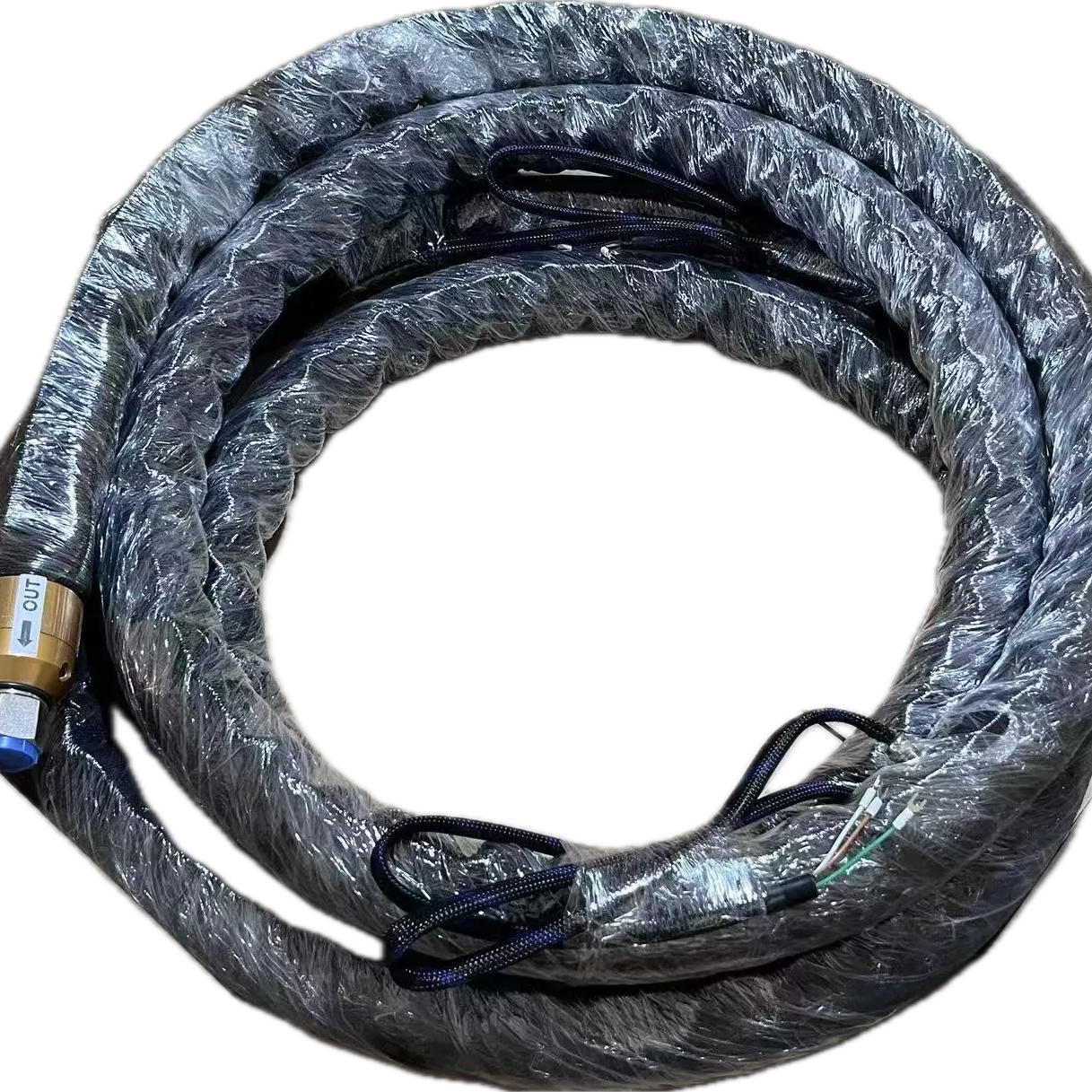

Heated Waterproofing Hose for Stable Spraying Under Changing Jobsite Conditions

Waterproofing work often takes place under conditions that cannot be controlled like a factory environment.

One project may begin in mild weather.

Another may operate in strong wind.

A winter construction site may expose the hose to much lower ambient temperatures.

At the same time, the waterproofing material must continue to flow consistently from the equipment to the application point.

This makes a heated waterproofing hose especially important for systems handling non-curing or other temperature-sensitive construction materials.

The hose creates a controlled heated pathway between the pumping unit and the spray or application point.

Ambient Temperature Can Change Material Behavior

Many waterproofing compounds become more viscous as their temperature decreases.

This means the same material can behave differently depending on:

• Season

• Outdoor temperature

• Wind

• Hose length

• Machine location

If the material becomes too cool inside the hose, operators may experience:

• Increased pump pressure

• Reduced material flow

• Uneven spray pattern

• Slower application

• More difficult startup

A heated hose helps reduce these temperature-driven variations.

Stable Viscosity Supports Better Spray Quality

In spray-based waterproofing systems, flow consistency can affect the application result.

If material viscosity changes significantly while moving through the hose, the spray output may become less predictable.

Stable material temperature can support:

• More consistent discharge

• Better spray pattern

• More predictable application thickness

• Reduced pressure fluctuation

This helps the hose contribute directly to overall process consistency.

Long Construction Areas Create Special Hose Requirements

Waterproofing work can cover large surfaces such as:

• Roofs

• Tunnels

• Bridges

• Foundations

• Basements

The machine may remain in one location while the operator works far away.

This requires longer hose assemblies.

Long hoses create more heat loss and greater pressure drop.

The hose therefore needs to be designed around:

• Required working distance

• Material viscosity

• Flow rate

• Temperature

• Pump capability

A standard short hose simply extended to a much greater length may not provide the same performance.

Outdoor Wind Can Increase Heat Loss

Wind is often overlooked during hose selection.

A heated hose operating outdoors may lose significantly more heat when exposed to continuous airflow.

This means a system that performs well indoors may behave differently on an open construction site.

Insulation and heating power should therefore consider the real installation environment.

Field Durability Matters as Much as Heating

Waterproofing hoses may be exposed to:

• Concrete

• Metal structures

• Construction debris

• Frequent dragging

• Repeated bending

This creates mechanical wear in addition to thermal requirements.

A durable outer structure helps protect the internal heating and material-transfer components from jobsite damage.

Up to Approximately 230°C

The product is designed for applications requiring heat resistance up to approximately:

230°C

The actual operating temperature should follow the requirements of the waterproofing compound.

For most applications, stable temperature control is more important than using the highest available temperature.

Better Temperature Stability Can Reduce Pump Stress

When material becomes more viscous, the pump must work harder to move it.

Maintaining a suitable hose temperature can help reduce unnecessary resistance inside the transfer line.

This may help improve:

• Pump response

• Flow stability

• Application consistency

• Restart behavior

The entire system should still be engineered according to the actual pressure and material properties.

Suitable Applications

Potential applications include:

• Non-curing waterproofing equipment

• Roof waterproofing machines

• Bridge waterproofing systems

• Tunnel coating equipment

• Basement waterproofing machinery

• Foundation coating systems

• Infrastructure repair equipment

• Mobile construction sprayers

• High-viscosity coating transfer

OEM and Replacement Solutions

Jingcheng can customize:

• Hose length

• Inner diameter

• Heating power

• Voltage

• Temperature sensor

• Pump-side fitting

• Application-side fitting

• Electrical connector

• Outer protection

• Cable length

For replacement projects, an original hose or detailed photographs can be used for matching.

What Information Should Be Provided?

Please provide:

• Waterproofing material type

• Recommended operating temperature

• Working pressure

• Maximum pressure

• Material viscosity

• Required flow

• Hose length

• Inner diameter

• Outdoor working temperature

• Voltage

• Heating power

• Sensor type

• End fittings

• Equipment brand and model

Conclusion

Waterproofing equipment must work under changing outdoor conditions while still delivering material consistently.

A heated hose helps isolate the material path from some of the effects of cold weather, wind and long-distance transfer.

For contractors and equipment manufacturers, the correct solution should be designed around material viscosity, ambient conditions, hose length, pressure and application method, not temperature alone.
