High Pressure PTFE Braided Hose for Chemical Spraying and Industrial Fluid Transfer

Industrial fluid systems often require hoses that can handle demanding working conditions.

Applications such as chemical spraying, high-pressure adhesive dispensing, steam transfer and industrial oil circulation require flexible connections that provide:

• high pressure resistance,

• chemical compatibility,

• temperature stability,

• mechanical strength,

• reliable service life.

Traditional rubber hoses may experience problems when exposed to aggressive chemicals, high temperatures or long-term pressure cycles.

A PTFE braided hose provides an alternative solution by combining the excellent chemical resistance of PTFE with the mechanical reinforcement of stainless steel wire.

The JCC-02100 PTFE steel braided hose is designed for high-pressure industrial applications where flexibility and durability are required.

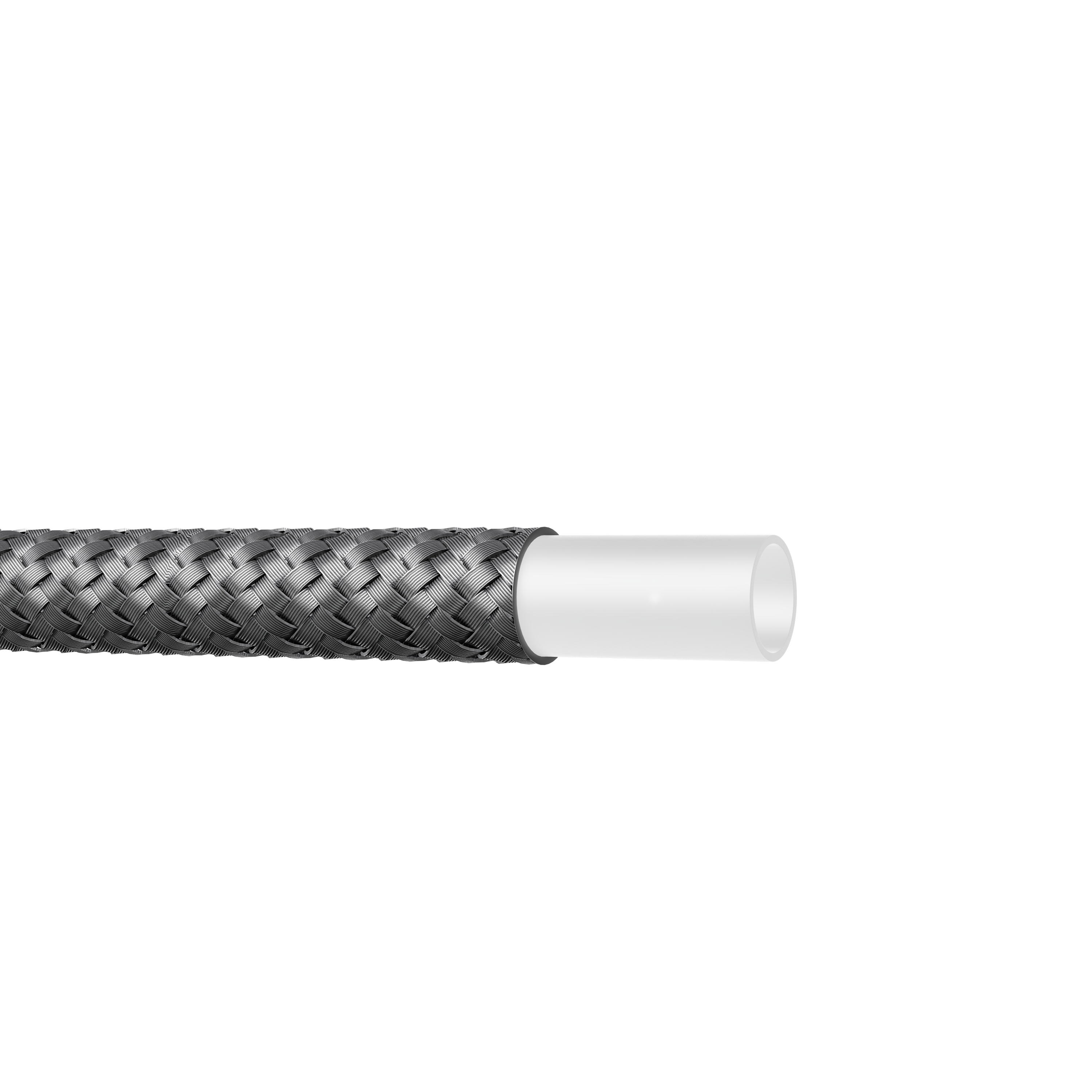

Its structure includes:

• smooth PTFE inner tube,

• 304 stainless steel braided reinforcement layer,

• high-strength stainless steel wire outer braid.

This construction allows the hose to maintain stable performance in applications involving chemical fluids, high-pressure spraying systems and industrial conveying equipment.

Why Choose PTFE Hose for High Pressure Applications?

Industrial hose selection is not only about pressure rating.

A suitable hose must also withstand:

• chemical exposure,

• temperature changes,

• repeated bending,

• vibration,

• installation limitations.

PTFE has several characteristics that make it suitable for demanding applications.

Excellent Chemical Resistance

PTFE is highly resistant to many chemicals.

Compared with conventional rubber materials, PTFE provides better compatibility when transferring:

• acids,

• alkalis,

• solvents,

• fuels,

• chemical solutions.

This makes PTFE braided hose widely used in chemical processing equipment and industrial fluid systems.

Stainless Steel Reinforcement Improves Pressure Capability

The JCC-02100 uses stainless steel braided reinforcement to improve mechanical strength.

The stainless steel braid helps the hose withstand internal pressure while maintaining flexibility.

According to the product specification:

Selected working pressure:

• 3/8 inch: up to 41 MPa

• 1/2 inch: up to 39 MPa

• 5/8 inch: up to 41 MPa

• 3/4 inch: up to 41 MPa

• 1 inch: up to 35 MPa

Burst pressure can reach:

• 17,719 psi

• 122.2 MPa

depending on hose size.

The correct hose size should always be selected according to the actual operating pressure and safety requirements.

Applications in High Pressure Chemical Spraying Equipment

Chemical spraying systems require hoses that can transport aggressive fluids under pressure.

Typical applications include:

• industrial coating equipment,

• chemical spraying machines,

• surface treatment systems,

• cleaning equipment,

• processing machinery.

During operation, the hose may experience:

• pressure fluctuation,

• mechanical movement,

• chemical contact.

A PTFE inner layer helps maintain fluid compatibility while the stainless steel braid provides structural support.

PTFE Hose for High Pressure Adhesive Dispensing Systems

Many industrial adhesive systems operate under elevated pressure.

Examples include:

• industrial glue dispensing,

• coating machines,

• hot melt related equipment,

• precision fluid delivery systems.

The hose needs to maintain:

• stable internal flow,

• resistance to adhesive contamination,

• temperature tolerance.

PTFE provides a low-friction inner surface that helps reduce material buildup compared with some conventional hose materials.

Suitable for Hot Oil and Steam Transfer

Industrial equipment often uses heated fluids.

Examples include:

• thermal oil systems,

• process heating equipment,

• steam transfer lines.

The JCC-02100 PTFE hose is suitable for applications requiring temperature resistance.

The catalog specifies a temperature range of approximately:

-70°C to +260°C

This allows the hose to operate in both low-temperature and high-temperature environments.

Flexible Design for Equipment Installation

Rigid piping systems require accurate alignment.

However, industrial equipment often contains:

• moving parts,

• vibration sources,

• compact installation spaces.

A flexible PTFE braided hose can help absorb:

• installation errors,

• equipment vibration,

• thermal expansion movement.

This reduces stress on connected components.

Mechanical Advantages of PTFE Steel Braided Hose

Compared with ordinary PTFE tubing, reinforced PTFE hose provides additional advantages:

Higher Pressure Capability

The stainless steel braid supports higher pressure applications.

Better Mechanical Protection

The outer reinforcement protects the PTFE tube during installation and operation.

Improved Flexibility

The hose can be routed around equipment structures.

Longer Service Life

Properly selected PTFE hose can provide stable performance in demanding industrial environments.

Applications Across Different Industries

The JCC-02100 PTFE steel braided hose can be used in:

Chemical Industry

For:

• chemical transfer,

• solvent delivery,

• process equipment connections.

Machinery Industry

For:

• hydraulic equipment,

• industrial machinery,

• automated systems.

Automotive Industry

For:

• fuel systems,

• testing equipment,

• production machinery.

Industrial Manufacturing

For:

• spraying systems,

• coating equipment,

• fluid transfer systems.

Custom PTFE Hose Assembly Manufacturing

Different machines require different hose specifications.

Jingcheng provides customized PTFE hose solutions including:

• customized length,

• customized fittings,

• thread selection,

• OEM hose assemblies,

• replacement hose matching.

Customers can provide:

• original hose pictures,

• drawings,

• equipment model,

• pressure requirements.

Engineering support can help confirm the suitable structure.

How to Select the Correct High Pressure PTFE Hose?

Before ordering, customers should confirm:

1. Working Pressure

Choose a hose with sufficient pressure capability.

2. Medium

Confirm compatibility with:

• chemicals,

• oils,

• solvents,

• gases.

3. Temperature

Consider both normal and peak temperature.

4. Hose Size

Select the correct:

• inner diameter,

• outer diameter,

• flow requirement.

5. Connection Type

Confirm:

• thread standard,

• fitting material,

• installation direction.

Why Choose Jingcheng PTFE Hose?

Jingcheng specializes in PTFE hose manufacturing with:

• in-house PTFE tube production,

• stainless steel reinforcement processing,

• customized hose assembly capability,

• OEM production support,

• export experience.

For industrial equipment manufacturers and distributors, customized PTFE hose solutions can help improve equipment reliability and reduce replacement problems.

Conclusion

The JCC-02100 PTFE steel braided hose is designed for industrial applications requiring high pressure resistance, chemical compatibility and flexible installation.

With a smooth PTFE inner tube and stainless steel reinforcement structure, it provides a reliable connection solution for:

• chemical spraying systems,

• industrial fluid transfer,

• adhesive equipment,

• hot oil and steam applications.

For customized industrial hose requirements, selecting the correct PTFE structure, pressure rating and fitting configuration is essential for long-term performance.
