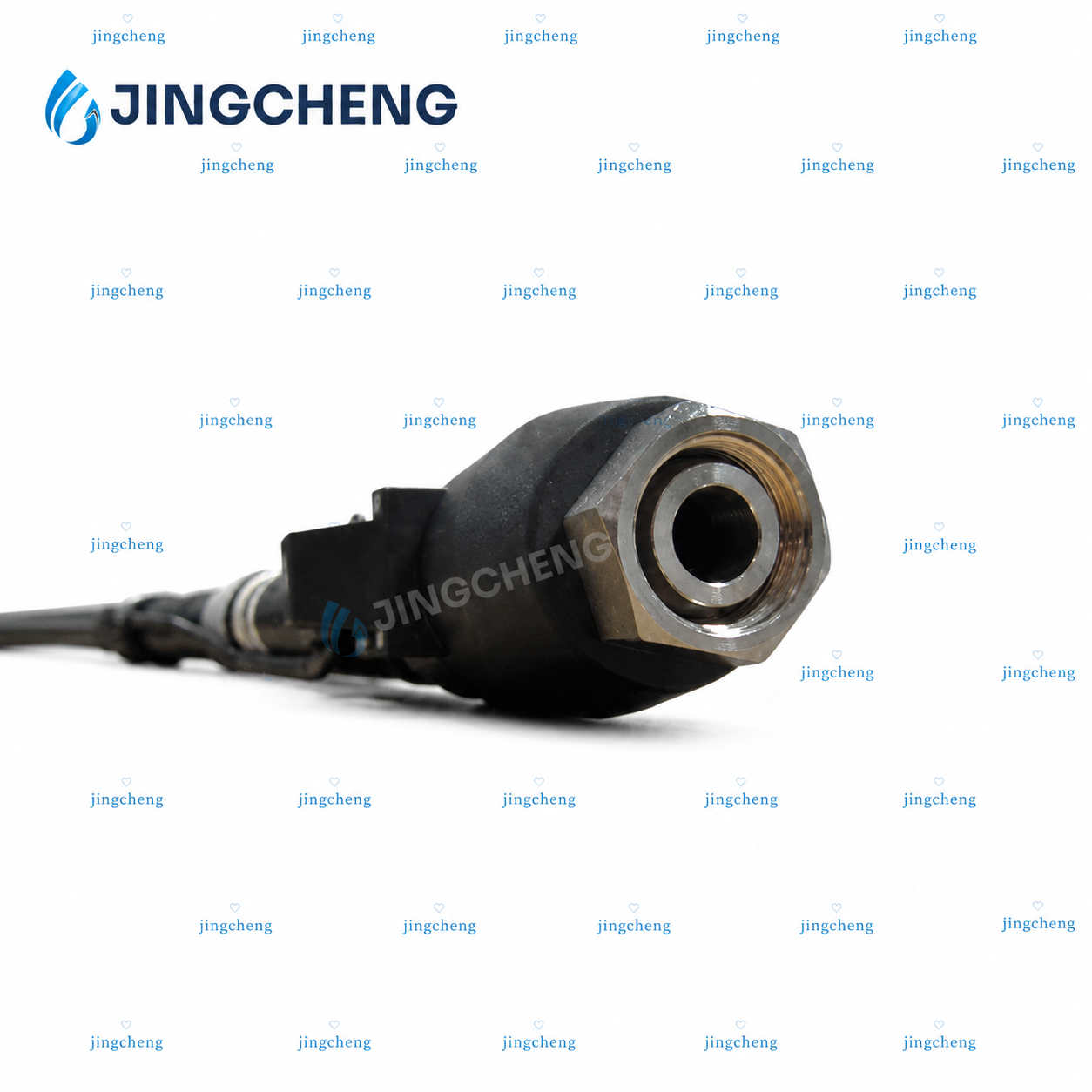

High-Temperature High-Pressure Hose for Pilot Plants, Test Rigs and Reconfigurable Special Equipment

Special industrial machinery is often very different from mass-produced equipment.

A standard production machine may use the same piping layout for thousands of units. A pilot plant, R&D skid or industrial test system may be changed repeatedly as engineers:

• replace a test component,

• move a pump,

• install a new valve,

• change an instrument,

• modify the process layout,

• test a different operating condition.

This creates a demanding connection problem.

Rigid high-pressure piping provides structural stability, but every layout change can require cutting, re-machining or rebuilding the line.

A flexible high-temperature high-pressure hose provides another option for selected connection points where the system needs both mechanical performance and configuration flexibility.

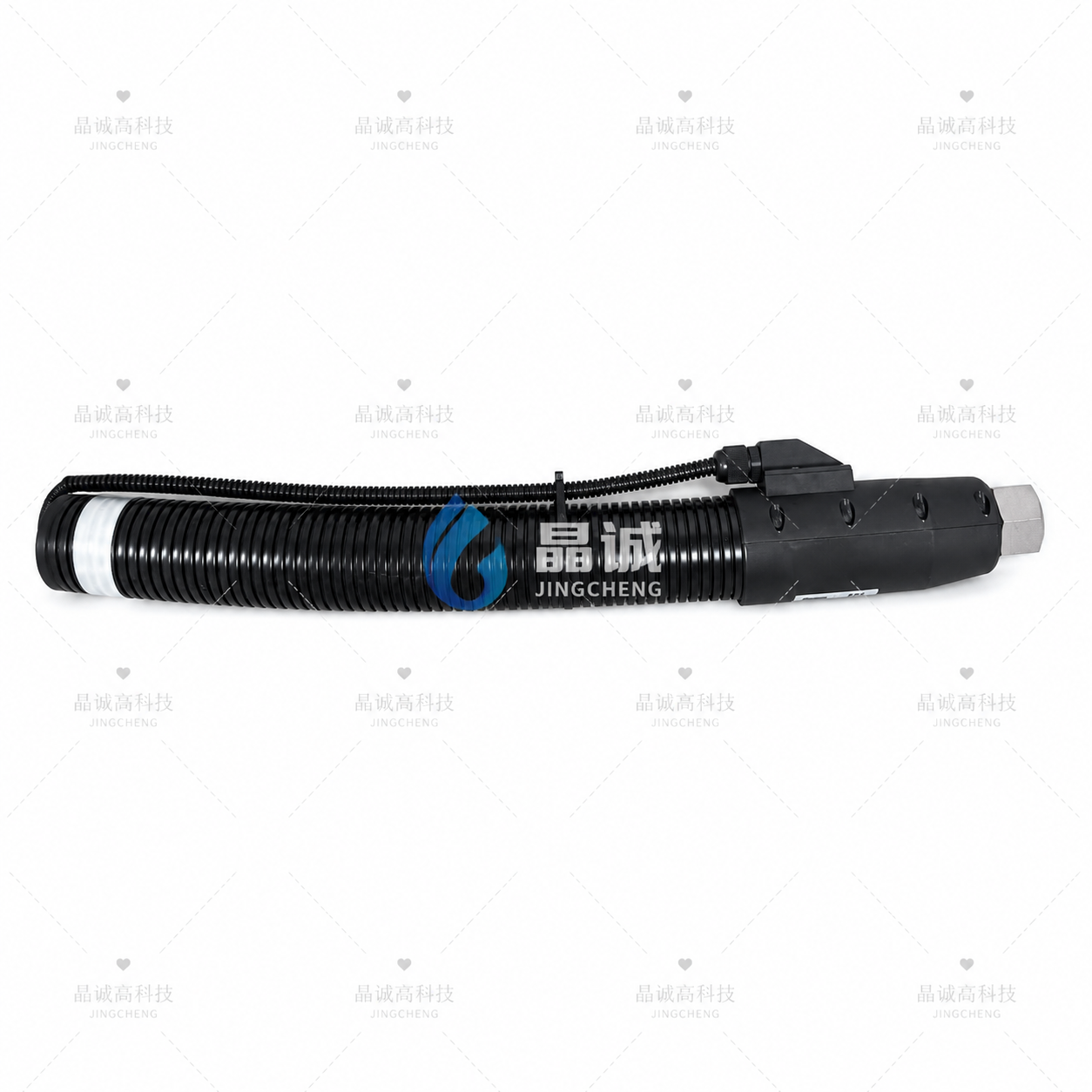

Jingcheng’s special-industry high-temperature high-pressure connection hose is designed for customized machinery and demanding industrial applications.

The catalog describes configurations with temperature capability up to approximately 230°C, while customized designs can be developed for demanding pressure requirements, including applications around 40 MPa or higher depending on the specific project.

This makes the hose particularly relevant to special machines where conventional standard hose products do not fit the complete operating envelope.

Why Pilot Systems Need More Flexible Connection Architecture

Pilot plants and test systems are rarely permanent in the same configuration.

Engineers may change:

• test specimens,

• reactors,

• pumps,

• pressure equipment,

• instrumentation,

• downstream modules.

If every component is connected by rigid pipe, even a small dimensional change can affect the entire piping system.

A flexible hose section can provide limited positional tolerance between fixed equipment modules.

This does not mean replacing all rigid piping.

A more practical approach is often:

Rigid System → Flexible High-Pressure Connection → Replaceable Test Module

This creates a controlled flexible zone while preserving the stability of the main system.

Special Machinery Often Combines Temperature and Pressure

Many standard hoses are selected mainly for one operating requirement.

Some are designed primarily for pressure.

Others are designed primarily for temperature.

Special industrial equipment may require both simultaneously.

The catalog identifies this product specifically as a high-temperature, high-pressure connection hose.

This combination is important because temperature can influence hose materials, reinforcement behavior and assembly performance.

The final hose therefore needs to be selected according to the real combined operating condition rather than evaluating temperature and pressure independently.

PTFE-Based Inner Material for Demanding Process Media

The product information describes the inner hose material as a fluoroplastic/PTFE-based structure intended for demanding service.

PTFE-type fluoropolymers are widely used where engineers require:

• chemical resistance,

• temperature stability,

• a relatively inert material-contact surface.

This makes the hose relevant to special test and processing equipment handling aggressive or difficult media.

The exact compatibility should still be confirmed for the actual fluid, concentration and operating temperature.

Stainless Steel Reinforcement Supports Pressure Performance

The hose uses pressure-resistant metallic reinforcement, including 304 stainless steel wire reinforcement according to the product description.

The reinforcement helps control hose expansion under pressure.

In demanding equipment, this structure must work together with:

• inner hose,

• fittings,

• ferrules,

• crimp zones,

• end connections.

A high-pressure flexible hose should therefore always be treated as a complete engineered assembly.

Useful for Industrial Test Benches

Test benches often need temporary or semi-permanent fluid connections.

Examples may include:

• pressure testing systems,

• thermal test equipment,

• pump test stands,

• component endurance testing,

• industrial R&D equipment.

The test object may change frequently.

A customized flexible connection can reduce the amount of rigid pipe reconstruction required between test campaigns.

Flexible Connections for Pilot Process Skids

Pilot skids are used to validate industrial processes before full-scale production.

Their layouts may include:

• pumps,

• heaters,

• filters,

• vessels,

• sensors,

• pressure control units.

Because the system is experimental or semi-experimental, the physical arrangement may change.

A flexible high-temperature high-pressure hose can help connect modules while allowing future reconfiguration.

Compact Machine Layouts Benefit from Flexible Hose Sections

Special machinery is often built inside a limited frame.

Engineers may need to install high-pressure lines around:

• control cabinets,

• structural supports,

• pumps,

• valves,

• sensors.

Rigid piping may require several elbows and adapters.

A flexible hose can sometimes create a more direct connection.

This can reduce the number of rigid connection points in selected parts of the machine.

Pressure Capability Depends on Hose Size

The catalog shows that pressure capability changes according to hose diameter.

Selected working-pressure values are approximately:

• 5/16" — 113 bar / 1,631 psi

• 3/8" — 110 bar / 1,595 psi

• 1/2" — 88 bar / 1,269 psi

• 5/8" — 70 bar / 1,015 psi

• 3/4" — 65 bar / 943 psi

• 1" — 57.5 bar / 834 psi

• 1-1/4" — 52.5 bar / 761 psi

• 1-1/2" — 50 bar / 725 psi

The catalog also describes specially customized higher-pressure configurations.

This means the final assembly must be selected according to the actual equipment requirement, not simply the generic table.

Bending Radius Must Be Considered During Equipment Design

Flexible does not mean unlimited bending.

The catalog lists minimum bending radii from approximately:

• 15 mm at 5/16"

• 20 mm at 3/8"

• 25 mm at 1/2"

• up to 200 mm at 1-1/2"

Larger hose diameters therefore require significantly more routing space.

Machine designers should reserve this space before finalizing the layout.

Frequent Reconfiguration Requires Good Hose Management

A hose used in a test system may be connected and disconnected more often than one installed on a permanent production machine.

This increases the importance of:

• correct fitting alignment,

• sufficient bend radius,

• avoiding twisting,

• protecting electrical or sensor cables where applicable,

• preventing external abrasion.

A flexible hose can make reconfiguration easier, but only if the installation is managed correctly.

Custom End Connections Are Critical

Special equipment rarely uses one universal connection standard.

A project may require:

• metric threads,

• BSP,

• NPT,

• JIC,

• customized adapters,

• proprietary interfaces.

Jingcheng can customize the end connections according to the equipment design.

This is especially useful for test systems combining components from different countries or manufacturers.

When Should a Flexible Hose Be Used Instead of Rigid Pipe?

Flexible high-temperature high-pressure hose is particularly useful when:

• equipment modules require periodic removal,

• connection points are not perfectly aligned,

• the system layout may change,

• vibration or thermal movement exists,

• access for maintenance is required.

Rigid piping may remain preferable for long fixed runs.

The best engineering solution often uses both.

Information Needed for Customization

For a special-industry hose project, customers should provide:

• medium,

• working temperature,

• maximum temperature,

• normal pressure,

• maximum pressure,

• hose length,

• inner diameter,

• fitting type,

• thread standard,

• minimum bending radius,

• machine application,

• whether the hose will be moved or reconfigured.

These parameters help define the correct structure.

Why Choose Jingcheng

Jingcheng specializes in customized PTFE and industrial heated/flexible hose assemblies.

For special equipment projects, advantages include:

• direct factory manufacturing,

• custom high-temperature solutions,

• custom high-pressure configurations,

• special fitting development,

• small-batch and sample support,

• OEM engineering cooperation,

• short lead time,

• customized assembly design.

Conclusion

Pilot plants, test rigs and special industrial machines require a different hose strategy from standardized production equipment.

The system may change repeatedly, connection points may be difficult to align, and operating conditions may involve both elevated temperature and substantial pressure.

A properly designed high-temperature high-pressure flexible hose can provide a controlled connection between reconfigurable equipment modules.

The most effective solution should balance:

temperature + pressure + hose diameter + bending radius + fitting interface + machine reconfiguration requirements.
