How Heated Gas Sampling Lines Protect Measurement Accuracy

Introduction

Accurate gas analysis depends on more than the analyzer itself.

Between the sampling point and the analytical instrument, the gas must often travel through several metres of flexible tubing. During this journey, heat loss can change the condition of the sample before it reaches the detector.

Moisture may condense, soluble components may be lost, and contaminants may accumulate inside the line. The analyzer may remain fully functional while the sample reaching it no longer represents the original process gas.

A heated gas sampling line helps maintain stable sample conditions during transportation. It is widely used in flue-gas pretreatment equipment, online monitoring systems, infrared and ultraviolet gas analyzers, and laboratory testing equipment.

Why Sample-Line Temperature Affects Measurement Results

Industrial gas samples may contain moisture, corrosive components, particles and temperature-sensitive compounds.

When the sample cools inside an unheated line, several problems may occur:

• Water vapour condenses on the inner wall

• Soluble gas components are absorbed by condensed moisture

• Heavy compounds accumulate inside the tube

• Sample flow becomes unstable

• The response time of the analyzer increases

• Internal blockage develops gradually

• Cleaning frequency increases

• Measurement repeatability decreases

The problem is particularly important when the sample must travel from a hot process point to an analyzer installed in a cooler cabinet or control room.

Heated Sampling Lines as Part of the Pretreatment System

A heated sampling line should not be viewed as an ordinary hose with a heating wire added around it.

It is a functional part of the complete sampling and pretreatment system.

A typical assembly may include:

• Sample-compatible inner tubing

• Pressure-resistant hose structure

• Uniformly arranged heating elements

• Thermal insulation

• Protective outer covering

• Temperature sensor

• Probe-side connection

• Analyzer-side connection

• Electrical cable and connector

Every part must be selected according to the sample composition, operating temperature, hose length and instrument configuration.

Uniform Heating Reduces Localized Cold Sections

Even when the average hose temperature appears correct, uneven heating can create localized cold sections.

These areas may become condensation points and cause gradual contamination of the sample path.

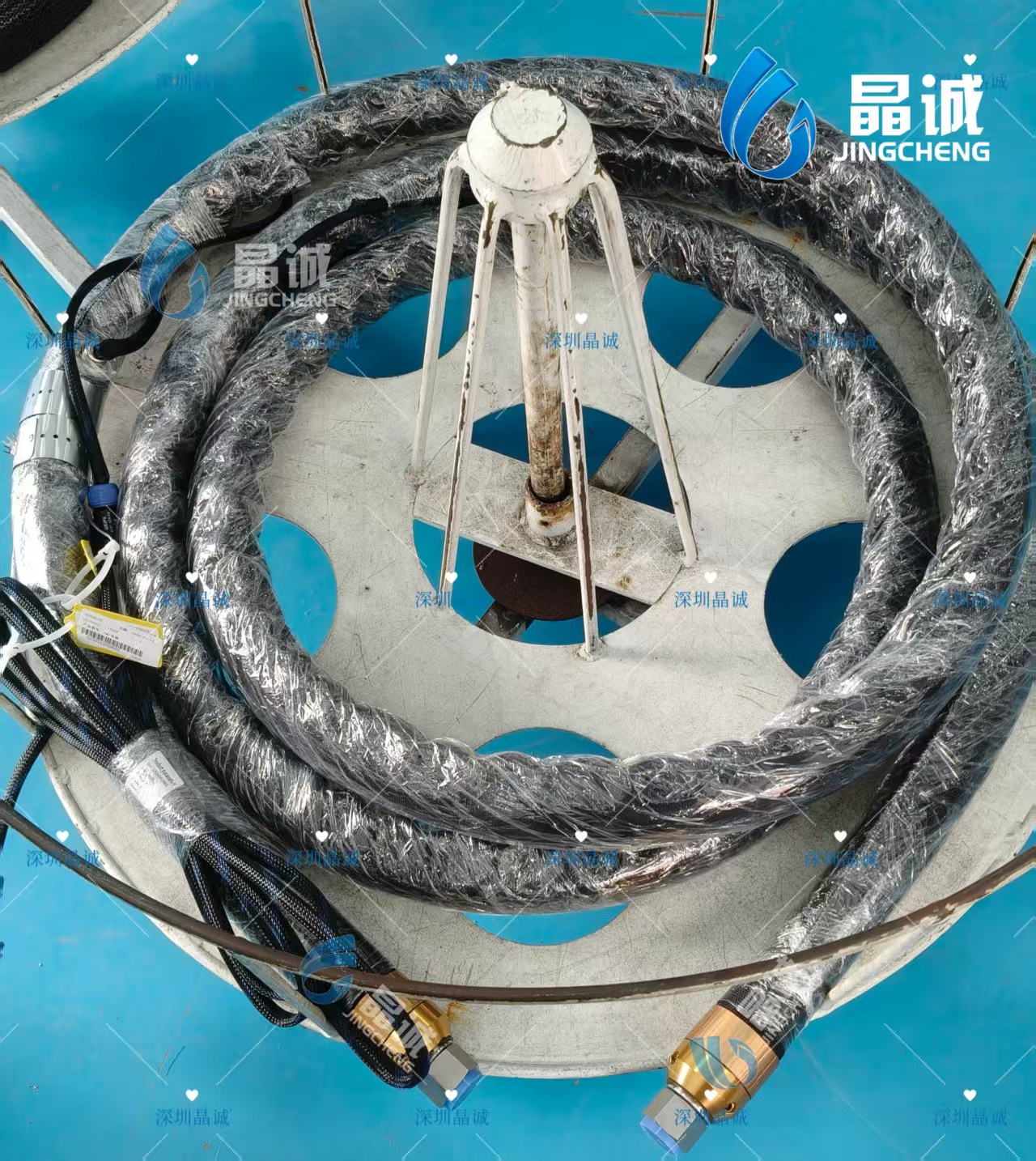

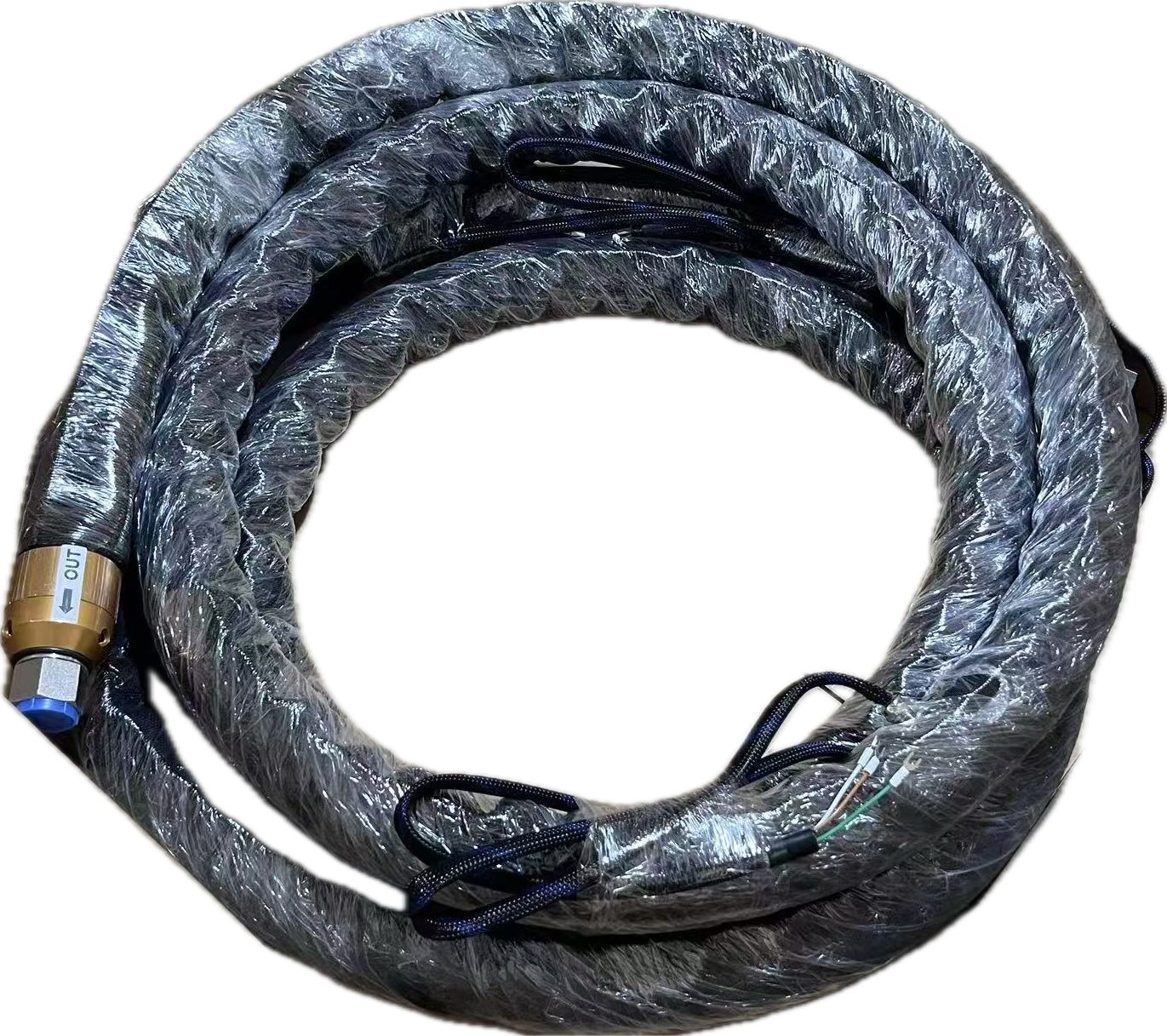

The gas sampling hose shown uses uniformly arranged heating elements to reduce temperature differences along the inner wall.

This design can help support:

• More stable gas temperature

• Reduced condensation risk

• Faster analyzer response

• More consistent sample flow

• Lower cleaning frequency

• Improved measurement repeatability

The objective is not to heat the gas excessively. The objective is to keep the sample above the required transport temperature throughout the line.

Stable Insulation in Flexible Installations

Gas-monitoring equipment often requires a sampling line that can pass around cabinets, probes, frames and analytical instruments.

The hose must therefore combine thermal stability with bending resistance.

According to the product description, the sampling line is designed to resist repeated bending while maintaining stable insulation performance.

This is useful in:

• Flue-gas pretreatment cabinets

• Fixed online monitoring stations

• Infrared sampling systems

• Ultraviolet analysis equipment

• Laboratory gas-testing systems

• Portable or movable analytical equipment

Standard Temperature Capability

The standard product supports heat-resistance temperatures up to:

230°C

The actual operating temperature should be selected according to:

• Sample-gas composition

• Moisture content

• Process temperature

• Condensation point

• Hose length

• Ambient temperature

• Inner-tube material

• Analyzer requirements

Higher temperature requirements should be evaluated separately.

Reference Product Data

*The source image lists 630 bar and 3,915 psi together, but these values are not equivalent. This row should be checked before the parameter table is published on the website.

The table contains reference values for the underlying hose structure. The final rating depends on the inner sampling tube, temperature, fittings and complete assembly.

Information Required for Customization

Please provide:

• Sample-gas composition

• Required transport temperature

• Hose length

• Inner-tube quantity

• Inner-tube diameter

• Inner-tube material

• Working pressure

• Voltage

• Heating power

• Temperature sensor

• Probe-side fitting

• Analyzer-side fitting

• Electrical connector

• Pin arrangement

• Equipment model

• Installation environment
