Choosing the Right Anti-Static PTFE Hose Is More Important Than Simply Choosing “Conductive PTFE”

When a fluid-handling system requires electrostatic control, the first reaction is often simple:

“Use an anti-static PTFE hose.”

But that is only the beginning of the selection process.

Anti-static PTFE hoses are available in several different constructions, and each structure behaves differently inside real equipment.

A machine may require:

• A smooth internal flow path

• Very tight bending

• Greater routing flexibility

• Better static dissipation

• Easier installation inside a compact frame

Selecting the wrong structure can result in unnecessary cost, poor routing or a hose that is technically suitable but inconvenient for the machine.

Jingcheng’s anti-static PTFE hose family provides several configurations so engineers can match the hose structure to the actual process instead of treating every anti-static application as identical.

One Anti-Static Hose Cannot Solve Every Installation Problem

The hose shown in the catalog includes four main configurations:

• Anti-static smooth-bore PTFE hose

• Anti-static corrugated PTFE hose

• Anti-static smooth-inner / corrugated-outer PTFE hose

• Fully black conductive corrugated PTFE hose

They share PTFE-related chemical and thermal advantages, but their mechanical behavior is different.

This means selection should begin with the machine layout, not only with the transported material.

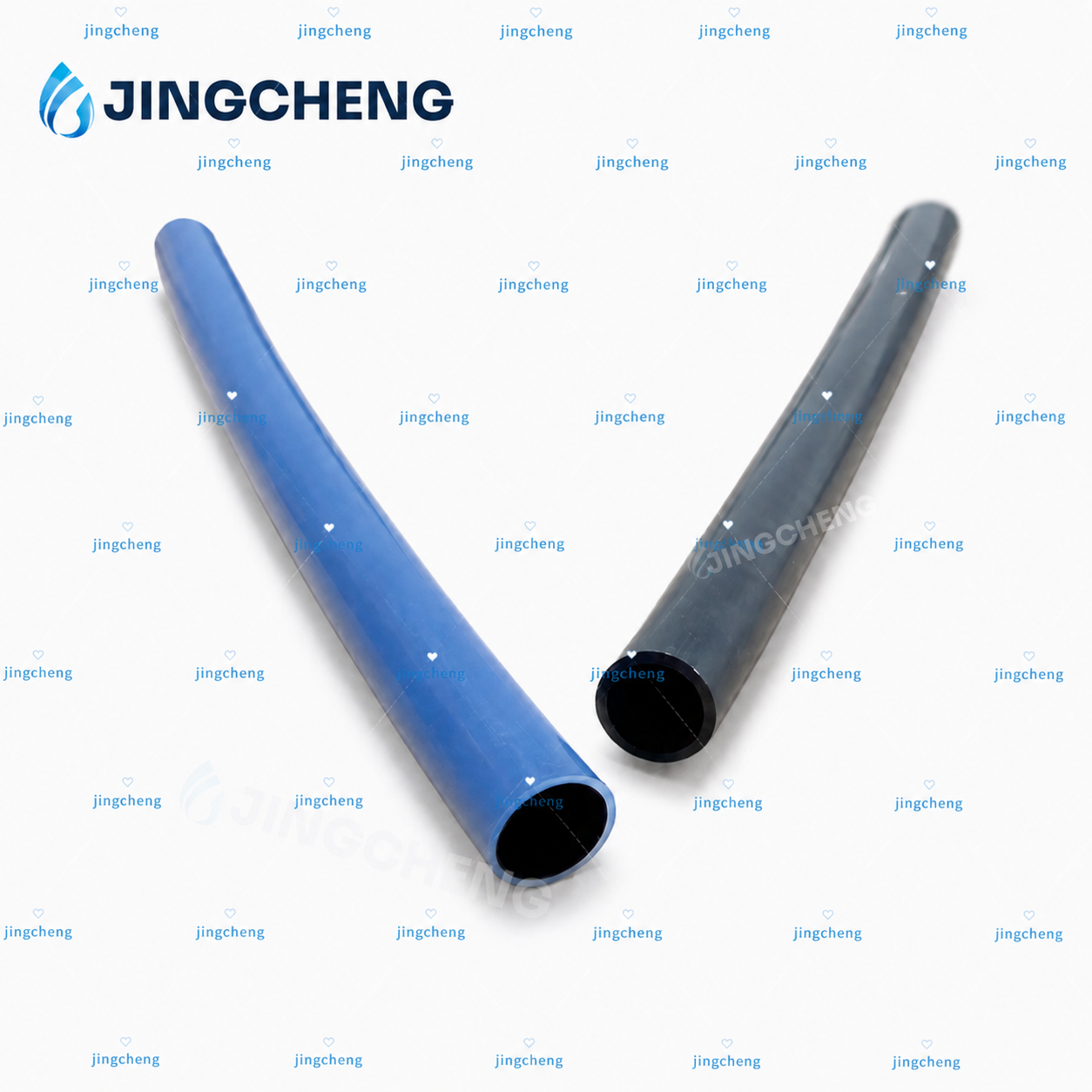

Smooth-Bore Anti-Static PTFE Hose for Simple Flow Paths

A smooth-bore structure is useful when the hose does not need extreme flexibility.

Its internal geometry is relatively straightforward.

This can be attractive for systems where the priorities include:

• Predictable flow

• Straightforward cleaning

• Reduced internal geometric complexity

• Fixed or semi-fixed routing

Potential applications may include chemical dosing, solvent delivery and controlled fluid-transfer equipment.

Corrugated Anti-Static PTFE Hose for Tight Machine Layouts

Some equipment does not provide enough room for a large bending radius.

Examples include:

• Compact chemical skids

• Laboratory equipment

• Coating machinery

• Small fluid modules

A corrugated hose can bend more easily and route around nearby components.

This makes flexibility the primary reason for selecting this structure.

The trade-off is that the internal path is more complex than a smooth tube.

Smooth-Inner Corrugated PTFE Hose Offers a Middle Ground

In some applications, engineers want both:

• A relatively smooth material-contact path

• Good external flexibility

The smooth-inner / corrugated-outer structure addresses this combination.

This can be useful where the machine requires tight routing but the process also benefits from easier fluid passage or cleaning.

Instead of choosing between a completely smooth or fully corrugated structure, this design provides another option.

Fully Conductive Black PTFE for More Demanding Static-Control Requirements

The catalog also shows a fully black conductive corrugated PTFE hose.

This type of construction may be selected where stronger conductive characteristics are required.

Potential areas include systems handling:

• Flammable liquids

• Solvents

• Fuels

• Static-sensitive coatings

The complete electrical design should still consider grounding, fittings and the machine structure.

A conductive hose should not be treated as the entire static-control system by itself.

Why Over-Specifying a Hose Can Also Be a Problem

Selecting the most complex hose is not always the best engineering decision.

For example, if a machine only needs moderate flexibility, using a highly convoluted structure may provide no meaningful advantage.

Likewise, selecting a fully conductive hose when the application requires only a specific anti-static characteristic may increase complexity unnecessarily.

The more efficient approach is to define:

• Media

• Static-control requirement

• Pressure

• Temperature

• Bending radius

• Cleaning requirement

• Installation space

and then choose the hose architecture.

Broad Temperature Capability

The anti-static PTFE series is designed for a wide temperature range.

The catalog describes operation from approximately:

-60°C to +260°C

depending on the exact product configuration.

This allows the series to be considered for both low-temperature and heated process systems.

Low Friction Supports Fluid Transfer

The source product also highlights the naturally low friction characteristics of anti-static PTFE.

Low friction can help in applications involving:

• Chemical transfer

• Solvent delivery

• Fuel systems

• Process fluids

The exact hydraulic performance will still depend on hose diameter, length, fluid viscosity and flow rate.

Chemical Resistance Is Still a Core Advantage

Anti-static performance does not replace PTFE’s primary chemical function.

The series is intended for chemically demanding environments where ordinary elastomer hoses may not provide sufficient compatibility.

Possible applications include:

• Chemical liquid treatment

• Solvent transfer

• Flammable-liquid handling

• Coating equipment

• Food-related equipment where applicable

Actual compatibility should always be confirmed for the specific chemical.

Lightweight Construction Can Help Compact Equipment

The catalog also highlights the relatively lightweight nature of PTFE tubing.

This can be useful in:

• Portable equipment

• Compact machinery

• Moving fluid modules

• Laboratory systems

Lower hose weight can reduce the load placed on fittings and support structures.

Static Control Should Be Evaluated as a Complete System

Static behavior can be influenced by more than the hose.

Engineers should also consider:

• Fluid conductivity

• Flow velocity

• Hose length

• Fittings

• Grounding

• Equipment frame

• Environmental conditions

A correctly selected anti-static PTFE hose is one element of the complete system design.

Typical Applications

Potential applications include:

• Chemical liquid processing

• Flammable-liquid transfer

• Fuel delivery

• Static-sensitive coating systems

• Solvent handling

• Chemical dosing

• Laboratory equipment

• OEM process machinery

• Food-processing systems where suitable

Customization Options

Jingcheng can customize:

• Hose structure

• Inner diameter

• Hose length

• Anti-static or conductive configuration

• End fittings

• Thread standards

• Complete assemblies

• OEM requirements

What Information Should Be Provided?

Please provide:

• Transferred medium

• Whether the material is flammable

• Static-control requirement

• Working temperature

• Working pressure

• Hose length

• Inner diameter

• Minimum bending radius

• Cleaning requirement

• Fittings

• Equipment application

Conclusion

Selecting an anti-static PTFE hose should not begin and end with the word “conductive.”

The correct design depends on how the hose must behave inside the actual machine.

A smooth hose, corrugated hose, smooth-inner corrugated hose and fully conductive black hose each solve a different engineering problem.

By matching the structure to the media, static requirement, flexibility, pressure and machine layout, equipment manufacturers can avoid both under-specification and unnecessary over-design.
