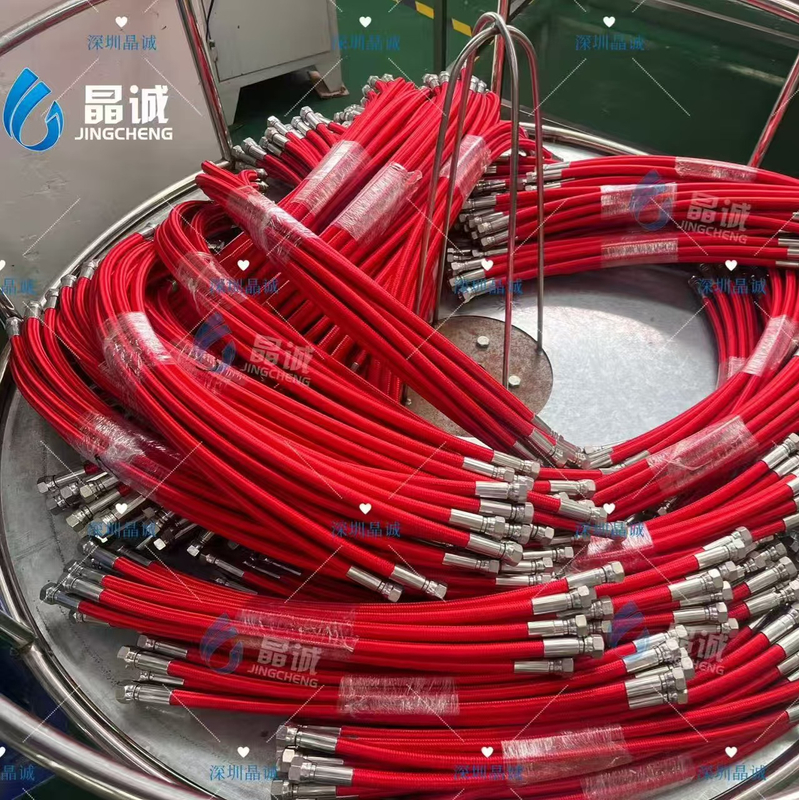

A lightweight aramid braided PTFE hose is designed for fluid systems that require high working pressure, chemical resistance, flexible installation and reduced hose weight.
The JCC-04100-PTFE series consists of a straight PTFE inner tube reinforced with a high-strength aramid woven outer layer. According to the product catalog, the inner tube provides anti-static performance, while the aramid braid offers strong pressure reinforcement without the weight of a conventional stainless steel outer braid.
This hose is suitable for transferring fuel, gas, coolants, lubricants, strong acids, strong alkalis and compatible organic solvents. Typical applications include hydraulic machinery, trains, automobiles, ships, aircraft and other industrial or transportation systems.
The hose contains two primary functional layers.
The straight PTFE inner tube provides:
Strong resistance to many aggressive chemicals
Low internal friction
Reduced material adhesion
Stable performance at high and low temperatures
Compatibility with fuels and organic solvents
Anti-static performance for suitable applications
The required electrical resistance, continuity and grounding arrangement should be confirmed for the final hose assembly.
The aramid woven outer layer helps:
Increase working-pressure capability
Reduce the total hose weight
Improve flexible routing
Limit PTFE tube expansion
Reduce the load on equipment connections
Provide non-metallic external reinforcement
A stainless steel braided PTFE hose provides strong mechanical protection, but its weight may be undesirable in mobile equipment, vehicles or aerospace systems.
Aramid reinforcement offers a high strength-to-weight ratio and can provide several practical advantages:
Lower hose assembly weight
Easier handling and installation
Reduced stress on fittings
Flexible routing in restricted spaces
Strong high-pressure performance
No exposed metal braid
Suitability for weight-sensitive equipment
The final choice between aramid and stainless steel reinforcement should be based on pressure, abrasion, environment, movement and installation conditions.
The aramid woven reinforcement provides strong pressure support while reducing hose weight.
The inner tube is designed to help control electrostatic accumulation when transferring suitable fuels, gases and solvents.
The listed 3/8-inch model has a reference working pressure of:
40 MPa / 5,800 psi
The same model has a listed burst pressure of:
160 MPa / 23,200 psi
The catalog operating range is:
-65°C to +220°C
The hose can be evaluated for compatible:
Fuel
Gas
Strong acids
Strong alkalis
Coolants
Lubricants
Organic solvents
Hazardous chemical media
Automotive fuel systems
Aircraft fluid lines
Aerospace equipment
Hydraulic machinery
Railway pipelines
Marine fluid systems
Coolant circulation
Lubricant delivery
Gas transfer systems
Chemical-processing equipment
Rocket and spacecraft pipelines
Lightweight mobile machinery
Use in safety-critical aerospace, automotive or transportation systems requires confirmation against the applicable engineering and qualification requirements.
Item | Specification |
|---|---|
Product Name | Lightweight Aramid Braided PTFE Hose |
Model Series | JCC-04100-PTFE |
Inner Tube | Straight anti-static PTFE tube |
Reinforcement | High-strength aramid woven layer |
Temperature Range | -65°C to +220°C |
Inner Diameter Range | 3/8" to 1" |
Main Advantages | Lightweight, high pressure and chemical resistance |
Typical Media | Fuel, gas, coolant, lubricant, acids, alkalis and solvents |
Customization | Length, diameter, fittings and complete assemblies |
Catalog References | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | PTFE Tube OD | Finished Hose OD | Working Pressure | Burst Pressure | Minimum Bending Radius |
|---|---|---|---|---|---|---|
JCC-04110-PTFE | 3/8" / 10 mm | 13.1 mm | 15.6 mm | 5,800 psi / 40 MPa | 23,200 psi / 160 MPa | 80 mm |
JCC-04113-PTFE | 1/2" / 13 mm | 16.5 mm | 18.6 mm | 5,437.5 psi / 37.5 MPa | 21,750 psi / 150 MPa | 150 mm |
JCC-04116-PTFE | 5/8" / 16 mm | 19.4 mm | 23.2 mm | 4,785 psi / 33 MPa | 19,140 psi / 132 MPa | 180 mm |
JCC-04119-PTFE | 3/4" / 19 mm | 23.1 mm | 26.6 mm | 4,241.3 psi / 29.25 MPa | 16,965 psi / 117 MPa | 300 mm |
JCC-04125-PTFE | 1" / 25.4 mm | 30.5 mm | 33 mm | 3,552.5 psi / 24.5 MPa | 14,210 psi / 98 MPa | 400 mm |
These figures are catalog reference data. Final allowable working pressure depends on temperature, fittings, pressure cycles, hose movement and complete assembly design.
A correctly specified aramid braided PTFE hose can help:
Reduce equipment weight
Maintain high working pressure
Improve chemical compatibility
Support flexible routing
Reduce stress on connection points
Improve installation efficiency
Resist fuel and solvent exposure
Support customized replacement projects
Match non-standard equipment interfaces
Reduce the weight of long hose assemblies
Please provide:
Transferred medium
Chemical concentration
Operating temperature
Normal working pressure
Maximum system pressure
Static-control requirement
Required electrical resistance
Hose length
Inner diameter
Minimum bending radius
Weight restriction
Inlet and outlet fittings
Equipment model or drawing
