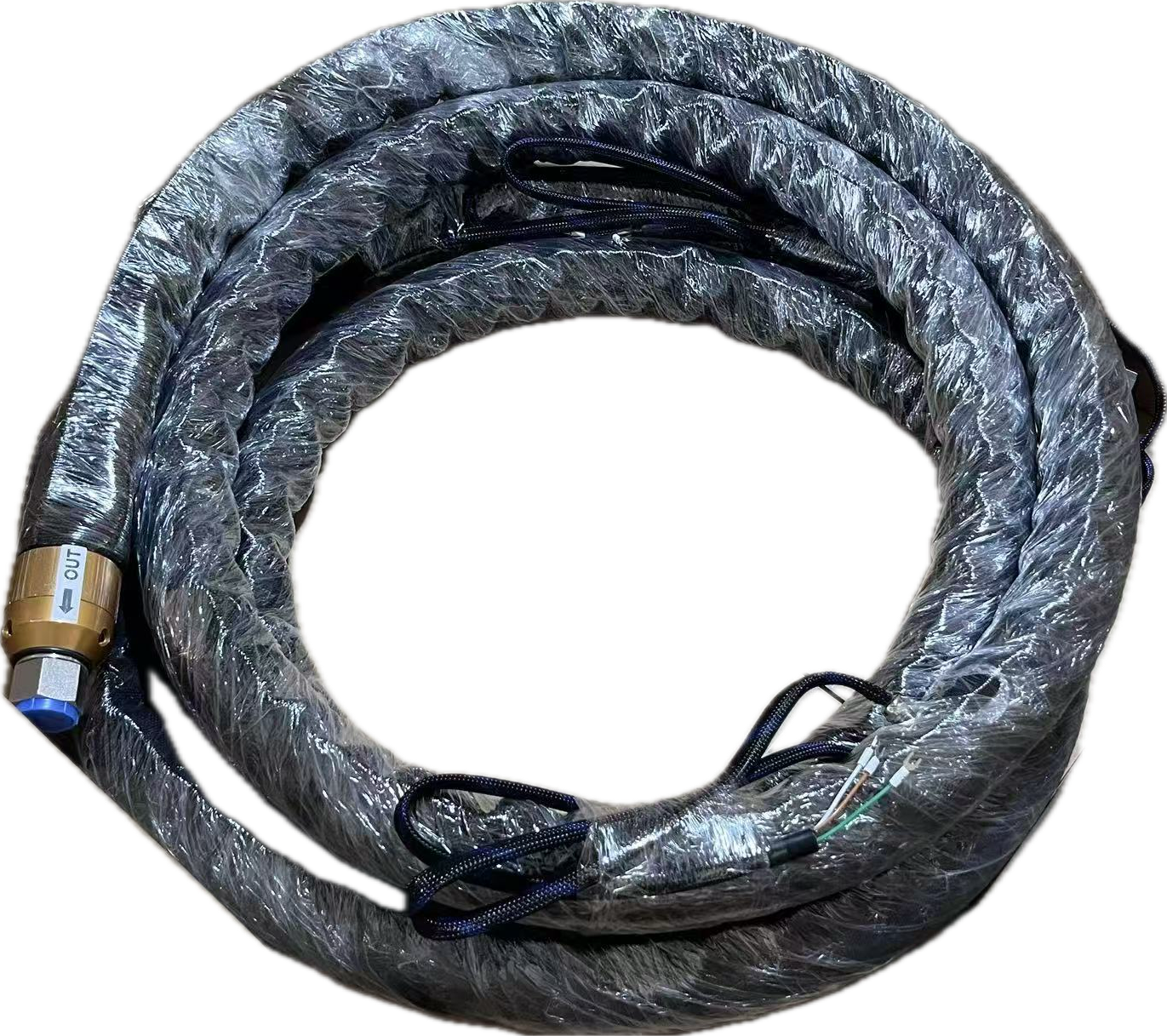

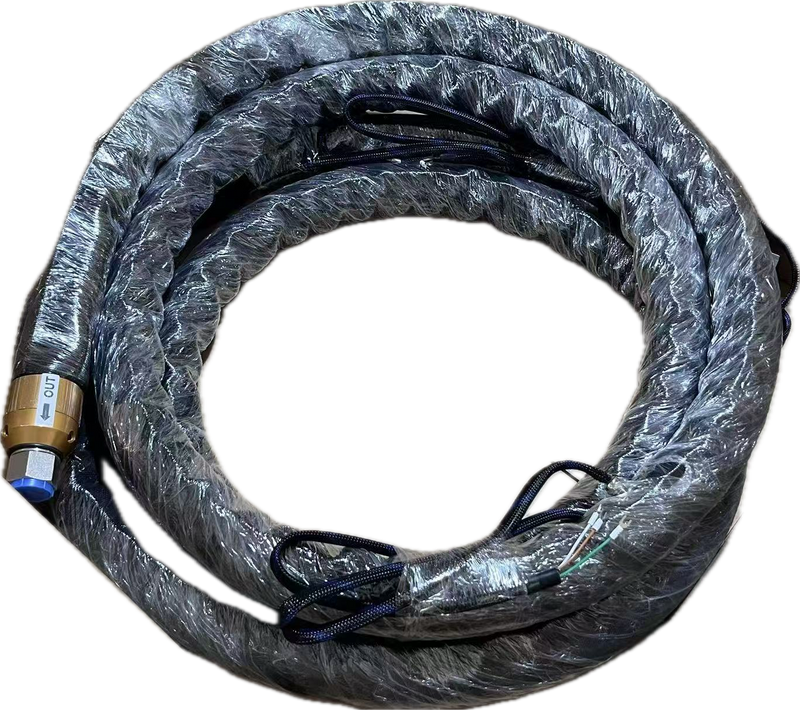

Non-Curing Waterproofing Spray Heated Hose for Construction Equipment

Introduction

A non-curing waterproofing spray heated hose is designed for waterproof construction equipment that transfers heated non-curing coating materials from the machine to the spray gun.

These materials must remain within a suitable temperature range to maintain stable viscosity and spray performance. If the temperature drops inside the hose, the coating may thicken, flow may decrease and spraying quality may become inconsistent.

Shenzhen Jingcheng High-tech manufactures customized heated hoses for waterproofing machines and non-curing coating spray equipment, with stable heating, thermal insulation and configurations suitable for demanding construction sites.

What Is a Waterproofing Spray Heated Hose?

A waterproofing spray heated hose is an electrically heated flexible transfer line used in waterproofing construction and non-curing coating equipment.

The hose normally integrates:

• Material transfer inner hose

• Pressure reinforcement

• Electrical heating elements

• Thermal insulation

• Protective outer cover

• Temperature sensor

• Machine-side and gun-side fittings

• Electrical connection components

The integrated structure helps maintain coating temperature during transportation and spraying.

Why Waterproofing Equipment Needs a Heated Hose

Non-curing waterproof coating and similar viscous materials are sensitive to temperature. Poor temperature control can lead to:

• Increased viscosity

• Reduced spraying efficiency

• Unstable spray patterns

• Material accumulation inside the hose

• Higher equipment pressure

• Longer cleaning time

• Construction delays

A heated transfer hose supports more consistent material flow from the heating unit to the spray gun.

Key Features

1. Designed for Non-Curing Waterproofing Equipment

The hose is suitable for waterproofing construction machines, non-curing coating equipment and heated spraying systems.

2. Maximum Temperature up to 230°C

The standard hose supports temperatures up to 230°C. Other temperatures can be customized according to material requirements.

3. Uniform Heating Performance

Uniformly arranged heating elements help minimize temperature differences along the hose.

4. Efficient Thermal Insulation

The insulation layer reduces heat loss during outdoor use, especially in low ambient temperatures.

5. Durable Construction-Site Design

The hose can be designed for construction environments involving dragging, movement, dust and frequent equipment relocation.

6. Flexible Equipment Matching

Fluid fittings, sensor, voltage, plug, power and hose length can be matched to different domestic or imported equipment.

7. Factory Customization

The hose can be manufactured from drawings, original samples, connector dimensions or equipment information.

Typical Applications

• Non-curing waterproof coating equipment

• Waterproof construction spraying machines

• Roof waterproofing systems

• Basement waterproofing projects

• Tunnel waterproofing equipment

• Bridge waterproof coating systems

• Heated bituminous coating transfer

• Viscous construction material spraying

• Outdoor thermal material transfer

• Customized waterproofing machinery

Technical Specification Options

Our Data

Actual pressure ratings must be confirmed according to temperature, hose assembly and fittings.

Benefits for Waterproofing Contractors and Equipment Manufacturers

A properly specified heated hose can help:

• Maintain more stable coating viscosity

• Improve spraying continuity

• Reduce cold spots

• Reduce material blockage

• Improve outdoor construction efficiency

• Reduce hose replacement caused by incorrect equipment matching

• Improve compatibility between pump, hose and spray gun

How to Select the Correct Hose

Please provide:

• Waterproofing material name

• Working temperature

• Working pressure

• Required flow rate

• Hose length

• Inner diameter

• Voltage

• Heating power

• Sensor type

• Machine-side connector

• Spray-gun-side connector

• Electrical plug

• Equipment model

• Original hose photos or drawing

Why Choose Shenzhen Jingcheng?

Experience in Customized Heated Hoses

We manufacture heated hoses for multiple industrial and construction applications.

Factory-Direct Supply

Direct manufacturing helps reduce unnecessary procurement layers and supports faster technical communication.

Customized Equipment Compatibility

Connectors, electrical interfaces and hose specifications can be matched to the customer’s machine.

Short Lead Time

We support both replacement requirements and batch orders for equipment manufacturers.

Sample Availability

Samples can be provided for equipment testing.
