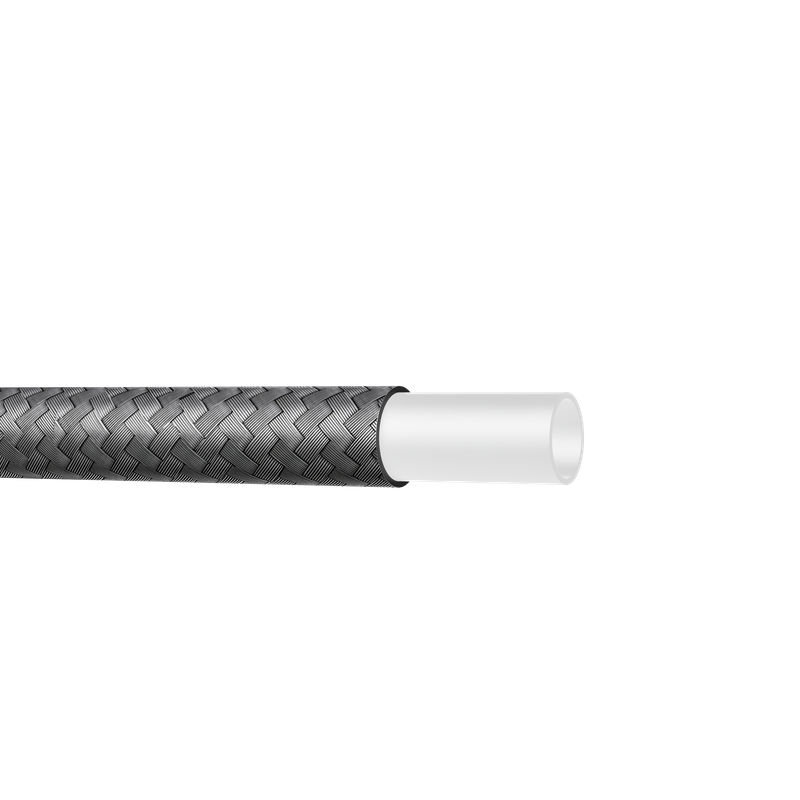

A single layer PTFE braided hose is designed for applications that require chemical resistance, high-pressure performance and reliable fluid transfer. It uses a smooth PTFE inner tube as the material-contact layer and a high-strength 304 stainless steel braided reinforcement layer as the outer structure.
Compared with ordinary rubber or plastic hoses, PTFE braided hose provides better resistance to corrosion, temperature fluctuation and aggressive media. The stainless steel braid improves pressure resistance and mechanical strength, making the hose suitable for demanding industrial systems.
Shenzhen Jingcheng High-tech manufactures customized single layer stainless steel braided PTFE hoses for machinery, automotive, medical equipment, aerospace, chemical processing, electronics, energy, communications and other industrial applications.
A single layer PTFE braided hose is a reinforced hose made with one layer of smooth PTFE inner tube and one layer of stainless steel wire braid. The PTFE inner tube provides excellent chemical resistance and clean fluid compatibility, while the braided outer layer improves pressure capacity, anti-expansion performance and structural protection.
This hose is widely used when a transfer system needs both clean inner flow and higher pressure resistance.
In many industrial fluid systems, the hose must handle pressure, temperature, vibration and chemical media at the same time. A normal unreinforced PTFE tube may not provide enough pressure resistance, while rubber hoses may not have enough chemical compatibility.
A single layer PTFE braided hose provides a balanced solution:
Smooth PTFE inner wall
304 stainless steel braided reinforcement
Strong pressure resistance
Wide temperature range
Excellent chemical resistance
Good flexibility and installation adaptability
Custom sizes and fittings available
The smooth PTFE inner layer helps reduce friction, improve fluid flow and minimize residue buildup. It is suitable for clean transfer, chemical media, hydraulic fluids and high-purity applications.
The outer layer uses high-strength 304 stainless steel wire braid. This reinforcement improves working pressure, burst pressure and mechanical protection.
The hose supports a temperature range from -70°C to +260°C, making it suitable for low-temperature and high-temperature working environments.
PTFE offers strong resistance to acids, alkalis, solvents, oils and many aggressive industrial media. This makes the hose suitable for chemical processing, equipment connection and precision fluid transfer.
The stainless steel braided structure allows the hose to work under higher pressure compared with non-braided PTFE tubing.
Hose length, inner diameter, outer diameter, fittings, connector type, bending radius and assembly form can be customized according to the customer’s equipment.
Our single layer PTFE braided hose can be used in:
Industrial machinery
Electronic and electrical equipment
Automotive fluid systems
Medical equipment
Aerospace equipment
Chemical transfer systems
Computer and precision equipment
Energy equipment
Military and defense applications
Communication equipment
Hydraulic and pneumatic systems
High-temperature fluid transfer
Corrosive media transfer
Item | Available Options |
|---|---|
Product Name | Single Layer PTFE Braided Hose |
Model Series | JCC-01100-PTFE |
Inner Tube | Smooth PTFE tube |
Reinforcement | Single layer 304 stainless steel braid |
Temperature Range | -70°C to +260°C |
Inner Diameter | 5/32” to 1” |
Application | Machinery, automotive, medical, aerospace, chemical, electronics, energy and communications |
Customization | Available |
Standard Reference | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | Outer Diameter | Braided Hose OD | Working Pressure | Burst Pressure | Min. Bending Radius |
JCC-01104-PTFE | 5/32” / 4 mm | 6 mm | 7 mm | 27 MPa | 82 MPa | 42 mm |
JCC-01106-PTFE | 1/4” / 6.35 mm | 8.35 mm | 9.6 mm | 42 MPa | 126.9 MPa | 75 mm |
JCC-01108-PTFE | 5/16” / 8 mm | 10.4 mm | 11.7 mm | 19 MPa | 57.9 MPa | 82 mm |
JCC-01110-PTFE | 3/8” / 9.7 mm | 12.1 mm | 13.6 mm | 23 MPa | 70.2 MPa | 100 mm |
JCC-01113-PTFE | 1/2” / 12.7 mm | 15.1 mm | 16.7 mm | 23 MPa | 68 MPa | 125 mm |
JCC-01116-PTFE | 5/8” / 15.9 mm | 18.3 mm | 19.6 mm | 18 MPa | 53.8 MPa | 160 mm |
JCC-01119-PTFE | 3/4” / 19 mm | 22 mm | 23.8 mm | 15 MPa | 44.8 MPa | 195 mm |
JCC-01125-PTFE | 1” / 25.4 mm | 29.4 mm | 31 mm | 10 MPa | 31 MPa | 260 mm |
