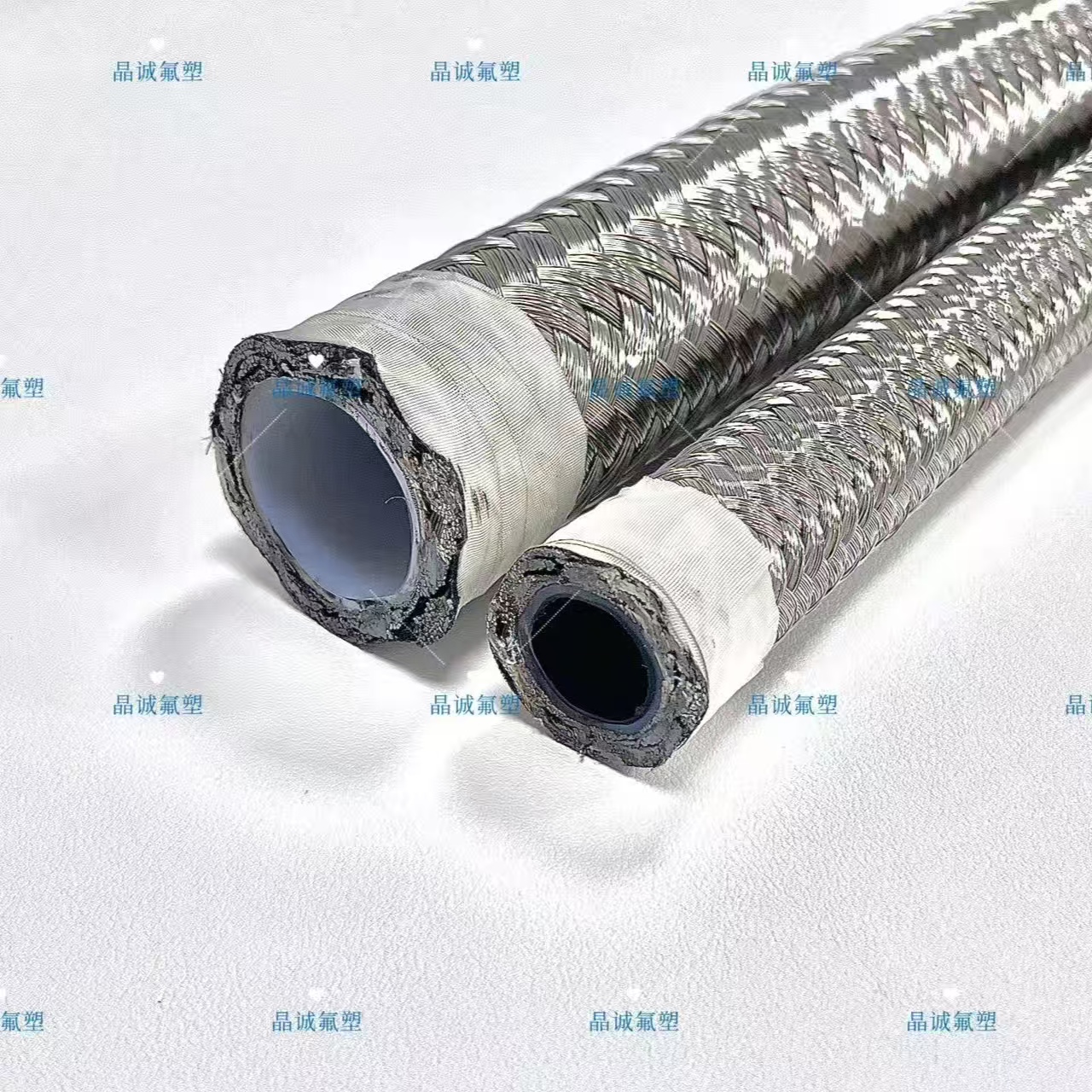

The inner core is made from virgin PTFE material, extruded into a smooth-bore tube through a precision drying, high-temperature sintering, and shaping process. The smooth inner wall provides:
Ultra-low friction: Minimizes flow resistance for efficient fluid transfer
Non-stick surface: Virtually nothing adheres to PTFE, making it easy to clean and maintain
Chemical inertness: Resistant to nearly all known chemicals, including strong acids, strong alkalis, and organic solvents
FDA compliance: Non-toxic and odorless, suitable for food-grade and pharmaceutical applications

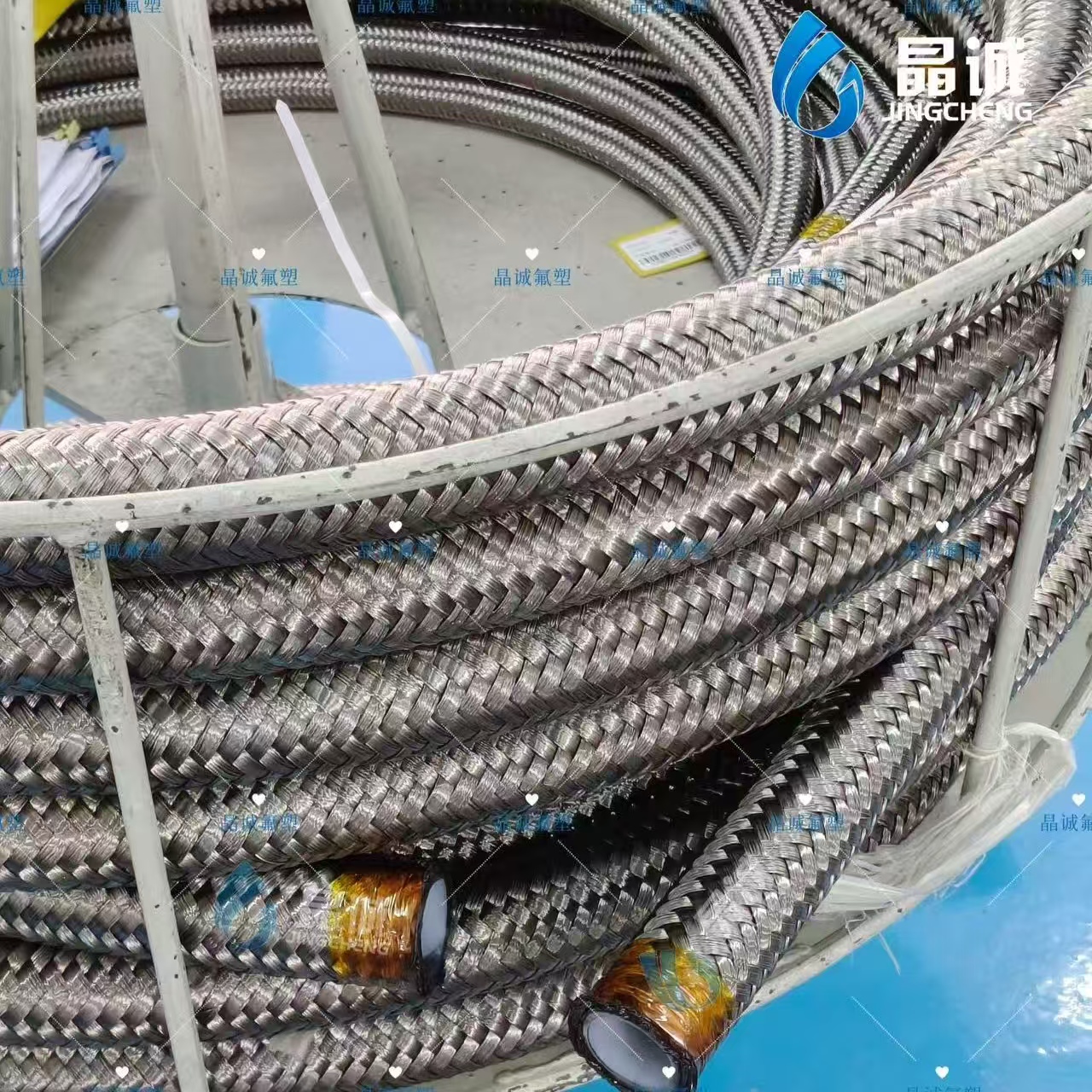

High-tensile 304 stainless steel wire is interlaced around the PTFE inner tube at a precise braid angle to create a robust reinforcement sheath. This outer layer provides:
High-pressure containment: Significantly increases working and burst pressure ratings
Kink resistance: Prevents hose collapse under bending conditions
Mechanical protection: Guards against abrasion, impact, and external crushing forces
Corrosion resistance: 304 stainless steel performs well across most industrial environments
| Part Number | Nominal Size | Inner Diameter (mm) | Outer Diameter (mm) | Braided OD (mm) | Working Pressure (MPa) | Burst Pressure (MPa) | Min. Bending Radius (mm) |
|---|---|---|---|---|---|---|---|
| JCC-01104-PTFE | 5/32" | 4 | 6 | 7 | 27 | 82 | 42 |
| JCC-01106-PTFE | 1/4" | 6.35 | 8.35 | 9.6 | 42 | 126.9 | 75 |
| JCC-01108-PTFE | 5/16" | 8 | 10.4 | 11.7 | 19 | 57.9 | 82 |
| JCC-01110-PTFE | 3/8" | 9.7 | 12.1 | 13.6 | 23 | 70.2 | 100 |
| JCC-01113-PTFE | 1/2" | 12.7 | 15.1 | 16.7 | 23 | 68 | 125 |
| JCC-01116-PTFE | 5/8" | 15.9 | 18.3 | 19.6 | 18 | 53.8 | 160 |
| JCC-01119-PTFE | 3/4" | 19 | 22 | 23.8 | 15 | 44.8 | 195 |
| JCC-01125-PTFE | 1" | 25.4 | 29.4 | 31 | 10 | 31 | 260 |
Temperature Range: -70°C to +260°C (-94°F to +500°F)
Inner Diameter Tolerance: ±0.2mm | Outer Diameter Tolerance: ±0.2mm
Custom specifications available upon request
From cryogenic storage environments to high-temperature steam transfer, single-layer PTFE braided hose maintains stable mechanical and chemical properties across a temperature window of 330°C. Unlike rubber hoses, PTFE does not harden, soften, or degrade with age — making it the superior long-term solution.
PTFE is often called the "King of Plastics" for good reason. Its carbon-fluorine molecular bonds are among the strongest in chemistry, providing near-universal resistance to aggressive media, including:
Strong acids: hydrochloric acid, sulfuric acid, nitric acid, hydrofluoric acid
Strong alkalis: sodium hydroxide, ammonia solutions
Organic solvents: acetone, toluene, ethanol, MEK
High-purity chemicals and pharmaceutical compounds
The 1/4" model (JCC-01106-PTFE) delivers a working pressure of 42 MPa and a burst pressure of 126.9 MPa — a safety factor that exceeds industry benchmarks and makes this hose well-suited for demanding hydraulic and pneumatic applications.
With a minimum bending radius of just 42mm in the 5/32" size, these hoses can route through tight spaces and complex equipment layouts where rigid tubing would simply not fit.
Every hose is produced under the ISO 9001:2015 quality management framework, tested in accordance with US FDA 21 CFR 177.1550 food safety standards, and independently verified by SGS — giving buyers full confidence in product consistency and traceability.
PTFE is an excellent electrical insulator with high resistivity. The smooth inner bore also inhibits static charge accumulation, adding an important safety layer when conveying flammable liquids or operating near sensitive electronics.
Thanks to its outstanding combination of properties, the single-layer PTFE braided hose is the preferred choice across a wide range of industries:
Industrial Machinery: High-pressure hydraulic lines, pneumatic circuits, coolant transfer systems
Electronics & Electrical: Precision equipment cooling circuits, insulating fluid lines
Automotive: Brake lines, fuel system hoses, turbocharger inlet/outlet connections
Medical & Pharmaceutical: Drug manufacturing pipelines, medical fluid transfer (FDA compliant)
Aerospace & Aviation: Aircraft hydraulic lines, high-pressure fuel tubing
Chemical Processing: Safe transfer of corrosive and reactive chemicals
Energy Sector: Petroleum and natural gas conveyance pipelines
Military & Communications: High-reliability fluid control systems in mission-critical environments
Founded in August 2005, Jingcheng is a professional high-tech hose manufacturer based in the Torch Development Zone, Zhongshan, Guangdong Province, China. The company specializes in PTFE hoses, high-pressure PTFE hoses, PA hoses, and custom electric heating insulation hoses, and provides complete thermal fluid transfer solutions.
