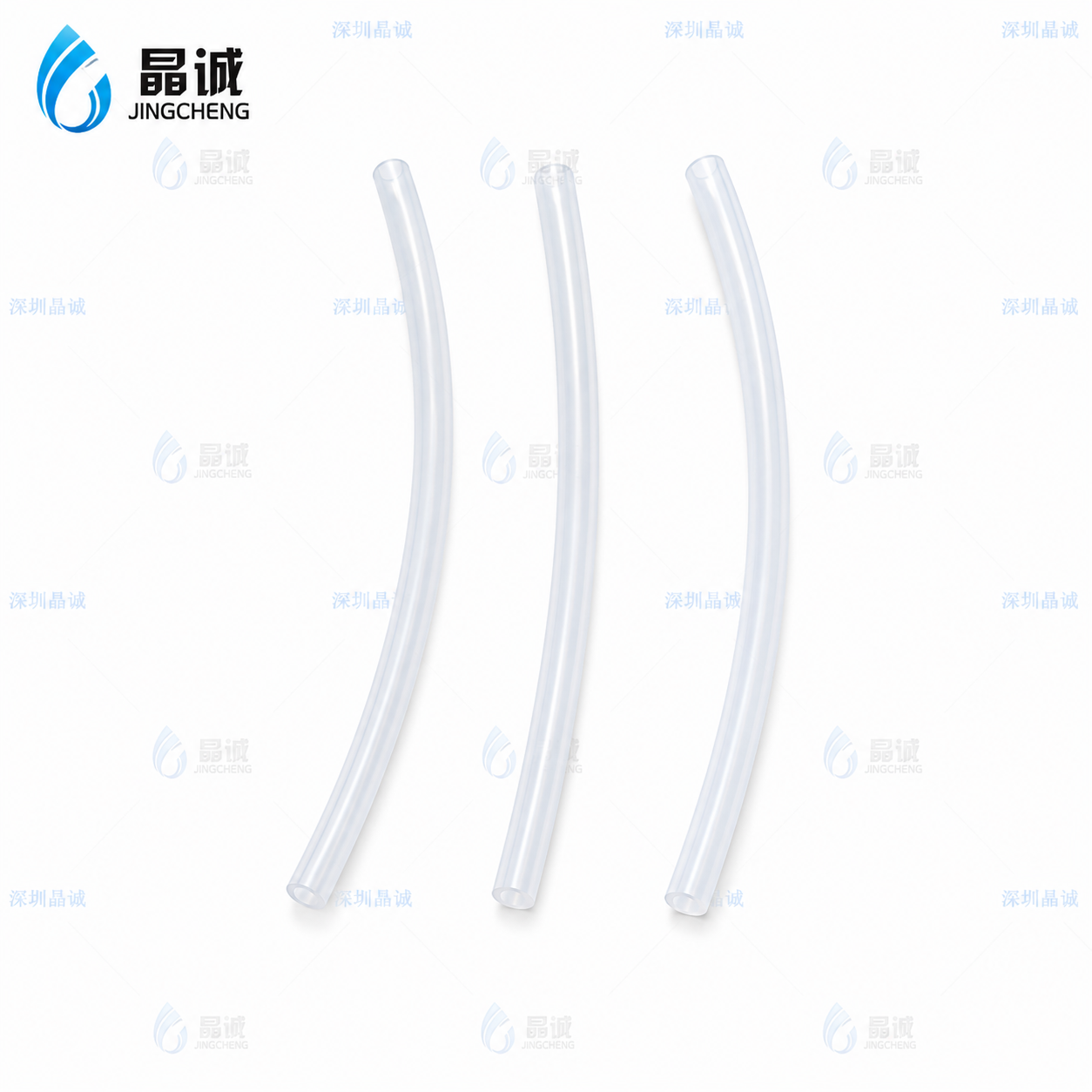

Smooth bore PTFE tubing is designed for fluid-transfer applications requiring excellent chemical resistance, low friction, thermal stability and a clean internal surface.
The JCC-00000-PTFE series is manufactured from PTFE material through extrusion, drying, high-temperature sintering and forming processes. Its smooth inner wall helps reduce flow resistance and material retention, making it suitable for high-purity chemicals and corrosive industrial media.
Shenzhen Jingcheng High-tech manufactures customized PTFE tubing for chemical processing, laboratory equipment, pharmaceutical systems, food machinery and industrial process pipelines.
Strong chemicals can rapidly damage ordinary rubber, PVC or general-purpose plastic tubing.
Depending on the medium, conventional tubes may experience:
Swelling
Cracking
Chemical degradation
Hardening
Permeation
Internal contamination
Reduced pressure capability
Premature failure
PTFE provides strong resistance to many chemically aggressive substances while maintaining stable performance over a broad temperature range.
The smooth PTFE inner surface provides several practical advantages:
Lower fluid friction
Reduced pressure loss
Less material accumulation
More stable fluid flow
Easier flushing and cleaning
Reduced contamination risk
Better transfer of high-purity media
This structure is particularly suitable for applications where internal cleanliness and chemical inertness are important.
The tubing is suitable for many:
Strong acids
Strong alkalis
Strong oxidizing agents
Reducing agents
Organic solvents
Corrosive process liquids
High-purity chemicals
Exact compatibility should be confirmed according to the chemical name, concentration, temperature and operating pressure.
The catalog operating temperature range is:
-70°C to +260°C
Final allowable pressure decreases as operating temperature increases, so pressure and temperature must be evaluated together.
PTFE has a naturally low-friction surface, helping reduce fluid resistance and material adhesion.
The tubing remains stable in contact with many aggressive industrial chemicals and solvents.
The JCC-00000-PTFE series includes inner diameters from 5/32 inch to 2 inches.
Available customization includes:
Inner diameter
Outer diameter
Wall thickness
Tube length
Color
Fittings
Complete hose assemblies
Strong acid transfer
Strong alkali transfer
Organic solvent conveying
Chemical dosing systems
Laboratory fluid equipment
Pharmaceutical process lines
High-purity chemical transfer
Food-processing machinery
Analytical instruments
Semiconductor chemical systems
Corrosive fluid pipelines
Industrial process equipment
Item | Specification |
|---|---|
Product Name | Smooth Bore PTFE Tubing |
Model Series | JCC-00000-PTFE |
Material | PTFE |
Structure | Smooth inner and outer walls |
Temperature Range | -70°C to +260°C |
Inner Diameter Range | 5/32” to 2” |
Main Advantages | Chemical resistance, low friction and clean flow |
Customization | Diameter, wall thickness, length and fittings |
Catalog Reference | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius | Wall Thickness |
|---|---|---|---|---|---|---|
JCC-00004-PTFE | 5/32” / 4.5 mm | 6.5 mm | 203 psi / 1.40 MPa | 812 psi / 5.6 MPa | 60 mm | 1.0 mm |
JCC-00006-PTFE | 1/4” / 6.8 mm | 8.8 mm | 251.33 psi / 1.73 MPa | 754 psi / 5.2 MPa | 130 mm | 1.0 mm |
JCC-00008-PTFE | 5/16” / 8.2 mm | 10.5 mm | 203 psi / 1.40 MPa | 609 psi / 4.2 MPa | 160 mm | 1.2 mm |
JCC-00010-PTFE | 3/8” / 10.3 mm | 12.7 mm | 169.17 psi / 1.17 MPa | 507.5 psi / 3.5 MPa | 220 mm | 1.2 mm |
JCC-00013-PTFE | 1/2” / 13.3 mm | 15.7 mm | 135.33 psi / 0.93 MPa | 406 psi / 2.8 MPa | 270 mm | 1.2 mm |
JCC-00016-PTFE | 5/8” / 15.9 mm | 18.3 mm | 106.33 psi / 0.73 MPa | 319 psi / 2.2 MPa | 400 mm | 1.2 mm |
JCC-00019-PTFE | 3/4” / 19.8 mm | 22.3 mm | 116 psi / 0.80 MPa | 348 psi / 2.4 MPa | 500 mm | 1.5 mm |
JCC-00025-PTFE | 1” / 25.7 mm | 29.7 mm | 101.5 psi / 0.70 MPa | 304.5 psi / 2.1 MPa | 600 mm | 2.0 mm |
JCC-00032-PTFE | 1-1/4” / 31.7 mm | 35.7 mm | 91.83 psi / 0.63 MPa | 275.5 psi / 1.9 MPa | 800 mm | 2.0 mm |
JCC-00038-PTFE | 1-1/2” / 38.5 mm | 42.5 mm | 72.5 psi / 0.50 MPa | 217.5 psi / 1.5 MPa | 900 mm | 2.0 mm |
JCC-00050-PTFE | 2” / 51 mm | 55 mm | 58 psi / 0.40 MPa | 174 psi / 1.2 MPa | 1,200 mm | 2.0 mm |
The listed values are catalog reference data. Final operating pressure depends on temperature, tube dimensions, fittings and installation conditions.
Please provide:
Chemical or working medium
Chemical concentration
Working temperature
Working pressure
Required flow rate
Inner diameter
Tube length
Required wall thickness
Minimum bending radius
Connection method
Cleaning requirements
Equipment drawing or sample
It is an extruded PTFE tube with a smooth internal and external surface for chemically resistant fluid transfer.
The catalog range is from -70°C to +260°C.
Yes, it is suitable for many strong acids and alkalis, subject to confirmation of concentration, temperature and pressure.
Yes. Inner diameter, outer diameter, wall thickness and tube length can be customized.
Yes. Complete PTFE hose assemblies with customized fittings can be supplied.
