Smooth PTFE Process Tubing for Predictable Fluid Flow in Industrial Equipment

Product Introduction

A fluid line does not always need reinforcement, corrugation or a complicated multilayer structure.

Sometimes the most effective solution is also the simplest:

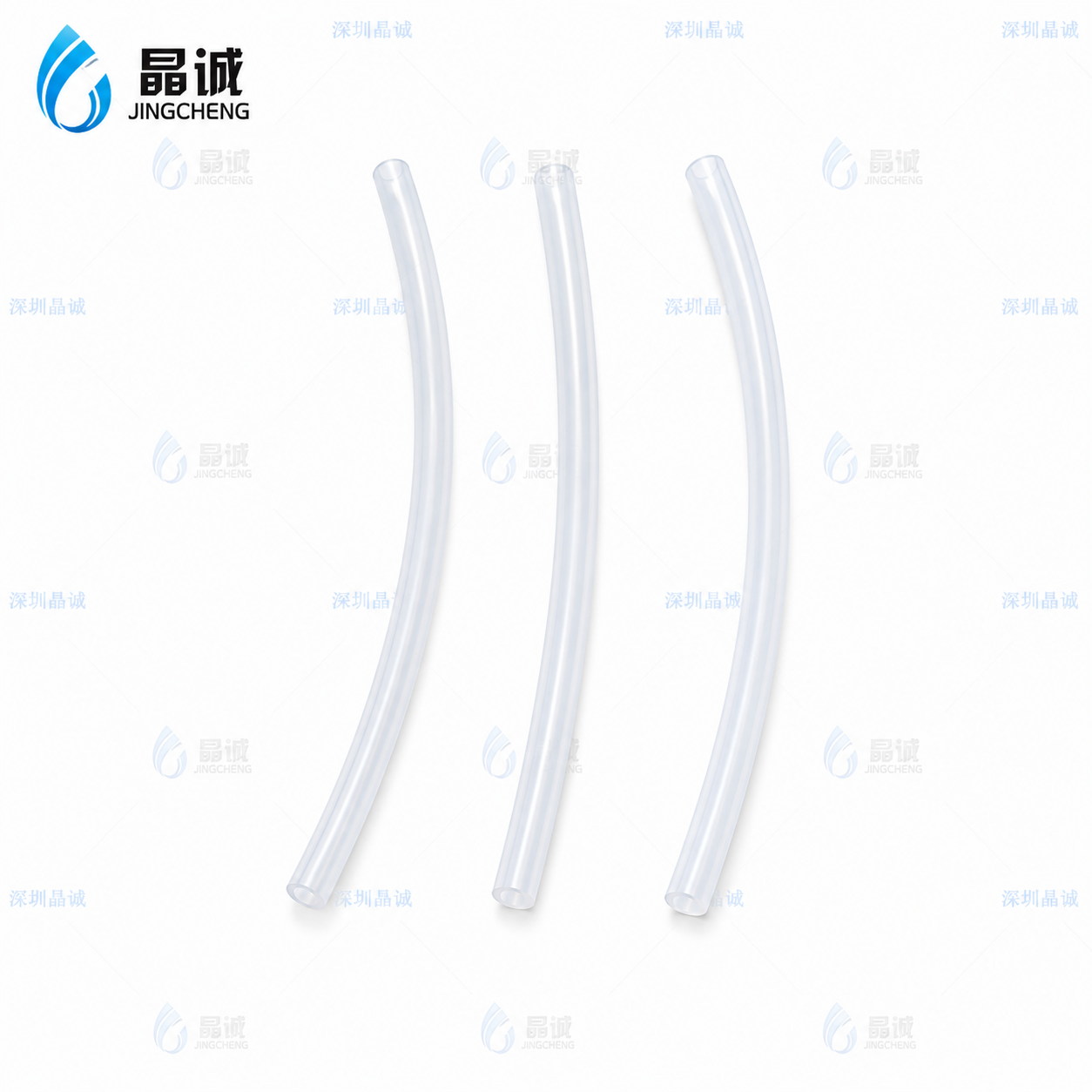

a smooth PTFE tube with a continuous internal flow path.

The JCC-00000-PTFE series is designed for equipment requiring chemical-resistant fluid transfer without unnecessary internal geometry.

Its straight, smooth-wall construction makes it a practical starting point for chemical systems, analytical equipment, laboratory machinery and other applications where predictable fluid movement is more important than extreme flexibility or very high pressure.

Why Smooth Internal Geometry Matters

Every change in the internal geometry of a hose can influence the way a fluid moves.

Corrugations, steps and complex transitions can create areas where:

• Material remains after transfer

• Flow becomes less uniform

• Cleaning takes longer

• Pressure loss increases

• Residue gradually accumulates

A smooth PTFE tube creates a simpler flow path.

This can help support:

• Consistent fluid movement

• Reduced internal retention

• Easier flushing

• Lower friction

• More predictable system response

For OEM equipment builders, this simple geometry can also make calculations and system integration easier.

A Practical Base Material for Custom Fluid Paths

Smooth PTFE tubing can serve as the basic material-contact line inside many types of equipment.

Depending on the system, it can be used between:

• Chemical containers and pumps

• Pumps and valves

• Dosing units and process heads

• Laboratory reservoirs and instruments

• Sampling systems

• Analytical equipment

• Chemical treatment modules

Because the tube itself is relatively simple, the final system can be customized around the equipment instead of being limited by a fixed hose assembly.

Broad Chemical Compatibility

The catalog identifies use with:

• Strong acids

• Strong alkalis

• Strong oxidizing agents

• Reducing agents

• Organic solvents

• High-purity chemicals

Actual compatibility should still be checked according to the exact medium, concentration, operating temperature and pressure.

Temperature Capability

The catalog specifies a temperature range of:

-70°C to +260°C

This broad range makes the tube suitable for both cold and elevated-temperature process environments.

However, allowable pressure changes with temperature, so the final working conditions should always be confirmed for the selected tube size and wall thickness.

Why Wall Thickness Matters

For smooth PTFE tubing, wall thickness affects more than outside diameter.

It can influence:

• Mechanical stability

• Pressure capability

• Flexibility

• Bending behavior

• Finished tube dimensions

This is why custom tubing projects should specify both inner diameter and wall thickness rather than simply providing a nominal inch size.

Typical Applications

• Chemical dosing systems

• Laboratory equipment

• Analytical instruments

• Chemical-processing machinery

• Fluid sampling systems

• High-purity process equipment

• Precision liquid delivery

• Solvent-transfer lines

• Customized industrial equipment

• OEM fluid-path assemblies

When This Structure Makes Sense

Choose smooth PTFE tubing when your priority is:

• A simple internal flow path

• Low fluid retention

• Chemical resistance

• Broad temperature range

• Custom tube dimensions

• Straight or moderate-radius routing

If the equipment requires very tight bends or stronger pressure reinforcement, another PTFE hose structure may be more appropriate.

Information Needed for Custom Production

Please provide:

• Transferred medium

• Chemical concentration

• Operating temperature

• Working pressure

• Inner diameter

• Outer diameter

• Wall thickness

• Tube length

• Minimum bending radius

• End connection requirements

• Equipment drawing if available
