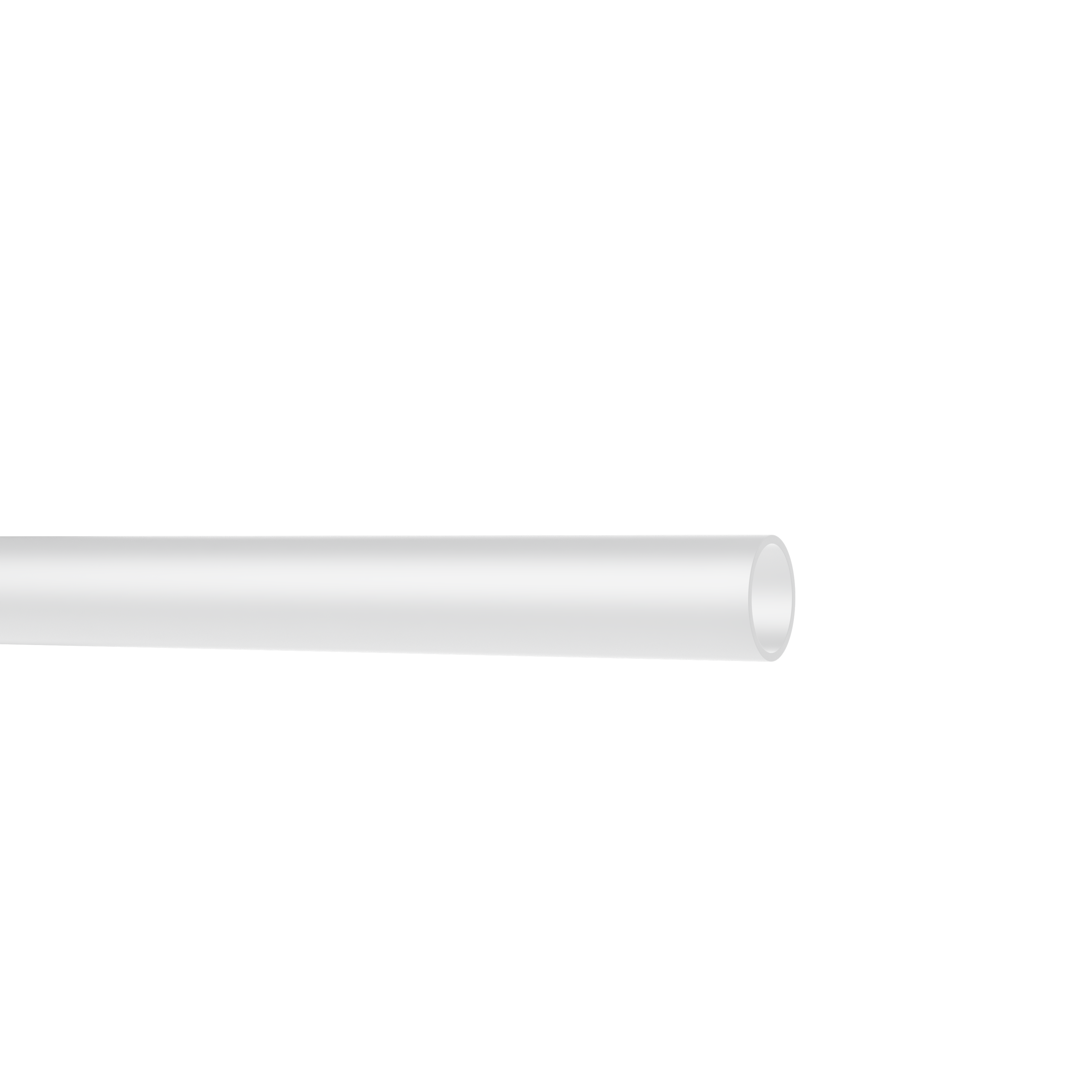

Smooth PTFE Tube for Simple and Reliable Chemical Routing Inside Industrial Equipment

Industrial fluid systems do not always need a highly reinforced or extremely flexible hose.

In many machines, the fluid path is largely fixed.

The tube may run between:

• Chemical container

• Pump

• Valve

• Dosing module

• Process chamber

If the connection points do not move significantly, a simple smooth PTFE tube can provide a practical solution.

The JCC-00000-PTFE smooth tube is designed as a straightforward PTFE fluid path for applications involving aggressive chemicals and high-purity media.

Its structure is intentionally simple:

PTFE material only, formed into a smooth straight tube.

This simplicity can be an advantage when the application does not require stainless braid, corrugation or other complex reinforcement.

Not Every Fluid Line Needs a Reinforced Hose

Reinforced hose structures provide important benefits.

They can improve:

• Pressure resistance

• Flexibility

• Mechanical protection

However, reinforcement also adds:

• Weight

• Diameter

• Cost

• Installation complexity

For low-pressure or fixed-routing systems, these additional layers may not be necessary.

A smooth PTFE tube offers a simpler alternative.

Simple Construction Can Simplify Equipment Design

When engineers use a basic smooth tube, the material path becomes easy to understand.

There are fewer structural layers and fewer variables.

This can help with:

• Equipment standardization

• Internal routing

• Replacement planning

• Technical documentation

For OEM manufacturers producing many similar machines, a standardized PTFE tube family can be useful across several fluid circuits.

Suitable for Aggressive Chemical Media

The source catalog identifies the tube as suitable for media such as:

• Strong acids

• Strong alkalis

• Strong oxidizing agents

• Reducing agents

• Organic solvents

This makes PTFE useful in many chemical-handling systems where common polymer tubing may not provide the required compatibility.

The actual suitability should always be confirmed according to:

• Chemical type

• Concentration

• Temperature

• Pressure

• Exposure duration

High-Purity Chemical Transfer Is an Important Application

The catalog specifically notes suitability for high-purity chemical transportation.

In these applications, the material-contact path should be carefully controlled.

A simple PTFE tube can provide a direct fluid route without additional internal layers or complex geometry.

Potential uses include:

• Chemical dosing systems

• Laboratory equipment

• Precision fluid delivery

• High-purity process machinery

• Chemical preparation units

Smooth Internal Surface Supports Straightforward Flow

The inner wall is smooth rather than corrugated.

This can provide a more direct material path.

In appropriate applications, a smooth internal surface can help:

• Reduce geometric flow disturbance

• Simplify flushing

• Reduce internal areas where material may remain

This can be useful in systems where the line is periodically cleaned or changed between materials.

Fixed Routing Is Often the Best Application

Smooth PTFE tube is generally most suitable where the installation does not require constant movement.

Examples include:

• Equipment cabinets

• Chemical panels

• Dosing modules

• Laboratory instruments

• Process skids

• Fixed machine piping

Where the line needs repeated flexing or extremely tight bends, a convoluted or reinforced PTFE hose may be more appropriate.

Wide Temperature Range

The catalog specifies approximately:

-70°C to +260°C

This broad thermal range makes the tube suitable for many different process environments.

However, working pressure decreases as tube size and operating conditions change.

Temperature, wall thickness and pressure should therefore be evaluated together.

Wall Thickness Is an Important Engineering Variable

The catalog includes different wall thicknesses depending on size.

Wall thickness influences:

• Mechanical strength

• Flexibility

• Outer diameter

• Pressure capability

• Bending behavior

For OEM applications, engineers should specify both inner diameter and outer diameter rather than selecting only by nominal inch size.

Standardization Can Simplify Spare-Part Management

If several machines use the same PTFE tube sizes, manufacturers can simplify:

• Purchasing

• Inventory

• Maintenance

• Replacement

• Documentation

This is especially useful for equipment builders producing multiple versions of one machine family.

Typical Applications

Potential uses include:

• Chemical dosing systems

• High-purity fluid equipment

• Laboratory machinery

• Solvent transfer

• Analytical instruments

• Chemical treatment equipment

• Precision liquid handling

• Fixed process lines

• OEM industrial equipment

Customization Options

Jingcheng can customize:

• Inner diameter

• Outer diameter

• Wall thickness

• Tube length

• Finished hose assemblies

• Connection requirements

What Information Should Be Provided?

Please provide:

• Chemical name

• Chemical concentration

• Working temperature

• Working pressure

• Inner diameter

• Outer diameter

• Required wall thickness

• Tube length

• Minimum bending requirement

• Equipment application

Conclusion

The JCC-00000-PTFE smooth tube is valuable because it keeps the fluid path simple.

For fixed industrial routing where extreme flexibility or heavy reinforcement is unnecessary, a smooth PTFE tube can provide chemical resistance, broad temperature capability and straightforward equipment integration.

In many chemical systems, the most effective solution is not the most complicated hose—it is the simplest structure that correctly matches the application.
