In chemical and high-purity lines, the hose is often the weakest link—swelling, contamination, permeation, or heat aging can ruin stability and product quality. A smoothbore PTFE hose solves these problems with an inert inner surface designed for clean, consistent media transfer.

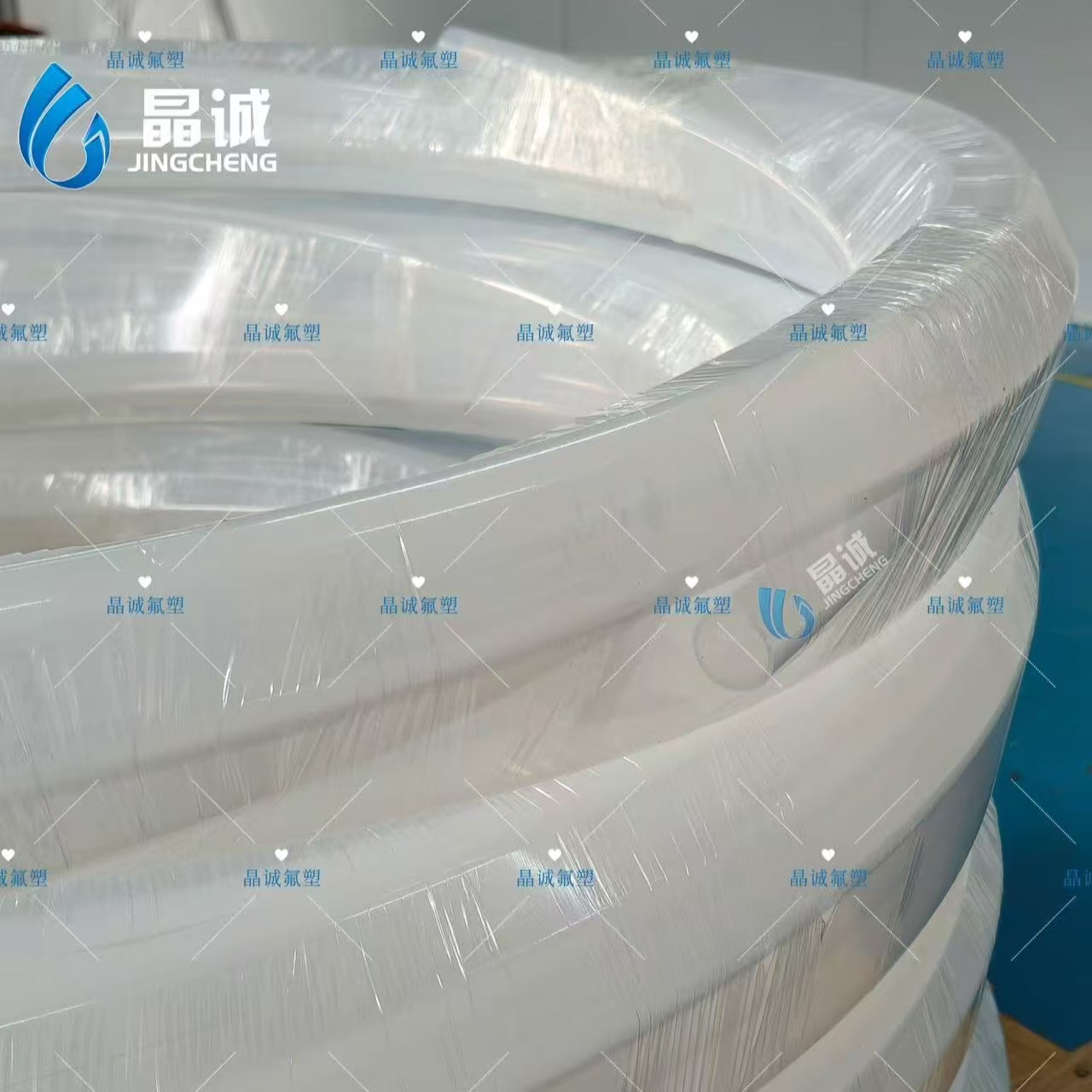

This “Standard PTFE Smooth Hose” (JCC series) is presented for demanding chemical service with a temperature range of -70°C to +260°C, plus referenced ISO9001 and FDA 21 CFR 177.1550 compliance information (confirm your exact build requirement).
Temperature range: -70°C to +260°C (design-dependent by media & installation)
Chemical compatibility: suitable for strong acids/alkalis, oxidizers, reducers, and various organic solvents (design-dependent)
ID range: 4.5 mm to 51 mm (5/32" to 2") (design-dependent)
Working pressure up to: 1.73 MPa (251.33 psi) (size-dependent)
Burst pressure up to: 5.6 MPa (812 psi) (size-dependent)
Minimum bend radius: 60 mm to 1200 mm (size-dependent; avoid over-bending)
Keep purity clean: smooth PTFE bore helps reduce particle trapping and makes flushing easier for sensitive fluids.
Stop premature failures: PTFE resists many aggressive chemicals where common elastomers degrade.
Stabilize your process: wide temperature window supports both cold-start and elevated-temperature transfer without frequent hose changes.

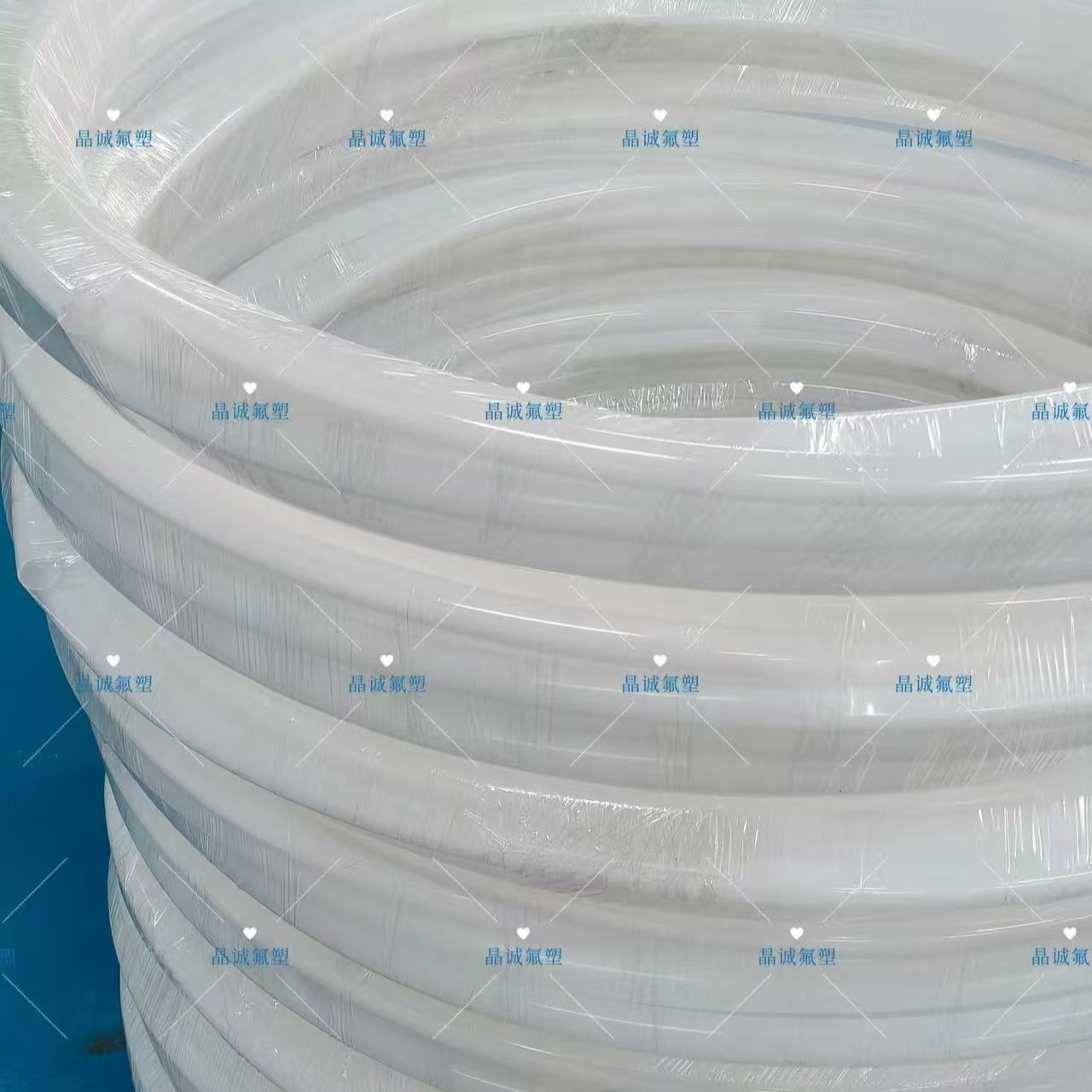

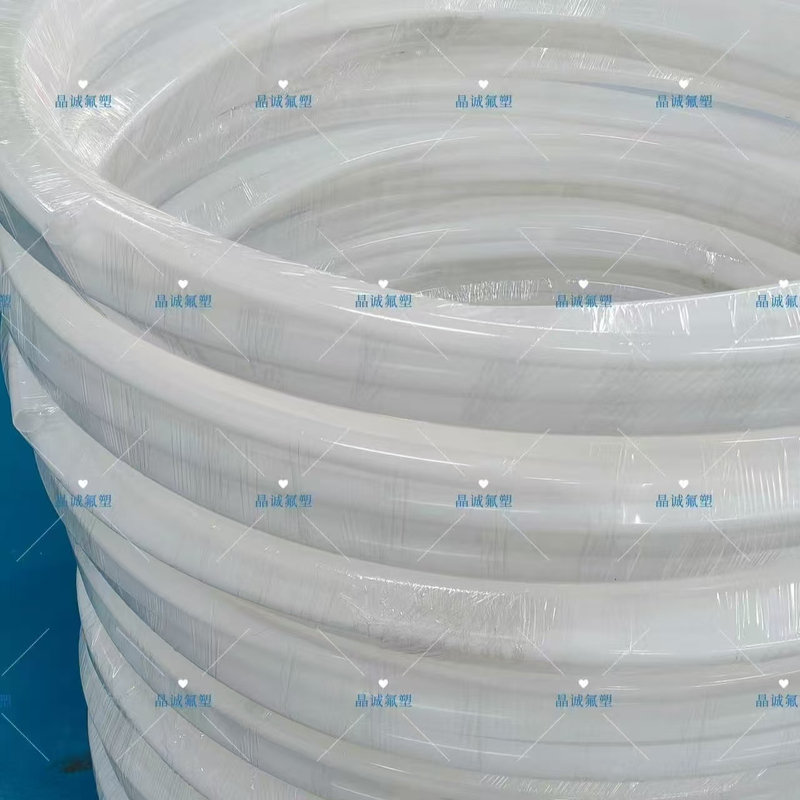

Smoothbore PTFE construction for clean transfer and consistent flow behavior.
Wide chemical resistance for corrosive and solvent-based media.
Multiple standard sizes with reference pressure ratings and bend radius guidance for engineering selection.
Parameter-based customization available (built to your specs).
(Reference values; final rating is design-dependent and must be confirmed for your exact hose + media + temperature.)
| Model | ID (inch) | ID (mm) | OD (mm) | Working Pressure (psi) | Working Pressure (MPa) | Burst Pressure (psi) | Burst Pressure (MPa) | Min Bend Radius (inch) | Min Bend Radius (mm) | Wall (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| JCC-00004-PTFE | 5/32" | 4.5 | 6.5 | 203.00 | 1.40 | 812 | 5.6 | 2.36 | 60 | 1.0 |
| JCC-00006-PTFE | 1/4" | 6.8 | 8.8 | 251.33 | 1.73 | 754 | 5.2 | 5.12 | 130 | 1.0 |
| JCC-00008-PTFE | 5/16" | 8.2 | 10.5 | 203.00 | 1.40 | 609 | 4.2 | 6.30 | 160 | 1.2 |
| JCC-00010-PTFE | 3/8" | 10.3 | 12.7 | 169.17 | 1.17 | 507.5 | 3.5 | 8.66 | 220 | 1.2 |
| JCC-00013-PTFE | 1/2" | 13.3 | 15.7 | 135.33 | 0.93 | 406 | 2.8 | 10.63 | 270 | 1.2 |
| JCC-00016-PTFE | 5/8" | 15.9 | 18.3 | 106.33 | 0.73 | 319 | 2.2 | 15.75 | 400 | 1.2 |
| JCC-00019-PTFE | 3/4" | 19.8 | 22.3 | 116.00 | 0.80 | 348 | 2.4 | 19.69 | 500 | 1.5 |
| JCC-00025-PTFE | 1" | 25.7 | 29.7 | 101.50 | 0.70 | 304.5 | 2.1 | 23.62 | 600 | 2.0 |
| JCC-00032-PTFE | 1-1/4" | 31.7 | 35.7 | 91.83 | 0.63 | 275.5 | 1.9 | 31.50 | 800 | 2.0 |
| JCC-00038-PTFE | 1-1/2" | 38.5 | 42.5 | 72.50 | 0.50 | 217.5 | 1.5 | 35.43 | 900 | 2.0 |
| JCC-00050-PTFE | 2" | 51.0 | 55.0 | 58.00 | 0.40 | 174 | 1.2 | 47.24 | 1200 | 2.0 |
Common build-to-spec items for fast matching:
ID / OD / wall thickness and tolerance target (design-dependent)
Cut-to-length, coiled supply, special packaging / labeling

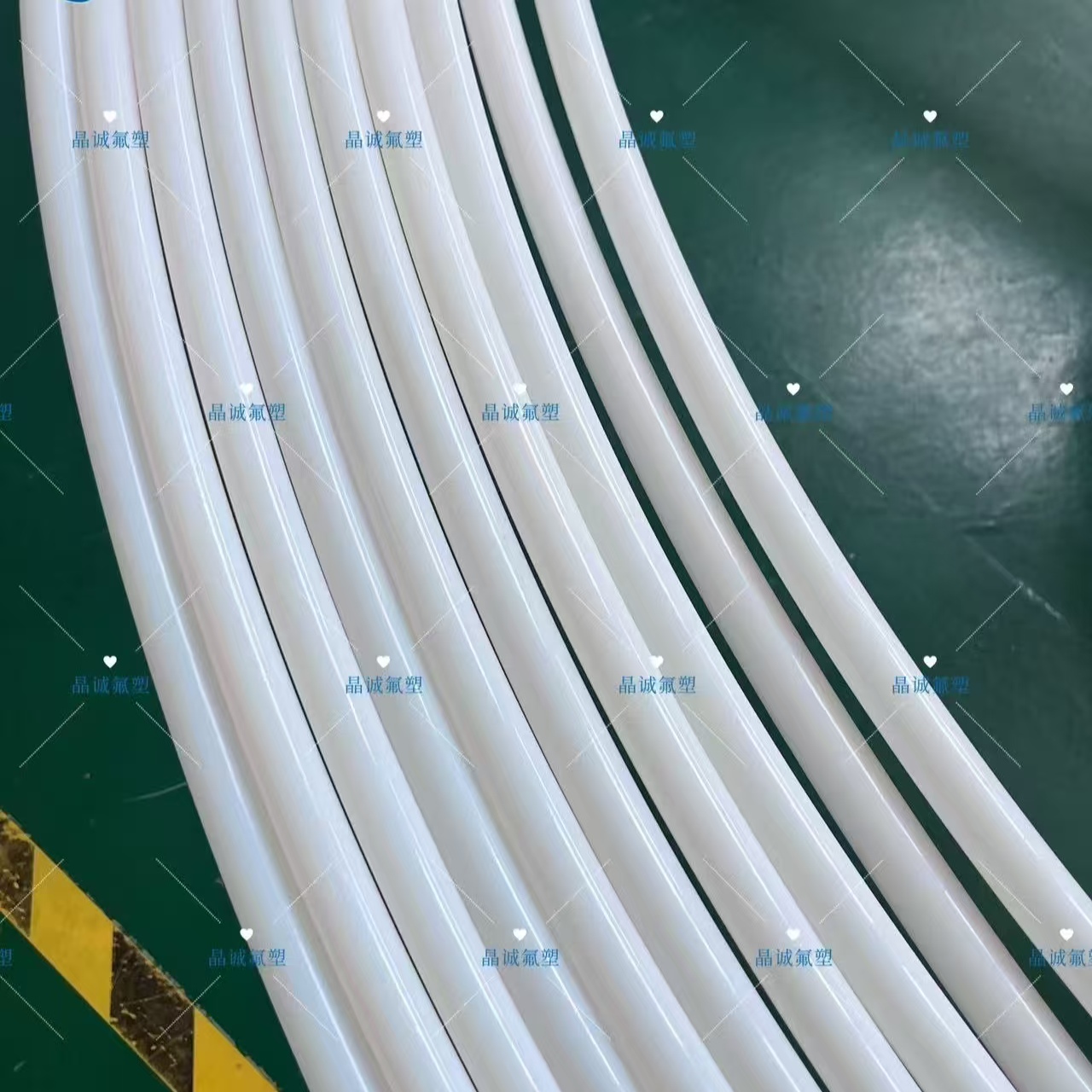

Color options (e.g., natural/white and colored variants shown) (design-dependent)
Compliance documentation needs (e.g., FDA 21 CFR referencing, SGS reports) (subject to order requirements)
Cleanliness requirements (cleaned, capped ends, sealed bagging) (design-dependent)
Jingcheng is introduced as a hose-focused manufacturer founded in Aug 2005, with production in Zhongshan Torch Development Zone, supplying PTFE hoses and customized heated/insulated hose solutions for multiple industrial scenarios.
