TPU Covered PTFE Braided Hose for Cleaner, Safer and Better-Protected Industrial Equipment

A stainless steel braided PTFE hose can provide excellent mechanical reinforcement, but in many machines the exposed braid creates another engineering issue.

The metal surface may be exposed to:

• Dust

• Oil

• Product residue

• Mechanical friction

• Frequent operator contact

• Contact with machine frames

• External contamination

In industries such as pharmaceutical processing, food equipment, cosmetics, adhesive handling and automated production, the external condition of the hose can matter almost as much as the material inside it.

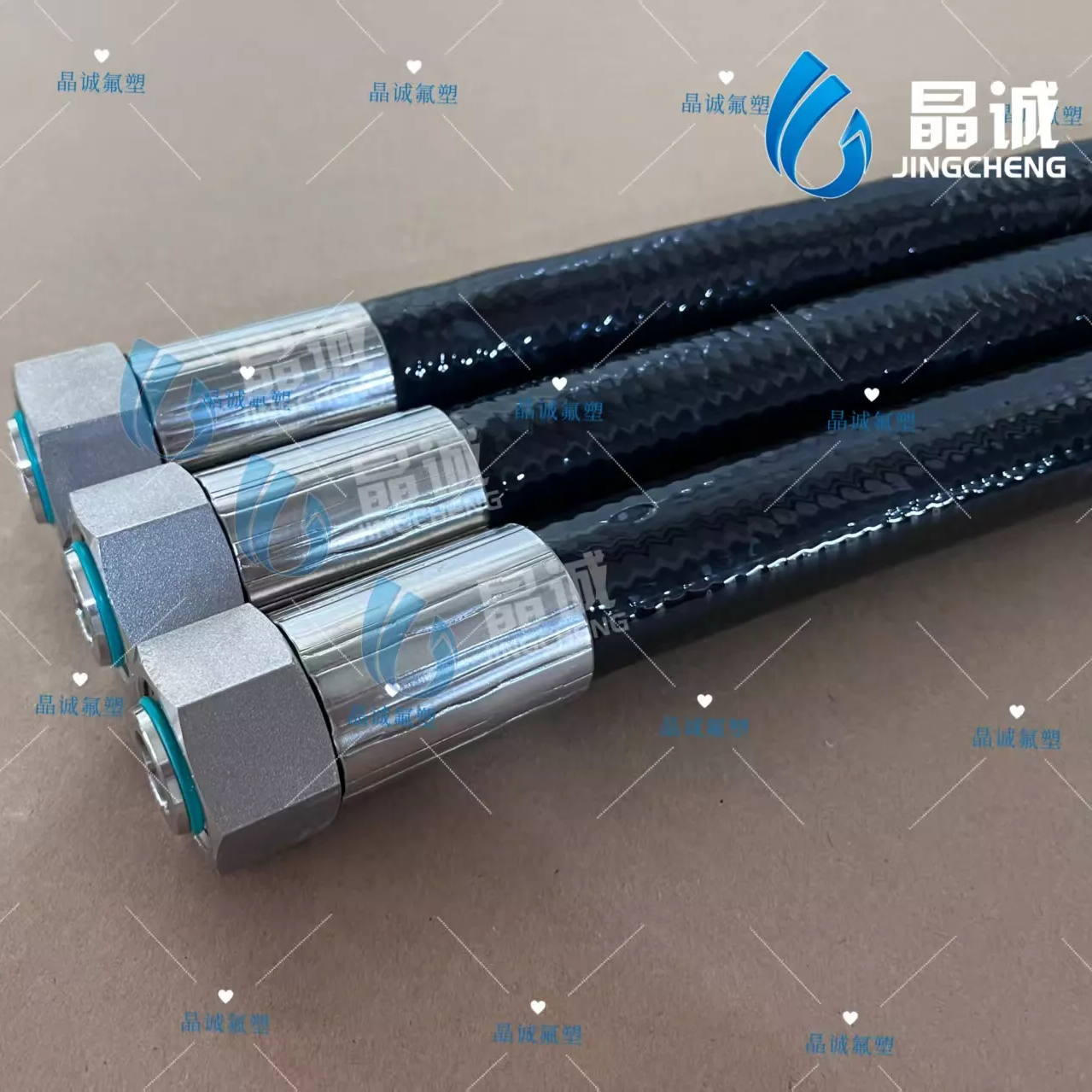

The JCC-61100-PTFE TPU covered PTFE braided hose adds a smooth polyurethane outer layer over the conventional PTFE and stainless steel structure.

The construction consists of:

Smooth PTFE Inner Tube → High-Strength 304 Stainless Steel Braid → Smooth TPU Outer Jacket

This creates a hose that not only transports aggressive media, but also provides a more protected and cleaner external surface for integration into modern industrial equipment.

Why an Outer TPU Layer Changes the Hose

A conventional stainless braided hose exposes the reinforcement directly to the working environment.

That is acceptable in many industrial applications.

However, when the hose rubs repeatedly against:

• Machine panels

• Cable carriers

• Metal frames

• Other hoses

• Structural supports

the braid itself may be exposed to mechanical wear.

The TPU jacket provides a sacrificial protective layer around the reinforcement.

Instead of allowing the stainless braid to directly contact surrounding equipment, the outer cover takes much of the external friction.

This can help protect the reinforcement from:

• Abrasion

• Surface contamination

• Scratching

• Repeated mechanical contact

A Smoother External Surface Is Easier to Maintain

One practical difference between an exposed metal braid and a TPU-covered hose is the external surface.

Braided stainless steel contains many small gaps between wires.

These areas can collect:

• Dust

• Oil

• Powder

• Production residue

The smooth TPU exterior creates a simpler surface that can be easier to wipe and visually inspect.

This can be valuable in machinery used for:

• Pharmaceutical production

• Food processing

• Beverage equipment

• Cosmetics manufacturing

• Precision dispensing

The exact cleaning procedure should still follow the equipment manufacturer's requirements.

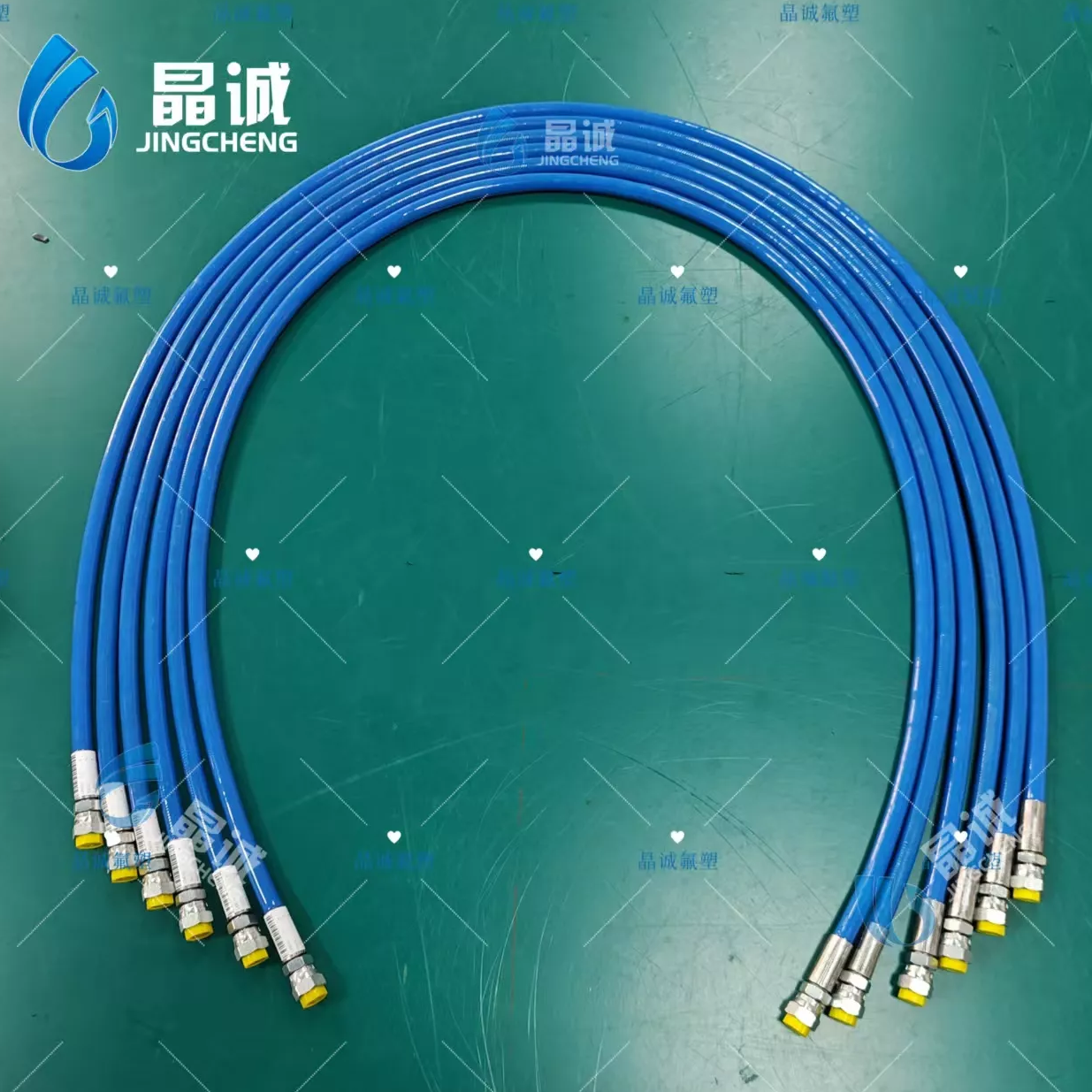

Color Coding Can Improve Maintenance Efficiency

The source product states that the TPU outer jacket can be customized in colors such as:

• Black

• Red

• Blue

Color is not only an aesthetic feature.

In complex equipment, different hose colors can be used to identify:

• Different media

• Supply and return lines

• Different machine zones

• Different pressure circuits

• Different product channels

For maintenance teams, this can make troubleshooting faster.

Instead of tracing every hose from one end to another, technicians can use visual identification as part of the machine's piping management system.

Useful in Machines with Many Fluid Circuits

Modern machinery may contain several flexible lines installed close together.

Examples include:

• Adhesive systems

• Chemical dosing equipment

• Pharmaceutical machines

• Food processing lines

• Automatic filling equipment

• Pneumatic or hydraulic process systems

When many stainless-braided hoses are installed together, they can look almost identical.

Customized TPU colors can help differentiate each circuit while protecting the hose mechanically.

This makes the TPU cover part of the equipment design rather than only a protective accessory.

PTFE Inner Tube for Difficult Industrial Media

The fluid-contact layer remains PTFE.

The source product identifies transmission media such as:

• Fuel

• Gas

• Strong acids

• Strong alkalis

• Organic solvents

PTFE is widely selected because of its broad resistance to many industrial chemicals.

Actual compatibility should still be confirmed according to:

• Chemical type

• Concentration

• Temperature

• Pressure

• Exposure duration

Stainless Steel Reinforcement Supports Pressure Performance

Between the PTFE inner tube and TPU outer cover is a high-strength 304 stainless steel braided layer.

This reinforcement provides structural support around the PTFE tube.

It helps improve:

• Pressure capability

• Dimensional stability

• Mechanical protection

The final working pressure depends on hose diameter.

The catalog shows different ratings across the JCC-61100-PTFE series.

Wide Temperature Capability

The source page specifies a temperature range of approximately:

-70°C to +260°C

This broad range allows the hose to be considered for both cold and elevated-temperature fluid systems.

However, the suitability of the TPU outer cover at the final operating condition should always be evaluated as part of the complete hose assembly.

Actual application limits depend on:

• Temperature

• Media

• Pressure

• Hose size

• Installation environment

Especially Useful for Viscous and Contamination-Sensitive Materials

The product description identifies applications involving materials such as:

• Paint

• Adhesives

• Viscous process media

• Corrosive chemical fluids

These materials can create demanding service conditions.

A smooth outer jacket helps protect the reinforcement from external contamination, while the PTFE inner tube provides the chemical-contact surface.

This combination can be valuable in equipment where both the inside and outside of the hose need controlled protection.

Reduced Permeability Is Valuable in Specialized Equipment

The source page also highlights relatively low permeability characteristics.

In certain applications, reducing material migration through the hose wall can be important for:

• Process stability

• Cleanliness

• Equipment reliability

Final suitability depends on the exact fluid and operating conditions.

Potential Applications

The JCC-61100-PTFE can be considered for:

• Pharmaceutical machinery

• Food processing equipment

• Beverage systems

• Cosmetics production

• Adhesive dispensing

• Paint transfer systems

• Chemical machinery

• Automated production equipment

• High-temperature hydraulic applications

• Specialized pneumatic systems

OEM Equipment Integration

For equipment manufacturers, the hose can be customized according to:

• Length

• Inner diameter

• TPU color

• End fittings

• Thread standard

• Installation route

• Working pressure

• Equipment interface

This allows the hose to be designed as part of the machine rather than purchased as a generic replacement.

Product Identification and Documentation

The source page lists:

• ISO9001:2015

• US FDA 21 CFR 177.1550

• SGS

For regulated applications, the customer should confirm which documentation applies to the exact material and finished assembly being ordered.

What Information Should Be Provided?

For technical selection, please provide:

• Transferred medium

• Working temperature

• Working pressure

• Maximum pressure

• Hose length

• Inner diameter

• Required TPU color

• Minimum bending radius

• Inlet fitting

• Outlet fitting

• Cleaning conditions

• Equipment application

Conclusion

The JCC-61100-PTFE is more than a standard PTFE braided hose with a cosmetic cover.

The TPU jacket changes how the hose interacts with the machine environment.

It provides a smoother external surface, protects the stainless reinforcement, supports color-based hose identification and can improve the overall cleanliness and organization of complex equipment.

For OEM machinery where fluid compatibility, external protection and professional equipment integration are all important, a TPU covered PTFE braided hose provides a practical multi-layer solution.
