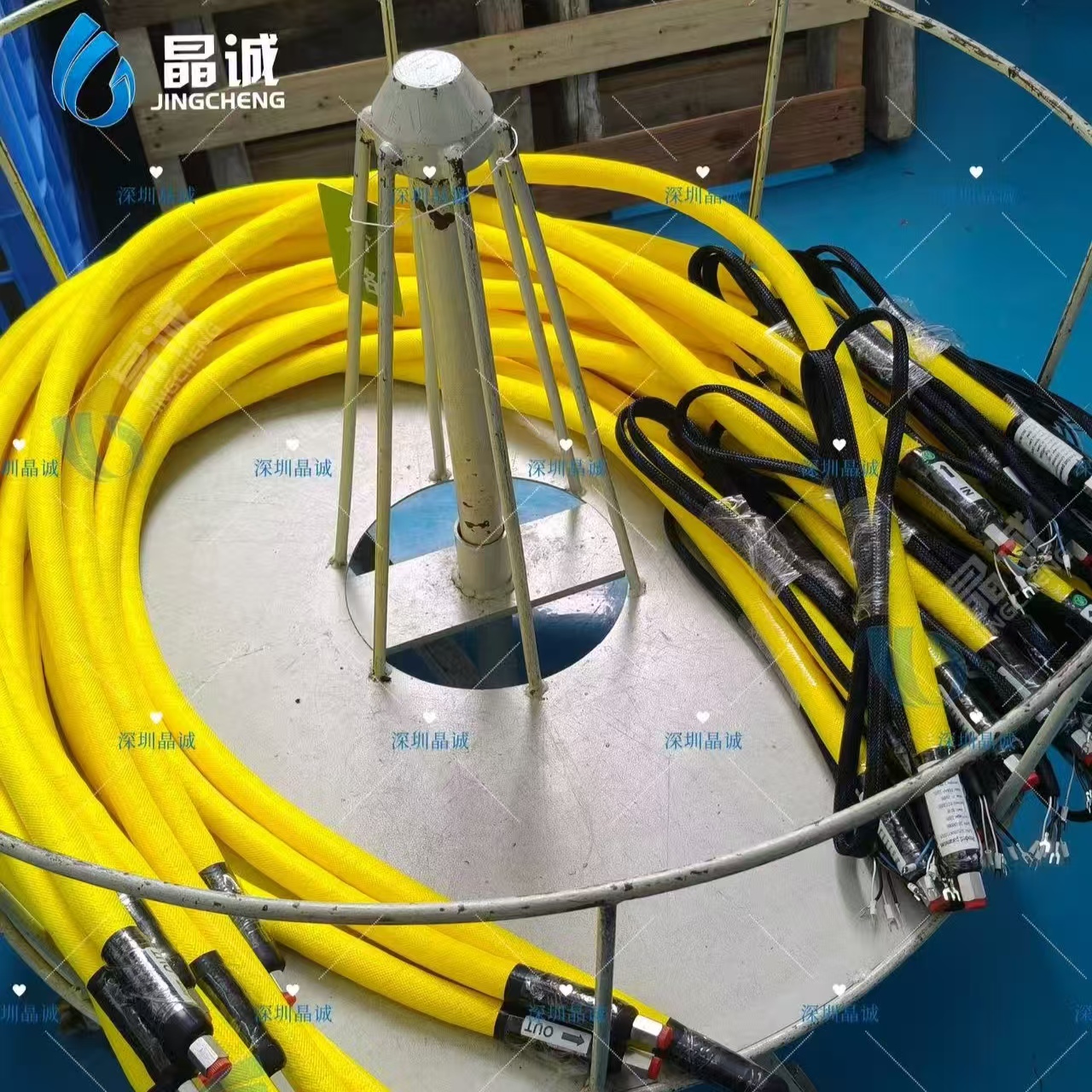

In wax transfer systems, hose performance directly affects temperature stability, flow consistency, and overall equipment reliability. When wax cools too quickly during transfer, it can thicken, lose flow efficiency, or create process inconsistency. In applications such as 3D printing equipment, this makes the hose far more than a simple connector. It becomes a key part of maintaining stable material delivery.
Shenzhen Jingcheng’s Wax Hose is developed for this type of application. According to your catalog, it is commonly used in 3D printing equipment, and the product has continued to evolve together with customer machine upgrades and technology changes. The catalog also states that Jingcheng’s 3D printer wax hose offers a very high level of compatibility with 3D printing machines and that its quality has become highly stable.
This hose is specifically described as being commonly used in 3D printing equipment, which gives it a much clearer application focus than a general industrial heated hose.
A strong point in your catalog is that Jingcheng’s 3D printing wax hose has continued to upgrade and evolve together with customer machine models and technical improvements. That gives the product more credibility because it suggests long-term application adaptation rather than one-time design.
The catalog directly states that this hose has a very high matching degree for 3D printers, making it more attractive for equipment manufacturers and users looking for a better-fitting heated wax transfer solution.
The hose offers a maximum heat resistance of up to 230°C, which is important for keeping wax in a stable transfer state. Higher temperature customization is also available when required.
The product uses uniformly braided heating elements to help reduce inner-wall temperature differences and is manufactured with high-insulation-efficiency materials to support better heat retention during operation.
Item | Our Data |
|---|---|
Product Name | Wax Hose |
Product Category | Low Temperature Low Pressure Heated Hose |
Main Application | 3D printing equipment |
Product Positioning | 3D printer wax transfer hose |
Application Strength | Upgraded with customer machine and technology development |
Equipment Matching | Very high compatibility with 3D printers |
Product Quality | Stable quality |
Max Heat Resistance | Up to 230°C |
Higher Temperature Option | Available on request |
Heating Structure | Uniformly braided heating elements |
Insulation Design | High-efficiency insulation materials |
These product details are stated in the Wax Hose section of your catalog.
I.D. | O.D. (mm ±0.2) | Working Pressure (bar) | Working Pressure (psi) | Burst Pressure (bar) | Burst Pressure (psi) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|
1/4" | 9 | 173 | 2501 | 690 | 10005 | 30 |
5/16" | 11 | 158 | 2284 | 630 | 3915 | 40 |
3/8" | 12.4 | 135 | 1958 | 540 | 7830 | 60 |
1/2" | 15.9 | 118 | 1704 | 470 | 6815 | 150 |
5/8" | 19 | 88 | 1269 | 350 | 5075 | 180 |
3/4" | 22.6 | 85 | 1234 | 340 | 4930 | 260 |
1" | 29.5 | 75 | 1088 | 300 | 4350 | 300 |
These specifications are listed in the parameter table shown with the Wax Hose product section in the PDF.
These figures help buyers determine whether the hose can match their equipment layout, flow requirement, and temperature control target.
For example:
the up to 230°C heat resistance helps support stable wax transfer,
the size range from 1/4" to 1" allows more flexibility for different machine setups,
and the bend radius data is useful for engineers who need to route the hose inside compact equipment structures.
For wax-based transfer applications, hose selection is not only about heating. It is also about compatibility, routing, and long-term consistency.
This product is well suited for:
3D printing equipment
3D printer wax transfer systems
heated wax delivery lines
equipment requiring stable heated wax flow
custom heated hose applications for evolving machine platforms
These use scenarios are directly supported by the product positioning in your catalog.
Your catalog states that one of Jingcheng’s major strengths is the ability to customize different heated and insulated hose types according to industry needs and the temperature, viscosity, and flow characteristics of the medium. That capability is especially relevant for wax transfer applications, where material behavior can be highly temperature-sensitive.
The company profile also states that Shenzhen Jingcheng High-tech Co., Ltd. was established in 2005 and focuses on the R&D and production of PTFE hoses, PA hoses, PTFE high-pressure hoses, and PTFE electrically heated hoses, while also providing complete thermal fluid insulation and transfer solutions.
That means this product is backed not just by a specification sheet, but by actual heated hose manufacturing and customization experience.
