CEMS Heated Sampling Line for Accurate Gas Measurement and Condensation Prevention

Maintaining Stable Gas Temperature During Industrial Sampling

In industrial emission monitoring and gas analysis systems, accurate measurement depends not only on the analyzer itself but also on the quality of the gas sample delivered to the instrument.

During gas sampling, the temperature of the sample gas must be carefully controlled.

If the gas temperature drops during transportation, moisture and chemical components may condense inside the sampling tube.

This can cause:

• Measurement errors

• Sample contamination

• Blockage of sampling lines

• Analyzer maintenance problems

• Reduced monitoring accuracy

A CEMS heated sampling line is designed to solve these problems by maintaining a constant temperature from the sampling point to the gas analyzer.

Shenzhen Jingcheng High-tech manufactures customized heated sample lines for CEMS systems, gas analyzers, environmental monitoring equipment and industrial testing instruments.

What Is a CEMS Heated Sampling Line?

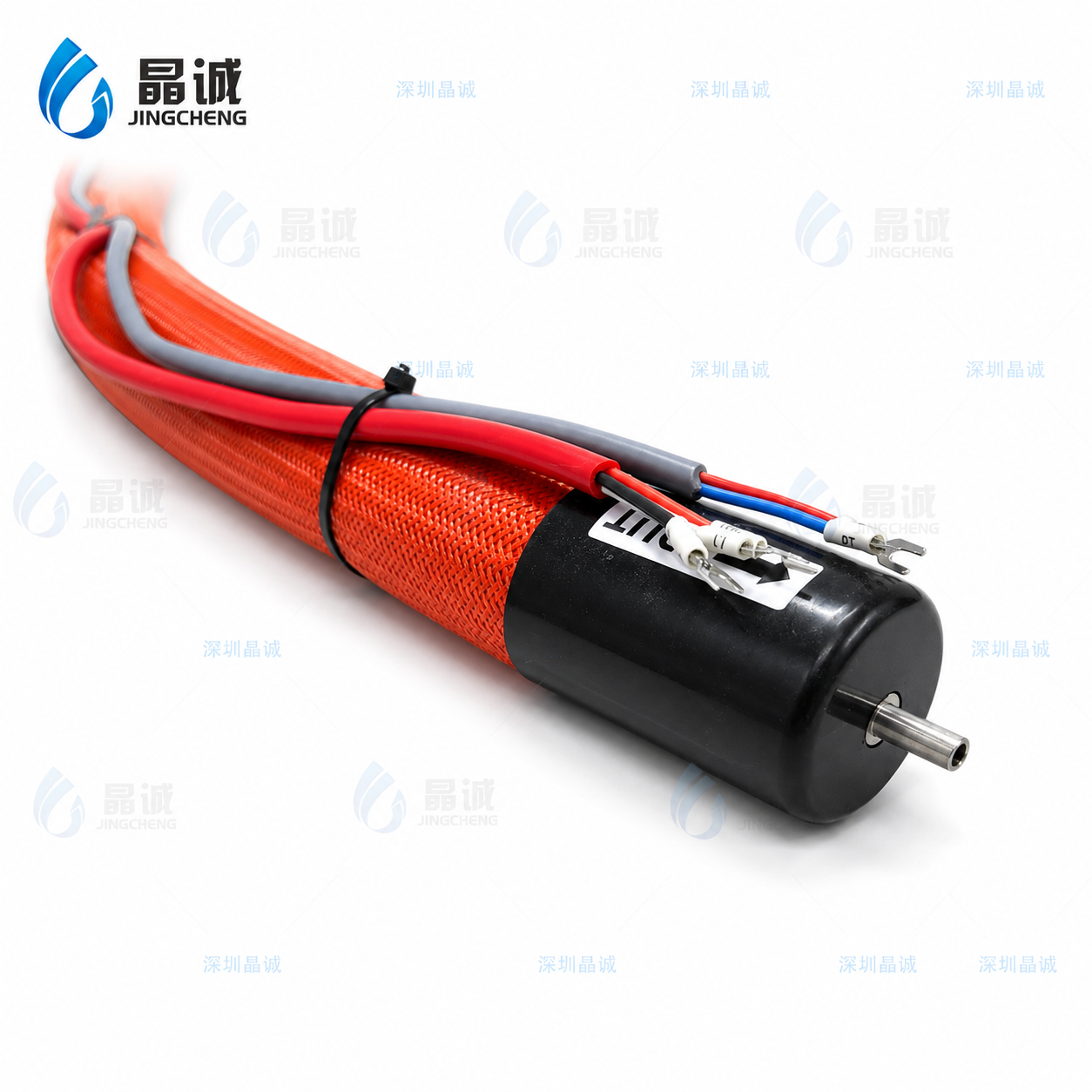

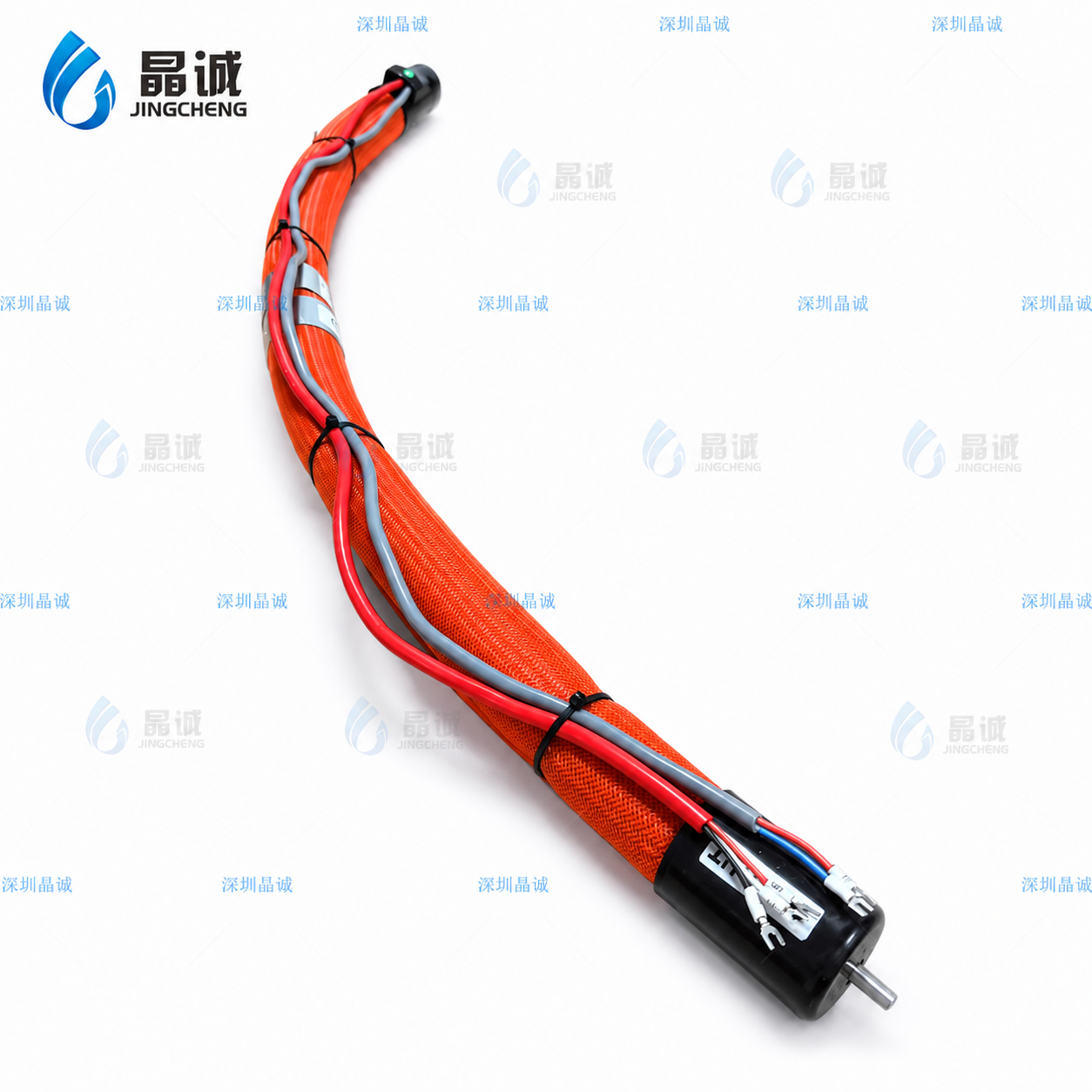

A CEMS heated sampling line is a temperature-controlled flexible hose used to transfer gas samples in continuous emission monitoring systems.

The main purpose is to prevent condensation and maintain sample integrity.

A typical heated sampling line structure includes:

• PTFE inner tube

• Heating element

• Thermal insulation layer

• Protective outer jacket

• Electrical connection system

• Customized fittings

The heating system keeps the internal sample temperature above the condensation point, ensuring stable gas transportation.

How Does a Heated Sampling Line Work?

The operating process includes several stages:

1. Gas Sampling

The probe collects gas samples from industrial equipment such as:

• Chimneys

• Exhaust systems

• Processing equipment

• Combustion systems

2. Heated Transfer

The heated sampling hose maintains the required temperature while transporting the sample gas.

This prevents:

• Water vapor condensation

• Chemical absorption

• Particle accumulation

3. Gas Analysis

The stabilized sample enters the analyzer for accurate measurement.

This improves reliability for continuous monitoring systems.

Applications of CEMS Heated Sampling Line

1. Continuous Emission Monitoring Systems (CEMS)

CEMS equipment is commonly used for monitoring:

• Industrial emissions

• Flue gas

• Combustion exhaust

• Chemical process gases

The heated sampling line connects the sampling point with the analyzer cabinet.

2. Environmental Monitoring Equipment

Suitable for:

• Air quality monitoring systems

• Pollution monitoring equipment

• Industrial environmental analysis

Stable sample transportation improves measurement consistency.

3. Gas Analyzer Systems

Compatible with:

• Infrared gas analyzers

• UV analyzers

• Oxygen analyzers

• Process gas analyzers

• Laboratory analysis systems

Why Heating Is Important in Gas Sampling Applications

Many industrial gases contain moisture or condensable components.

When the sample temperature decreases:

Condensation May Occur

Water and chemical components can accumulate inside the tube.

Measurement Accuracy Can Decrease

Condensed substances may change the composition of the sample reaching the analyzer.

Maintenance Requirements Increase

Blocked sampling lines require frequent cleaning and replacement.

A heated sampling line helps maintain stable sampling conditions.

Advantages of Jingcheng CEMS Heated Sampling Line

1. Stable Temperature Control

The heating system maintains consistent temperature along the complete hose length.

Benefits include:

• Reduced condensation risk

• Improved measurement stability

• Reliable continuous operation

2. High Temperature Resistance

The heated sampling line supports temperatures up to:

230°C

Suitable for demanding industrial environments.

3. PTFE Inner Tube Performance

The PTFE liner provides:

Chemical Resistance

Suitable for aggressive industrial gases and chemical environments.

Smooth Internal Surface

Helps reduce:

• Gas residue

• Contamination

• Cleaning requirements

Excellent Temperature Performance

Suitable for high-temperature sampling applications.

4. Flexible Installation Design

Compared with rigid sampling pipes, flexible heated lines provide easier installation.

Advantages include:

• Easier routing

• Reduced installation difficulty

• Better adaptability to equipment layout

This is especially useful where sampling points and analyzers are separated by complex equipment structures.

Product Specifications

Custom CEMS Heated Sampling Line Solutions

Different monitoring systems have different requirements.

Jingcheng provides customization including:

Hose Design

• Hose length

• Tube diameter

• Temperature range

• Pressure requirements

Electrical Configuration

• Working voltage

• Heating power

• Temperature sensor

• Connector type

Mechanical Connection

• Sampling probe connection

• Analyzer connection

• Special fittings

Applications by Industry

CEMS heated sampling lines are widely used in:

Power Generation

• Boiler emission monitoring

• Combustion gas analysis

Chemical Industry

• Process gas measurement

• Industrial exhaust monitoring

Petroleum and Petrochemical

• Refinery monitoring

• Process analysis

Manufacturing Industry

• Factory emission systems

• Environmental compliance equipment

How to Select the Correct Heated Sampling Line?

Before selecting a heated sample hose, customers should confirm:

Gas Information

• Gas composition

• Moisture content

• Corrosiveness

• Required temperature

Equipment Information

• Analyzer model

• Sampling distance

• Installation environment

Technical Parameters

• Hose length

• Inner diameter

• Voltage

• Heating temperature

• Connection type

Why Choose Jingcheng as Your Heated Sampling Line Supplier?

Shenzhen Jingcheng High-tech specializes in PTFE hose and heated hose manufacturing.

Our production capabilities include:

• PTFE extrusion

• Hose assembly

• Heating system integration

• Connector installation

• Pressure testing

We provide:

• OEM production

• Engineering support

• Sample testing

• Customized solutions

Frequently Asked Questions

1. What is a CEMS heated sampling line used for?

A CEMS heated sampling line transfers gas samples from the sampling point to the analyzer while maintaining temperature and preventing condensation.

2. Why does a gas sampling tube need heating?

Heating prevents moisture and chemical components from condensing inside the tube, improving measurement accuracy.

3. What temperature can your heated sampling line reach?

Our standard heated sampling line can support temperatures up to 230°C.

4. Can you customize the sampling line length and electrical design?

Yes. We customize hose length, voltage, power, sensors and connectors according to customer requirements.

5. What industries use heated sample lines?

Applications include:

• Power plants

• Chemical plants

• Petrochemical facilities

• Environmental monitoring systems

• Industrial analyzer manufacturers

Conclusion

A reliable CEMS heated sampling line plays an important role in accurate industrial gas measurement.

By maintaining stable sample temperature and preventing condensation, heated sampling lines improve analyzer reliability and reduce maintenance requirements.

For environmental monitoring equipment manufacturers, system integrators and industrial users, choosing the correct heated sample hose requires consideration of gas properties, temperature requirements, installation conditions and analyzer specifications.

Shenzhen Jingcheng provides customized heated sampling line solutions with professional PTFE manufacturing capability, OEM support and factory-direct production.
