PTFE Heated Hose for Hot Melt Adhesive Machines and Industrial Dispensing Systems

Maintaining Stable Temperature During Hot Melt Material Transfer

In hot melt adhesive applications, temperature stability directly affects production quality.

When molten adhesive travels from the melting unit to the application head, the material must maintain a consistent temperature. If heat loss occurs inside the transfer hose, adhesive viscosity can increase, resulting in:

• Uneven glue application

• Poor bonding performance

• Nozzle blockage

• Production downtime

• Increased maintenance requirements

A PTFE heated hose is designed to solve this problem by combining a flexible PTFE hose with an integrated electrical heating system.

The hose continuously maintains the required temperature during material transportation, ensuring smooth adhesive flow and stable dispensing performance.

Shenzhen Jingcheng High-tech manufactures customized heated hoses for hot melt adhesive machines, serving equipment manufacturers, system integrators, distributors and industrial users worldwide.

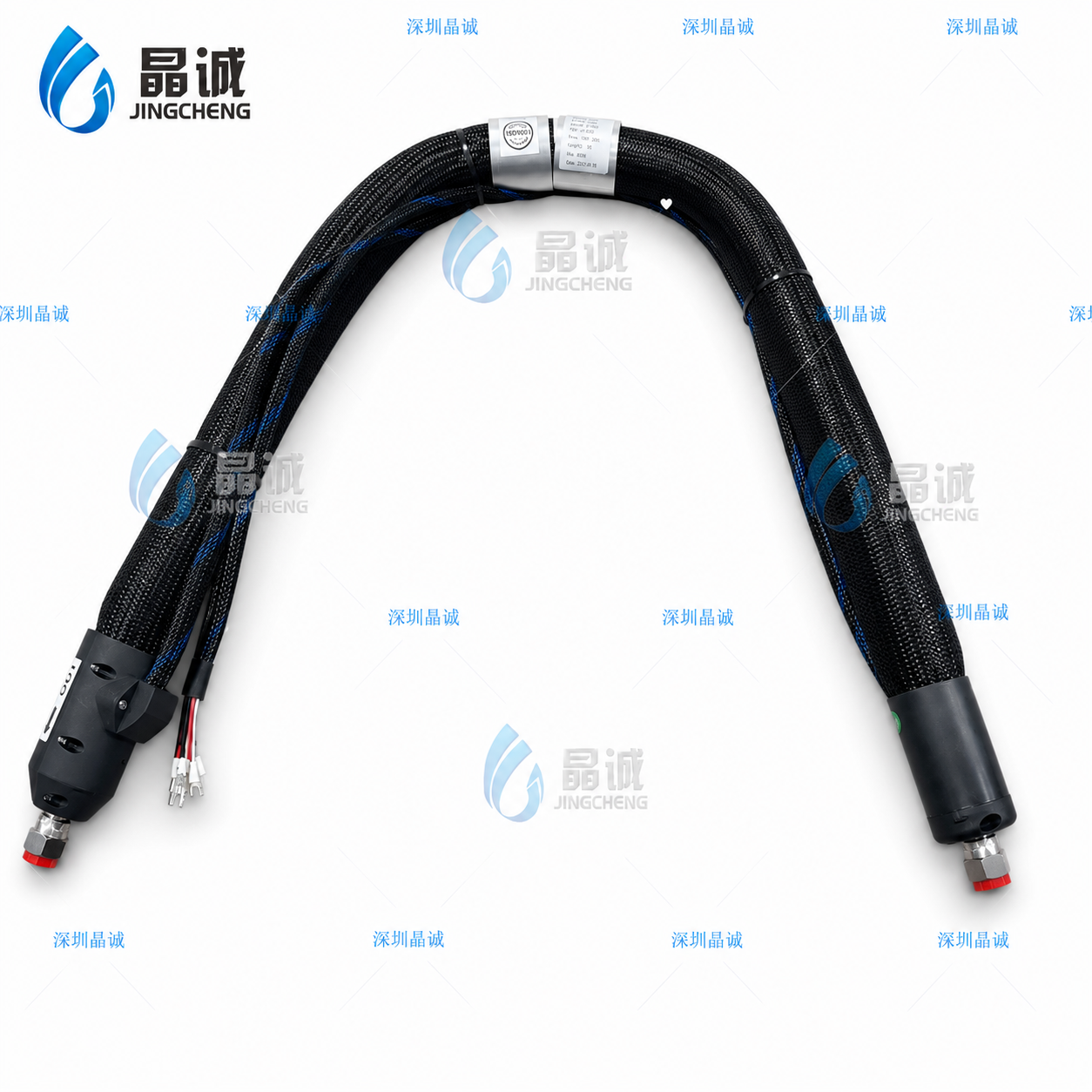

What Is a PTFE Heated Hose?

A PTFE heated hose is a temperature-controlled flexible hose assembly used for transporting heat-sensitive materials.

Unlike standard industrial hoses, a heated hose contains an internal heating system that compensates for heat loss during transportation.

A typical construction includes:

• PTFE inner tube

• Stainless steel braided reinforcement

• Electrical heating element

• Thermal insulation layer

• Protective outer cover

• Electrical connector

• End fittings

The PTFE liner provides excellent chemical resistance and high temperature capability, making it suitable for demanding industrial materials.

How Does a Heated Hose Work?

The working principle is simple:

Step 1: Adhesive Heating

The hot melt adhesive is melted inside the main adhesive tank or melter.

Step 2: Temperature Maintenance

The heated hose transfers the material while the electrical heating system keeps the hose body at the required temperature.

Step 3: Stable Dispensing

The adhesive reaches the dispensing gun with consistent viscosity, improving application accuracy.

This process is especially important for:

• PUR adhesive

• EVA hot melt adhesive

• Polyurethane materials

• Industrial sealants

• Coating materials

Applications of PTFE Heated Hose

1. Hot Melt Glue Machines

PTFE heated hoses are widely used in:

• Packaging machines

• Carton sealing equipment

• Labeling machines

• Bookbinding machines

• Woodworking equipment

• Edge banding machines

The hose connects the adhesive melter with the application head and maintains glue temperature during operation.

2. PUR Hot Melt Adhesive Systems

Reactive polyurethane adhesives require accurate temperature control.

A PUR heated hose helps maintain:

• Stable viscosity

• Consistent dispensing pressure

• Improved bonding quality

Common applications include:

• Automotive assembly

• Electronics manufacturing

• Furniture production

• Construction materials

3. Automated Dispensing Equipment

Modern production lines often use robotic dispensing systems.

The heated hose can be integrated into:

• Automatic glue dispensing robots

• Industrial assembly lines

• Coating systems

• Sealing equipment

Flexible routing allows easier machine installation and maintenance.

Why Temperature Control Is Important for Hot Melt Adhesive Hoses

Hot melt adhesives are highly sensitive to temperature changes.

If the temperature is too low:

• Adhesive becomes more viscous

• Flow resistance increases

• Dispensing accuracy decreases

If temperature is unstable:

• Bonding strength may vary

• Production consistency decreases

• Equipment cleaning frequency increases

A properly designed heated hose helps maintain the adhesive within its recommended processing temperature range.

Product Advantages of Jingcheng PTFE Heated Hose

1. High Temperature Resistance

Our heated hose can support temperatures up to:

230°C

The heating element is evenly distributed around the hose to improve heat transfer efficiency.

Benefits include:

• Faster heating

• Lower temperature difference

• Stable material flow

• Reduced heat loss

2. Uniform Heating Structure

Traditional external heating methods may create uneven temperature areas.

Jingcheng heated hoses use optimized heating construction to provide:

• Even heat distribution

• Stable temperature control

• Reliable long-term operation

This is especially important for adhesive systems requiring continuous production.

3. PTFE Inner Tube Performance

The PTFE liner provides:

Excellent Chemical Resistance

Suitable for:

• Adhesives

• Chemicals

• Industrial fluids

Low Friction Surface

Helps reduce:

• Material residue

• Internal contamination

• Cleaning difficulty

High Temperature Capability

Suitable for high-temperature industrial applications.

4. High Pressure Performance

The stainless steel braided reinforcement improves mechanical strength and pressure resistance.

Typical specifications:

Custom Heated Hose Solutions for OEM Equipment

Different machines require different electrical and mechanical configurations.

Jingcheng provides customized solutions according to customer requirements.

Customization options include:

Hose Specifications

• Inner diameter

• Hose length

• Working pressure

• Temperature range

• Bend radius

Electrical Configuration

• Voltage

• Power rating

• Heating method

• Temperature sensor

• Connector type

Mechanical Connection

• Thread type

• Fitting design

• Connection direction

• Special adapters

This allows our heated hoses to be directly integrated into original equipment designs.

Designed for Machine Manufacturers and System Integrators

Our main customers include:

• Hot melt adhesive machine manufacturers

• Packaging equipment OEMs

• Dispensing system manufacturers

• Automation integrators

• Industrial distributors

For equipment manufacturers, a reliable heated hose supplier is important because hose failure can directly affect machine performance.

Jingcheng supports OEM customers from prototype development to mass production.

Manufacturing Capability

Shenzhen Jingcheng High-tech has more than 20 years of experience in PTFE hose production.

Our production capability includes:

• PTFE tube extrusion

• Stainless steel braiding

• Heating assembly

• Hose crimping

• Electrical testing

• Pressure testing

Compared with trading companies, direct manufacturing allows better control of:

• Product consistency

• Delivery time

• Customization ability

• Production cost

How to Select the Correct Heated Hose?

Before choosing a heated hose, customers should confirm:

Material Information

• Adhesive type

• Chemical characteristics

• Required temperature

Machine Information

• Equipment model

• Installation position

• Hose connection method

Technical Parameters

• Working pressure

• Inner diameter

• Hose length

• Voltage

• Power requirement

Providing these details helps ensure the correct hose design.

Frequently Asked Questions

1. What is a PTFE heated hose used for?

PTFE heated hoses are mainly used for transporting temperature-sensitive materials such as hot melt adhesive, PUR glue, EVA adhesive, sealants and industrial fluids.

2. What temperature can your heated hose withstand?

Our standard heated hose can withstand temperatures up to 230°C. Customized solutions are available for higher temperature requirements.

3. Can you manufacture heated hoses according to our machine design?

Yes. We provide OEM customization including hose dimensions, electrical parameters, fittings and connectors.

4. Are your heated hoses suitable for PUR adhesive systems?

Yes. PUR heated hoses are one of the main applications of our products because PUR adhesive requires stable temperature control.

5. Do you provide samples?

Yes. Customers can request samples for testing before bulk production.

6. Are you a manufacturer or distributor?

Shenzhen Jingcheng High-tech is a direct manufacturer specializing in PTFE hoses and industrial heated hose assemblies.

Conclusion

A reliable PTFE heated hose is an important component in hot melt adhesive systems and industrial dispensing equipment.

By maintaining stable temperature, improving material flow consistency and reducing production interruptions, heated hoses help manufacturers achieve better process control.

For equipment builders and industrial users, selecting the correct heated hose requires considering temperature, pressure, material compatibility, electrical requirements and installation conditions.

With professional PTFE manufacturing capability, OEM customization experience and factory-direct production, Shenzhen Jingcheng provides reliable heated hose solutions for global industrial applications.
