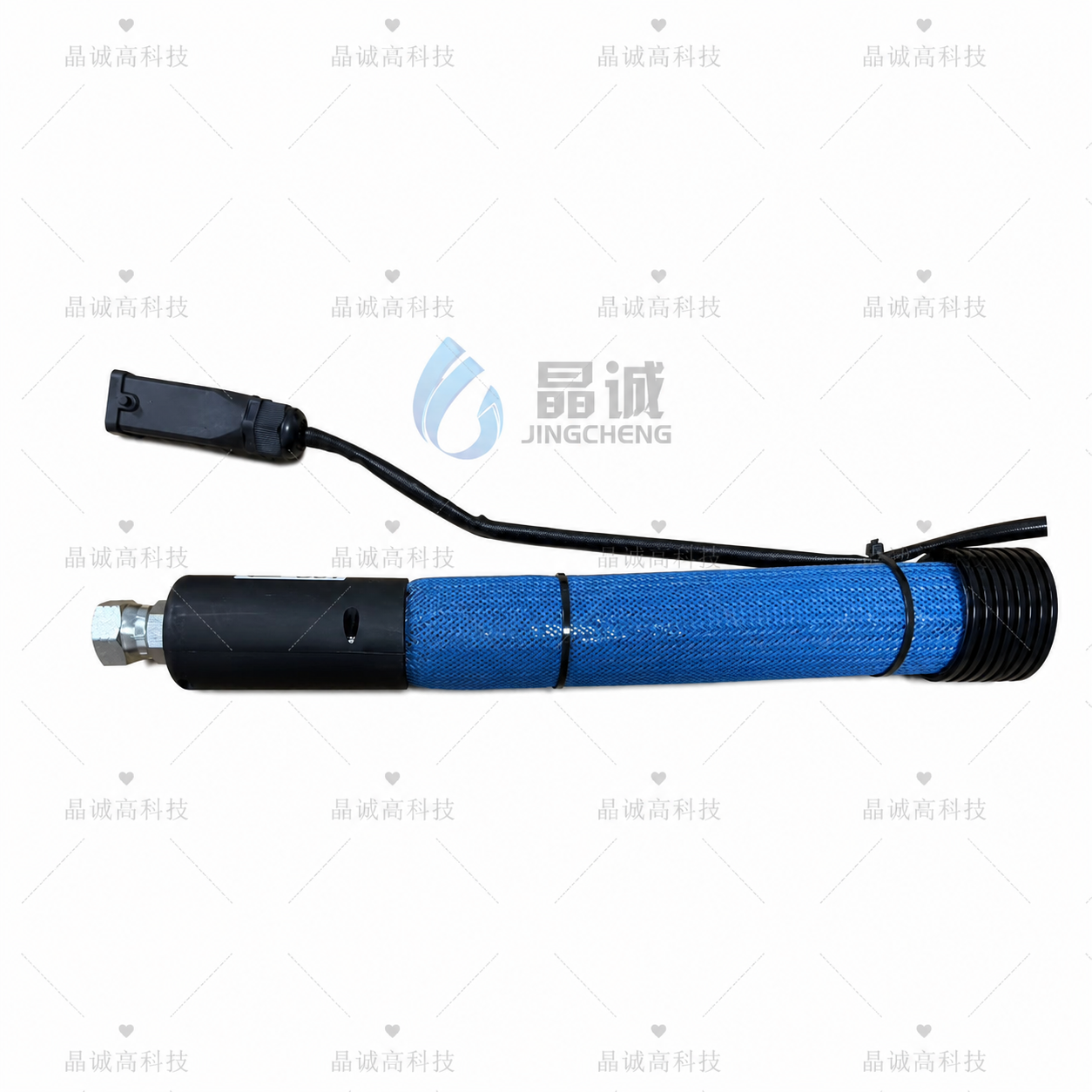

Extruder Connection Hose for Faster Maintenance and More Flexible Extrusion Equipment Layouts

Extrusion lines are rarely left unchanged for their entire service life.

Manufacturers may need to:

• Replace a die

• Install a different extrusion head

• Add a melt pump

• Modify a downstream section

• Reconfigure the production line

Every time one of these components changes, the connection between the extruder and downstream equipment can become a maintenance challenge.

Rigid high-temperature piping requires precise alignment.

A small difference in:

• Height

• Angle

• Distance

may require the rigid connection to be rebuilt.

A flexible extruder connection hose gives equipment designers and maintenance teams more tolerance during die changes and machine reconfiguration.

Die Changes Are Common in Flexible Production

An extrusion line may produce multiple products.

Different products may require:

• Different dies

• Different extrusion heads

• Different downstream equipment

When a rigid connection is used, changing the die can require additional alignment work.

A flexible high-temperature connection can accommodate limited positional differences between the extruder and the new die assembly.

This can help simplify machine conversion.

Melt Pumps Create Another Connection Point

Many extrusion systems include a melt pump between the extruder and die.

A typical configuration may become:

Extruder → Flexible Hose → Melt Pump → Flexible Hose → Die

Each additional module introduces another location where precise rigid alignment would otherwise be required.

Flexible hoses can help connect these independent modules while maintaining a controlled polymer-transfer path.

Modular Extrusion Equipment Benefits from Flexible Connections

Modern OEM equipment is increasingly modular.

A manufacturer may want to offer the same extruder with several optional downstream configurations.

Using a flexible connection can make it easier to build:

• Different line lengths

• Different die arrangements

• Different melt-pump options

• Customized customer layouts

This can reduce the need to design a completely unique rigid pipe assembly for every machine.

Maintenance Access Can Be Improved

Extrusion equipment requires servicing.

Components may need to be removed for:

• Cleaning

• Inspection

• Repair

• Material changeover

A flexible hose can simplify access by reducing the number of rigid connections that must be perfectly realigned during reassembly.

This can be especially useful around melt pumps and die heads.

High Temperature Remains a Core Requirement

Polymer melt is normally transferred at elevated temperature.

The product description states that selected extruder hose configurations can be used up to approximately:

250°C

The catalog feature section also lists approximately 230°C as a standard heat-resistant value.

Because the exact limit depends on hose configuration, the final temperature specification should be confirmed for each project.

High Pressure Must Be Considered at Operating Temperature

The source description notes configurations capable of approximately 35 MPa under 250°C conditions.

This is important because polymer melt transfer can require substantial pressure.

The correct hose should be selected according to:

• Polymer

• Melt viscosity

• Flow rate

• Hose diameter

• Hose length

• Working temperature

• Maximum pressure

Temperature and pressure cannot be treated separately.

Shorter Hose Is Usually Better for Melt Transfer

Flexible hose provides installation freedom, but excessive length is not desirable.

A longer hose creates:

• More internal polymer volume

• Greater pressure drop

• Longer residence time

• More heat-loss area

For extrusion equipment, the hose should normally be only as long as required to provide:

• Installation flexibility

• Maintenance access

• Alignment tolerance

This helps reduce unnecessary process volume.

Correct Bending Radius Protects the Hose

A flexible hose does not mean it can be bent without limits.

Tight bends can create unnecessary stress in the hose assembly.

Installation should respect the specified minimum bending radius.

The catalog shows different minimum bending radii according to size.

Proper routing is particularly important near heavy fittings and machine ports.

Interface Matching Is Critical During Replacement

Extruders from different manufacturers may use different:

• Thread standards

• Flanges

• Fitting dimensions

• Connection orientations

A replacement hose should therefore be matched to the actual machine.

Customers can provide:

• Existing hose

• Extruder model

• Die connection

• Photographs

• Drawings

for technical evaluation.

Suitable Applications

Potential applications include:

• Polymer extrusion lines

• Plastic extrusion machinery

• Melt pumps

• Extrusion dies

• Coating extrusion

• Film extrusion

• Specialty polymer processing

• Laboratory extruders

• OEM extrusion systems

• Retrofit extrusion lines

Customization Options

Jingcheng can customize:

• Hose length

• Inner diameter

• Working temperature

• Working pressure

• Extruder-side fitting

• Melt-pump fitting

• Die-side fitting

• Connection orientation

• Complete custom assemblies

What Information Should Be Provided?

Please provide:

• Polymer type

• Melt temperature

• Working pressure

• Maximum pressure

• Required flow

• Hose length

• Inner diameter

• Extruder connection

• Die or melt-pump connection

• Minimum bending radius

• Equipment brand and model

Conclusion

A flexible extruder connection hose does more than carry polymer melt.

It can make the extrusion line easier to modify, maintain and reconfigure.

For equipment manufacturers producing modular extrusion systems, and for factories that frequently change dies or retrofit downstream equipment, a correctly engineered flexible hose can reduce the dependence on perfectly aligned rigid connections.

The most effective design balances temperature, pressure, melt flow, hose length, bending radius and machine layout.
