Convoluted Braided PTFE Hose for Simpler Routing with Fewer Rigid Fittings

Compact process machinery creates a common design problem.

The fluid line needs to change direction several times, but there is not enough space for long rigid pipe sections.

A conventional piping layout may require:

• Elbows

• Unions

• Adapters

• Short rigid sections

Every additional fitting adds another connection point.

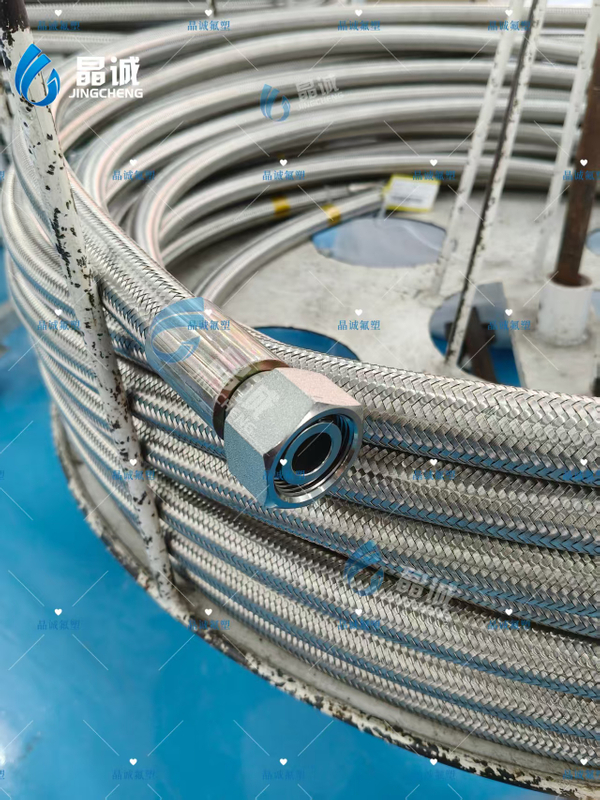

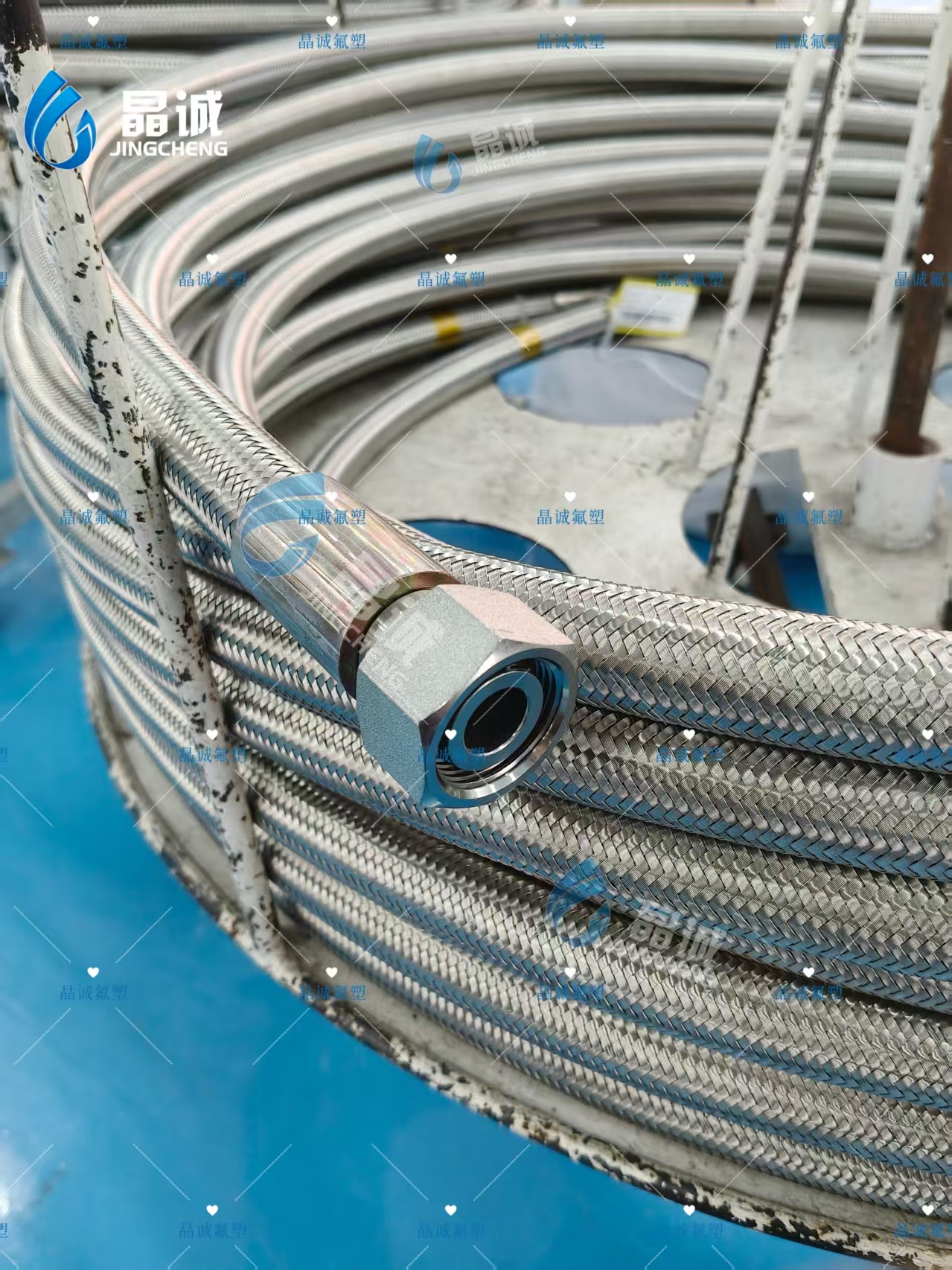

The JCC-11100-PTFE convoluted braided hose offers a different approach.

Its highly flexible convoluted PTFE structure allows the hose itself to create direction changes within a limited installation area.

The external 304 stainless steel braided reinforcement adds mechanical support.

The result is a hose designed for compact process equipment where flexibility can help simplify the total piping layout.

Why Fewer Fittings Can Simplify a Machine

Rigid piping requires a fitting each time the line changes direction.

In compact machinery, several elbows may be required over a relatively short distance.

A flexible hose can sometimes replace multiple rigid direction changes with one continuous hose assembly.

This can help reduce:

• Assembly complexity

• Number of connection points

• Installation time

• Space requirements

The exact benefit depends on the machine layout.

Very Small Bending Radius Is a Major Advantage

The JCC-11100-PTFE uses a convoluted PTFE inner hose.

This structure provides very strong bending performance.

According to the catalog, selected sizes offer minimum bending radii as small as approximately:

10 mm

This is particularly useful where connection points are very close together.

Useful in Dense Equipment Layouts

Process equipment may contain many components inside one cabinet or skid.

The hose may need to route between:

• Pumps

• Valves

• Filters

• Sensors

• Tanks

• Dosing modules

A tight-radius hose can help engineers make better use of limited internal space.

This can be valuable in:

• Pharmaceutical equipment

• Food machinery

• Chemical process systems

Stainless Steel Braid Adds Pressure Support

The outer layer uses high-strength 304 stainless steel braid.

This supports the flexible PTFE hose mechanically.

Compared with an unreinforced convoluted hose, the braided design provides substantially higher pressure capability.

For example, the catalog lists selected smaller sizes at more than 10 MPa working pressure.

Flexible Routing Can Improve Service Access

Fewer rigid components can also make maintenance easier.

A flexible hose may allow technicians to:

• Move a pump slightly

• Remove a valve

• Access a filter

• Replace a process component

without dismantling a large section of rigid pipe.

This can be useful in machines designed for frequent servicing.

Large Size Range Expands Equipment Options

The catalog includes sizes from approximately:

1/4 inch to 2 inches

This is useful because compact routing is not limited to small fluid lines.

Larger process hoses may also need tight bending around tanks or machine frames.

The same basic convoluted braided construction can therefore support both small and relatively large transfer lines.

Temperature Capability

The product is specified for approximately:

-70°C to +200°C

This gives the hose a broad thermal operating range for many process applications.

The exact allowable pressure should be confirmed according to temperature and hose size.

Pharmaceutical Equipment Applications

In pharmaceutical machinery, compact layouts are common.

Potential connections may include:

• Transfer pump to process module

• Filter to downstream equipment

• Dosing unit connections

• Flexible vessel connections

The convoluted braided hose can provide compact routing where rigid pipe geometry would be difficult.

Food Processing Applications

Food machinery may also contain several closely positioned components.

The hose can provide flexible connections within:

• Filling systems

• Mixing equipment

• Ingredient transfer

• Process skids

For food-contact applications, the exact material configuration and required documentation should be confirmed.

Chemical Equipment Applications

Chemical processing equipment often requires both:

• Material compatibility

• Flexible routing

PTFE provides broad resistance to many chemicals, while the convoluted structure gives the hose a much smaller bending radius than many straight-wall designs.

This can help simplify chemical skid layouts.

A Flexible Hose Is Not an Excuse for Poor Routing

Although the hose can bend tightly, good installation practice still matters.

Engineers should avoid:

• Excessive twisting

• Abrasion against sharp edges

• Unsupported heavy fittings

• Bending below the specified radius

Correct routing helps maintain hose life and connection integrity.

Customization Options

Jingcheng can customize:

• Hose length

• Inner diameter

• End fittings

• Thread standard

• Connection orientation

• Complete hose assemblies

• OEM requirements

What Information Should Be Provided?

Please provide:

• Transferred medium

• Working temperature

• Working pressure

• Maximum pressure

• Hose length

• Inner diameter

• Available installation space

• Minimum bending requirement

• End fittings

• Equipment application

Conclusion

The JCC-11100-PTFE convoluted braided hose is particularly useful when equipment designers need to simplify fluid routing inside a limited amount of space.

Its convoluted PTFE structure provides very tight bending capability, while 304 stainless steel braid adds pressure support.

By allowing one flexible hose to replace several rigid direction changes, the product can help reduce fitting count, simplify assembly and improve access inside compact pharmaceutical, food and chemical processing machinery.
