Custom High-Temperature High-Pressure Heated Hose for Special Equipment

Standard industrial hoses work well when the equipment itself is standardized.

But special-purpose machinery rarely follows standard rules.

A machine may use a unique connection thread, unusual electrical plug, proprietary temperature sensor, limited bending space or an operating pressure far beyond an ordinary heated hose.

This is why special equipment often requires an engineered heated hose assembly rather than a catalog replacement.

Jingcheng's high-temperature, high-pressure connection hose is designed for domestic and imported special-purpose equipment where temperature maintenance, pressure resistance and non-standard interface matching are required simultaneously.

Why Replacement Becomes Difficult on Imported Equipment

Replacing a hose from specialized equipment is often more complicated than finding a tube with the same diameter.

The original hose may contain:

• Non-standard fittings

• Different connections at each end

• Custom electrical plugs

• Special sensor types

• Unique pin assignments

• Specific heating resistance

• Restricted overall diameter

• Special pressure reinforcement

A replacement that fits mechanically may still fail electrically or thermally.

That is why the complete hose should be reverse-engineered as one assembly.

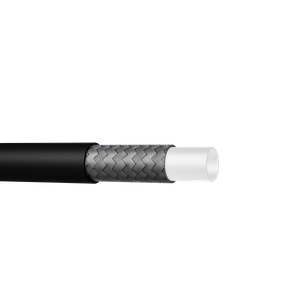

PTFE Inner Material for Demanding Media

The catalog describes the material-contact tube as using PTFE material suitable for demanding high-temperature and high-pressure service.

PTFE provides several useful characteristics for special industrial equipment:

• Broad chemical compatibility

• Smooth internal flow

• Resistance to many aggressive fluids

• Stable behavior across a wide temperature range

• Low material adhesion

The exact inner-tube configuration should be selected according to the transferred medium.

304 Stainless Steel Reinforcement

Pressure resistance depends heavily on the reinforcement structure around the inner tube.

The catalog specifies 304 stainless steel pressure reinforcement.

Depending on the customized structure, the hose can be engineered for demanding pressure levels.

The catalog notes that customized designs may reach 40 MPa or higher, but this should be treated as an engineering capability rather than a universal rating for every hose size.

Final pressure depends on:

• Hose diameter

• Temperature

• Reinforcement architecture

• Fittings

• Crimping method

• Pressure cycling

• Complete assembly design

Temperature Control Is More Than Heating Wire

The hose incorporates uniformly arranged heating elements.

Uniform heating helps reduce internal cold sections that can cause:

• Material viscosity changes

• Local accumulation

• Pressure increase

• Unstable flow

• Delayed startup

• Process inconsistency

High-efficiency insulation then reduces the amount of heat lost to the surrounding environment.

The catalog lists a standard maximum heat-resistant temperature of approximately 230°C, with higher-temperature configurations available for evaluation.

Where Special Heated Hoses Are Used

This type of hose can be considered for:

• Imported production equipment

• Customized chemical machinery

• Pilot and laboratory systems

• Adhesive and resin equipment

• High-temperature dispensing

• Specialized coating machinery

• High-pressure heated fluid lines

• Non-standard process systems

• OEM equipment

• Discontinued replacement assemblies

Reverse Engineering Existing Hoses

In many replacement projects, complete technical drawings are unavailable.

A new hose can instead be developed using:

• Original hose sample

• Clear photographs

• Connection dimensions

• Thread specifications

• Machine model

• Voltage

• Sensor type

• Cable and plug information

• Working temperature

• Working pressure

This makes it possible to produce a second-source replacement even when the original equipment manufacturer no longer supplies the hose.

Why Customization Matters More Than Maximum Specifications

Customers sometimes focus first on the highest possible temperature or pressure.

But a good hose is not necessarily the one with the highest rating.

The correct hose is the one that matches the machine.

For example, excessive reinforcement can increase weight and bending radius. Oversized heating power can create unnecessary thermal stress. Incorrect electrical connectors can make an otherwise mechanically perfect hose unusable.

The best result comes from matching every part of the assembly to the actual process.

Information Needed for Engineering

For accurate evaluation, provide the transferred medium, normal and maximum pressure, working temperature, hose length, inner diameter, minimum bending radius, voltage, heating power, sensor type, inlet and outlet fittings, electrical connector, machine brand and model.

An original hose, drawing or detailed photograph can greatly accelerate the matching process.

Conclusion

Special equipment creates special hose problems.

When pressure, temperature, chemical compatibility, sensor configuration and non-standard connections must all be solved at the same time, a standard hose is often not enough.

A customized high-temperature high-pressure heated hose allows the complete assembly to be engineered around the machine rather than forcing the machine to accept a generic product.

For imported machinery, OEM projects and discontinued replacement parts, that flexibility can turn a difficult sourcing problem into a practical second-source solution.
