Industrial equipment can remain in service for ten, fifteen or even twenty years.
The machine may still operate reliably, but its original hose eventually needs replacement.
This creates a common problem:
What happens when the original hose is no longer easy to purchase?
The equipment manufacturer may have:
Changed the model
Discontinued the hose
Extended delivery time
Increased spare-part pricing
Changed the local distributor
For specialized industrial machinery, a hose that appears simple may actually combine very specific requirements involving:
Temperature
Pressure
Inner tube material
Reinforcement
End fittings
Length
Connection orientation

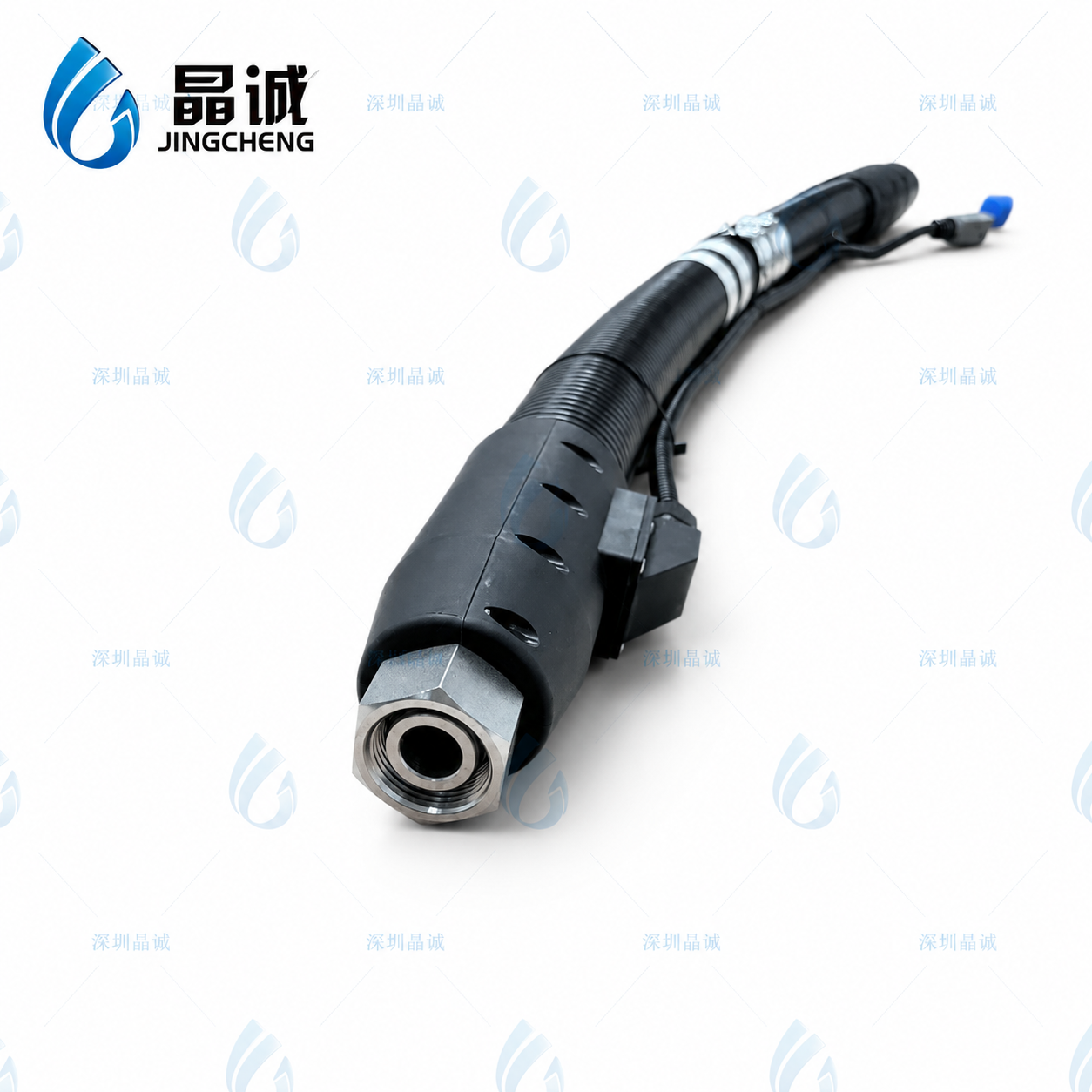

Jingcheng’s special-industry high-temperature high-pressure hose is designed for customized applications and can be developed around existing domestic or imported equipment.
When designing a new machine, engineers can change the equipment around the hose.
When replacing an old hose, the situation is reversed.
The replacement normally has to match the existing machine.
This may require duplicating:
Overall length
Hose diameter
Fitting threads
End orientation
Installation radius
Pressure capability
The replacement hose therefore needs to be engineered around the existing interface.
In many older machines, complete technical documentation is unavailable.
The user may know:
Machine brand
Application
Temperature
Pressure
but not every hose specification.
In such cases, an original hose sample can be extremely useful.
It can help identify:
Connection style
Thread dimensions
Hose diameter
Assembly length
Fitting orientation
Photographs and equipment drawings can also support preliminary evaluation.
Specialized imported machinery may use fittings that are uncommon in the local market.
The connection may involve:
Metric threads
BSP
NPT
JIC
Proprietary adapters
Customized fittings
Replacing the hose with a generic product may require several extra adapters.
A custom hose can instead be manufactured to match the existing machine interface directly.
The product is intended for demanding applications where temperature and pressure exist simultaneously.
The catalog gives standard heat resistance up to approximately:
230°C
and the product description indicates that customized high-temperature/high-pressure configurations can be developed for special equipment.
Pressure capability must always be evaluated at the actual operating temperature.
A pressure rating at room temperature should not automatically be treated as the same rating at elevated temperature.
The product uses pressure-resistant 304 stainless steel wire reinforcement around the inner hose structure.
This helps control expansion under internal pressure.
The reinforcement configuration should be selected according to:
Hose diameter
Working pressure
Maximum pressure
Operating temperature
Bending requirement
The most heavily reinforced hose is not always the best choice if it becomes too stiff for the machine layout.
Depending on only one original spare-part supplier can create operational risk.
Potential problems include:
Long lead times
High replacement cost
No local stock
Model discontinuation
Developing and validating a second source before the original hose fails can help factories plan maintenance more effectively.
The replacement can be tested before it becomes urgently needed.
A production hose may be a relatively small component compared with the entire machine.
But if that hose is critical to operation, failure can stop the whole production line.
The real cost may include:
Lost production
Maintenance labor
Emergency shipping
Cleaning
Restart testing
For critical equipment, spare-hose planning can therefore have much greater value than simply reducing the purchase price of the hose itself.
Even when two hoses have the same internal diameter, they may not be interchangeable.
The replacement must also consider:
Outer diameter
Bending radius
Total assembly length
Straight fitting section
Connection angle
These dimensions determine whether the hose can physically fit into the existing machine.
A replacement hose should be verified before being installed on a critical machine.
Depending on the project, checks may include:
Dimensional inspection
Fitting confirmation
Pressure testing
Leak testing
Material verification
Temperature evaluation
The exact validation plan depends on the operating risk and equipment requirements.
Potential applications include:
Imported production machinery
Legacy industrial equipment
Specialized chemical machines
High-temperature process systems
High-pressure material transfer
Customized R&D equipment
Special-purpose machinery
Replacement spare-part programs
Jingcheng can customize:
Hose length
Inner diameter
Inner tube material
Reinforcement
Working pressure
Temperature
End fittings
Thread standards
Connection orientation
OEM replacement configuration
For replacement projects, please provide as many of the following as possible:
Equipment brand
Equipment model
Original hose photographs
Original hose sample
Working temperature
Working pressure
Maximum pressure
Hose length
Inner diameter
Fitting dimensions
Thread type
Installation photos
A discontinued or expensive original hose does not automatically mean the entire machine must depend on the original supplier forever.
For specialized equipment, a replacement hose can be developed around the existing machine by matching the critical mechanical and operating parameters.
The key is not simply copying the appearance of the original hose.
A successful replacement must match the interface, pressure, temperature, dimensions and installation environment.
For factories operating imported or legacy equipment, developing a qualified second-source hose can become an important part of long-term maintenance planning.
