Custom High-Temperature High-Pressure Hose for Difficult Replacement Projects

One of the biggest hose sourcing problems does not happen when designing a new machine.

It happens years later.

The original equipment is still running, but the hose manufacturer may no longer supply the part.

The hose may use a discontinued connector.

The equipment may have been imported from another country.

Or the original replacement price may be extremely high.

In these situations, a standard catalog hose is often not enough.

The special-industry high-temperature high-pressure hose is designed for equipment requiring a customized combination of thermal performance, pressure resistance, mechanical connection and electrical compatibility.

When the Original Hose Is No Longer Available

Industrial equipment can remain in operation for decades.

During that time:

• Suppliers change

• Original manufacturers discontinue components

• Machine models become obsolete

• Drawings are lost

• Connectors become difficult to purchase

Replacing a specialized heated hose can therefore become a major maintenance problem.

A second-source hose can be developed using:

• Original hose samples

• Technical drawings

• Photographs

• Connector dimensions

• Electrical information

• Equipment operating parameters

This makes reverse-engineered replacement possible even when the original part is unavailable.

High Temperature and High Pressure Must Be Considered Together

A hose rated for high pressure at room temperature may not maintain the same performance at elevated temperature.

Similarly, a high-temperature hose may not automatically be suitable for high-pressure service.

These two conditions must be evaluated together.

The special-industry hose is designed around the combined requirements of:

• Temperature

• Pressure

• Media compatibility

• Reinforcement

• Fittings

• Bending radius

This is especially important for demanding customized equipment.

Specialized Internal and Reinforcement Structures

Depending on the application, the material-contact tube and pressure reinforcement can be configured according to the transferred medium.

The product description references PTFE-based inner material and 304 stainless steel pressure reinforcement for demanding applications.

PTFE can provide:

• Broad chemical compatibility

• Low adhesion

• Smooth material flow

• High-temperature stability

The stainless reinforcement supports the pressure requirements of the complete hose.

Customized Heating System

The heating layer is designed to maintain process temperature throughout the hose.

This helps prevent the flexible connection from becoming a cold section between two heated machine components.

Heating can be engineered according to:

• Hose length

• Required temperature

• Ambient conditions

• Flow rate

• Inner diameter

• Thermal losses

The standard product supports temperatures around 230°C, while special configurations can be evaluated separately.

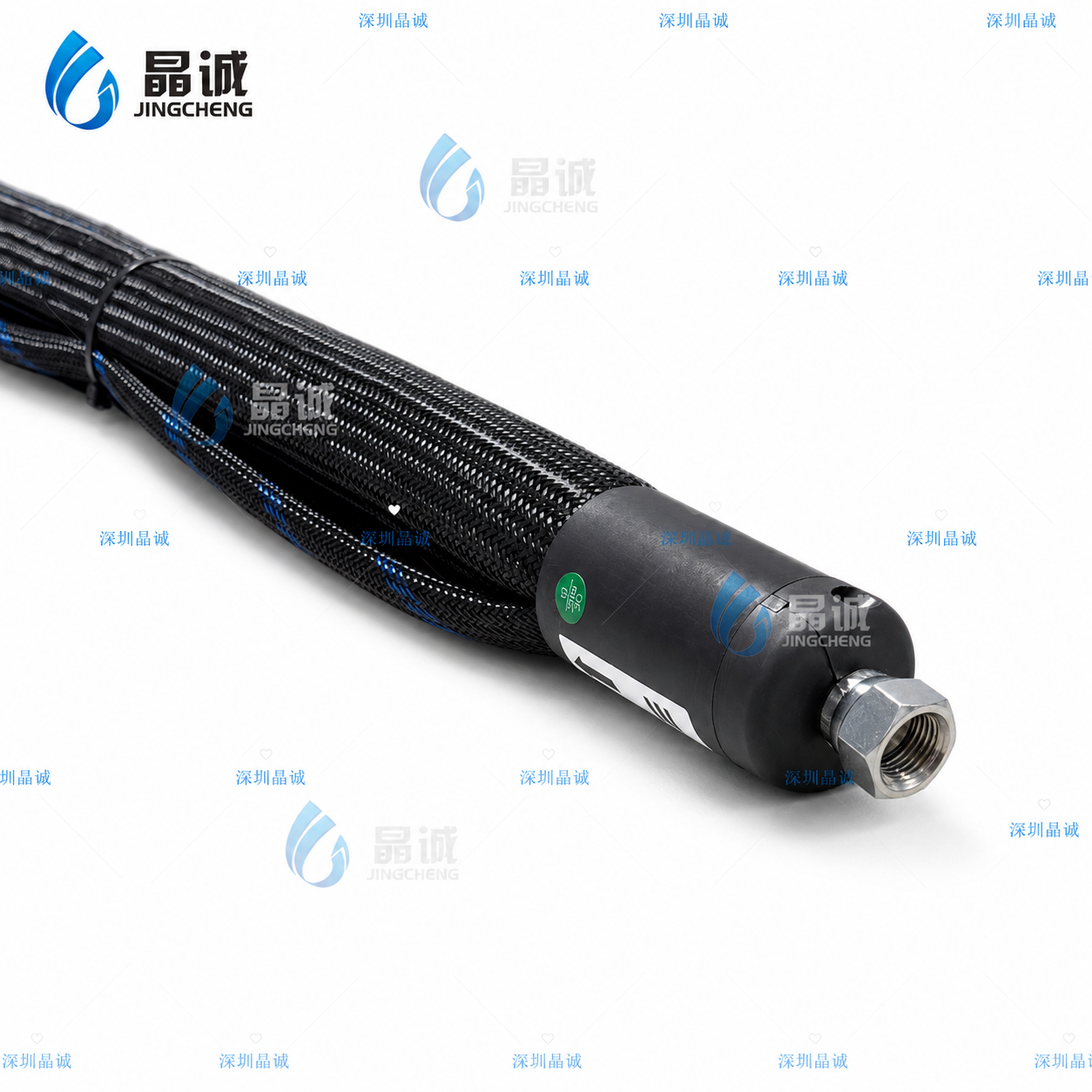

Mechanical Interface Matching

High-temperature high-pressure replacement projects often fail because the hose itself is correct but the interface is wrong.

Important details may include:

• Metric thread

• BSP

• NPT

• Flange

• Special proprietary connector

• Different fittings on each end

• Fitting orientation

The complete assembly must match the actual equipment.

Electrical Compatibility Matters Too

A heated hose can also contain:

• Heating wires

• Temperature sensors

• Electrical plug

• Ground connection

• Control cable

If any of these do not match the machine controller, the replacement may not function correctly.

For imported equipment, confirming:

• Voltage

• Heating resistance

• Sensor type

• Pin assignment

• Connector model

is particularly important.

Suitable for Special-Purpose Equipment

Potential applications include:

• Imported industrial machinery

• Customized coating equipment

• Adhesive systems

• Resin processing

• Chemical machinery

• High-temperature dispensing systems

• Pilot equipment

• Laboratory production lines

• Legacy manufacturing machines

• Special OEM systems

Second-Source Supply Can Reduce Maintenance Risk

Relying on only one original supplier can create long lead times and high replacement costs.

Developing a validated second source can provide:

• Shorter procurement cycles

• More flexible customization

• Easier future replacement

• Reduced dependence on discontinued parts

• Better support for older machinery

For maintenance departments, this can improve spare-parts availability.

What We Need to Develop a Replacement

Please provide as much information as possible:

• Original hose

• Hose photos

• Hose length

• Inner diameter

• Working temperature

• Working pressure

• Maximum pressure

• Transferred medium

• Inlet fitting

• Outlet fitting

• Voltage

• Heating power

• Sensor type

• Electrical connector

• Pin arrangement

• Equipment manufacturer

• Machine model

Even when the original drawing is unavailable, a physical sample can often provide valuable information.

Why Custom Engineering Is More Important Than Maximum Ratings

The “strongest” hose is not always the best hose.

Using excessive reinforcement may increase:

• Weight

• Outer diameter

• Cost

• Minimum bending radius

Similarly, excessive heating power can create unnecessary thermal stress.

The best hose is the one engineered to match the exact equipment requirement.

Conclusion

Special industrial equipment often creates replacement problems that cannot be solved with standard hose products.

A custom high-temperature high-pressure heated hose provides a practical solution for imported machines, legacy equipment, discontinued spare parts and specialized OEM systems.

By matching the fluid path, reinforcement, heating system, fittings and electrical interface as one complete assembly, a reliable second-source replacement can be developed for difficult industrial applications.
