Custom Medical-Grade Heated Transfer Hose for Precision Equipment

Introduction

A medical-grade heated transfer hose is designed for medical equipment and precision process systems requiring controlled-temperature material transfer and customized material-contact tubing.

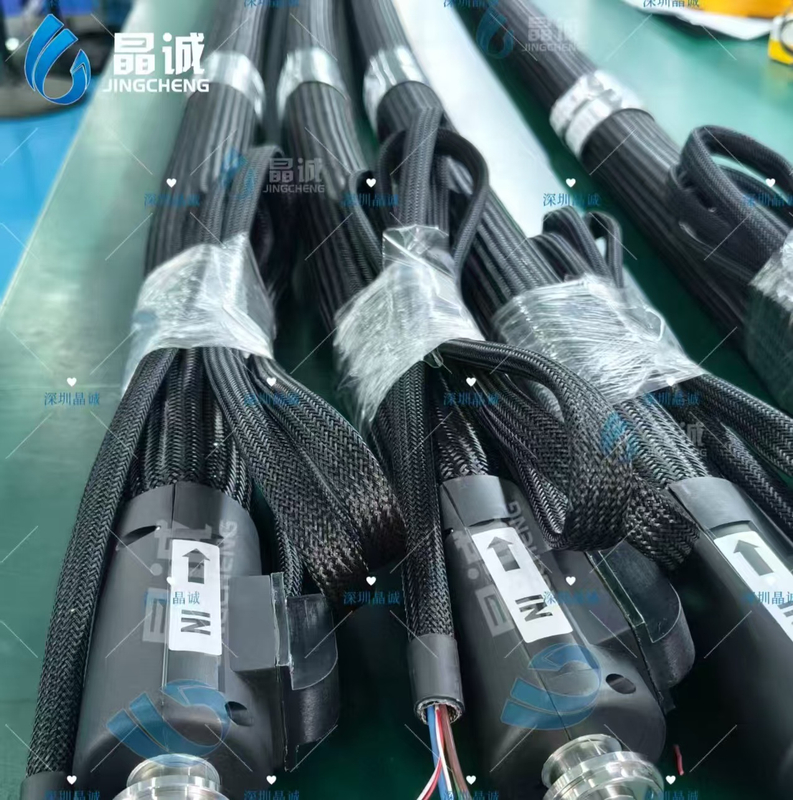

The product shown uses a customized medical-grade material-contact inner tube, and all pipeline components can be customized according to the customer’s requirements.

Shenzhen Jingcheng High-tech manufactures heated hose assemblies according to the transferred medium, process temperature, pressure, cleanliness requirements and equipment connection structure.

What Is a Medical Equipment Heated Hose?

A medical equipment heated hose combines fluid transfer, controlled heating, thermal insulation and equipment-specific connections in one flexible assembly.

The hose may include:

• Customized medical-grade material-contact inner tube

• Reinforcement layer

• Uniformly distributed heating elements

• Thermal insulation

• Protective outer covering

• Temperature sensor

• Fluid inlet and outlet fittings

• Electrical cable and connector

The final structure must be selected according to the specific equipment and transferred material.

Why Medical and Precision Equipment Uses Heated Hoses

Temperature-sensitive materials may become more viscous or less stable when the temperature decreases.

Uncontrolled cooling inside an ordinary transfer line may cause:

• Increased material viscosity

• Reduced flow

• Unstable process conditions

• Material accumulation

• Hose blockage

• Increased equipment pressure

• Longer cleaning time

• Reduced process repeatability

• Production interruption

A heated transfer hose helps maintain more stable conditions between different equipment sections.

Key Features

Customized Medical-Grade Inner Tube

The material-contact inner hose can be selected according to:

• Transferred medium

• Required cleanliness

• Temperature

• Pressure

• Chemical compatibility

• Cleaning method

• Equipment design

The complete hose assembly should be evaluated together with its fittings and connection materials.

Maximum Temperature up to 230°C

The standard product supports operating temperatures up to 230°C.

The final permissible temperature depends on the selected inner tube, fittings, insulation and sensor system.

Uniformly Distributed Heating Elements

Uniform heating helps reduce temperature differences along the material path.

High-Efficiency Insulation

The insulation structure reduces heat loss and supports stable process temperature.

Fully Customized Pipeline Components

The catalog states that all pipeline components can be customized according to the customer’s requirements.

Customization may include:

• Inner tube

• Hose length

• Inner diameter

• Fluid fittings

• Voltage

• Heating power

• Temperature sensor

• Electrical plug

• Cable length

• Outer protection

Equipment-Specific Assembly

The hose can be developed from an original sample, equipment model, technical drawing or measured connection details.

Typical Applications

• Medical equipment material transfer

• Diagnostic equipment

• Laboratory medical devices

• Precision dispensing equipment

• Pharmaceutical processing machinery

• Temperature-controlled fluid systems

• Medical coating equipment

• Laboratory fluid transfer

• Customized healthcare machinery

• Heated liquid delivery

• Precision process equipment

• Replacement hoses for medical systems

Technical Specification Options

Reference Product Data

*The catalog row showing 630 bar and 3,915 psi should be verified.

These are reference values. Final working pressure depends on temperature, inner-tube material, fittings and complete assembly design.

Important Customization Information

Please provide:

• Transferred material

• Required inner-tube material

• Working temperature

• Working pressure

• Maximum pressure

• Required flow rate

• Hose length

• Inner diameter

• Voltage

• Heating power

• Sensor type

• Inlet fitting

• Outlet fitting

• Electrical connector

• Equipment brand and model

• Cleaning requirements

• Packaging requirements

• Original hose sample or drawing

Why Choose Shenzhen Jingcheng?

Customized Material-Contact Solutions

The inner tube and complete assembly can be selected according to the transferred material and process requirements.

Factory-Direct Production

The hose is manufactured directly with integrated heating, insulation and connection components.

Prototype and Sample Support

Samples can be supplied for equipment compatibility testing.

Short Lead Time

Customized replacement and project orders can be arranged after technical confirmation.

Flexible Equipment Matching

The hose can be developed according to samples, drawings, connector measurements or equipment information.
