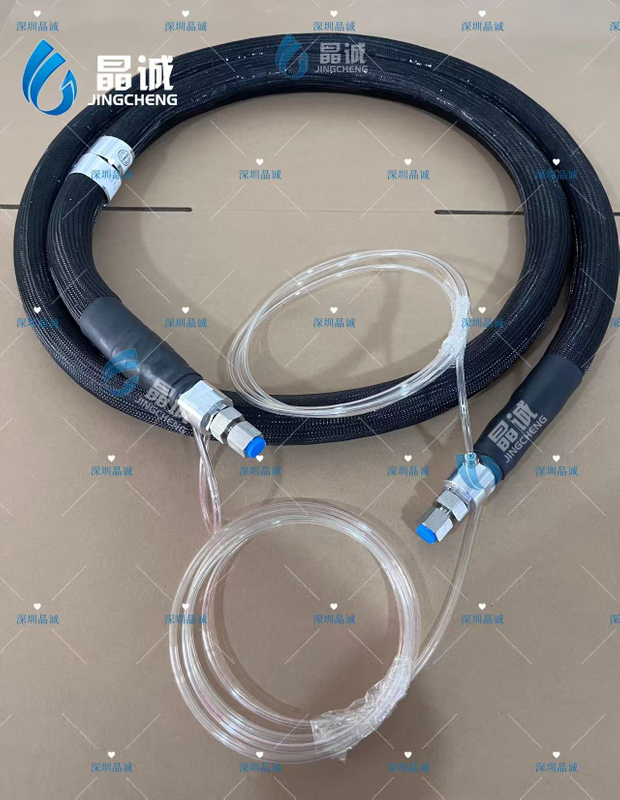

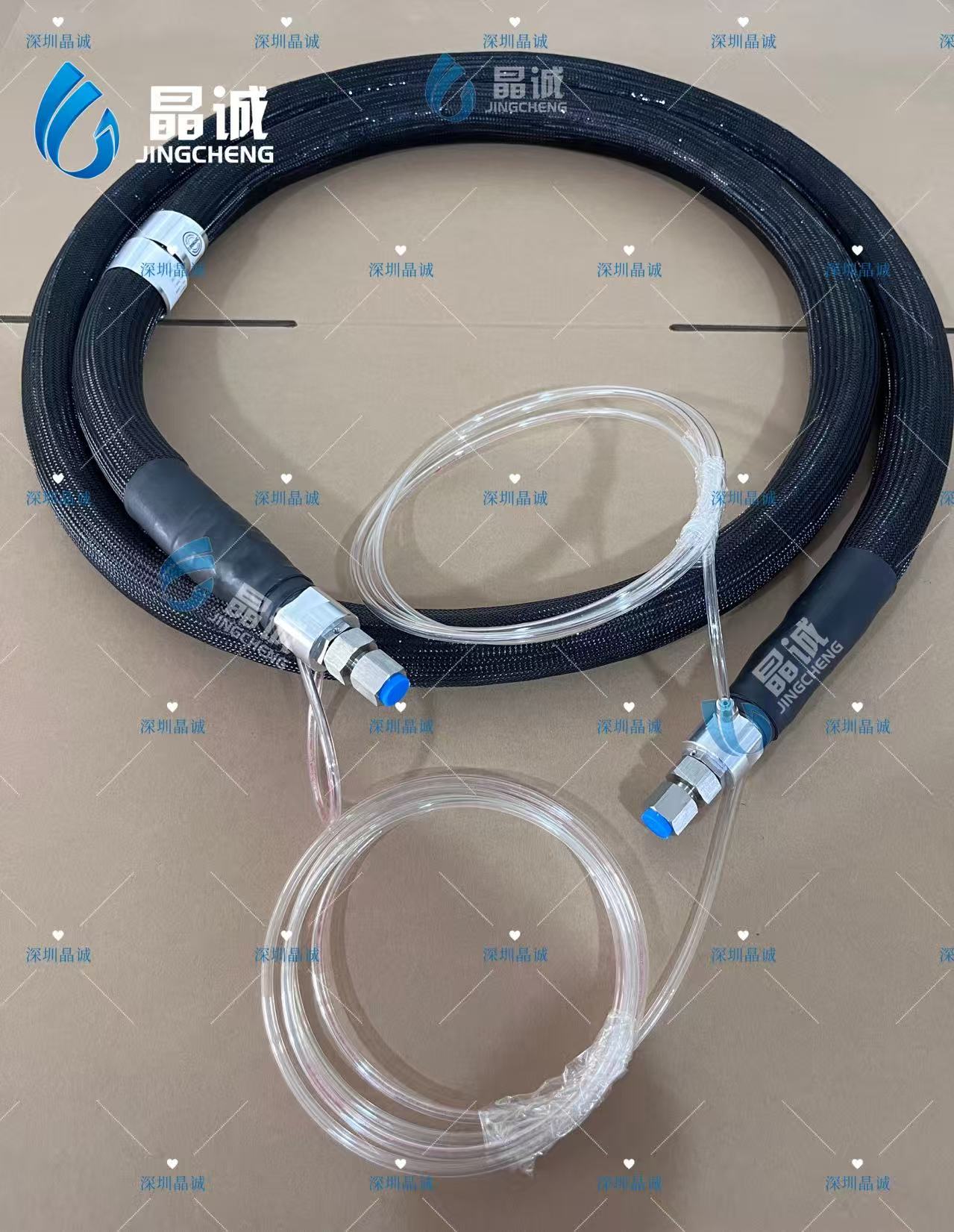

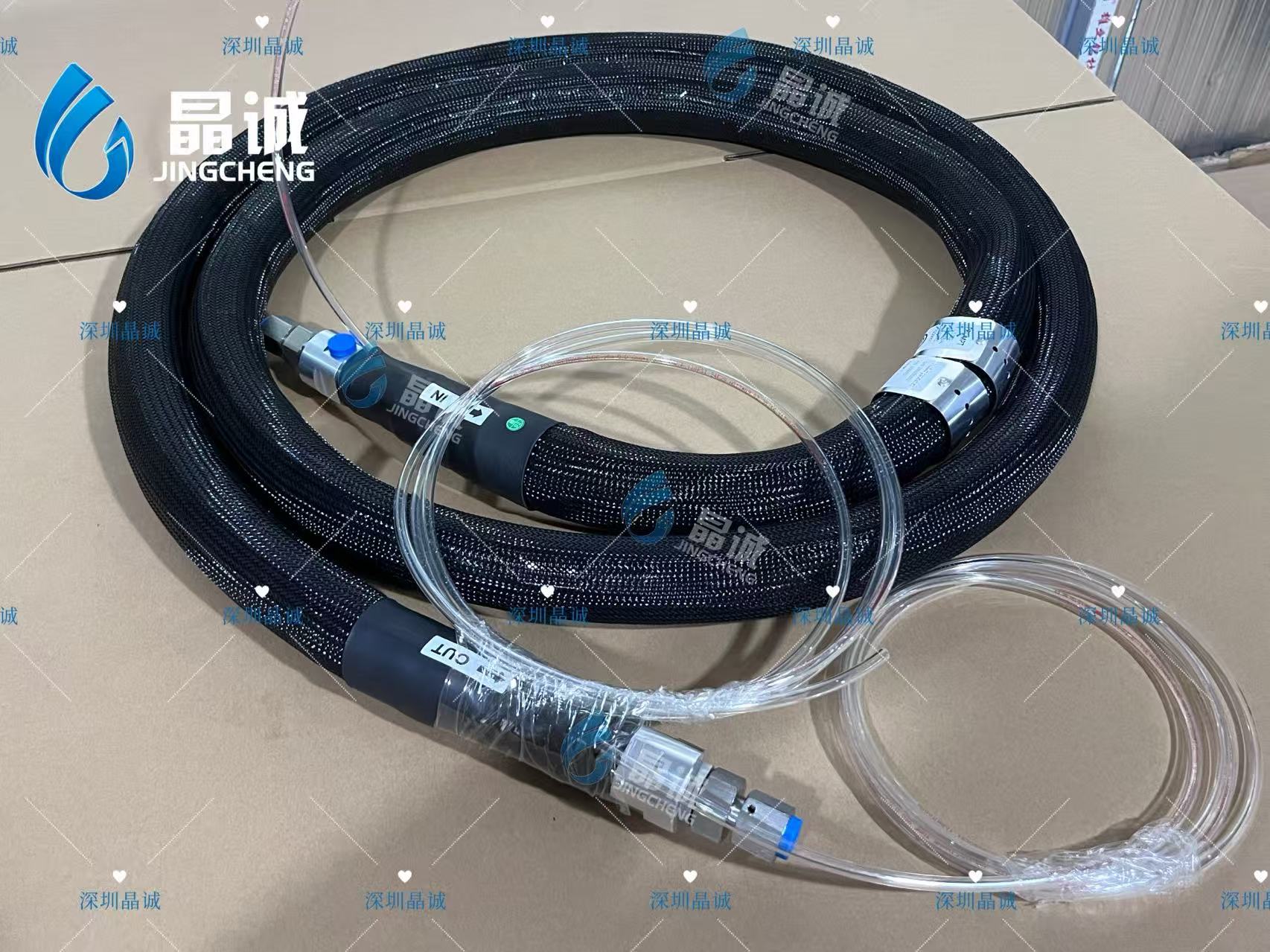

Flexible Heated Water Circulation Hose for Food Processing Equipment

Introduction

Warm and temperature-controlled water is used in many food-processing systems for circulation, process support and equipment connection.

Although the water may be heated inside a tank or temperature-control unit, it can lose heat while passing through an ordinary flexible hose. Long hose lengths, low ambient temperatures and intermittent flow can all reduce the water temperature before it reaches the next machine section.

A flexible heated water circulation hose combines electrical heating, thermal insulation and customized connections in one assembly.

It helps maintain more stable water temperature while providing the flexibility required between pumps, tanks, processing equipment and circulation units.

Why Heated Water Transfer Requires More Than Insulation

An insulated hose slows heat loss but does not actively replace the energy lost during circulation.

This limitation becomes noticeable when:

• The hose is long

• Water flow is slow

• The production area is cold

• The circulation system stops temporarily

• The equipment requires stable inlet temperature

• The hose connects moving or misaligned machinery

A heated hose actively compensates for thermal loss and helps maintain the selected water temperature throughout the connection.

Water Temperature Stability and Equipment Performance

Changes in water temperature may affect:

• Process repeatability

• Warm-water circulation

• Equipment startup time

• Thermal cleaning procedures

• Heat-transfer consistency

• Pump and valve response

• Downstream material temperature

• Overall system efficiency

A temperature-maintained hose helps reduce the difference between the water temperature at the heating unit and the temperature at the point of use.

Uniform Heating Element Distribution

The heating elements are arranged along the hose to minimize local temperature differences.

This is important because a hose can have an acceptable average temperature while still containing colder sections near bends, fittings or exposed areas.

Uniform heating can help:

• Maintain stable outlet-water temperature

• Reduce localized heat loss

• Improve circulation consistency

• Shorten warm-up time

• Support intermittent operation

• Reduce cold sections after system restart

Food-Equipment Material Selection

The product is intended for food-conveying equipment and uses a customized food-grade material-contact inner tube.

The final inner tube and fittings should be selected according to:

• Water temperature

• Water quality

• Cleaning chemicals

• Working pressure

• Flow rate

• Hose length

• Equipment interface

• Food-processing requirements

All parts of the material path can be customized according to the customer’s equipment and process conditions.

Maximum Standard Temperature

The standard heated water hose supports temperatures up to:

100°C

The final operating temperature depends on the selected inner tube, sensor, fittings, insulation and system configuration.

Typical Applications

• Heated-water circulation systems

• Food-processing machinery

• Temperature-control units

• Warm-water transfer

• Food-conveying equipment

• Heated tank connections

• Cleaning-water supply systems

• Flexible pump connections

• Process-water circulation

• Customized food equipment

• Filling and processing lines

• Replacement heated-water hoses

Design and Customization Options

Reference Product Data

*The 5/16-inch burst-pressure conversion should be confirmed before the table is uploaded.

These are catalog reference values. Final operating pressure depends on water temperature, fittings and the complete hose assembly.

Heated Water Hose Selection Checklist

Please provide:

• Water temperature

• Required outlet temperature

• Normal working pressure

• Maximum pressure

• Water-flow rate

• Hose length

• Inner diameter

• Ambient temperature

• Voltage

• Heating power

• Temperature sensor

• Inlet fitting

• Outlet fitting

• Electrical connector

• Equipment model

• Cleaning requirements

• Original hose or drawing
