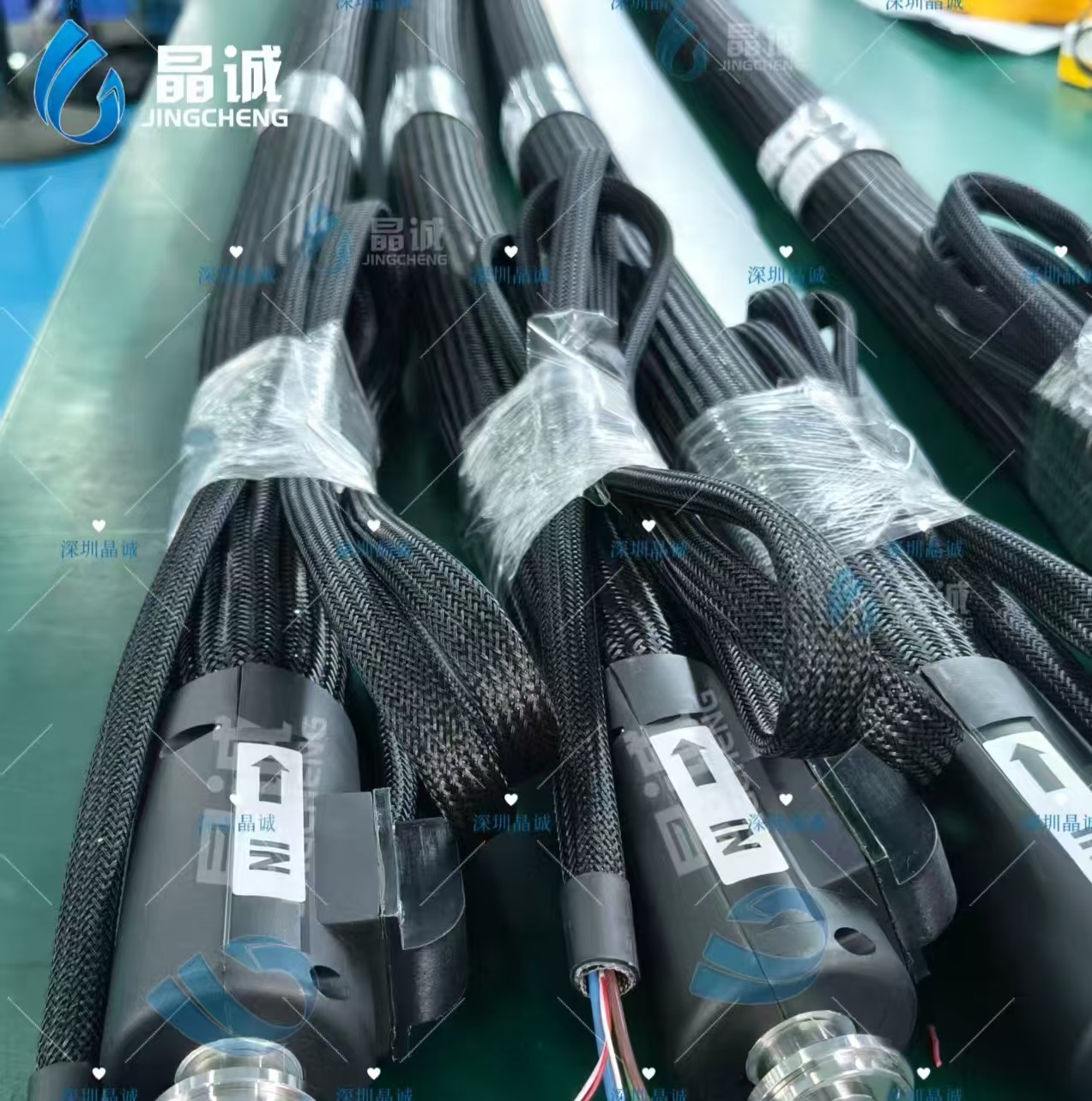

A food grade heated hose is designed for food transfer equipment that requires stable temperature control during material conveying. In many food processing applications, temperature-sensitive materials can become thicker, harder to move, or less stable when the temperature drops. A properly designed heated hose helps maintain a consistent transfer temperature and supports smoother production.
Shenzhen Jingcheng High-tech manufactures customized heated hoses for food conveying systems, using a custom food-grade material-contact inner tube, uniform heating structure and high-efficiency insulation. Each hose can be customized according to the customer’s equipment, working temperature, hose length, connector type and installation environment.
Food processing equipment often handles materials that need controlled heating during transfer. If the hose cannot maintain the required temperature, the material may cool down, increase in viscosity, or create unstable flow inside the pipeline.
A food grade heated hose helps reduce these risks by keeping the transfer line warm and stable. It is especially useful for food production lines, heated conveying equipment and customized food processing systems where consistent flow and temperature stability are important.
The hose is designed with a customized food-grade material-contact inner tube. This allows the hose to be matched with different food transfer applications and equipment requirements.
The heating layer is made with uniformly distributed heating elements. This helps reduce temperature differences along the hose and supports more stable transfer performance.
The standard food grade heated hose can support working temperatures up to 100°C. For special temperature requirements, the hose structure can be discussed and customized according to the actual application.
The hose uses high-insulation materials to reduce heat loss and improve temperature stability during operation. This helps the equipment maintain a more consistent process condition.
We can customize hose length, inner diameter, voltage, power, sensor type, connector type, outer protection layer and other specifications according to your equipment.
Our food grade heated hose can be used in:
Food transfer equipment
Food conveying systems
Heated food processing lines
Viscous food material transfer
Temperature-controlled food production equipment
Customized food machinery connection systems
Low-temperature heated transfer applications
Item | Available Options |
|---|---|
Product Type | Food grade heated hose |
Inner Tube | Custom food-grade material-contact inner tube |
Working Temperature | Up to 100°C |
Inner Diameter | 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4”, 1” |
Hose Length | 0.1m, 3m, 4.5m, 5m, 6m, 10m or custom |
Voltage | 220V / 110V / 380V / 12V DC / Custom |
Sensor Type | J type, K type, PT100, PT1000, NI120 or custom |
Connector Standard | Metric, British, American or custom |
Customization | Available |
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Min. Bending Radius |
1/4” | 9 mm | 173 bar / 2501 psi | 690 bar / 10005 psi | 30 mm |
5/16” | 11 mm | 158 bar / 2284 psi | 630 bar / 3915 psi | 40 mm |
3/8” | 12.4 mm | 135 bar / 1958 psi | 540 bar / 7830 psi | 60 mm |
1/2” | 15.9 mm | 118 bar / 1704 psi | 470 bar / 6815 psi | 150 mm |
5/8” | 19 mm | 88 bar / 1269 psi | 350 bar / 5075 psi | 180 mm |
3/4” | 22.6 mm | 85 bar / 1234 psi | 340 bar / 4930 psi | 260 mm |
1” | 29.5 mm | 75 bar / 1088 psi | 300 bar / 4350 psi | 300 mm |
Shenzhen Jingcheng High-tech Co., Ltd. is a China-based manufacturer specializing in PTFE hoses, PA hoses, PTFE high-pressure hoses and electric heated hoses. Our heated hose products are widely used in food transfer, pharmaceutical equipment, hot melt adhesive systems, gas sampling, automotive production and other industrial applications.
For food equipment manufacturers and food processing system integrators, we provide factory-direct heated hose solutions with strong customization capability, stable quality and responsive service.
As a source manufacturer in China, we provide direct production support, helping customers reduce procurement cost and improve supply chain efficiency.
Different food equipment has different temperature, pressure, connection and installation requirements. We can customize the hose according to your drawings, samples or equipment photos.
Our production and engineering teams can respond quickly to customized requirements and support urgent replacement or project-based orders.
Samples can be provided for testing before bulk order, helping customers confirm hose compatibility with their equipment.
Compared with many overseas replacement hoses, our China-made customized heated hoses can help customers reduce total procurement cost while maintaining stable performance.
