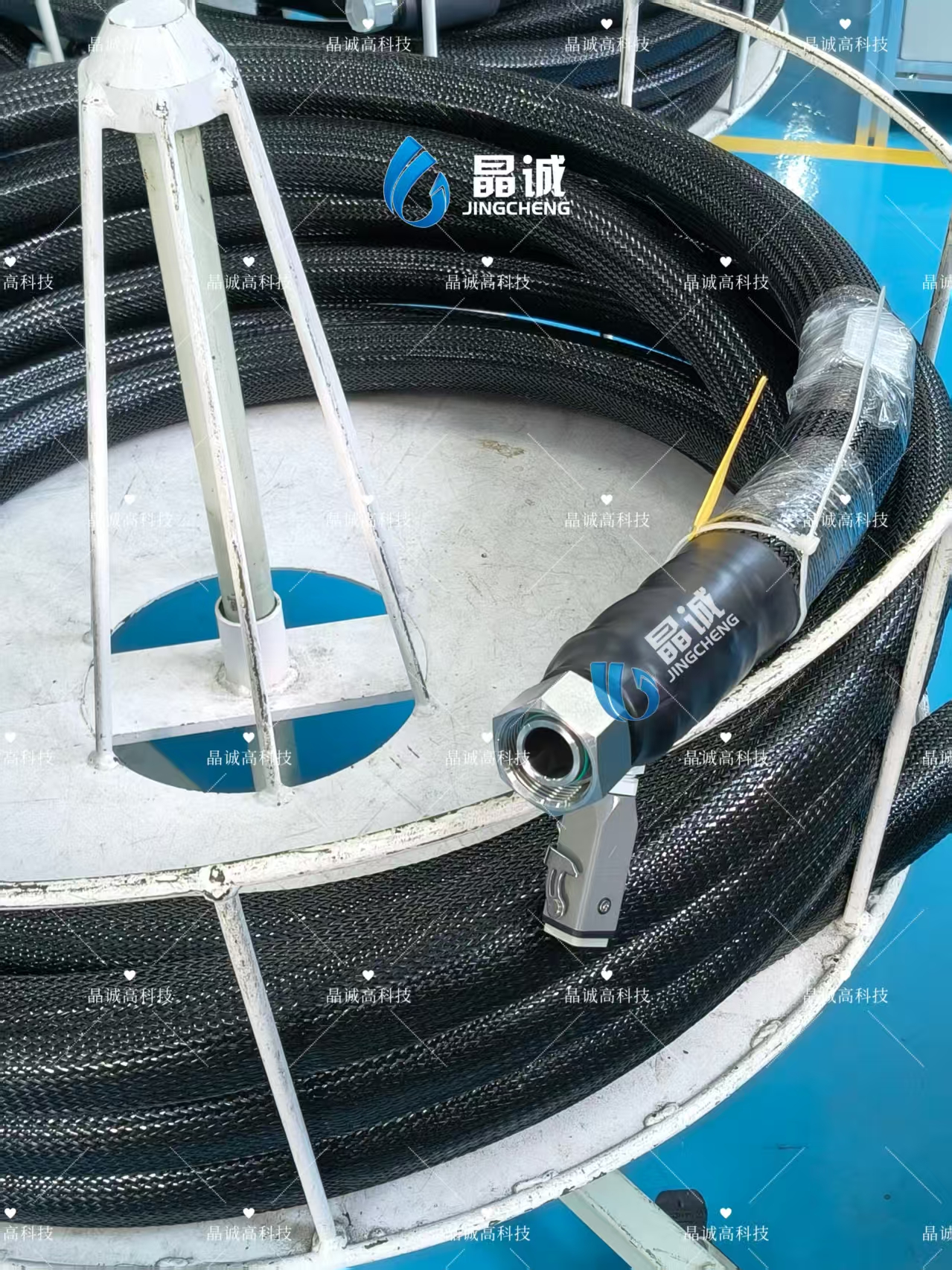

Food Grade Low Temperature Heated Hose: Maintaining Stable Product Flow in Modern Food Processing Systems

Food and beverage manufacturing requires more than simply moving liquid products from one location to another.

Many food materials have specific temperature requirements during transportation.

If the temperature decreases during transfer, the material may experience:

• Increased viscosity

• Reduced flow efficiency

• Uneven processing

• Difficult pumping conditions

• Production interruptions

For this reason, many food processing systems use temperature-controlled transfer solutions.

A food grade low temperature heated hose provides a flexible connection while helping maintain stable material temperature throughout the production process.

Compared with rigid heated piping systems, flexible heated hoses offer easier installation, improved equipment layout flexibility and simpler maintenance.

Jingcheng provides customized heated hose assemblies for industrial equipment manufacturers, including food processing machinery, beverage systems and temperature-controlled fluid transfer equipment.

Why Food Processing Equipment Needs Heated Hose Technology

Food production lines often contain multiple transfer stages.

A typical system may include:

Storage Tank → Pump → Flexible Hose → Filling Machine / Processing Equipment

During this transfer process, the product temperature can change because of:

• Ambient temperature differences

• Long transfer distances

• Equipment cooling

• Production pauses

Even a small temperature change can affect certain products.

For example, some materials become more difficult to pump when viscosity increases.

A heated hose helps maintain the required processing condition between equipment modules.

What Is a Food Grade Heated Hose?

A food grade heated hose is a flexible hose assembly designed for transporting food-related materials while maintaining temperature.

Its structure usually includes several functional layers:

Inner Food Contact Layer

The inner tube directly contacts the transferred material.

For demanding applications, PTFE is often selected because of:

• Chemical resistance

• Smooth surface

• Low friction characteristics

• Wide temperature capability

Reinforcement Layer

The reinforcement layer provides mechanical strength.

It helps the hose maintain stability under:

• Pressure

• Bending

• Equipment movement

Heating System

The integrated heating element provides controlled thermal energy.

This helps compensate for heat loss during transportation.

Insulation Layer

The insulation reduces unnecessary heat transfer.

This improves temperature stability and heating efficiency.

Protective Outer Layer

The external layer protects the hose from the surrounding environment.

The final structure depends on the equipment application.

Why Temperature Control Matters in Food Processing

Temperature affects many food materials.

Depending on the product, temperature changes may influence:

Viscosity

Some food materials become thicker when cooled.

Higher viscosity can create:

• Increased pump load

• Reduced flow speed

• Uneven filling

Processing Consistency

Manufacturers need stable production conditions.

A consistent material temperature helps maintain repeatable processing results.

Production Efficiency

When material flow becomes unstable, operators may need to adjust:

• Pump settings

• Machine speed

• Processing temperature

Maintaining stable temperature reduces unnecessary adjustments.

Applications of Food Grade Heated Hose

Food grade heated hoses can be used in many industrial processing systems.

Beverage Production Equipment

Applications may include:

• Syrup transfer

• Beverage ingredient systems

• Filling equipment

• Liquid processing machines

Dairy Processing Equipment

Dairy materials can be temperature-sensitive.

Heated hoses may support:

• Milk processing systems

• Dairy ingredient transfer

• Production equipment connections

Food Ingredient Handling

Many industrial food ingredients require controlled transportation.

Examples include:

• Oils

• Liquid additives

• Food processing materials

• Specialty ingredients

Filling and Packaging Equipment

Packaging systems often require accurate material delivery.

A stable heated transfer line can help maintain consistent filling performance.

Advantages of PTFE Inner Tube in Food Applications

Smooth Internal Surface

The smooth PTFE surface helps reduce material accumulation.

This can support easier cleaning and maintenance procedures.

Chemical Resistance

Food processing equipment may require frequent cleaning.

The hose material should tolerate contact with approved cleaning solutions according to the application requirements.

Low Friction Flow Characteristics

PTFE provides a low-friction internal surface.

This can help support smooth material transportation.

Low Temperature Heated Hose Applications

Although heated hoses are often associated with high-temperature applications, many food systems require moderate or low controlled heating.

The purpose is not always to increase temperature.

Sometimes the goal is simply:

Maintaining the existing product temperature.

Examples include:

• Preventing cooling during transfer

• Maintaining pumpable viscosity

• Avoiding solidification

• Supporting consistent filling processes

This is why low temperature heated hoses are important in many food processing systems.

Flexible Alternative to Rigid Heated Pipe Systems

Traditional heated piping systems may require:

• Complex installation

• Fixed equipment layout

• Longer modification time

Flexible heated hoses provide advantages:

Easier Equipment Integration

They can connect equipment modules where rigid pipes may be difficult to install.

Better Layout Flexibility

Modern food production lines frequently change because of:

• New products

• Equipment upgrades

• Production expansion

Flexible hose connections make these changes easier.

Reduced Installation Complexity

Compared with complex rigid piping systems, flexible hoses generally require fewer connection points.

How to Select a Food Grade Heated Hose

Selecting the correct hose requires understanding the complete application.

Product Information

Customers should confirm:

• Food material type

• Viscosity

• Chemical characteristics

• Required temperature

Flow Requirements

Important parameters include:

• Flow rate

• Pump capacity

• Hose diameter

• Transfer distance

Temperature Requirement

Confirm:

• Normal operating temperature

• Required heating temperature

• Heat loss conditions

Mechanical Requirements

Consider:

• Hose length

• Bending radius

• Connection type

• Installation space

Electrical Configuration for Heated Food Hoses

A heated hose is also an electrical component.

Important electrical parameters include:

• Voltage

• Heating power

• Temperature sensor

• Connector type

• Cable length

Different food processing machines may use different control systems.

Therefore, electrical matching is essential during OEM development or replacement projects.

A connector that looks similar may still have different wiring.

Custom Food Grade Heated Hose Manufacturing

Jingcheng supports customized heated hose production according to customer requirements.

Customization options include:

• Hose length

• Inner diameter

• End fittings

• Voltage

• Heating power

• Sensor type

• Electrical connector

• Outer protection design

This allows the hose to be integrated into different food processing equipment platforms.

OEM Solutions for Food Processing Machine Manufacturers

Food machinery manufacturers often require reliable components that can be reproduced consistently.

A customized heated hose specification can become part of the equipment BOM.

This helps with:

• Machine assembly

• Purchasing management

• Spare parts supply

• After-sales service

A standardized hose specification reduces uncertainty during future replacement.

Maintenance Considerations for Food Grade Heated Hose

Proper maintenance can extend hose service life.

Important points include:

Avoid Excessive Bending

The hose should always be installed according to the recommended bending radius.

Protect Electrical Connections

Heating cables and connectors should avoid unnecessary mechanical stress.

Follow Cleaning Procedures

Cleaning methods should match:

• Hose material

• Food product requirements

• Equipment manufacturer's recommendations

Why Choose Jingcheng Food Grade Heated Hose?

Jingcheng specializes in customized PTFE hose and heated hose solutions.

Advantages include:

• Factory-direct manufacturing

• PTFE hose production capability

• Custom heated assembly development

• OEM cooperation

• Flexible production quantities

• Engineering support

• Competitive pricing

• International export experience

For food processing equipment manufacturers, Jingcheng provides complete hose solutions designed around actual machine requirements.

Conclusion

Modern food processing systems require reliable temperature control throughout the entire production process.

A food grade low temperature heated hose provides a flexible solution for maintaining product temperature, improving flow stability and supporting efficient equipment operation.

By combining PTFE inner tubing, integrated heating technology and customized assembly options, Jingcheng heated hoses help food and beverage equipment manufacturers develop more reliable transfer systems.

For OEM machinery projects, the correct heated hose should be selected according to:

Product characteristics + temperature requirements + flow conditions + mechanical installation + electrical compatibility.
