A food-grade temperature-controlled transfer hose is designed for food processing equipment that transfers materials requiring stable temperature and consistent flow.
Food products such as syrup, chocolate, oils, sauces, fillings and other viscous materials may thicken when the temperature decreases. This can reduce flow, increase pump pressure and interrupt production.
Shenzhen Jingcheng High-tech manufactures customized food heated hoses using selected food-grade inner tubes, uniformly arranged heating elements and equipment-specific connectors.

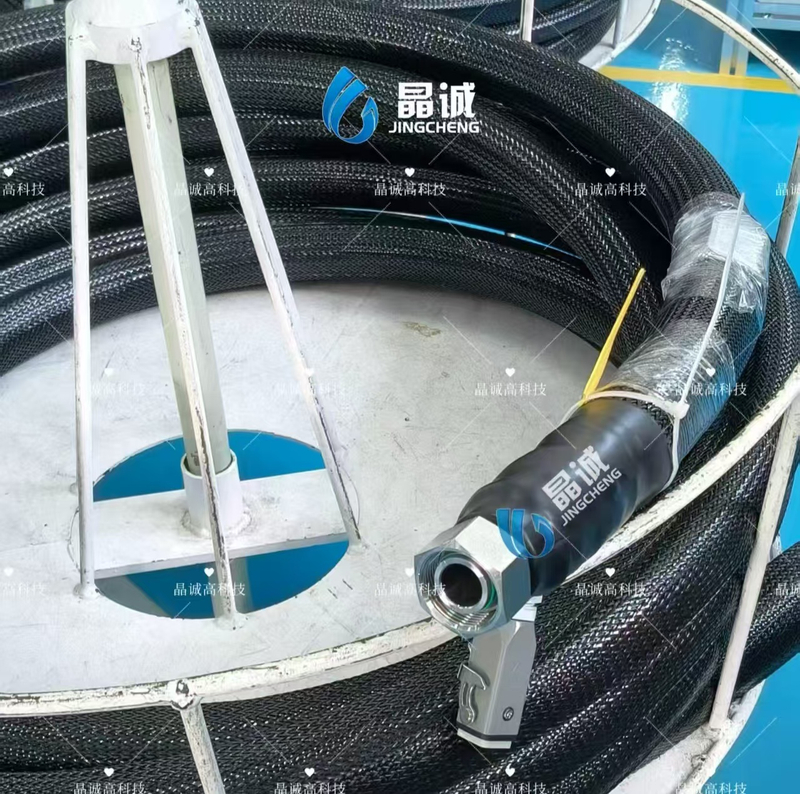

A food-grade heated hose is a flexible electrically heated transfer line used to maintain food material temperature during conveying.
A complete hose assembly may include:
Customized food-grade inner tube
Pressure reinforcement
Electrical heating elements
Thermal insulation
Protective outer covering
Temperature sensor
Sanitary or industrial fittings
Electrical connector
The structure is customized according to food type, viscosity, temperature, pressure and cleaning requirements.
Many food materials become harder to pump when temperature decreases.
Poor temperature control may lead to:
Increased viscosity
Reduced flow rate
Material accumulation
Hose blockage
Higher pump load
Inconsistent filling
Uneven coating or dosing
Increased cleaning time
Production downtime
A temperature-controlled food hose helps maintain more consistent processing conditions.
The material-contact inner tube can be selected according to the food product and equipment requirements.
The standard food hose supports operating temperatures up to 100°C.
Other temperature requirements should be evaluated according to the food material and hose structure.
Uniformly arranged heating elements help reduce temperature variation and minimize cold spots.
Thermal insulation helps reduce heat loss and maintain stable material viscosity.
The hose can be fitted with different connection types according to the processing equipment.
Hose length, diameter, voltage, power, sensor, fittings and outer protection can be customized.
Food conveying equipment
Syrup transfer systems
Chocolate processing equipment
Sauce and filling machines
Edible oil transfer
Bakery filling systems
Heated food dispensing
Viscous food transfer
Food coating machines
Temperature-controlled production lines
Customized food processing machinery
Item | Available Options |
|---|---|
Product Name | Food-Grade Temperature-Controlled Transfer Hose |
Maximum Temperature | Up to 100°C |
Inner Tube | Food-grade material option |
Heating Structure | Uniformly distributed heating elements |
Voltage | 110V / 220V / 380V / Custom |
Sensor | PT100 / PT1000 / J type / K type / Custom |
Hose Length | Customized |
Inner Diameter | Customized |
Fittings | Sanitary / Metric / BSP / NPT / Custom |
Electrical Connector | Customized |
Cleaning Requirements | Customized |
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius |
1/4” | 9 mm | 173 bar / 2,501 psi | 690 bar / 10,005 psi | 30 mm |
5/16” | 11 mm | 158 bar / 2,284 psi | 630 bar / 3,915 psi | 40 mm |
3/8” | 12.4 mm | 135 bar / 1,958 psi | 540 bar / 7,830 psi | 60 mm |
1/2” | 15.9 mm | 118 bar / 1,704 psi | 470 bar / 6,815 psi | 150 mm |
5/8” | 19 mm | 88 bar / 1,269 psi | 350 bar / 5,075 psi | 180 mm |
3/4” | 22.6 mm | 85 bar / 1,234 psi | 340 bar / 4,930 psi | 260 mm |
1” | 29.5 mm | 75 bar / 1,088 psi | 300 bar / 4,350 psi | 300 mm |
The table contains catalog reference values. Final pressure capability must be confirmed according to temperature, fittings and complete assembly configuration.
A correctly designed food heated hose can help:
Maintain stable product viscosity
Improve flow consistency
Reduce cold spots
Reduce material blockage
Support more accurate filling
Reduce pump load
Improve equipment compatibility
Shorten cleaning time
Reduce material waste
Support continuous production
Please provide:
Food material name
Required food-grade inner-tube material
Operating temperature
Working pressure
Material viscosity
Required flow rate
Hose length
Inner diameter
Voltage and power
Sensor type
Inlet and outlet fittings
Electrical connector
Equipment model
Cleaning method
Original hose sample or drawing
We manufacture customized heated hose assemblies directly for food processing equipment.
Inner tube, fittings, hose length, heating system and electrical configuration can be customized.
Hoses can be developed according to original samples, drawings and machine interfaces.
We support equipment production, maintenance replacements and project orders.
Samples can be manufactured for equipment and material testing before bulk production.
