Food Heated Hose for Reducing Changeover Time in Multi-Product Processing Equipment

A food production line does not always run the same product continuously.

Many facilities produce several recipes on the same equipment.

A single line may switch between products with different:

• Viscosity

• Temperature

• Color

• Flavor

• Ingredient composition

Every product change can require the transfer system to be emptied, cleaned and prepared for the next batch.

For this reason, the design of the flexible hose can affect more than material transfer.

It can also influence changeover time and production scheduling.

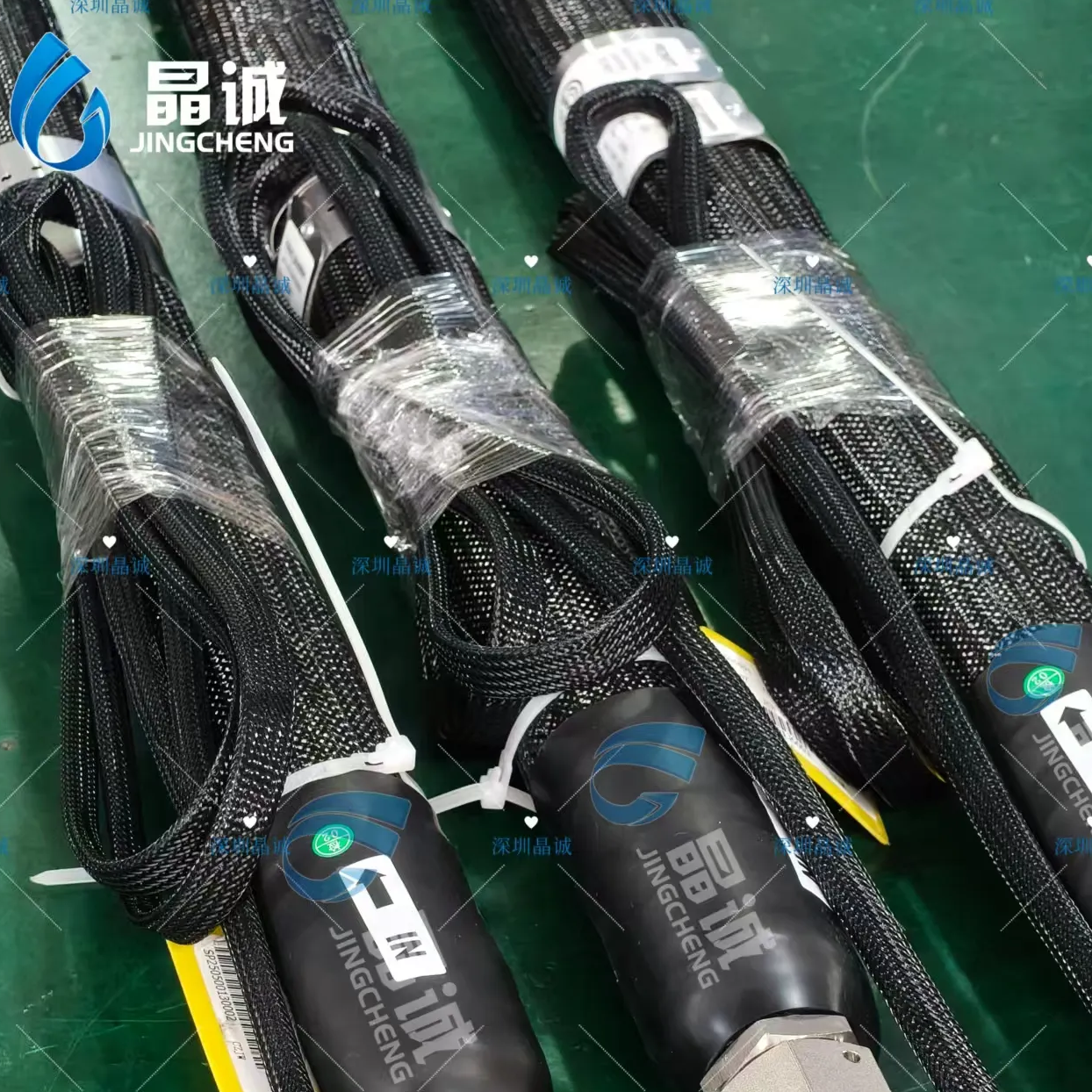

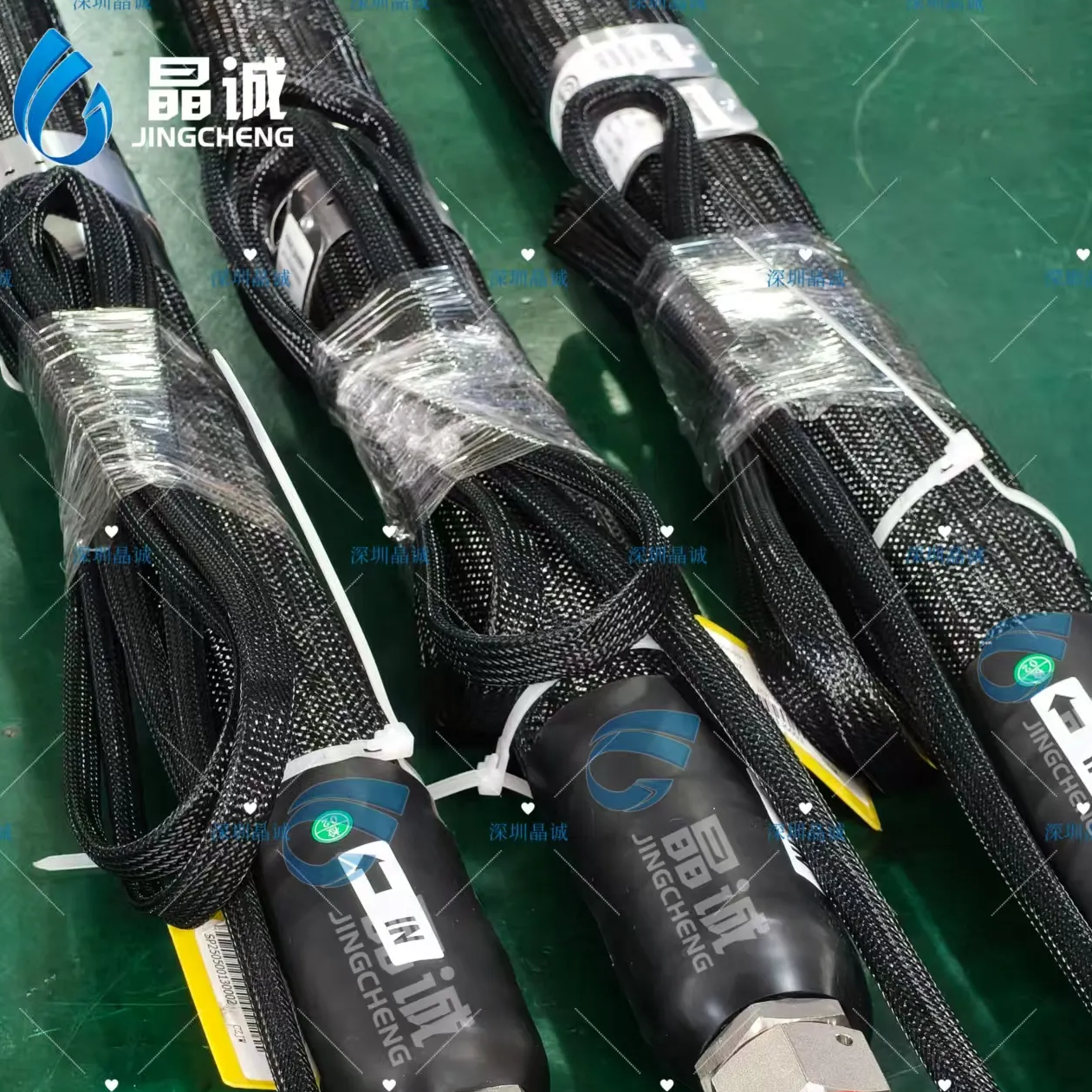

Jingcheng’s food heated hose is designed for food conveying equipment and uses a customized food-contact inner tube according to customer requirements.

The catalog specifies a maximum temperature of approximately:

100°C

and provides sizes from approximately 1/4" to 1".

This makes the hose particularly relevant to low-temperature heated food transfer where controlled warming is required without exposing the process to unnecessarily high temperatures.

Product Changeover Is a Production Problem, Not Only a Cleaning Problem

When a factory changes from one food product to another, the transfer line may need to be cleared.

The total changeover time can include:

• Draining remaining product

• Flushing the hose

• Cleaning connections

• Bringing the system back to process temperature

• Reintroducing the next product

Even if the hose represents only a small part of the production line, it can influence several of these stages.

A well-defined heated hose can help make the flexible transfer section more predictable during batch changes.

Low-Temperature Heating Is Different from Extreme High-Temperature Heating

The catalog specifies a maximum temperature of approximately 100°C for this food hose.

That is important.

Many food applications do not require extremely high temperature.

Instead, they need controlled heating to keep a product within a relatively narrow processing window.

Potential examples may include materials that become thicker as they cool.

In such systems, the goal is not maximum temperature.

The goal is stable and appropriate process temperature.

Gentle Heating Can Help Maintain Flow During Batch Transfer

Certain food materials become more difficult to pump or fill when their temperature falls.

A heated hose can help reduce cooling between upstream equipment and the next processing stage.

This may be useful in systems such as:

• Ingredient transfer

• Filling equipment

• Dosing systems

• Mixing equipment

• Temperature-controlled food machinery

The actual temperature should always be determined by the product and process requirements.

Uniform Heating Helps Avoid Localized Cold Sections

The product catalog describes uniformly arranged heating elements.

This helps reduce temperature differences along the internal wall.

If one section of a hose becomes significantly cooler, material viscosity can increase locally.

That may affect:

• Flow resistance

• Pump load

• Filling consistency

• Restart behavior

Uniform heating is therefore particularly useful in multi-batch equipment where the same process condition needs to be reproduced repeatedly.

Changeover Also Depends on Internal Hose Volume

The amount of product remaining inside a hose depends partly on:

• Inner diameter

• Hose length

A larger or unnecessarily long hose contains more product.

During recipe changeover, that extra volume may need to be recovered, flushed or discarded.

This means hose sizing can influence material loss.

The correct approach is to select enough diameter for required flow while avoiding unnecessary internal volume.

Hose Diameter Should Match the Actual Production Rate

Available catalog sizes include:

• 1/4"

• 5/16"

• 3/8"

• 1/2"

• 5/8"

• 3/4"

• 1"

A larger inner diameter can provide greater flow area, but it also increases:

• Hose volume

• Weight

• Bending radius

• Heating area

The best diameter depends on the production equipment rather than simply selecting the largest available size.

Pressure Capability Provides Flexibility for Different Equipment

Selected catalog working pressures include approximately:

• 1/4" — 173 bar / 2,501 psi

• 5/16" — 158 bar / 2,284 psi

• 3/8" — 135 bar / 1,958 psi

• 1/2" — 118 bar / 1,704 psi

• 5/8" — 88 bar / 1,269 psi

• 3/4" — 85 bar / 1,234 psi

• 1" — 75 bar / 1,088 psi

The actual food process may operate far below these values.

Selection should always be based on the real continuous working condition rather than maximum catalog capability.

Cleaning Strategy Should Be Considered During Hose Specification

Before selecting a food transfer hose, equipment manufacturers should define how the line will be cleaned.

Relevant questions include:

• Will the hose be flushed in place?

• Will the hose be removed?

• How often does product change?

• What cleaning temperature is used?

• What cleaning medium contacts the inner tube?

These questions help determine the most appropriate hose construction and material-contact layer.

Customized Food-Contact Inner Tube

The source catalog states that the hose uses a customized food-grade material-contact inner tube.

For actual projects, customers should specify the applicable material and documentation requirements.

This is particularly important because food-processing requirements can differ between:

• Markets

• Equipment

• Products

• Customer specifications

The precise ordered configuration should therefore be confirmed before production.

Smaller Hose Sizes Can Simplify Compact Equipment

The catalog lists minimum bending radii from approximately 30 mm to 300 mm.

Smaller-diameter hose can therefore be easier to route inside compact:

• Filling machines

• Dosing skids

• Ingredient systems

• Pilot production equipment

However, routing flexibility should not be achieved by selecting an inner diameter that is too small for the required flow.

Stop-and-Restart Production

Batch food production frequently includes pauses.

The line may stop while operators:

• Replace containers

• Change ingredients

• Perform inspection

• Prepare the next batch

Material inside an unheated flexible hose can cool during these pauses.

Maintaining controlled hose temperature can make restart more predictable, particularly for temperature-sensitive viscous products.

Customization Options

Jingcheng can customize:

• Food-contact inner tube

• Hose diameter

• Hose length

• Operating temperature

• Voltage

• Heating power

• Temperature sensor

• Fittings

• Thread standards

• Electrical connector

• Cable length

• Complete assembly

Information Needed for Food Hose Selection

Customers should provide:

Food product or medium, processing temperature, working pressure, required flow rate, hose length, inner diameter, cleaning method, fitting specifications, voltage, heating power, temperature sensor and electrical connector.

Required food-contact documentation should also be specified during project confirmation.

Why Choose Jingcheng

Jingcheng provides customized heated hose assemblies for food-processing and industrial equipment manufacturers.

Advantages include:

• Factory-direct production

• Customized material-contact tubing

• OEM hose development

• Sample support

• Short production lead time

• Engineering assistance

• Custom electrical configuration

• Competitive factory pricing

• Export experience

Conclusion

In a multi-product food production line, the flexible hose affects more than how material moves from one machine to another.

Its diameter, length, heating behavior and cleaning strategy can influence product changeover time, residual material volume and restart consistency.

Jingcheng’s food heated hose is designed for customized food conveying systems with maximum catalog temperature capability of approximately 100°C.

For batch production, the most effective hose is not necessarily the highest-temperature or largest-diameter option.

It is the configuration that matches the product, flow rate, cleaning process, machine layout and changeover frequency.
