Heated Hose for Imported and Domestic Solvent-Free Laminator Replacement Projects

A solvent-free laminating machine may remain in production for many years.

During that time, the machine’s flexible material hoses can become one of the components most likely to require replacement.

The challenge is that solvent-free laminators from different manufacturers may use different:

• Hose lengths

• Fittings

• Electrical plugs

• Heating configurations

• Installation layouts

A generic heated hose may have the correct diameter but still fail to match the machine.

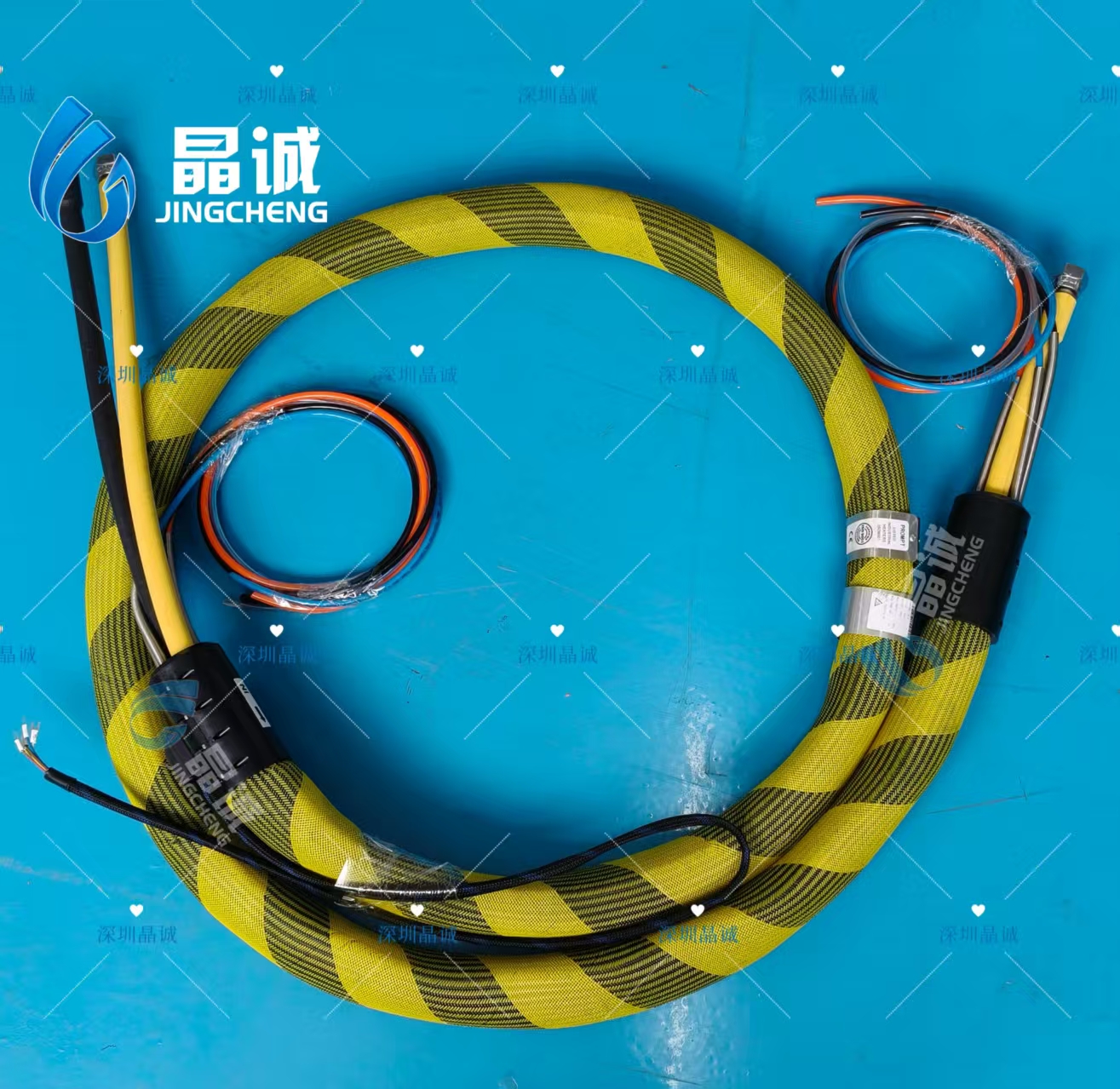

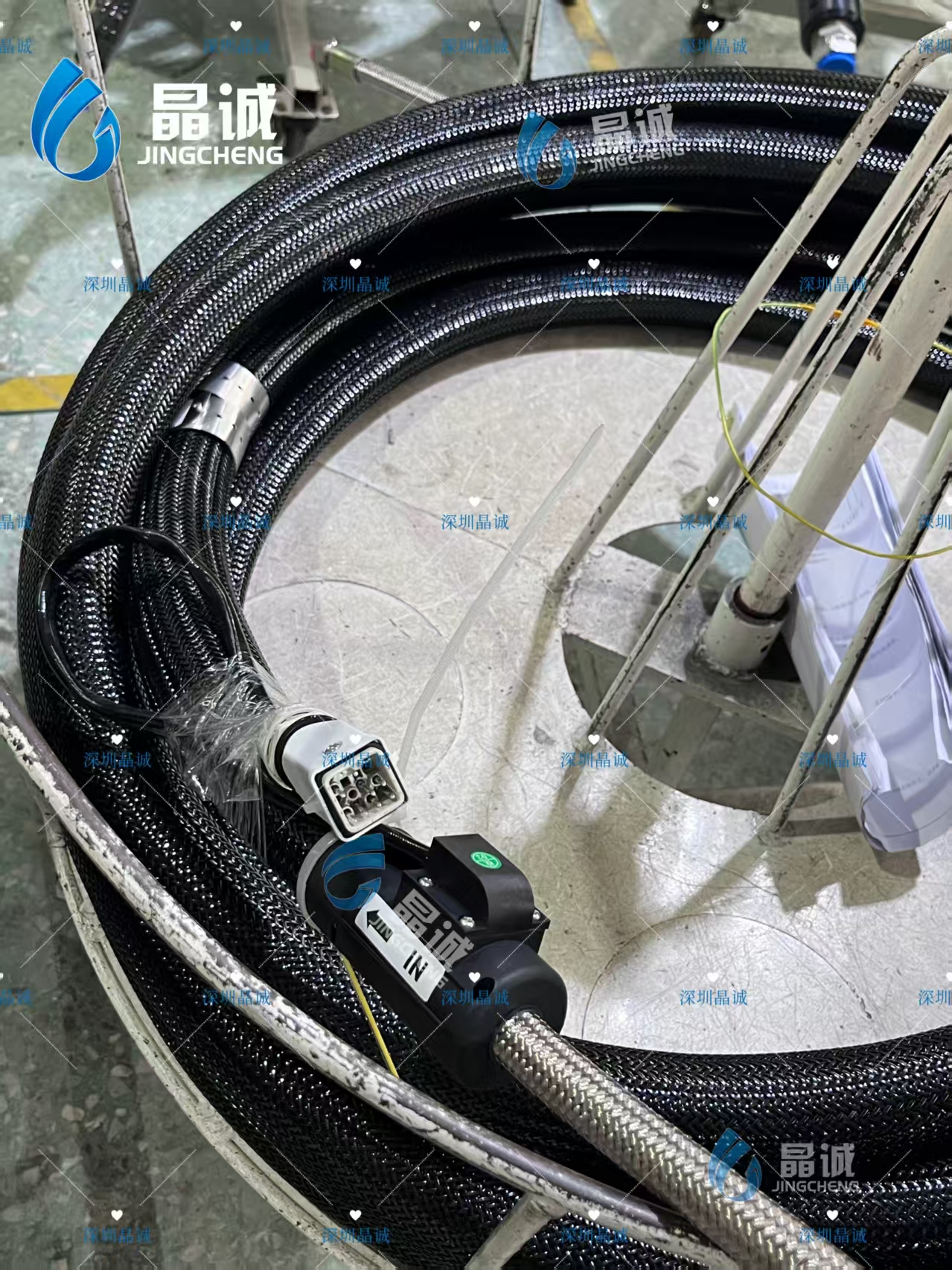

Jingcheng’s solvent-free laminator heated hose is developed for imported and domestic solvent-free laminating equipment.

The catalog notes long-term cooperation with multiple domestic and international laminator manufacturers and specifies maximum temperature capability up to approximately:

230°C

The available sizes shown include:

• 1/4"

• 5/16"

• 3/8"

• 1/2"

This makes the product particularly suitable for customized machine-interface and replacement-hose projects.

Solvent-Free Laminator Hoses Are Part of the Machine Interface

A heated hose connects two sections of the laminating system.

Its job is not only to carry material.

It must physically and electrically fit the machine.

This means compatibility can involve:

• Mechanical connections

• Hose routing

• Electrical heating

• Temperature sensing

• Cable arrangement

When replacing an original hose, all of these interfaces should be checked.

Imported Machines Can Create Spare-Part Challenges

An imported laminator may perform well for many years, but replacement parts can sometimes involve:

• Long delivery times

• High freight cost

• Limited local stock

• Changed machine models

A locally customized replacement hose can provide another option when the original assembly becomes difficult to source.

However, the replacement must be based on technical matching rather than appearance alone.

Domestic Laminators Also Benefit from Standardized Hose Supply

Domestic equipment manufacturers may need repeated hose supply for:

• New machine assembly

• Factory inventory

• Customer spare parts

• Warranty replacement

• After-sales service

Using a consistent hose specification can simplify purchasing and service management.

OEM customers can define a fixed combination of:

• Length

• Diameter

• Fitting

• Voltage

• Power

• Sensor

• Plug

for each machine model.

Four Hose Sizes Cover Different Installation Requirements

The catalog provides four main inner-diameter options.

Approximate working pressures include:

• 1/4" — 173 bar / 2,501 psi

• 5/16" — 158 bar / 2,284 psi

• 3/8" — 135 bar / 1,958 psi

• 1/2" — 118 bar / 1,704 psi

The available sizes allow equipment manufacturers to select the hose according to the required material path and machine arrangement.

Smaller Hose Size Provides More Compact Routing

The minimum bending radius changes significantly by size.

The catalog lists approximately:

• 1/4" — 30 mm

• 5/16" — 40 mm

• 3/8" — 60 mm

• 1/2" — 150 mm

This is important inside compact laminating equipment.

If installation space is limited, a smaller hose may provide easier routing.

However, hose diameter should still meet the required material-transfer conditions.

Machine Interface Matching Should Include Fittings

A replacement hose may connect to:

• Pump

• Metering unit

• Mixing system

• Coating head

• Distribution block

These components may use different fitting standards.

Simply adapting the old machine with multiple additional connectors can increase assembly complexity.

A customized hose can instead be manufactured with the required fitting configuration from the beginning.

Electrical Connection Is Equally Important

A heated hose also needs power.

Different machine manufacturers may use different electrical arrangements.

A replacement project may therefore need to confirm:

• Voltage

• Heating power

• Plug type

• Pin definition

• Cable length

• Sensor type

Matching the mechanical fitting while ignoring the electrical interface can still result in an unusable replacement hose.

Uniform Heating Supports Predictable Hose Performance

The catalog describes uniformly arranged heating elements around the hose.

This helps reduce temperature differences through the heated section.

For a laminating machine, this means the hose can provide a more consistent heated pathway between equipment modules.

The required set temperature should be selected according to the actual process and material.

Insulation Helps Maintain Heat Inside the Hose

The heated assembly uses an insulation layer around the heating structure.

This helps reduce unnecessary heat loss.

The catalog also notes that high-efficiency insulation materials can be used when external surface temperature is an important consideration.

This gives OEM manufacturers additional flexibility when the hose is installed near operator-access areas or other equipment components.

Avoid Changing Too Many Variables During Replacement

When replacing an original hose, it is usually better to identify the important original parameters first.

Changing diameter, length and heating power simultaneously can make troubleshooting more difficult.

A replacement project should ideally document:

original specification → required change → new specification

This creates a clearer technical comparison.

Useful for Machine Upgrade Projects

A laminator may later receive:

• New pump

• New metering system

• Modified coating unit

• Different machine layout

These changes can alter hose length or connection requirements.

A customized heated hose can bridge the new machine arrangement without redesigning the entire transfer system.

Recommended Information for Replacement Matching

For an existing solvent-free laminator, customers can provide:

• Machine manufacturer

• Machine model

• Original hose photographs

• Hose length

• Inner diameter

• Working temperature

• Working pressure

• Fitting photographs

• Voltage

• Heating power

• Sensor information

• Electrical connector photographs

If an original hose is available, it can also be used as a physical reference.

OEM Customization

Jingcheng can customize:

• Hose length

• Inner diameter

• End fittings

• Thread specification

• Voltage

• Power

• Temperature sensor

• Cable length

• Electrical connector

• Connection orientation

This is particularly useful for equipment manufacturers that want one supplier to support several machine models.

Why Choose Jingcheng

Jingcheng provides heated hose assemblies for industrial equipment and supports both OEM development and replacement supply.

Capabilities include:

• Direct factory production

• Custom hose assemblies

• Imported-machine replacement matching

• Domestic OEM cooperation

• Sample support

• Short lead time

• Engineering assistance

• Competitive factory pricing

• International export experience

Conclusion

When a solvent-free laminator requires a replacement heated hose, diameter alone is not enough to define compatibility.

The hose must also match the machine’s fittings, length, heating specification, sensor and electrical connector.

For imported equipment, a correctly engineered replacement can provide an additional spare-part source.

For domestic OEM manufacturers, standardized hose assemblies can simplify production and long-term after-sales service.

Jingcheng provides customized solvent-free laminator heated hoses for both new machinery and replacement projects, with catalog temperature capability up to approximately 230°C.
