Selecting the Correct High-Pressure Heated Hose Diameter for Automotive Adhesive and Sealant Systems

Automotive adhesive and sealant systems operate very differently from conventional low-pressure fluid-transfer equipment.

A high-viscosity material may need to travel from a pump or supply unit through several meters of hose before reaching the dispensing head.

The system may also operate at several hundred bar.

In this environment, hose diameter becomes a critical engineering parameter.

If the hose is too small, pressure loss can increase significantly.

If the hose is unnecessarily large, the system contains more material, becomes heavier and may require a larger bending radius.

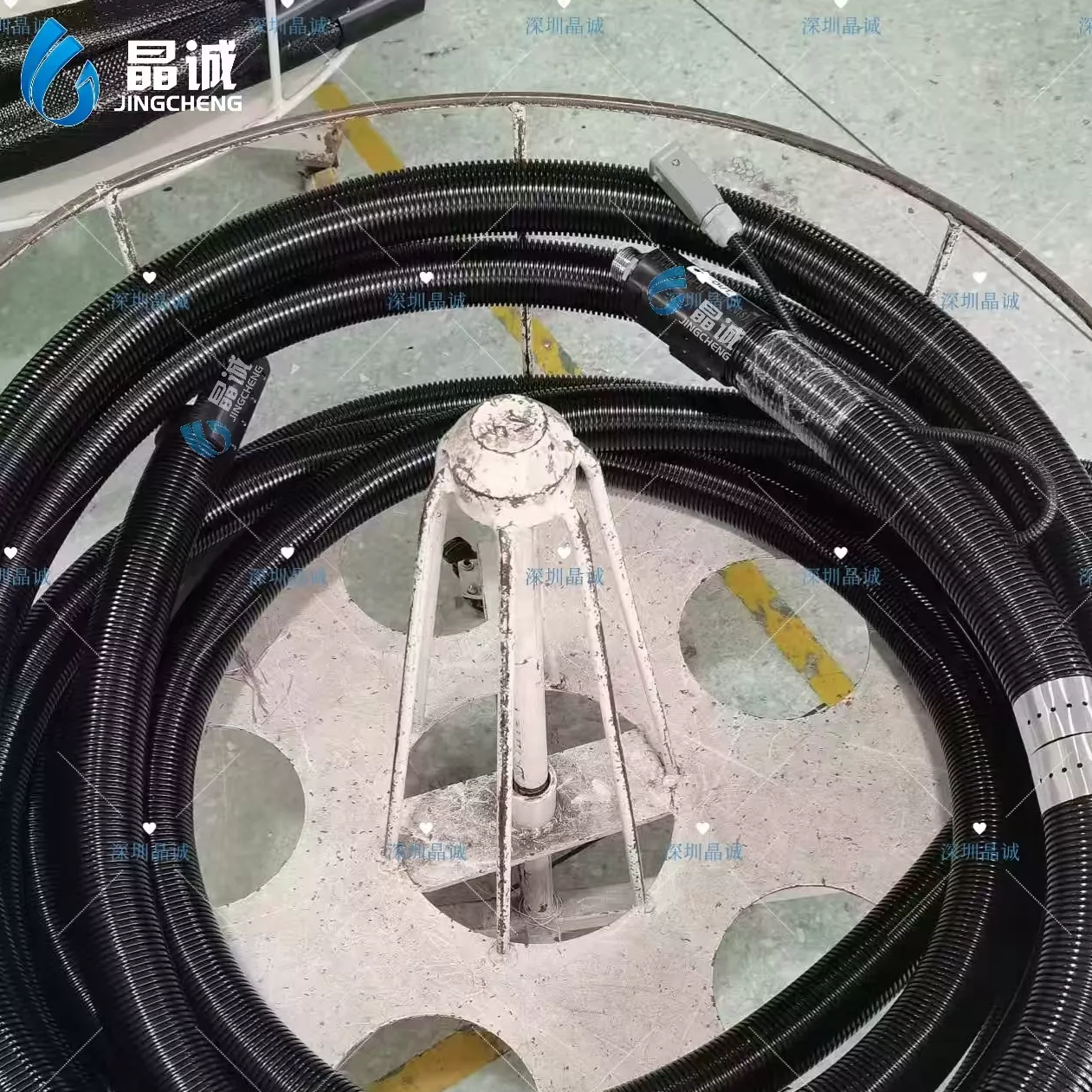

Jingcheng’s high-pressure heated hose for automotive production lines is designed for demanding coating, adhesive and sealant delivery systems.

The catalog references compatibility with equipment families such as SCA, ATN and GRACO, while the available hose family covers working pressures up to approximately 475 bar depending on size.

Maximum temperature is listed at approximately 200°C.

Hose Diameter Directly Influences Pressure Loss

Highly viscous adhesives do not behave like water.

When a thick material passes through a long hose, frictional resistance can create significant pressure loss.

Pressure loss increases when:

• Hose diameter becomes smaller

• Hose length becomes longer

• Material viscosity increases

• Flow rate increases

Therefore, selecting a hose only according to the connection thread can lead to poor system performance.

The internal diameter should be selected according to the entire material-delivery requirement.

A Smaller Hose Is Not Always Better

A smaller hose may appear attractive because it is:

• Lighter

• Easier to route

• More compact

However, if the material is highly viscous, the pump may need to generate significantly higher pressure to maintain the required flow.

This increases the load on the entire system.

In automotive adhesive and sealant applications, this can affect the response between the pump and application head.

A Larger Hose Also Has Trade-Offs

Increasing hose diameter reduces flow resistance, but it also creates other effects.

A larger hose contains more material.

This means:

• More adhesive remains inside the hose

• More material must be heated

• Total hose weight increases

• Minimum bending radius increases

Therefore, the correct selection is not “the largest hose possible.”

The correct size is the one that provides the required flow with an acceptable pressure drop and manageable installation geometry.

Working Pressure Covers Demanding Automotive Applications

The catalog provides substantial working-pressure capability.

Selected values include approximately:

• 3/8" — 475 bar / 6,888 psi

• 1/2" — 450 bar / 6,525 psi

• 5/8" — 400 bar / 5,800 psi

• 3/4" — 300 bar / 4,350 psi

• 1" — 275 bar / 3,988 psi

These values make the product relevant to high-pressure adhesive, sealant and coating systems.

Burst pressures are considerably higher, but burst pressure should never be treated as normal operating pressure.

Heating Helps Control Material Viscosity

Pressure and temperature are strongly connected in viscous material systems.

When adhesive or sealant temperature decreases, viscosity usually increases.

Higher viscosity creates greater resistance inside the hose.

This means a temperature drop can indirectly increase the pressure required to achieve the same material flow.

The heated hose therefore helps maintain a more stable material condition throughout the transfer path.

Uniform Heating Helps Reduce Cold Zones

The catalog describes heating elements arranged evenly around the hose.

This helps reduce temperature differences along the internal path.

Cold zones can be particularly undesirable in automotive dispensing systems because material viscosity may change before it reaches the application head.

A more uniform thermal environment helps maintain predictable material delivery.

Hose Length Must Be Included in System Calculation

Automotive production lines sometimes place the pump and dispensing unit several meters apart.

A longer hose increases:

• Pressure loss

• Material volume

• Heating requirement

• Hose weight

Therefore, hose length should be kept only as long as required by the machine layout.

The most effective design balances operator or robot movement requirements with hydraulic and thermal efficiency.

Minimum Bending Radius Becomes More Important at Larger Sizes

The catalog lists minimum bending radii from approximately:

• 3/8" — 110 mm

• 1/2" — 150 mm

• 5/8" — 175 mm

• 3/4" — 200 mm

• 1" — 240 mm

This matters when designing hose paths inside automotive production cells.

A larger diameter improves flow capacity, but it also requires more installation space.

Compatibility with Imported and Domestic Equipment

The product description identifies use with various imported and domestic coating pump systems and references:

• SCA

• ATN

• GRACO

This makes the hose relevant to both OEM machine builders and replacement projects.

The exact interface should always be confirmed using the equipment specification or original hose.

Typical Automotive Applications

Potential applications include:

• Body-in-white adhesive systems

• Seam sealing

• Structural adhesive delivery

• Hem flange adhesive

• Automotive coating systems

• Sealant dispensing

• High-pressure material pumps

• Automated production lines

The hose can be configured between the pump, metering unit and application equipment.

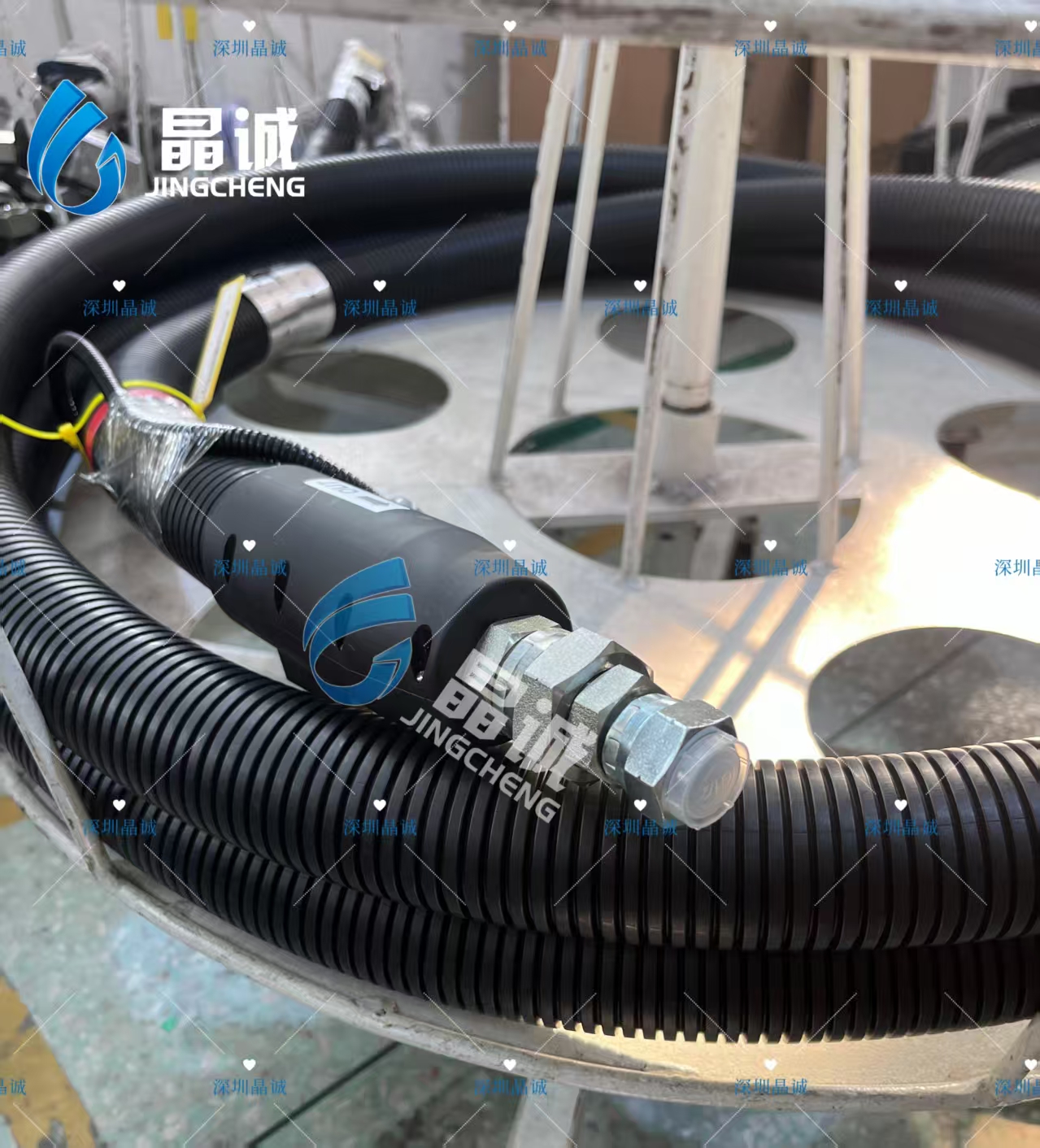

Correct Fitting Design Is Critical at High Pressure

At several hundred bar, the hose body is only one part of the pressure system.

The assembly also depends on:

• Fittings

• Ferrules

• Crimping

• Thread selection

• Port compatibility

A high-pressure hose should therefore be supplied and evaluated as a complete assembly.

Customized Electrical Configuration

Different automotive production systems may use different:

• Voltage

• Heating power

• Temperature sensor

• Electrical plug

• Cable length

• Connector pin configuration

Jingcheng can customize these parameters according to the equipment.

For replacement projects, customers can provide the original hose, connector photographs or wiring information.

What Information Should Be Provided?

For accurate selection, please provide:

Material type, viscosity if known, flow requirement, working pressure, maximum pressure, working temperature, hose length, inner diameter, equipment model, pump-side fitting, applicator-side fitting, voltage, power, sensor type and electrical connector.

These parameters allow the hose to be matched to both the hydraulic and electrical requirements of the production line.

Why Choose Jingcheng

Jingcheng specializes in PTFE hoses and heated hose assemblies for industrial machinery.

The company supports:

• Factory-direct production

• OEM customization

• High-pressure hose development

• Heating-system customization

• Replacement hose matching

• Sample support

• Short lead time

• Engineering assistance

• Competitive pricing

• Export supply for international equipment customers

The goal is not simply to produce a hose with the correct length, but to match the complete operating condition of the machine.

Conclusion

In an automotive adhesive or sealant delivery system, hose diameter influences much more than physical connection size.

It affects:

pressure loss, flow rate, material volume, heating demand, bending radius and total hose weight.

A correctly sized high-pressure heated hose can help the pump deliver viscous materials more efficiently while maintaining the temperature required for stable processing.

Jingcheng’s automotive production line hose family provides multiple diameters and substantial working-pressure capability for demanding coating, adhesive and sealant systems.

For new OEM equipment or replacement projects, the best hose should be selected according to the entire process rather than pressure rating alone.
