Heated Hose for Stable Non-Curing Waterproof Coating Delivery in Construction Equipment

Waterproofing materials can be difficult to transport through a flexible hose because their viscosity changes significantly with temperature.

This is especially important for non-curing waterproof coatings and other heated construction materials. When the material temperature falls during transportation, viscosity can increase rapidly. The pump may continue running, but the coating becomes more difficult to deliver through the hose and spray system.

The result can be unstable material flow, increased pump load, irregular spray output and longer preparation time.

A heated hose provides a controlled thermal path between the material heating unit and the application point.

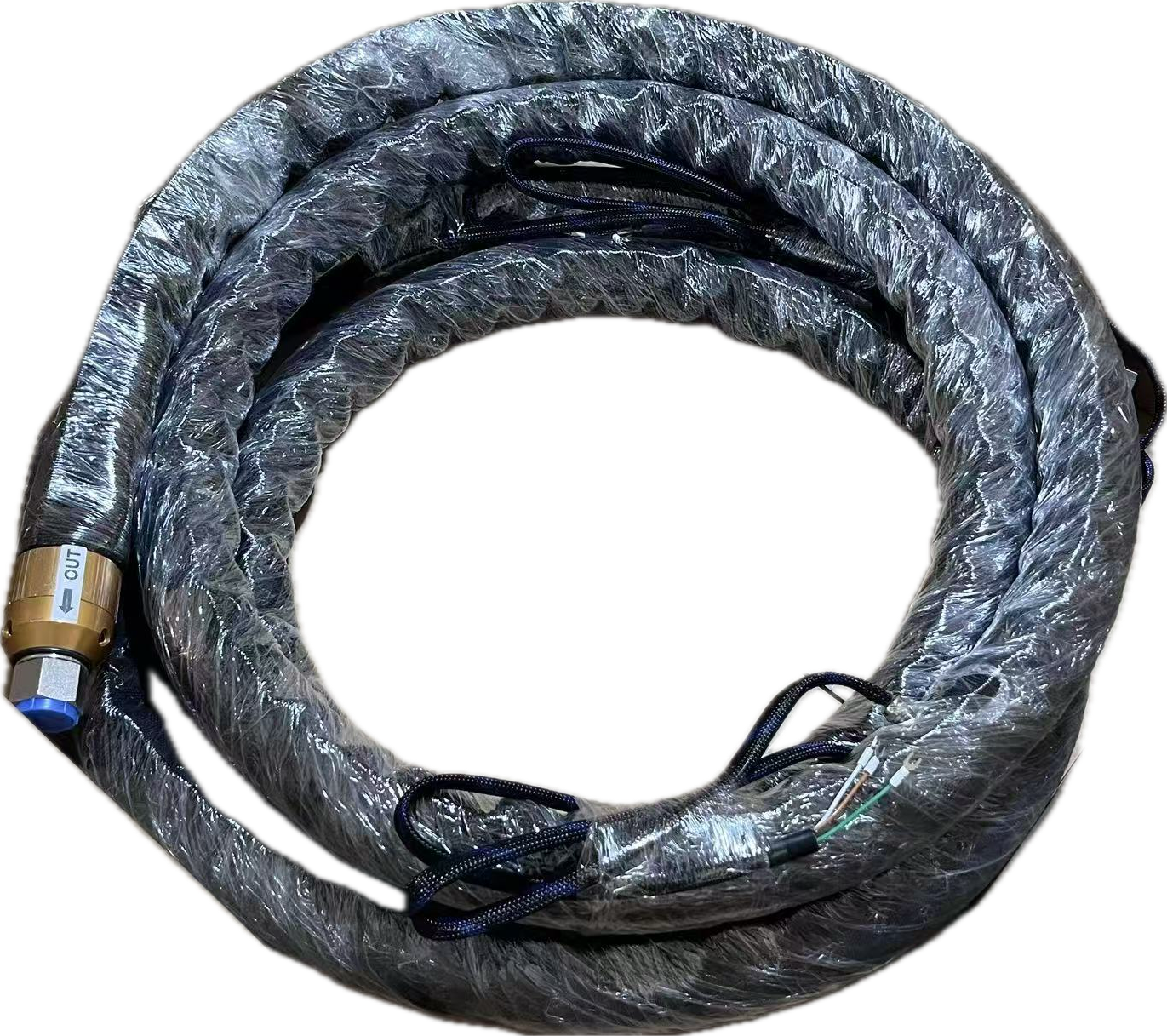

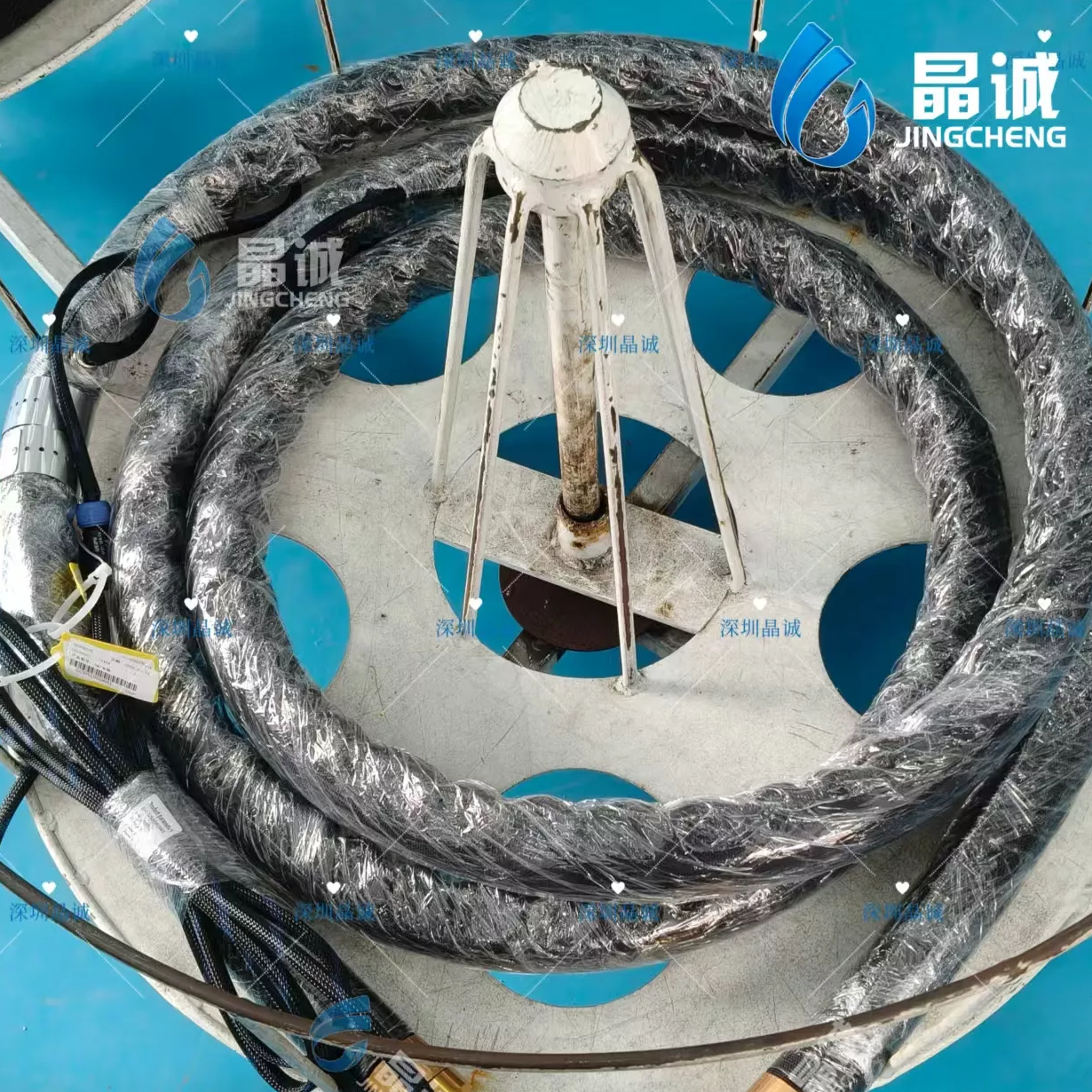

Jingcheng’s heated hose for waterproofing equipment is designed for waterproof construction machines and non-curing coating spray systems where the material must remain warm and flowable during transportation.

The catalog specifies a maximum temperature of approximately 230°C, with different hose sizes available for different pressure, flow and installation requirements.

Why Non-Curing Waterproof Materials Need Continuous Heating

Non-curing waterproof materials are normally applied in a heated condition.

The material may leave the heating tank at the correct temperature, but that does not guarantee that it will reach the spray gun at the same condition.

Heat can be lost through the hose surface.

The amount of heat loss depends on factors such as:

• Ambient temperature

• Hose length

• Material flow rate

• Hose diameter

• Insulation efficiency

• Production cycle

If the hose is too long or poorly insulated, the material near the application end can become noticeably cooler.

The purpose of the heated hose is therefore not simply to “make the hose hot.”

Its real function is to maintain a usable thermal condition throughout the material-transfer path.

Uniform Heating Helps Reduce Internal Temperature Differences

The catalog describes a heating structure using uniformly arranged heating elements.

This design helps reduce temperature differences along the internal wall of the hose.

That matters because uneven heating can create two different problems.

If one part of the hose is too cold, the coating may become more viscous.

If another part is excessively hot, the material may experience unnecessary thermal exposure.

A more uniform heating structure helps maintain a more predictable material condition between the pump and spray equipment.

Thermal Recovery After Production Interruptions

Construction work is rarely perfectly continuous.

Operators may stop because of:

• Equipment repositioning

• Material refilling

• Surface preparation

• Site coordination

• Short maintenance work

During these interruptions, material remaining inside the hose can begin to cool.

When work resumes, the system needs to recover operating temperature.

A properly designed heated hose helps bring the material path back to the required condition before spraying continues.

This is particularly useful in waterproofing applications where frequent starts and stops are common.

Hose Length Has a Direct Effect on Heating Requirements

A longer hose gives operators a larger working range.

This can be useful when waterproofing:

• Roofs

• Basements

• Foundations

• Underground structures

• Large construction surfaces

However, longer hose length also means a larger heated surface area.

The required heating power should therefore be matched to the actual hose length and process temperature.

Selecting heating power only according to hose diameter may not provide the best result.

For customized projects, engineers should consider:

hose diameter + hose length + material + operating temperature + ambient environment

together.

Hose Diameter Affects Both Flow and Heating Behavior

The catalog provides several sizes, including approximately:

• 1/2"

• 5/8"

• 3/4"

The 1/2" version is rated at approximately 118 bar working pressure, while the larger sizes provide lower pressure capability but greater internal flow area.

This creates an important engineering trade-off.

A smaller diameter may provide a more compact hose but can increase resistance when transferring highly viscous materials.

A larger diameter can support greater material flow but normally increases:

• Hose weight

• Material volume inside the hose

• Bending radius

• Heating demand

The correct diameter should therefore be selected according to the spraying system rather than simply choosing the largest available hose.

Flexible Routing Is Important on Construction Sites

Unlike fixed production machinery, waterproof construction equipment may need to move frequently.

The hose can pass around:

• Pumps

• Heating units

• Building structures

• Corners

• Temporary equipment

For this reason, bending performance matters.

The catalog lists minimum bending radii of approximately:

• 1/2" — 150 mm

• 5/8" — 180 mm

• 3/4" — 260 mm

The hose should always be routed above its minimum bending radius to reduce unnecessary mechanical stress.

High Working Pressure Provides Useful Process Margin

Waterproofing and spray equipment may use substantial pump pressure to move viscous material.

The catalog lists working pressures of approximately:

• 1/2" — 118 bar / 1,704 psi

• 5/8" — 88 bar / 1,269 psi

• 3/4" — 85 bar / 1,234 psi

Burst pressure is substantially higher than the working pressure values.

The final hose selection should still be based on the actual continuous operating pressure, temperature and equipment conditions.

Exterior Temperature Also Matters

The catalog notes the use of high-efficiency insulation materials when external surface temperature is considered.

This is an important part of heated hose design.

Good insulation serves two functions:

First, it helps reduce energy loss.

Second, it can help control the external temperature of the hose assembly.

The required outer-layer design depends on the machine environment and operator-access requirements.

Suitable Applications

This heated hose is particularly suitable for:

• Non-curing waterproof coating equipment

• Waterproof spraying machines

• Construction coating systems

• Heated sealant transfer

• Hot waterproofing material delivery

• Building repair equipment

• Mobile coating equipment

The hose can be configured as part of new OEM machines or as a replacement assembly for existing equipment.

OEM Customization for Waterproofing Machine Manufacturers

Different machines use different:

• Hose lengths

• Voltage

• Heating power

• Electrical connectors

• Temperature sensors

• Material fittings

Jingcheng can customize the hose around the machine rather than requiring the machine to adapt to a fixed hose.

For OEM development, customers can provide the machine drawing, original hose, photos or required technical parameters.

What Information Is Needed for Selection?

For a customized waterproofing heated hose, the most useful parameters are:

Material type, working temperature, pressure, hose length, inner diameter, voltage, required heating power, end fittings, electrical connector, sensor type and operating environment.

With these parameters, the hose can be configured around both thermal and mechanical requirements.

Why Choose Jingcheng

Jingcheng has long-term experience producing PTFE hoses and heated hose assemblies for industrial equipment.

Production covers multiple important processes in-house, allowing better control over hose structure, heating assembly and customized connection requirements.

For waterproofing equipment manufacturers, Jingcheng can support:

• OEM customization

• Sample development

• Replacement hose matching

• Short production lead time

• Small trial orders

• Engineering support

• Factory-direct pricing

Conclusion

The performance of a waterproofing spray machine depends not only on the pump or heating tank.

The hose between the machine and application point is also part of the thermal process.

A correctly designed heated hose helps keep non-curing waterproof materials in a stable flow condition, especially during long hose runs, repeated start-stop operation and outdoor construction work.

By matching hose diameter, length, heating power, insulation and fittings to the actual machine, equipment manufacturers can build a more stable and serviceable waterproofing material-delivery system.
