Temperature control in food processing does not end at the storage tank, melting vessel or mixing unit.
After heating, many food materials must still travel through flexible pipelines before reaching a filling machine, dosing unit, coating head or packaging system. During this transfer, the product can lose heat rapidly—especially when the hose is long, the ambient temperature is low or the material is highly viscous.
This is why the heated food conveyor hose is receiving increasing attention from food equipment manufacturers and processing plants.
Unlike an ordinary insulated hose, a heated food transfer line actively compensates for heat loss. It helps maintain more stable product temperature and viscosity as food materials move between different sections of the production line.
Many food products are highly sensitive to temperature.
A material may flow smoothly inside a heated tank but become significantly thicker after travelling several metres through an unheated hose.
Typical temperature-sensitive products include:
Chocolate
Syrup
Edible oil
Sauces
Creams
Fillings
Fats and shortening
Sugar-based mixtures
Glazes
Confectionery materials
Viscous food pastes
When these products cool inside the hose, manufacturers may experience:
Increased viscosity
Reduced flow rate
Higher pump load
Unstable dispensing
Inaccurate filling volume
Material accumulation
Localized solidification
Hose blockage
Longer startup times
More frequent cleaning
A temperature-controlled food hose helps reduce these problems by maintaining heat throughout the transfer path.
A conventional insulated hose can slow down heat loss, but it cannot replace the energy continuously lost to the surrounding environment.
This limitation becomes more noticeable when:
The hose is relatively long
The production area is cold
The material has a narrow processing-temperature range
The line stops and restarts frequently
Flow speed is low
The product has high viscosity
The hose is installed far from the heating tank

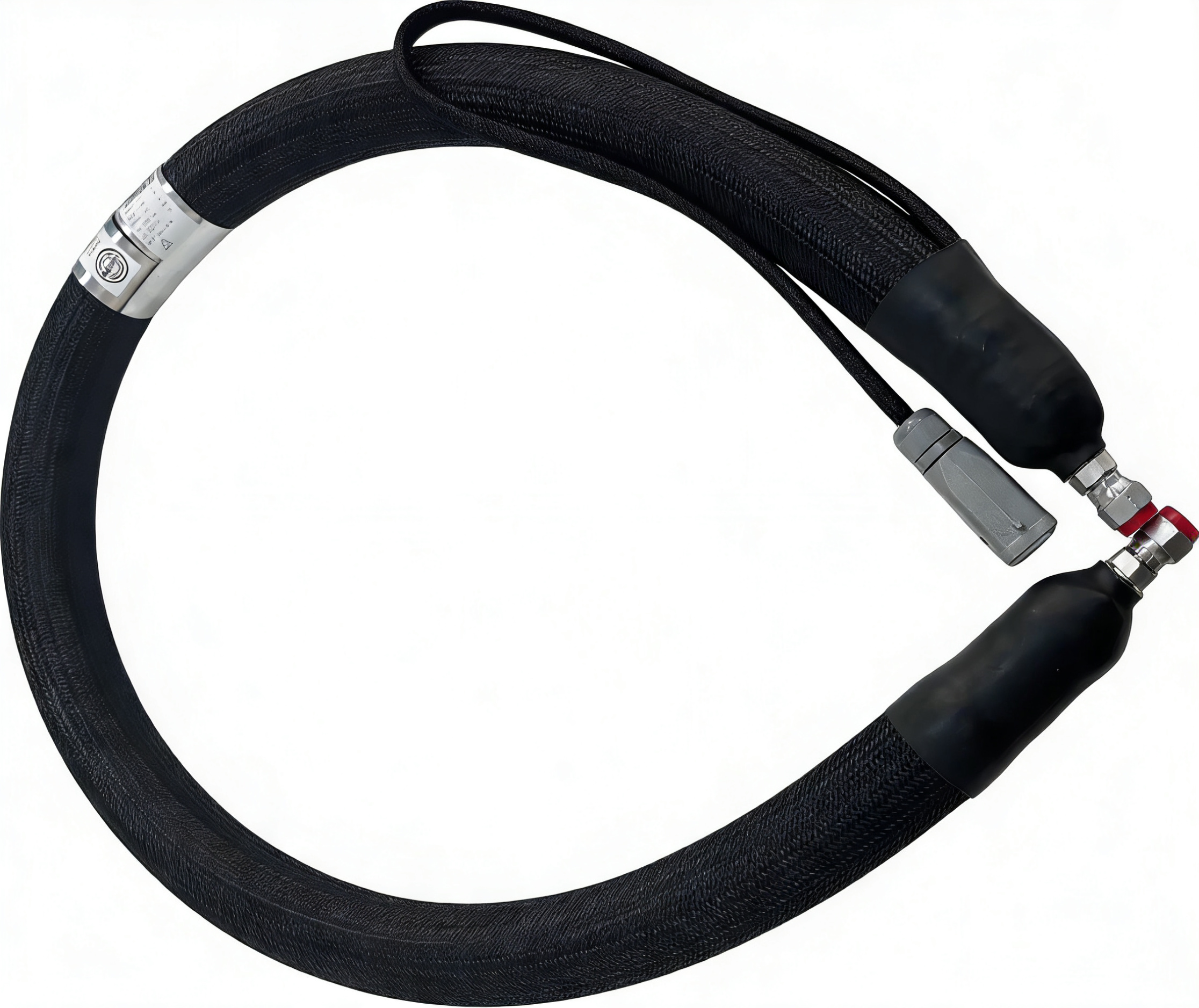

An electrically heated food conveyor hose combines active heating and thermal insulation.
The heating layer supplies controlled thermal energy, while the insulation reduces the amount of energy escaping through the hose surface.
A complete heated food transfer hose may include:
A customized food-grade material-contact inner tube
Pressure reinforcement
Uniformly arranged heating elements
High-efficiency thermal insulation
A protective outer covering
A temperature sensor
Fluid inlet and outlet fittings
An electrical cable and connector
The final construction should be selected according to the transferred food product, operating temperature, pressure, viscosity, cleaning method and equipment interface.
One of the most important factors in heated hose performance is the distribution of the heating elements.
If the heating element is unevenly installed, some sections may become too hot while other sections remain too cold.
These cold sections may cause:
Localized viscosity increases
Material buildup
Uneven flow
Partial solidification
Increased pressure
Cleaning difficulties
The food conveyor hose shown in the product catalogue uses a heating layer made from uniformly woven heating elements. This design is intended to minimize temperature differences along the hose’s inner wall.
More uniform heat distribution can support:
Stable product viscosity
Predictable material flow
Consistent filling
Reduced blockage risk
Improved process repeatability
More efficient equipment operation
The goal is not to overheat the product. The objective is to maintain the correct process temperature throughout the transfer line.
Different food products require different inner-tube characteristics.
A hose transferring edible oil may have different requirements from one used for chocolate, syrup or sauce.
The material-contact inner tube may need to be selected according to:
Product composition
Fat or oil content
Sugar content
Acidity
Operating temperature
Cleaning chemicals
Cleaning frequency
Required pressure
Product viscosity
Food-contact requirements
The catalogue states that the hose can use a customized food-grade material-passing inner tube, and the complete pipeline can be customized according to customer requirements.
Food-contact suitability should therefore be confirmed for the final inner tube, fittings and complete hose assembly—not only for one individual material.
The standard food conveyor hose shown is designed for temperatures up to 100°C.
This range is suitable for many moderate-temperature food conveying processes, including the transfer of warmed, melted or viscosity-controlled food products.
The correct operating temperature should be determined according to:
Product processing requirements
Maximum allowable food temperature
Hose inner-tube material
Sensor accuracy
Heating power
Flow rate
Ambient temperature
Hose length
Special temperature requirements should be evaluated separately before production.
A heated food conveyor hose can be integrated into:
Chocolate processing machines
Syrup delivery systems
Sauce filling equipment
Edible oil transfer lines
Bakery filling machinery
Confectionery production equipment
Food coating systems
Heated dosing equipment
Cream and paste transfer systems
Candy manufacturing lines
Temperature-controlled filling machines
Customized food conveying equipment
The hose may connect:
Heating tanks
Pumps
Mixers
Filters
Dosing units
Filling machines
Dispensing heads
Coating systems
Packaging equipment
The standard product helps maintain food-material temperature in applications with operating requirements up to 100°C.
The heating elements are distributed along the hose to help reduce internal temperature differences.
The hose uses insulation materials designed to reduce heat loss and improve thermal efficiency.
The inner tube can be selected according to the food product and processing conditions.
Length and inner diameter can be matched to the required flow rate and equipment layout.
Temperature sensor, voltage, heating power, electrical plug and cable configuration can be adapted to the machine.
The inlet and outlet fittings can be produced according to equipment drawings, samples or measured dimensions.
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius |
|---|---|---|---|---|
1/4" | 9 mm | 173 bar / 2,501 psi | 690 bar / 10,005 psi | 30 mm |
5/16" | 11 mm | 158 bar / 2,284 psi | 630 bar / 3,915 psi* | 40 mm |
3/8" | 12.4 mm | 135 bar / 1,958 psi | 540 bar / 7,830 psi | 60 mm |
1/2" | 15.9 mm | 118 bar / 1,704 psi | 470 bar / 6,815 psi | 150 mm |
5/8" | 19 mm | 88 bar / 1,269 psi | 350 bar / 5,075 psi | 180 mm |
3/4" | 22.6 mm | 85 bar / 1,234 psi | 340 bar / 4,930 psi | 260 mm |
1" | 29.5 mm | 75 bar / 1,088 psi | 300 bar / 4,350 psi | 300 mm |
*The source image lists 630 bar and 3,915 psi in the same row, but these two values are not equivalent. This specification should be verified before publishing the final product page.
The table contains reference values for the listed hose structure. Final working pressure depends on temperature, fittings, hose length and the complete assembly design.
A correctly selected heated food hose may help manufacturers:
Maintain more stable product viscosity
Reduce temperature differences
Improve filling consistency
Reduce pump load
Minimize localized blockage
Reduce material waste
Shorten startup time
Reduce cleaning frequency
Improve continuous production
Reduce after-sales problems caused by hose mismatch
For equipment manufacturers, a customized hose can also simplify machine integration because the fluid fittings, sensor and electrical connector can be matched to the equipment before delivery.
Food-processing equipment is rarely completely standardized.
Two machines performing similar functions may use different:
Hose lengths
Inner diameters
Voltages
Sensors
Electrical plugs
Connection threads
Flow rates
Operating pressures
Cleaning methods
Installation spaces
Using only the product name or inner diameter is not enough to manufacture a reliable replacement hose.
The complete operating conditions must be confirmed before production.
To recommend the correct food conveyor hose, please provide:
Food product name
Product composition
Required operating temperature
Normal working pressure
Maximum system pressure
Product viscosity
Required flow rate
Hose length
Inner diameter
Voltage
Heating power
Temperature sensor type
Inlet fitting
Outlet fitting
Electrical connector
Equipment brand and model
Cleaning method
Food-contact requirements
Original hose photos or technical drawing
Complete information helps reduce specification errors and improves machine compatibility.
We manufacture heated hose assemblies directly and integrate the inner hose, heating layer, insulation, sensor and connections.
Hoses can be developed according to equipment drawings, original samples, connector dimensions or actual operating conditions.
Customized production can begin quickly after all technical parameters are confirmed.
Samples can be produced for equipment and food-material testing before bulk procurement.
Direct manufacturing helps reduce unnecessary sourcing layers.
Replacement assemblies can be manufactured for domestic and imported food-processing equipment.
