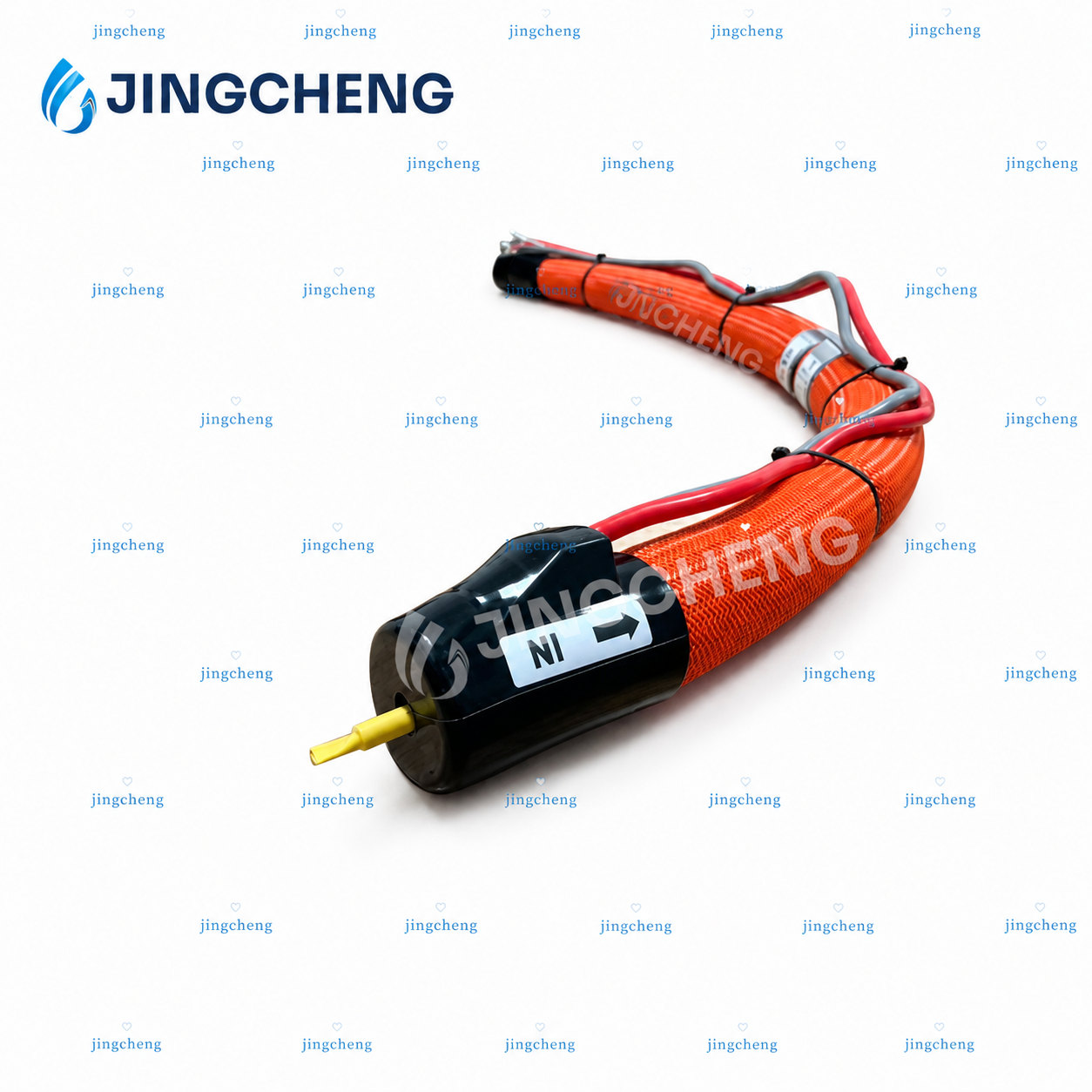

An industrial gas monitoring system contains more than an analyzer.
Before the gas sample reaches the measuring instrument, it may pass through a sampling probe, a flexible sampling line, temperature-controlled components and a sample-conditioning unit.
Every connection between these components has to match the operating requirements of the complete system.
A sampling hose with the correct diameter but an incompatible electrical connection may be impossible to install. A hose that reaches the required temperature but has poorly designed thermal transitions may also fail to maintain the intended sample condition throughout the route.
For this reason, selecting a heated gas sampling hose for CEMS equipment is not simply a question of choosing a heat-resistant flexible tube.
It is an engineering task involving mechanical interfaces, temperature control, hose routing and electrical integration.

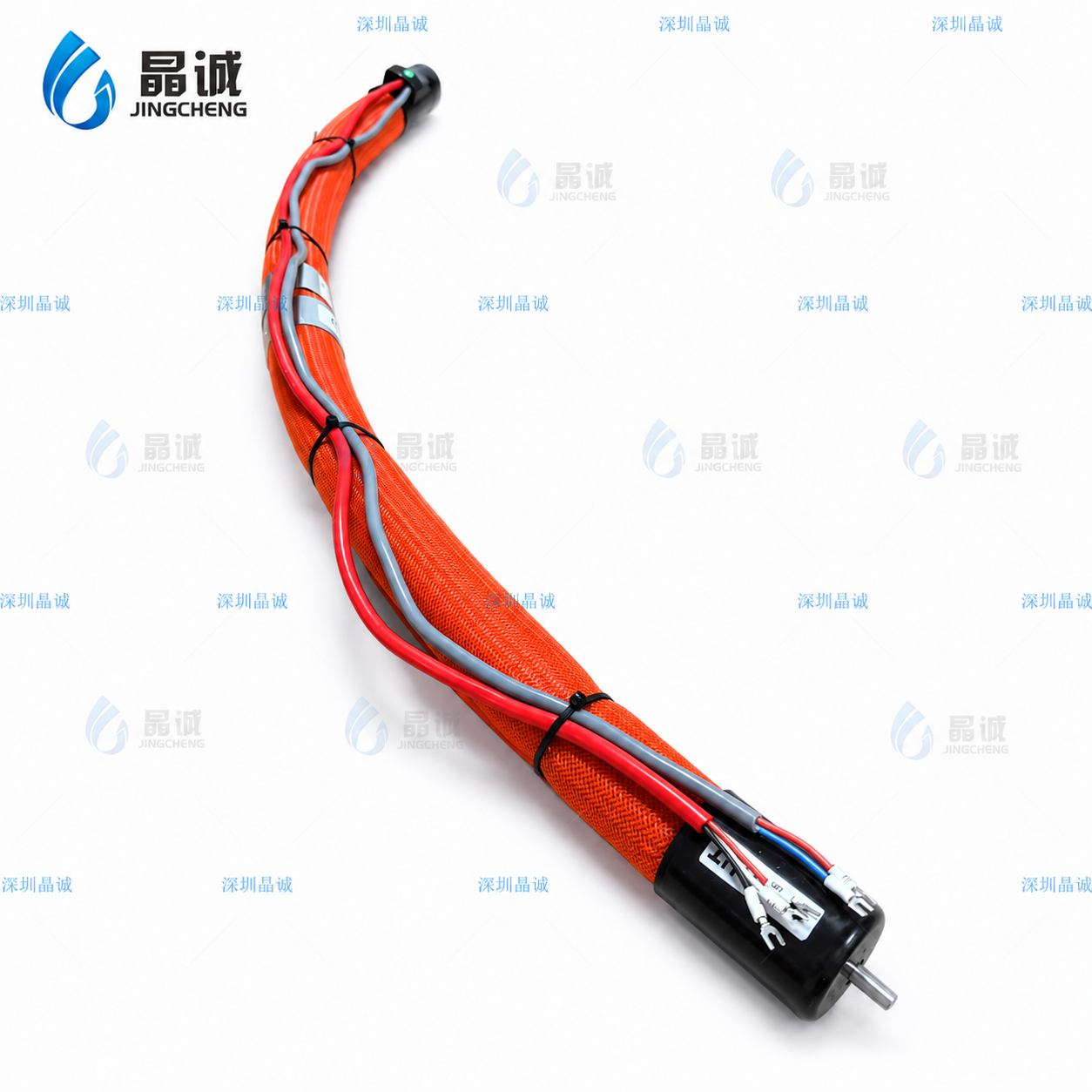

Jingcheng's gas detection equipment hose is designed for industrial sampling and monitoring applications, including:
Flue gas pretreatment equipment
Continuous Emission Monitoring Systems (CEMS)
Infrared gas analyzers
Ultraviolet gas analyzers
Laboratory gas detection equipment
Online industrial monitoring instruments
The product catalog specifies a maximum temperature of approximately 230°C and provides compact hose sizes for instrument and sampling-line installations.
In a typical extractive gas monitoring arrangement, sample gas is withdrawn from a process or exhaust duct and transported toward analytical equipment.
Depending on the monitoring technology, the sample may need to remain heated until it reaches a designated conditioning stage.
A simplified system may contain:
Sampling Probe → Heated Sampling Hose → Sample Conditioning Unit → Gas Analyzer
Other systems may use different arrangements, including heated analyzers or alternative conditioning methods.
The important point is that the flexible hose belongs to a larger sampling system.
Its specifications should be coordinated with the equipment installed at both ends.
This is particularly important for original equipment manufacturers developing complete environmental monitoring systems.
The sampling hose normally connects components supplied by different manufacturers.
For example, a system integrator may combine a sampling probe from one supplier, a gas conditioning system from another and an analyzer from a third.
Each component can have its own connection requirements.
The heated hose must therefore accommodate:
Sampling probe outlet dimensions
Analyzer or conditioner inlet connections
Hose routing distance
Electrical supply requirements
Temperature-control interfaces
Available installation space
A mechanically incompatible fitting may require additional adapters.
An electrically incompatible hose may require wiring modifications or a redesigned control interface.
Defining these requirements before production helps reduce integration difficulties.
One important consideration in gas sampling equipment is the transition between heated and unheated components.
A heated hose may maintain the required temperature throughout its main length, while connection points or adjacent components operate at different temperatures.
If the sample contains condensable substances, these colder locations can create unwanted condensation before the intended sample-conditioning stage.
Possible problem areas include the connection between the sampling probe and hose, the hose termination and the inlet to the conditioning equipment.
The engineering objective is to ensure that each section of the sample path follows the monitoring system's specified temperature strategy.
This may require attention to both the hose heating arrangement and the surrounding interfaces.
It should not be assumed that every gas monitoring system needs the same hose temperature. The correct approach depends on whether the system is designed for heated wet-gas analysis, controlled sample conditioning or another measurement method.
The Jingcheng catalog describes a heating structure with evenly arranged heating elements.
The purpose is to reduce temperature differences along the hose.
For a heated gas sampling line, this is useful because temperature variations can influence the condition of the transported gas.
However, uniform heating is only one part of the design.
Actual temperature performance also depends on hose length, insulation, heat loss, ambient conditions and the connected temperature controller.
A custom hose should therefore be specified according to its installed operating environment.
The catalog identifies a maximum temperature capability of approximately:
230°C
Higher-temperature requirements may be evaluated through customization.
The maximum catalog temperature should not automatically be used as the normal control setpoint.
Instead, the system integrator should specify the temperature required by the sampling method and confirm that the complete hose assembly is suitable for continuous operation at that condition.
Electrical components, insulation, fittings and protective covering must also be compatible with the application.
The product catalog offers three compact sizes.
Nominal size | Catalog outer diameter | Working pressure | Minimum bending radius |
|---|---|---|---|
3/16" | 7.6 mm | 203 bar | 30 mm |
1/4" | 9 mm | 173 bar | 30 mm |
5/16" | 11 mm | 158 bar | 40 mm |
These are catalog reference values, not a guarantee of the assembled hose rating at every operating temperature.
For instrument sampling applications, hose diameter should be selected based on the required sample flow, pressure conditions and sampling-system design.
An unnecessarily large sampling passage can increase internal volume, while a passage that is too small may create excessive flow resistance.
Therefore, equipment manufacturers should specify both the mechanical diameter and the intended gas flow conditions.
The catalog highlights resistance to bending and kinking.
This is important because sampling lines are often installed around:
Monitoring cabinets
Steel support structures
Process ducts
Instrument racks
Sample conditioning units
A flexible hose makes routing easier, but installation should still respect the specified minimum bending radius.
A tight bend that deforms the sampling passage can affect flow and place mechanical stress on the assembly.
Where the hose passes through a support or enclosure, sufficient clearance should be maintained.
A heated gas sampling hose is part of the electrical system as well as the sampling circuit.
For customized applications, engineers should confirm the required electrical specifications.
These may include the rated voltage, total heating power, temperature sensor type, connector configuration and cable length.
Different CEMS manufacturers may use different temperature-control architectures.
For example, one system may require a separate sensor circuit, while another may use a different wiring arrangement.
A replacement hose must match the actual controller requirements.
The connector's external appearance alone is not enough to confirm compatibility.
Gas monitoring equipment may be installed outdoors, near exhaust ducts or in areas exposed to industrial dust and vibration.
The hose routing should therefore be designed to avoid unnecessary mechanical damage.
Particular attention should be given to:
Abrasion against metal edges
Unsupported hose weight
Excessive strain near terminations
Repeated twisting
Contact with hot external equipment surfaces
The use of suitable clamps and supports can help protect the installed assembly.
Any requirement for additional external protection should be specified during hose customization.
CEMS manufacturers often build multiple models of gas monitoring equipment.
If every project uses a different hose specification, purchasing and assembly become more complicated.
A repeatable specification can identify the essential mechanical and electrical parameters.
For example, an OEM part record may include:
Hose model + nominal diameter + length + set temperature + voltage + power + sensor + connector + end fittings.
This makes it easier to reproduce the same configuration for future machine production and replacement orders.
Standardization is particularly useful when equipment manufacturers supply systems to international customers with different electrical or installation requirements.
The source catalog specifically identifies infrared and ultraviolet sampling analyzers.
Both types of instrument may be used in industrial gas-analysis systems, although their sampling requirements vary according to the measured gases and analysis method.
The sampling hose should be selected so that it is compatible with the instrument's intended sample preparation and delivery arrangement.
For systems handling chemically aggressive gas samples, the exact hose inner material and its compatibility should also be confirmed during engineering review.
Jingcheng supports customized industrial heated hose assemblies rather than requiring every customer to use one fixed configuration.
Depending on project requirements, customization can cover hose dimensions, length, connections, heating parameters and electrical interfaces.
Customers may provide an existing assembly, a system drawing or detailed specifications to help establish the required configuration.
For new OEM systems, the hose can be developed around the equipment's mechanical and control interfaces.
To evaluate a heated gas sampling hose project, Jingcheng recommends confirming the following information:
Gas composition and sampling application
Required operating temperature
Working pressure or suction conditions
Hose diameter and length
Ambient installation conditions
Probe-side and analyzer-side fittings
Electrical voltage and heating power
Temperature sensor type
Electrical connector and wiring requirements
Equipment model or system drawing
If the exact electrical configuration is unknown, photographs and technical labels from the original hose can support preliminary identification.
Jingcheng specializes in PTFE hose and custom heated hose manufacturing for industrial machinery and equipment manufacturers.
The company's capabilities include internal hose production processes, heating assembly customization, fitting matching and OEM development.
For gas-monitoring equipment projects, Jingcheng can support sample development, customized specifications, engineering communication, factory-direct pricing and international supply.
A heated gas sampling hose is not simply an insulated tube installed between two monitoring components.
Its performance depends on how well it integrates into the complete gas sampling system.
The correct specification must account for the sampling method, temperature strategy, hose dimensions, fittings, electrical controls and installation environment.
Jingcheng's heated gas sampling hose provides a customizable solution for CEMS equipment, infrared and ultraviolet gas analyzers, flue gas pretreatment systems and laboratory monitoring instruments.
By defining the interfaces before production, equipment manufacturers can develop more consistent and maintainable sampling-line assemblies.
