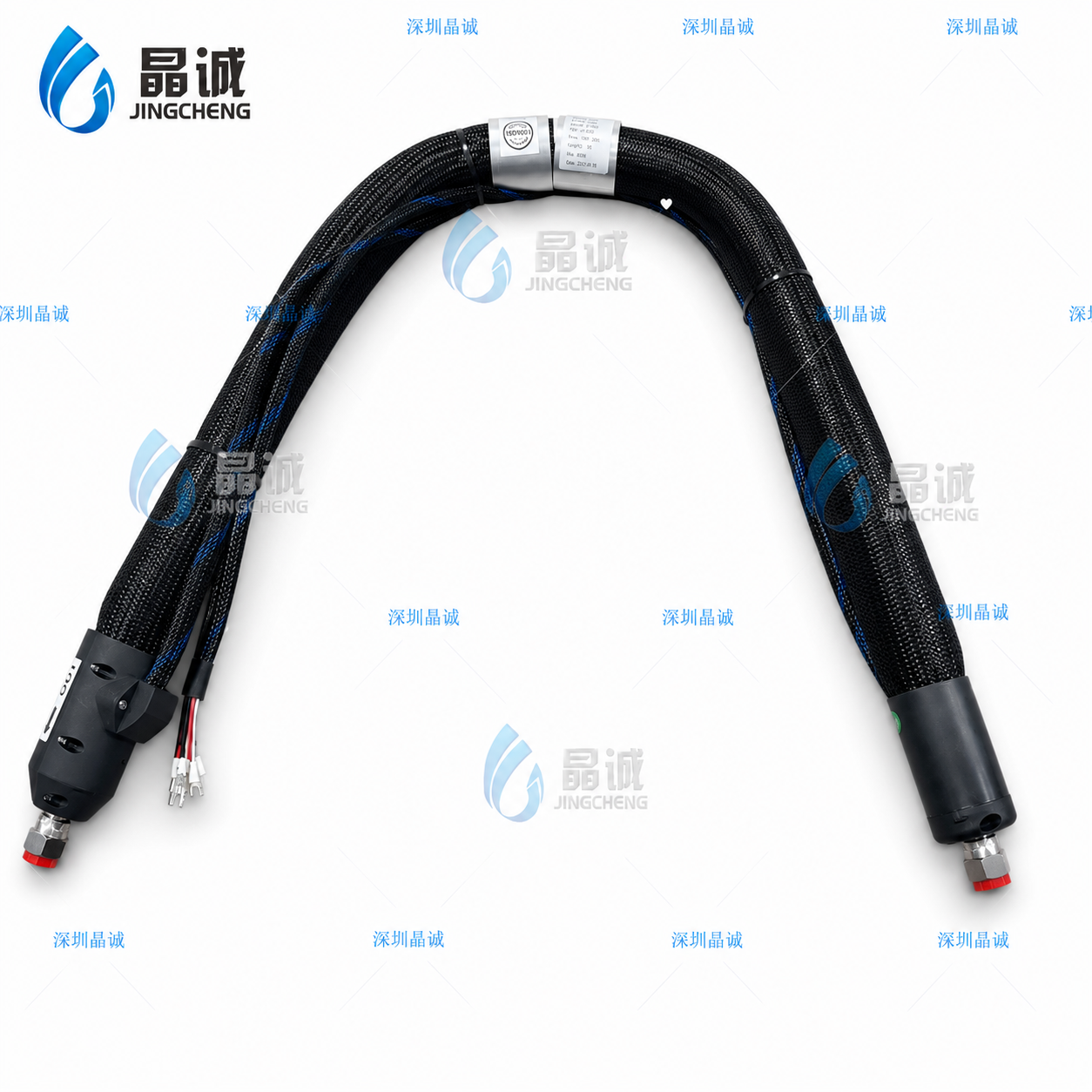

Hot Melt Adhesive Hose Selection: Why Electrical Compatibility Matters as Much as Hose Size

A replacement hot melt hose can look mechanically correct and still fail to work with the machine.

The length may be correct.

The fittings may connect.

The inner diameter may match.

But when the electrical plug is connected, the hose may:

• fail to heat,

• display an incorrect temperature,

• trigger an alarm,

• damage a control circuit,

• be rejected by the machine controller.

Why?

Because a hot melt hose is not only a fluid hose.

It is also an electrically heated and temperature-monitored machine component.

Jingcheng’s hot melt adhesive hose is designed for equipment handling materials such as:

• EVA hot melt adhesive,

• PUR adhesive,

• other heated industrial adhesive systems.

The product catalog specifies maximum temperature capability up to approximately 230°C, depending on configuration.

For replacement and OEM projects, the most important parameters include not only pressure and fittings, but also:

voltage + heating power + sensor type + electrical connector + pin definition.

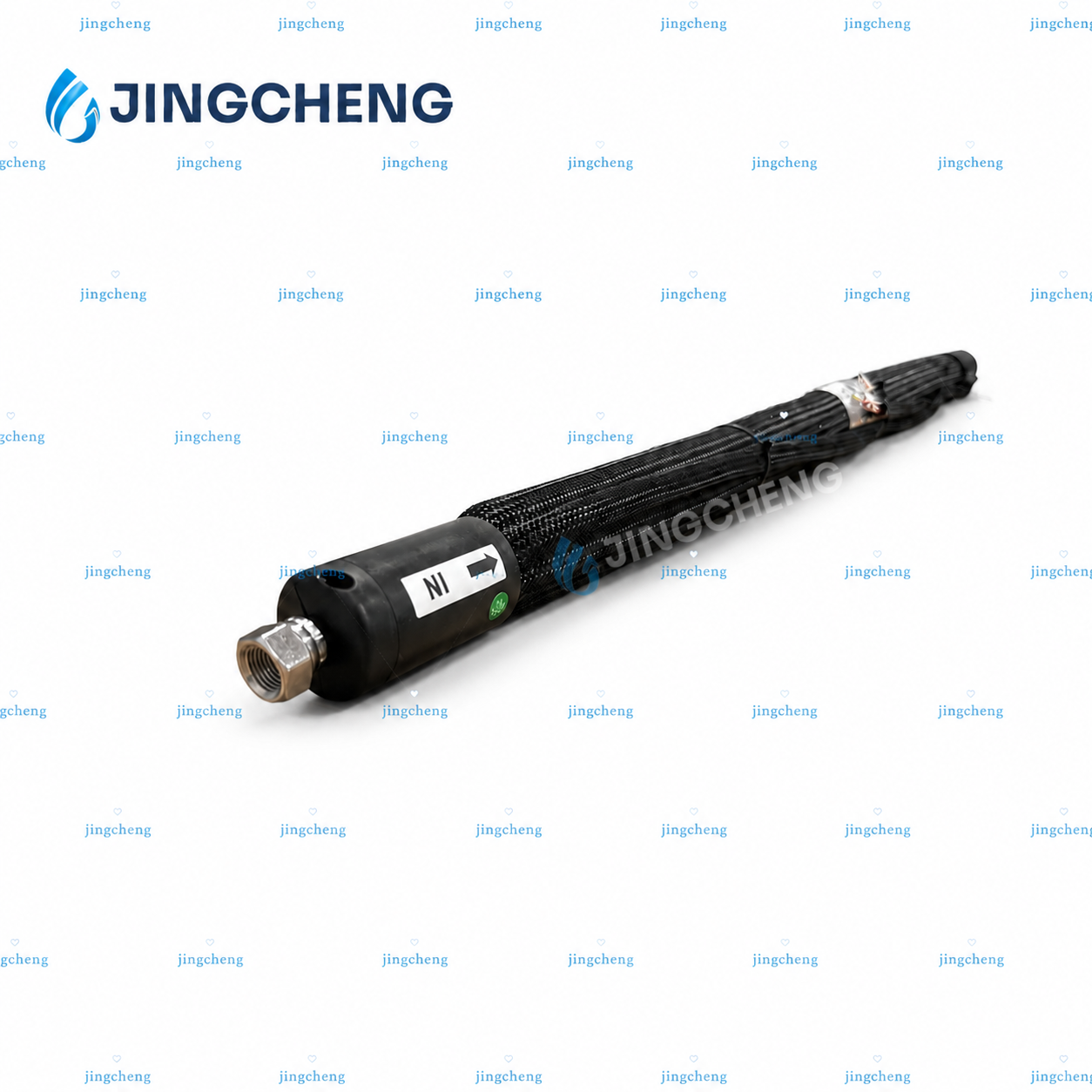

A Hot Melt Hose Is a Mechatronic Component

A conventional hose primarily carries fluid.

A heated hose performs several functions at the same time.

It contains:

• material-transfer tube,

• heating element,

• thermal insulation,

• temperature sensor,

• electrical wiring,

• power connector,

• fluid fittings.

This means it interfaces with both the fluid system and the machine control system.

Replacement therefore requires both mechanical and electrical matching.

Voltage Must Match the Machine

The heating element is designed around a particular electrical supply.

Common industrial machines may use different voltages depending on:

• equipment manufacturer,

• destination market,

• machine design.

A hose designed for one voltage should not simply be connected to another system without technical confirmation.

Incorrect voltage can affect:

• heating power,

• warm-up behavior,

• electrical load,

• component life.

Therefore, the original hose voltage should always be confirmed.

Heating Power Is Equally Important

Two hoses can use the same voltage but different heating power.

Heating power influences how quickly and effectively the hose maintains temperature.

Required wattage depends on factors such as:

• hose length,

• hose diameter,

• target temperature,

• insulation,

• ambient environment.

A replacement hose with substantially different power may behave differently even if the electrical connector physically fits.

Sensor Type Must Match the Temperature Controller

The machine needs to know the hose temperature.

This requires a temperature sensor.

Different equipment manufacturers may use different sensor technologies.

If the replacement hose uses the wrong sensor type, the controller may display:

• incorrect temperature,

• alarm condition,

• no temperature signal.

For this reason, sensor identification is a critical part of replacement hose development.

Electrical Connector Shape Is Not Enough

A common mistake is identifying a plug only by appearance.

Two connectors may look nearly identical while using different:

• pin counts,

• internal wiring,

• pin functions.

Therefore, engineers should confirm not only the connector model but also the pin definition.

For example, individual pins may be assigned to:

• heater power,

• sensor signal,

• ground,

• auxiliary functions.

Incorrect pin mapping can make an otherwise correct hose incompatible with the machine.

Cable Length Can Affect Installation

The electrical lead between hose and machine controller must also be long enough for the installation.

If the power lead is too short, the hose may physically connect to the glue system but the electrical cable cannot reach the control interface.

If it is unnecessarily long, cable management becomes more difficult.

For OEM and replacement orders, power lead length should therefore be treated as a formal specification.

Fluid Fittings Still Need to Match

Electrical compatibility does not replace mechanical compatibility.

The hot melt hose must also match:

• pump-side fitting,

• applicator-side fitting,

• thread type,

• sealing method,

• fitting angle.

A complete replacement project requires both sides to be confirmed.

Hot Melt Hose Diameter Influences Material Flow

The catalog provides several sizes from approximately:

1/4" to 1"

Selected working-pressure values include:

• 1/4" — 173 bar

• 5/16" — 158 bar

• 3/8" — 135 bar

• 1/2" — 118 bar

• 5/8" — 88 bar

• 3/4" — 85 bar

• 1" — 75 bar

The appropriate diameter depends on the actual adhesive system.

An unnecessarily small diameter may increase resistance, while an oversized hose contains more adhesive and requires more heating.

Maximum Temperature Up to Approximately 230°C

The product catalog specifies maximum temperature capability of approximately:

230°C

depending on the hose configuration.

The actual operating setpoint should be based on the adhesive manufacturer’s process requirement.

The objective is not to run at the highest temperature possible.

The goal is to maintain the adhesive at the correct application condition.

Compatible with Different Hot Melt Equipment Platforms

The product description identifies applications involving several types of hot melt adhesive machines, including PUR systems.

Hot melt equipment manufacturers may use different:

• connectors,

• voltages,

• sensors,

• fitting standards.

This makes customized replacement matching particularly important.

Replacement Projects Should Begin with the Original Hose

When the full technical specification is unavailable, the original hose can provide valuable information.

Useful details include:

• machine brand,

• machine model,

• hose label,

• hose length,

• fittings,

• electrical connector,

• connector pin count,

• sensor information.

Clear photographs can help preliminary identification.

For technically sensitive projects, electrical parameters should be confirmed before production.

One Plug Does Not Mean One Universal Standard

Industrial customers sometimes assume that a connector used by one hot melt machine can be reused on another.

This is risky.

A plug family may support multiple wiring configurations.

Therefore, matching should include:

connector model + wiring + pin assignment + sensor.

This is much more reliable than matching only by visual appearance.

OEM Manufacturers Can Standardize Heated Hose Interfaces

For equipment manufacturers, standardizing the hot melt hose interface can simplify long-term production.

An OEM specification may define:

• hose diameter,

• standard length,

• voltage,

• heating power,

• sensor,

• connector,

• pin configuration,

• fittings.

Once defined, the same specification can be used for:

• production,

• spare parts,

• after-sales service.

This can reduce future replacement errors.

What Information Should Be Provided?

For accurate hot melt hose selection, please provide:

• adhesive type,

• working temperature,

• working pressure,

• hose length,

• inner diameter,

• voltage,

• heating power,

• sensor type,

• power lead length,

• connector model,

• pin definition,

• pump-side fitting,

• gun or applicator-side fitting,

• machine brand and model.

If some information is unavailable, photographs of the original hose and connector can be used as an initial reference.

Why Choose Jingcheng

Jingcheng manufactures customized heated hose assemblies for industrial adhesive equipment.

Capabilities include:

• custom hose length,

• custom fittings,

• voltage customization,

• power customization,

• sensor matching,

• connector customization,

• OEM development,

• replacement hose matching,

• sample support,

• factory-direct production.

Conclusion

Replacing a hot melt adhesive hose is not simply a matter of matching diameter and length.

The hose is connected to both the adhesive-delivery system and the machine’s electrical control system.

A successful replacement must therefore match:

temperature + pressure + fittings + voltage + wattage + sensor + connector + pin definition.

For EVA, PUR and other industrial hot melt systems, confirming these parameters before manufacturing can prevent many common replacement problems.

Jingcheng provides customized hot melt hose assemblies designed around both the mechanical and electrical interfaces of the equipment.
